Voltage |
AC 380V |
|
Max Flow |
48m³/h |
|
Max Head |
46m |
|
Communication |
PWM |
|
Power |
5500W |
|
IP Class |
IP55 |
|
Connector |
Chuck |
Item NO.:
AWZ65-40-200Advanced Hydraulic Design: Engineered for optimal flow and pressure control using 3D impeller and hydraulic simulation technology.
Wet Rotor System: Ensures quiet, efficient operation with minimal wear and reduced energy loss.
Energy Efficiency: Custom-designed motor with high-efficiency simulation delivers superior performance and reduced power consumption.
Long Service Life: Maintenance-free design with no mechanical seal, eliminating leakage and reducing downtime over the pump’s lifetime.
Modern Aesthetics: New-generation family design with classic color scheme—blending high performance with refined industrial style.
Media requirements
|
Medium: water or water + glycol (≤ 50%) mixture |
Medium temperature : -35℃~55℃ |
|
PH value of medium ：6.5-8.5 |
Medium hardness ：25°dH |
|
Content of solid impurities in medium: diameter and length direction of solid impurities ≤ 0.1mm, and volume ratio ≤ 0.1%. |
|
Service environment requirements
|
Usage: keep the shaft horizontal |
Altitude: ≤ 2000m |
|
Operating ambient temperature: -35℃ ∼ 55℃ (there is no freezing in the pipeline and water pump) |
Operating ambient humidity≤95% |
Storage environment requirements
|
Storage ambient temperature: -35 ℃ ∼60℃ (there is no freezing in the pipeline and water pump) |
Humidity of storage environment: ≤95% |

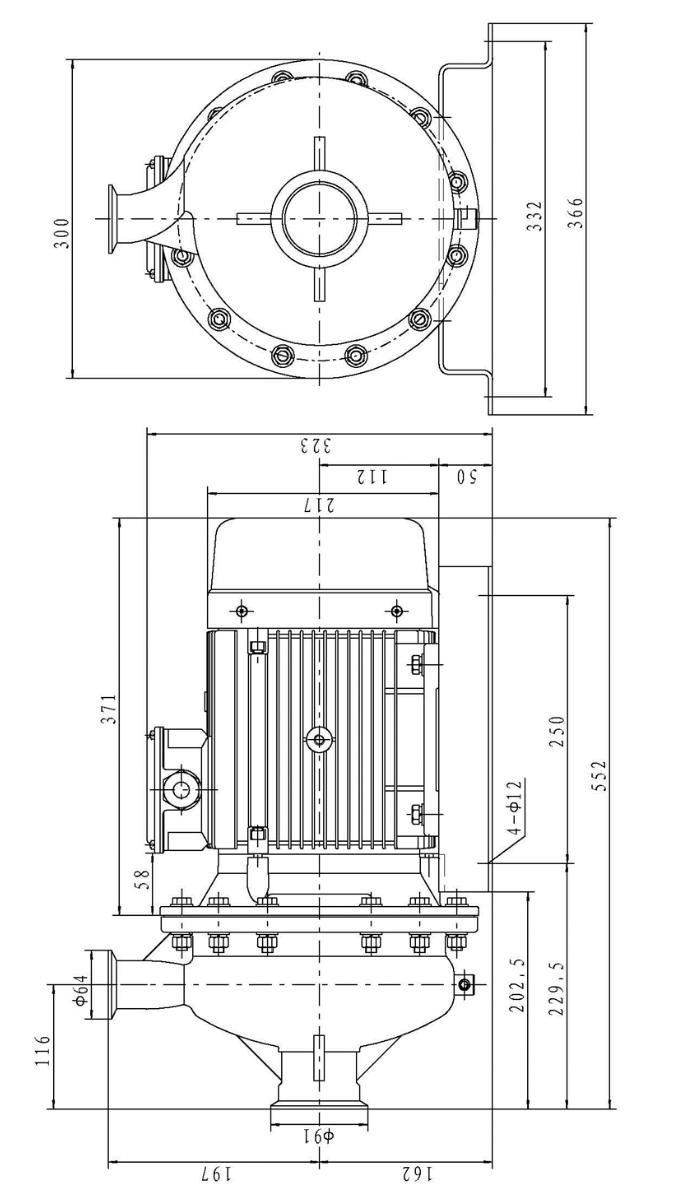

Installation Drawing
