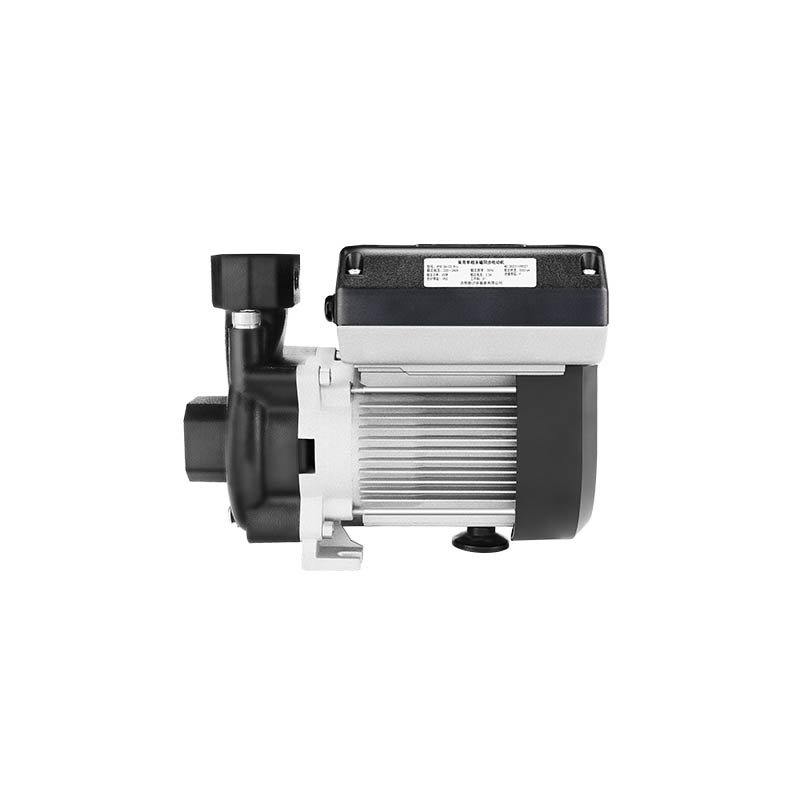

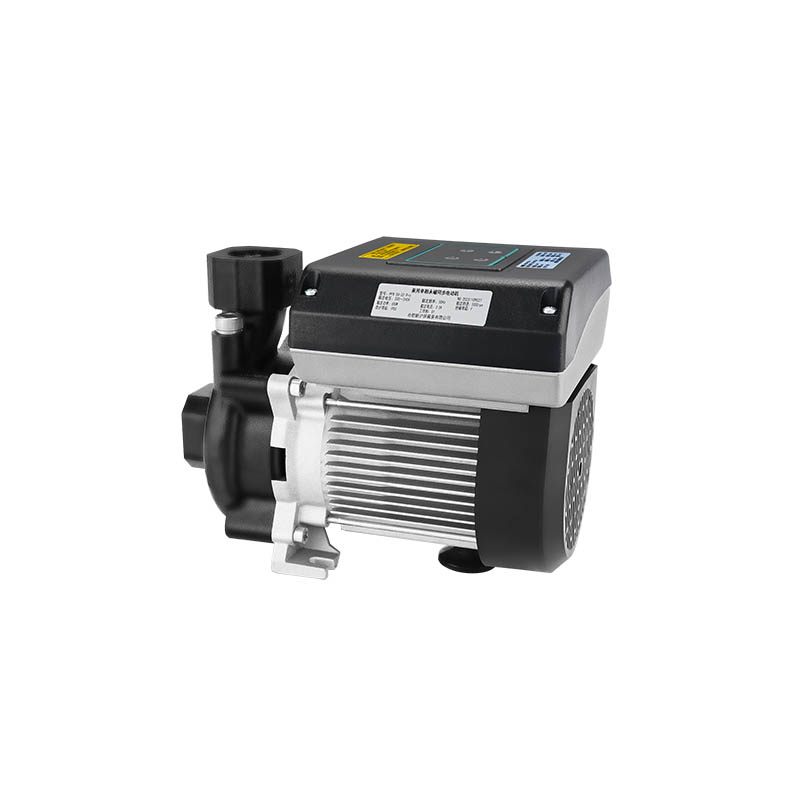

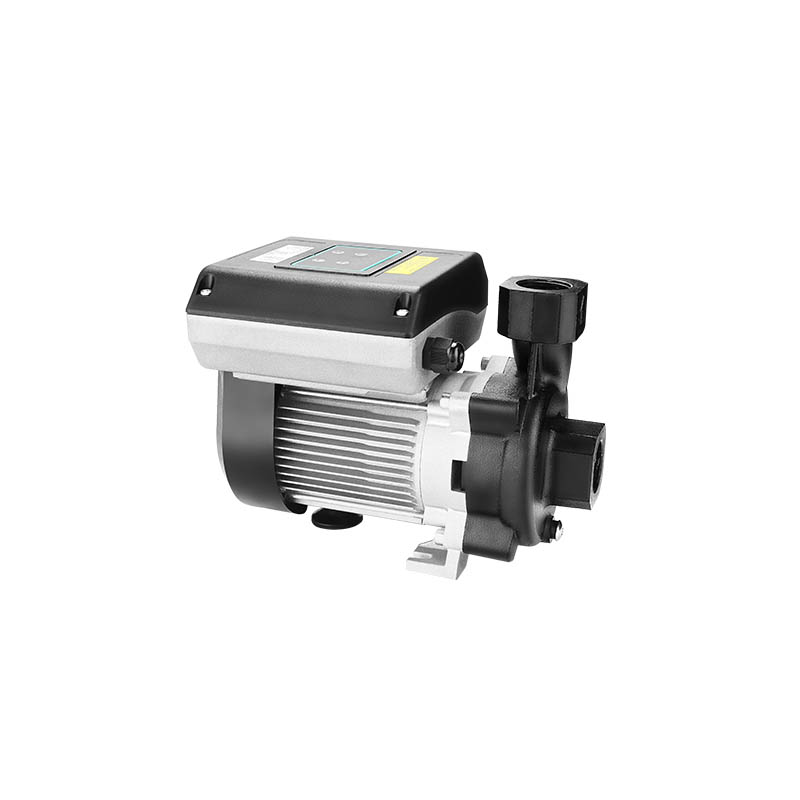

Max Flow |
8.5m³/h |
|
Rated Flow |
6m³/h |
|
Pressure |
1.0MPa |
|
Max Input Power |
700W |
|
Max Head |
28m |
|
Rated Head |
22m |
|
Insulation |
IP55 |
|
Weight |
6kg±5% |
|
Noise index |
＜60dB(A)(Max flow) |
|
Voltage |
AC 220~240V/50Hz |
|
Max Rotation Speed |
5000rpm |
Item NO.:
PFB 06-22 Pro1. Air asource heat pump systems
2. Solar heating systems
3. Domestic hot water system
1. The inside of the pump body adopts special coating, which is not easy to rust;
2. Large flow, compact structure design;
3. Environmental protection, beautiful appearance, convenient installation and reliable operation.
Motor Type
|
Motor type: permanent magnet synchronous motor |
Enameled wire material: copper |
Magnet material: NdFeB |
|
Motor DC cold state resistance at 20°C: 3.77±5%Ω |
Insulation class: F |
|
Medium
|
Medium: water or glycol(≤50%) mixed liquid |
Medium Temperature: 0℃～90℃ |
Medium PH Value：6.5～8.5 |
|
Medium Hardness：≤25°dH |
Solid impurity : the diameter and length are ≤0.1mm, the volume ratio is ≤0.1% |
|

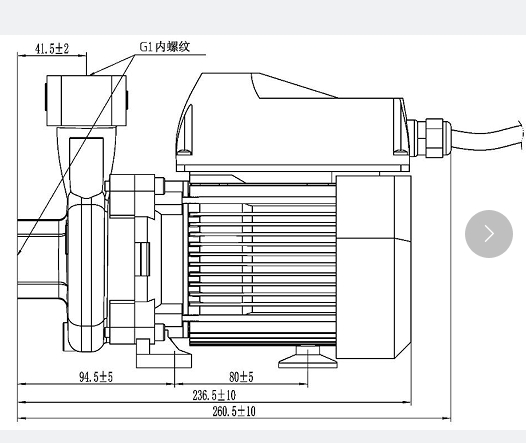

Installation Drawing
Performance Curve
This performance curve is suitable for clean water at room temperature. If the pump is used for non-clean water media, the hydraulic performance of the pump will be reduced. Therefore, the characteristics of the liquid to be transported must be considered when choosing a pump.

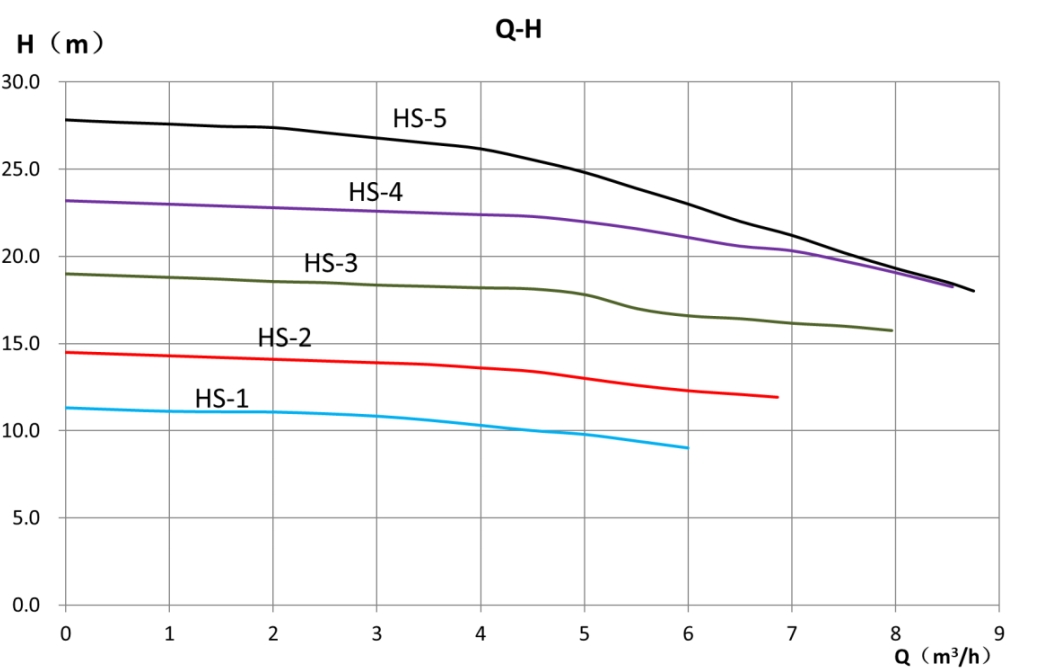

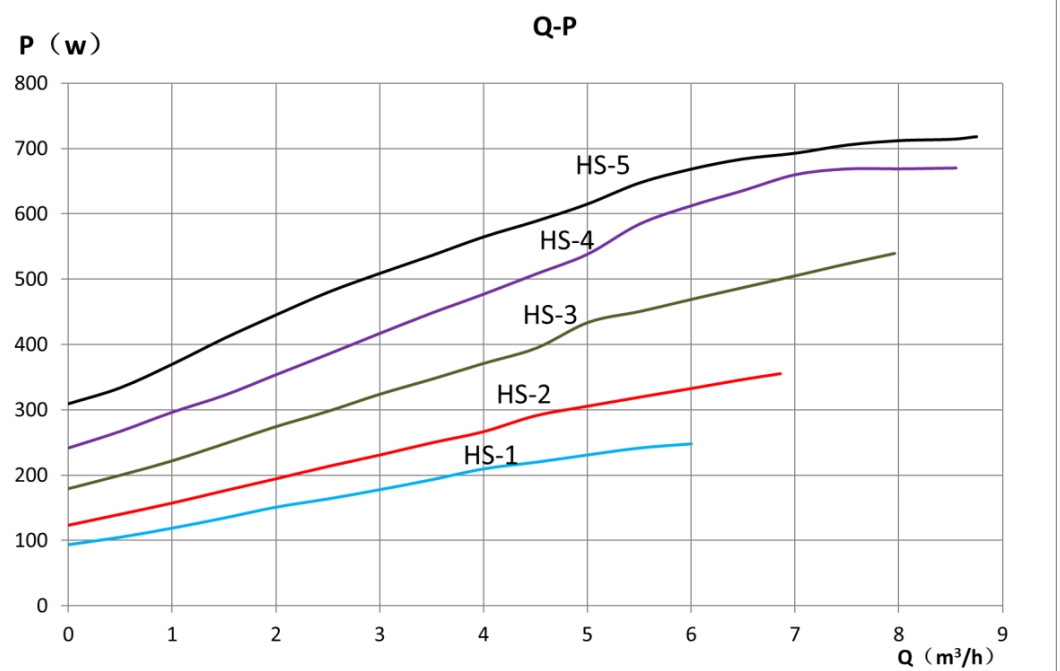

Constant speed mode (HS mode) performance curve

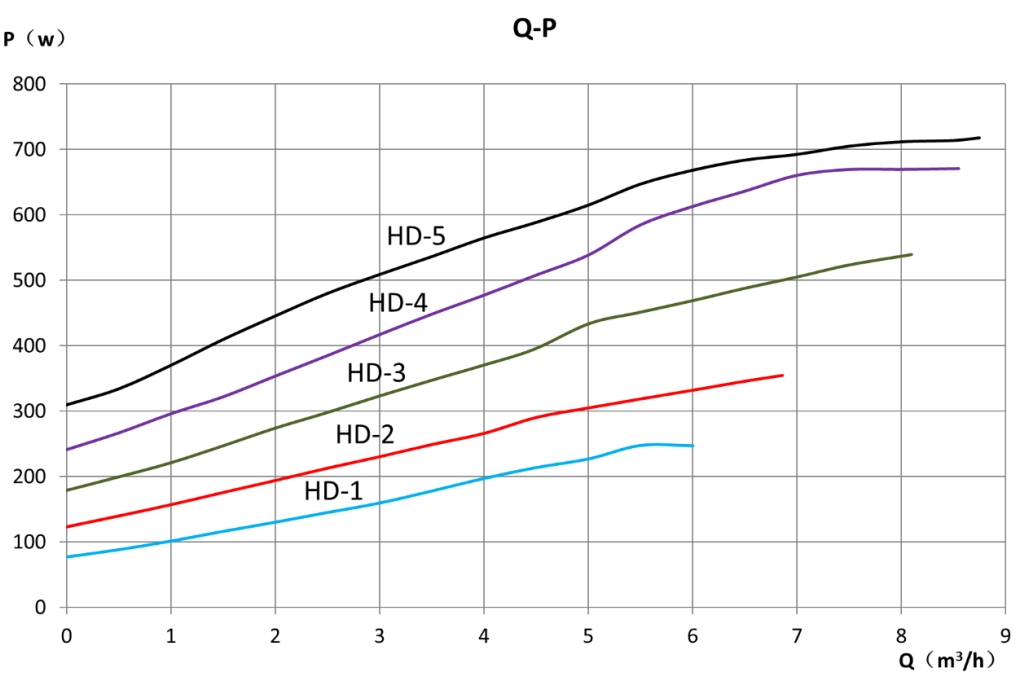

Constant voltage mode (HD mode) performance curve

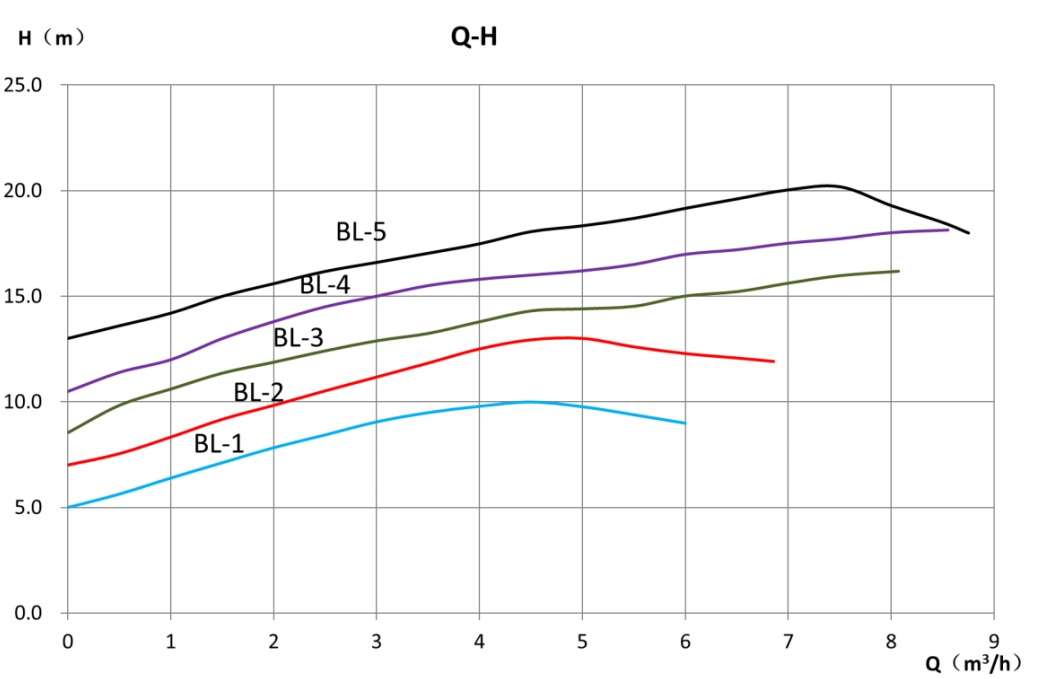

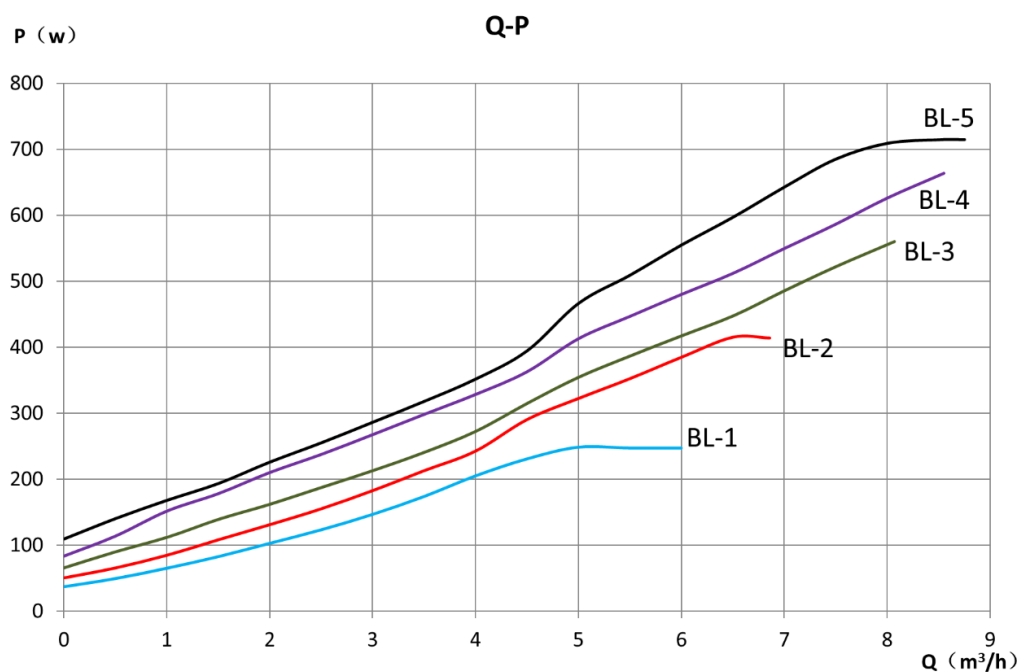

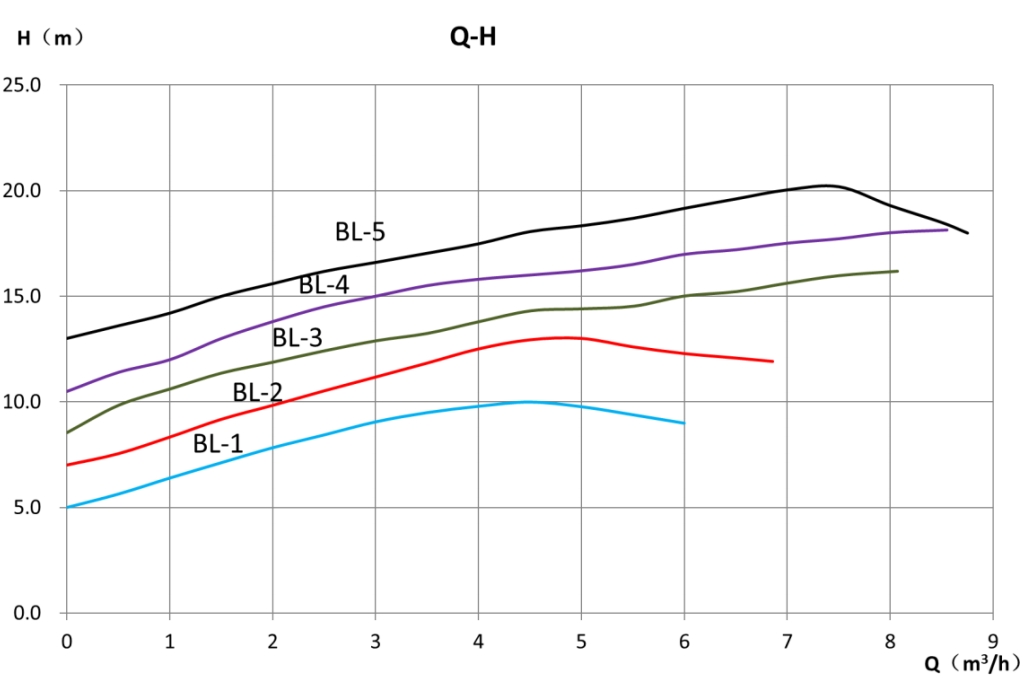

Proportional mode (BL mode) performance curve
Tags :
Rated voltage AC 220V Maximum flow 14m³/h Rated flow 8m³/h Max speed 3600rpm Maximum head 58 m Rated head 36m Frequency 50Hz Maximum power 1800 W System pressure 1.0MPa Standby power ≤6W
Model Master SD 20-7.5 130 Maximum flow (m³/h) 3.6 Maximum head (m) 7.5 EEI EEI≤0.20-Part2 Rated voltage 220-240V AC Rated current 0.5 A Frequency 50/60Hz Maximum power 60 W Design pressure 1.0MPa Noise ≤42dB(A) IP class IP44 Insulation class H
Power supply voltage 220-240V 50/60Hz, PE Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max. 95% System pressure 1.0 MPa Compliance CE/ GS/ EMC/ LVD/RoHS/REACH Environment temperature 0～+40℃ Temperature class TF110 Liquid temperature -30～+110℃ (Glycol up to 50%)
Max. Flow 12 gpm Max. Head 39 feet Supply voltage 110 V Liquid temperature from 2 to +60 °C Ambient temperature from 2 to +40 °C Max. operating pressure 6 bar Connection of PROMO 15-12A G 3/4"
Rated voltage 380V Rated head 32m Rated flow 16m³/h Maximum head 48m Maximum flow 23m³/h Insulation class F Design pressure 10bar Vibration ＜2.8mm/s Protection clas IP54 Frequency 50Hz Rated current 4.52A Rated power 2200W Noise ＜63dB(A) Maximum power 3100W
Power supply voltage 220~240V 50/60Hz, AC Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max. 95% System pressure 1.0 MPa Compliance CE/ GS/ EMC/ LVD/RoHS/REACH Environment temperature 0～+40℃ Temperature class TF110 Liquid temperature -30～+110℃(Glycol up to 50%)
Maximum flow 10 m³/h Maximum head 12m Rated flow 5.5m³/h Rated head 7.5m Rated voltage AC 220-240V Rated current 1.2A Frequency 50/60Hz Maximum power 230 W Design pressure 1.0MPa Noise ＜40dB(A) Standby power ≤4W Degree of protection IP44 Surge current ＜10A Speed 1000～4900rpm Temperature class TF110 Weight of bare pump with wire 5kg±5%
Model Master SD 20-5 130 Maximum flow (m³/h) 2.8 Maximum head (m) 5.0 EEI EEI≤0.20-Part2 Rated voltage 220-240V AC Rated current 0.5 A Frequency 50/60Hz Maximum power 33 W Design pressure 1.0MPa Noise ≤42dB(A) IP class IP44 Insulation class H
Power supply voltage 220-240V 50/60Hz, PE Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max. 95% System pressure 1.0 MPa Compliance CE/ GS/ EMC/ LVD/RoHS/REACH Environment temperature 0～+40℃ Temperature class TF110 Liquid temperature -30～+110℃ (Glycol up to 50%) Voltage/ Frequency 230V/50HZ Pump housing Cast iron Energy(EEI) ≤0.23-Part2
Enclosure class IPX4D (EN 60529) Insulation class H Supply voltage 1 × 230 V ± 10 % 50 Hz, PE Digital input PWM 0–10 V Analog input 4–20 mA. 0–10 W direct current Connection bus input Modbus RTU Leakage current Leakage < 3.5 mА. Leakage current is measured in accordance with EN 60335-1 EMC Standards applied: EN61000-3-2, EN61000-6-3, EN61800-3-3, EN55014-1 and EN55014-2
Rated Power 95W Max.flow 4.5m³/h Max head 9m Rated Current 0.9A Voltage/ Frequency 230V 50HZ/60HZ Pump housing Cast iron Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range -30-95℃ Energy(EEI) ≤0.21-Part3 Max System Pressure 1.0MPa
Max Flow 6.6gpm Max Head 39 feet Max Input Power 45 W Max Efficiency 23% Voltage DC 24V Insulation Class H Noise ＜42dB(A) Protection Level IP44
