Voltage |
AC 270V |
|
Max Flow |
4.8m³/h |
|
Max Head |
20m |
|
Communication |
PWM |
|
Power |
350W |
|
IP Class |
IP67 |
|
Connector |
Chuck |

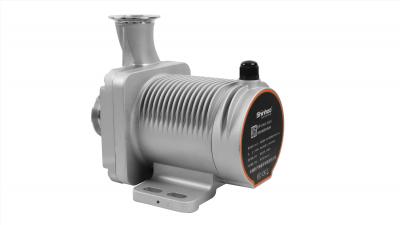

Item NO.:
EPA 25-20ZAXHigh Reliability: Maintenance-free, no wear-prone parts
Compact Permanent Magnet Synchronous Motor: Small, easy to install and operate
Corrosion-Resistant: Durable in harsh environments
CAN/RS-485 Optional: Flexible communication options
Integrated Cable: Simplified one-piece wiring
Built-in Protection: Overvoltage, undervoltage, and overcurrent safeguards
Standard Thread: Universal, easy installation
Variable Frequency: High efficiency and energy saving
Media requirements
|
Medium: water or water + glycol (≤ 50%) mixture |
Medium temperature : -40℃~100℃ |
|
PH value of medium ：6.5-8.5 |
Medium hardness ：25°dH |
|
Content of solid impurities in medium: diameter and length direction of solid impurities ≤ 0.1mm, and volume ratio ≤ 0.1%. |
|
Service environment requirements
|
Usage: keep the shaft horizontal |
Altitude: ＜ 4000m |
|
Operating ambient temperature: -40 ℃ ∼ 110 ℃ (there is no freezing in the pipeline and water pump) |
Operating ambient humidity≤95% |
Storage environment requirements
|
Storage ambient temperature: - 40 ℃ ∼ 125 ℃ (there is no freezing in the pipeline and water pump) |
Humidity of storage environment: ≤95% |
Installation Drawing
