Power Supply Voltage |
115V +6%/-10%，60Hz，PE
|
|
Motor Protection
|
the pump needs no external protection
|
|
Degree of Protection
|
IP42
|
|
Insulation Class
|
H
|
|
Relative Humidity（RH）
|
Max. 95%
|
|
System Load Bearing
|
1.0 MPa |

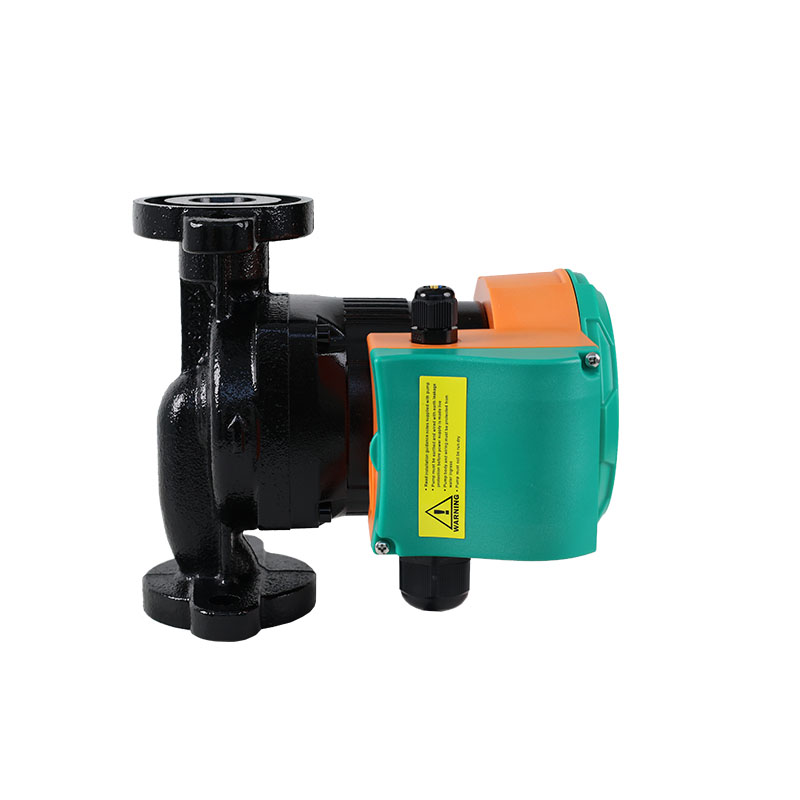

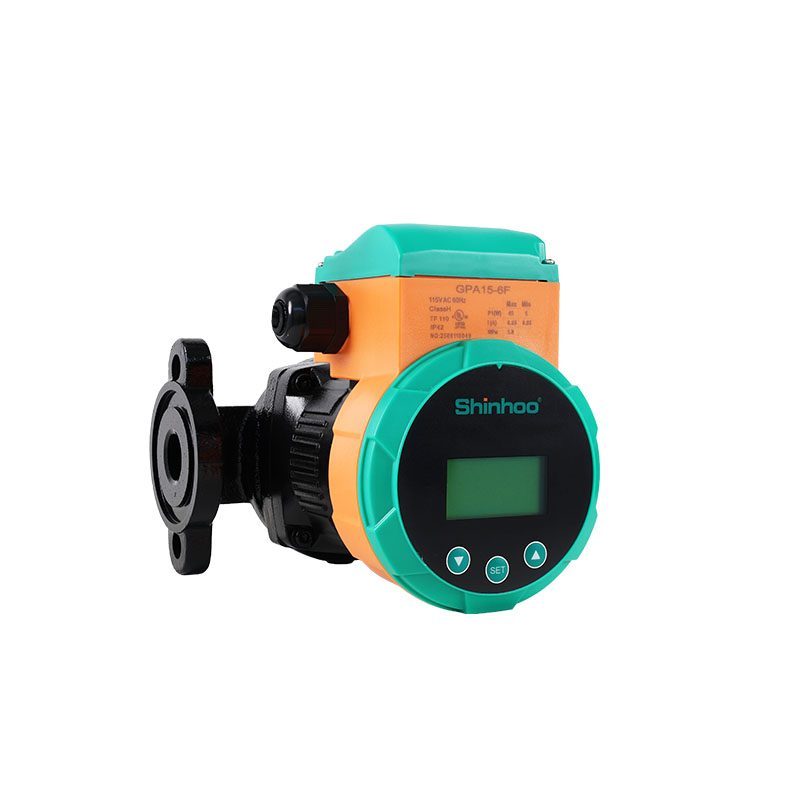

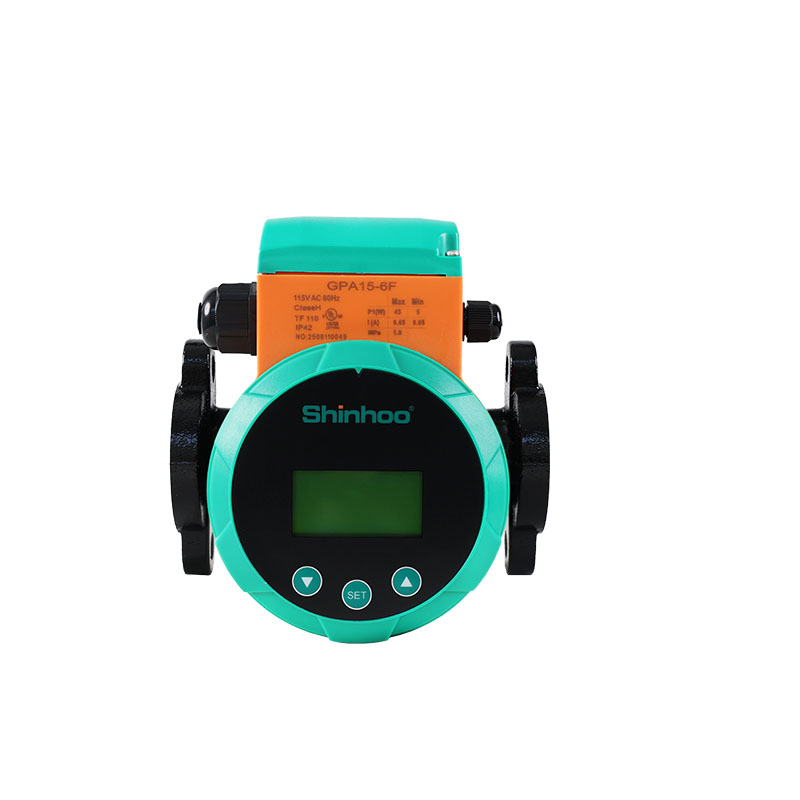

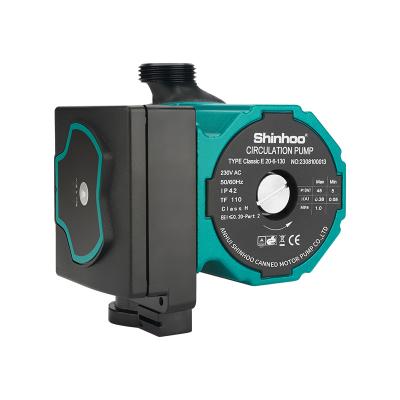

Item NO.:
GPA 15-6FGoods Stock:
1It is mainly used in domestic heating and water circulation of domestic hot water system.
The product is most applicable to the following systems:
This pump is equipped with permanent-magnet motor and differential pressure controller, capable of automatically & continuously adjusting motor performance to meet the actual needs of system.
Easy installation and start-up
In most cases, the motor pump needs no adjustment and can be readily started and automatically adjusted to meet the actual needs of the systems.
High-degree comfort
Low operational noise of motor pump and whole system.
Low energy consumption
The pump has lower energy consumption comparing with conventional Pump. The minimum energy consumption downs to 5W.
Operating Conditions
Ambient Temperature
Ambient temperature: 0℃～+40℃
Relative humidity（RH）:
Max. humidity: 95%
Medium (liquid delivery) temperature
To avoid condensation in control box and the stator, the temperature of liquid pumped by the motor pump must be always higher than ambient temperature.
System Pressure
Maximum pressure 1.0MPa(10bar).
Degree of Protection
IP42
Inlet Pressure

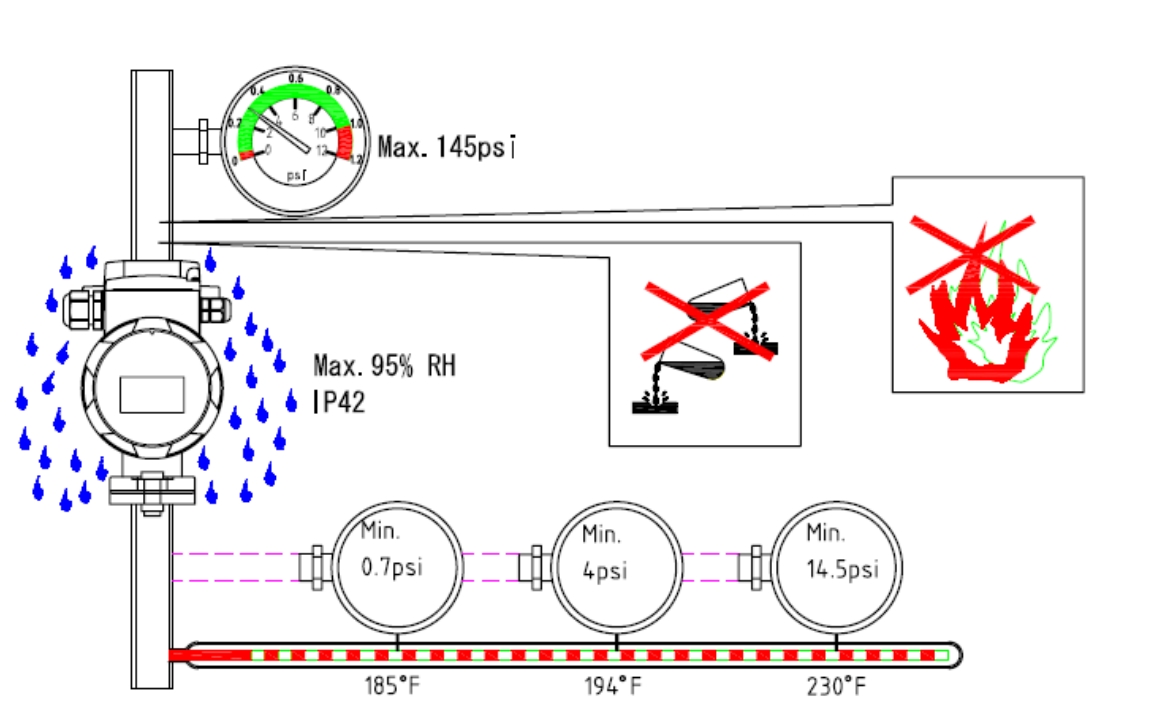

To avoid damage to pump bearing due to cavitation noise, the pump inlet shall maintain the following minimum pressure:
|
Liquid Temperature
|
＜85℃
|
90℃
|
110℃
|
|
Inlet Pressure
|
0.05bar
|
0.28bar
|
1bar
|
|
0.5m head
|
2.8m head
|
10m head
|
Pumping Liquid
The pumping liquid includes thin, clean, non-corrosive and non-explosive liquid which shall not contain any solid particles, fiber or mineral oil, and the pump must definitely not be used to pump inflammable liquid such as rapeseed oil and gasoline. If the circulating pump is used in a place with relatively high viscosity, the pump has lower performance. So when choosing a pump, the viscosity of liquid must be taken into account.
 |
|

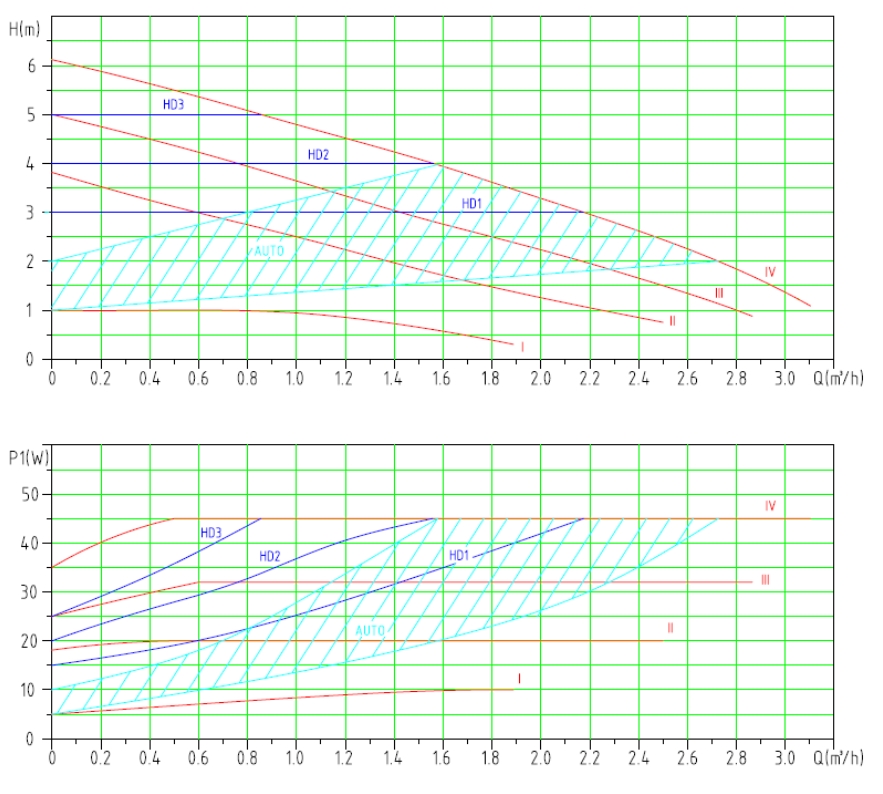

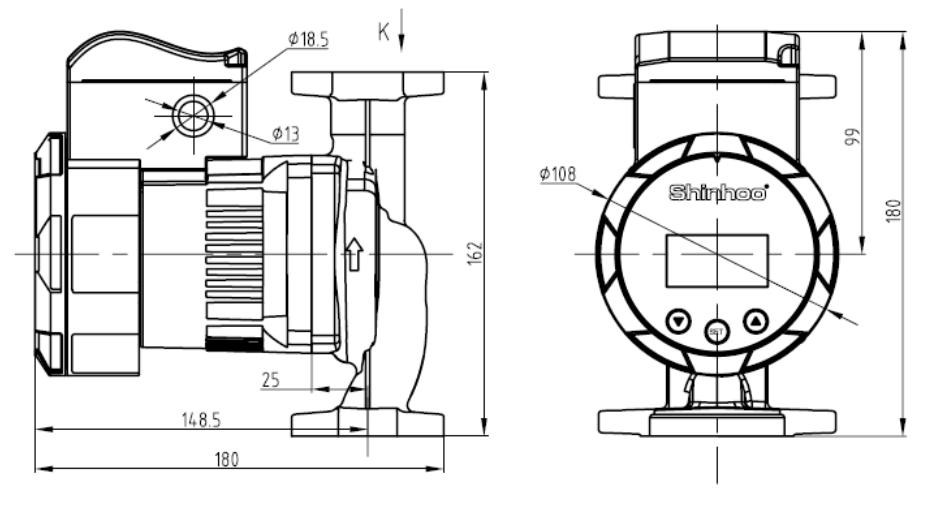

Installation Dimensions
Tags :
Max Flow 6.6gpm Max Head 39 feet Max Input Power 45 W Max Efficiency 23% Voltage 220V Insulation Class H Noise ＜42dB(A) Protection Level IP44
Power supply voltage 230V 50/60Hz, PE Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max. 95% System pressure 1.0 MPa Compliance CE/ GS/ EMC/ LVD/RoHS/REACH Environment temperature 0～+40℃ Temperature class TF110 Liquid temperature 2～+110℃
Model Basic 25-16 Power 700W Max.flow 10.5m³/h Max head 16m Current 3.4A Voltage/ Frequency 230V 50HZ Pump housing Cast iron Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Enclosure class IPX4D (EN 60529) Insulation class H Supply voltage 1 × 230 V ± 10 % 50 Hz, PE Digital input PWM 0–10 V Analog input 4–20 mA. 0–10 W direct current Connection bus input Modbus RTU Leakage current Leakage < 3.5 mА. Leakage current is measured in accordance with EN 60335-1 EMC Standards applied: EN61000-3-2, EN61000-6-3, EN61800-3-3, EN55014-1 and EN55014-2
Power supply 220V, 50Hz single-phase AC Maximum system pressure ≤0.3MPa Insulation class B Protection level IPX5 Ambient temperature during work within the range of 0°C to 50°C The temperature of the conveying liquid within the range of 5°C to 50°C Delivery liquid clear water
Power supply 220V, 50Hz single-phase AC Maximum system pressure ≤0.3MPa Insulation class B Protection level IPX5 Ambient temperature during work within the range of 0°C to 50°C The temperature of the conveying liquid within the range of 5°C to 50°C Delivery liquid clear water
Power supply voltage 220V~240V,AC,Protective earth Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max 95% System pressure 1.0 Mpa Compliance EMC/RoHS/REACH/TUV/CE/EEI Environment temperature -30℃~55℃ Temperature class TF 95 Liquid temperature 2~+95℃ Connection/Unions Shinhoo Standard/ Molex/TE
Model Basic 20-5S/Basic 20-5SB/Basic 20-5SN/Basic 20-5SQ/Basic 20-5SP Power 85/60/40W Max.flow 2.8m³/h Max head 5m Current 0.4/0.3/0.22A Voltage/ Frequency 115/230V 50/60HZ Pump housing cast iron, stainless steel body(N) ,copper body(B) ,Bronze(Q) and Plastic (P) Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Power supply voltage 220-240V 50/60Hz, PE Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max. 95% System pressure 1.0 MPa Compliance CE/ GS/ EMC/ LVD/RoHS/REACH Environment temperature 0～+40℃ Temperature class TF110 Liquid temperature -30～+110℃ (Glycol up to 50%) Voltage/ Frequency 230V/50HZ Pump housing Cast iron Energy(EEI) ≤0.23-Part2
Power supply voltage 220-240V 50/60Hz, PE Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max. 95% System pressure 1.0 MPa Compliance CE/ GS/ EMC/ LVD/RoHS/REACH Environment temperature 0～+40℃ Temperature class TF110 Liquid temperature -30～+110℃ (Glycol up to 50%) Voltage/ Frequency 230V/50HZ Pump housing Cast iron Energy(EEI) ≤0.23-Part2
Power supply voltage 220V~240V,AC,Protective earth Motor protection No external protection required IP class IP67 Insulation class H Humidity(RH) Max 95% System pressure 1.0 Mpa Compliance EMC/RoHS/REACH/TUV/CE/EEI/CCC Environment temperature -30℃~55℃ Temperature class TF 95 Liquid temperature -20~+95℃ Connection/Unions Molex/TE
Power supply voltage 220~240V,AC,Protective earth Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max 95% System pressure 1.0 Mpa Compliance EMC/RoHS/REACH/TUV/CE/EEI/CCC Environment temperature -30℃~55℃ Temperature class TF 95 Liquid temperature -20℃~+95℃ Connection/Unions Molex/TE
