Rated voltage |
AC 220-240V |
|
Maximum flow |
15.5m³/h |
|
Rated flow |
11m³/h |
|
Frequency |
50/60Hz |
|
Rated current |
1.8A |
|
Maximum head |
12 m |
|
Rated head |
7 m |
|
Input power |
400 W |
Item NO.:
Mega S 32-12F ProHeating Systems: Efficient circulation solutions for residential and commercial heating.
Domestic Hot Water Circulation: Reliable and energy-saving performance for household hot water supply.
Air Conditioning & Cooling Systems: Stable operation to ensure comfort and optimal climate control.
Ground Source Heat Pump Systems: High adaptability for sustainable and energy-efficient heating and cooling.
Solar Thermal Systems: Supporting renewable energy utilization with reliable circulation technology.
12 Control Modes & 15 Protection Functions| (Temperature Control / ΔT Control / 0-10V / 4-20mA /PWM / 485/LIN/CANCommunication Control)
Noise ≤45dB(A)
TFT LCD Display
High Efficiency & Energy Saving
Compliance & Certifications
TÜV, CE, EMC
RoHS, REACH
EEI ≤ 0.23 (Part 2 / Part 3)
Explosion-Proof Standards
|
Design pressure:：1.0MPa |
Speed：1000～3950rpm |
Standby power consumption：≤5W |
|
IP Class：IPX4D |
Surge current：＜10A |
Temperature class：TF110 |
|
Weight of bare pump with wire：13 kg |
Noise Index：＜45dB（A） |
Rotation: Clockwise viewed from impeller inlet |
|
Motor type: permanent magnet synchronous motor |
Enamelled wire material: copper |
Magnetic steel material: neodymium iron boron |
|
Insulation level ：H |
DC cold resistance of motor at 20 ℃：5.54±5%Ω |
|
Media requirements for use
|
Medium used: water or a mixture of water and ethylene glycol (≤ 50%) |
Medium water temperature: -10℃~110℃ |
|
Medium pH value: 6.5~8.5 |
Medium hardness: 25° dH |
|
Solid impurity content in the medium: The diameter and length direction of solid impurities are ≤ 0.1mm, and the volume ratio is ≤ 0.1%. |
|
Environmental requirements for use
|
Usage: Keep the axis horizontal |
Altitude: ＜ 1000m |
|
Operating environment temperature: 0 ℃~40 ℃ (There is no freezing phenomenon in the pipeline and circulating pump) |
Operating environment humidity ≤ 95% |
Storage environment requirements
|
Storage environment temperature: -30℃~70℃(There is no freezing phenomenon in the pipeline and circulating pump) |
Storage environment humidity ≤ 95% |

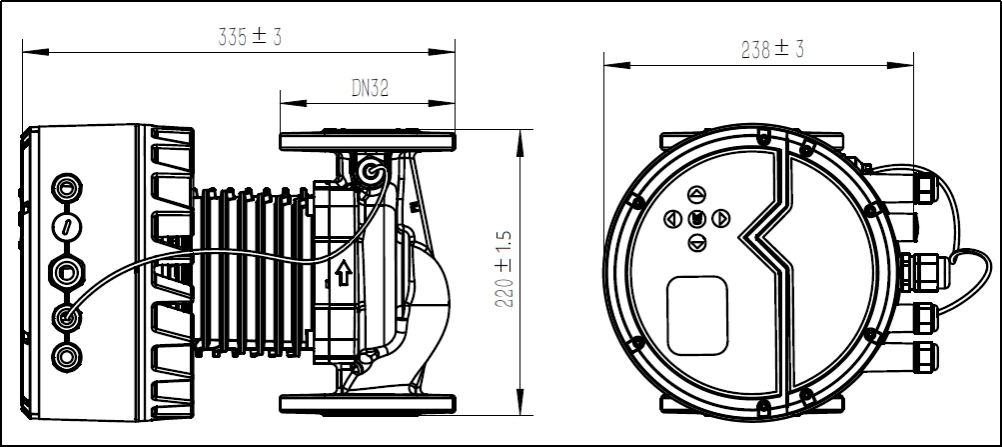

Installation Drawing
