Rated voltage |
AC 220V |
|
Maximum flow |
14m³/h |
|
Rated flow |
8m³/h |
|
Max speed |
3600rpm |
|
Maximum head |
58 m |
|
Rated head |
36m |
|
Frequency |
50Hz |
|
Maximum power |
1800 W |
|
System pressure |
1.0MPa |
|
Standby power |
≤6W |

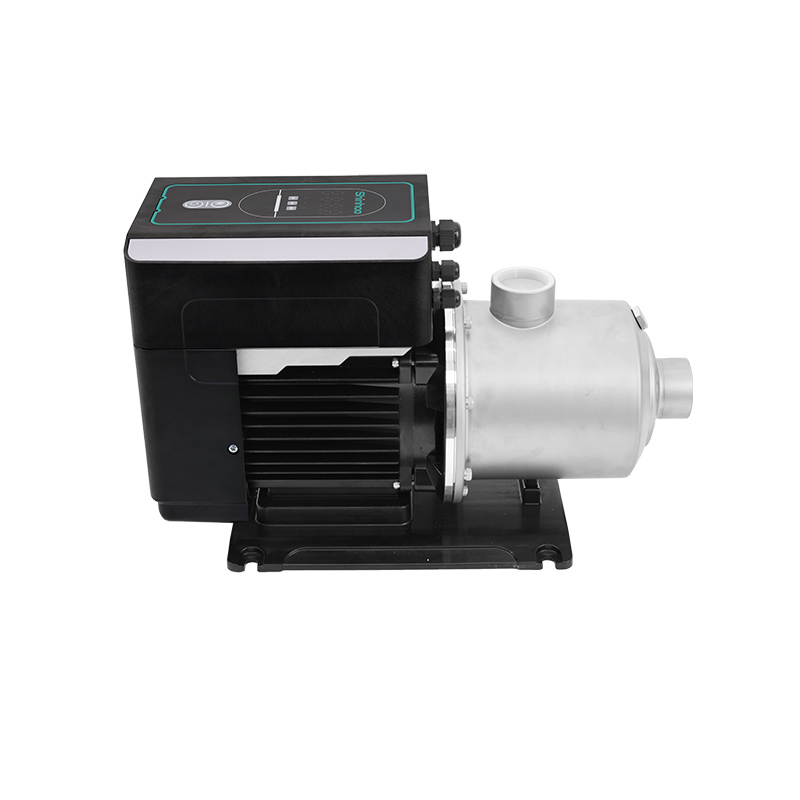

Item NO.:
PFM 08-36Commercial water booster
Domestic groundwater intake
Domestic water supply booster
1. The inside of the pump body adopts special coating, which is not easy to rust;
2. Large flow, compact structure design;
3. Environmental protection, beautiful appearance, convenient installation and reliable operation.
Motor type
|
Motor type: permanent magnet |
Enameled wire material: copper
|
Magnet material: NdFeB
|
|
|
DC cold resistance under motor 20℃: 3.77±5%Ω |
Insulation grade: H
|
||
Use of media requirements
|
Medium: Clear water or glycol (≤50%) mixed liquid |
Medium water temperature: -20℃～90℃ |
|
|
Medium PH value: 6.5～8.5 |
Medium hardness: ≤25°dH |
|
|
The content of solid impurities in the medium: solid impurities ≤ 0.1mm in diameter and length direction, and volume ratio ≤ 0.1%. |
||
Environmental requirements for use
|
Usage:Shaft is kept level, Pump inlet position must not be higher than the liquid level |
Altitude: <1000m |
|
Operating ambient temperature: -20℃～55℃(No freezing in the pipeline and pump) |
Use environment humidity≤95% |
Storage environment requirements
|
Storage ambient temperature: -20℃～60℃(No freezing in the pipeline and pump)
|
Storage environment humidity ≤95% |

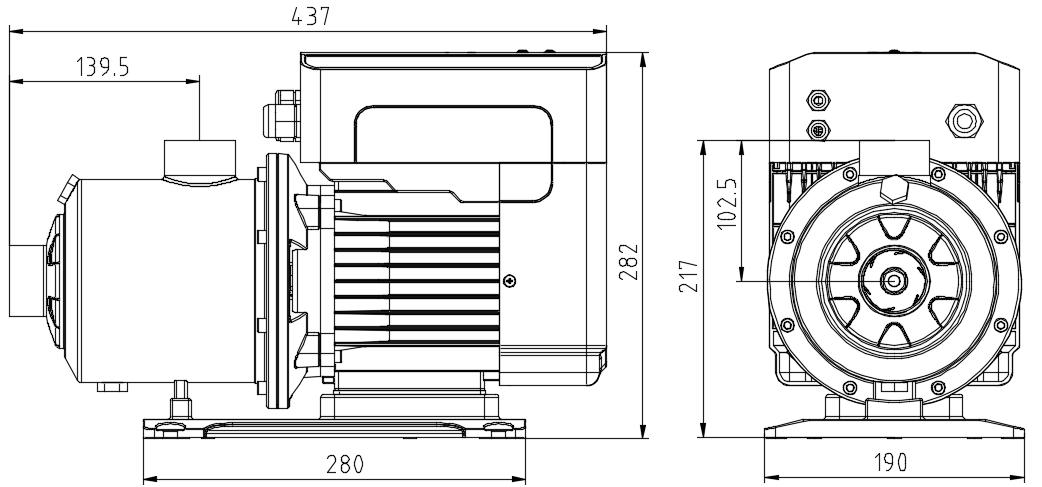

Installation Drawing

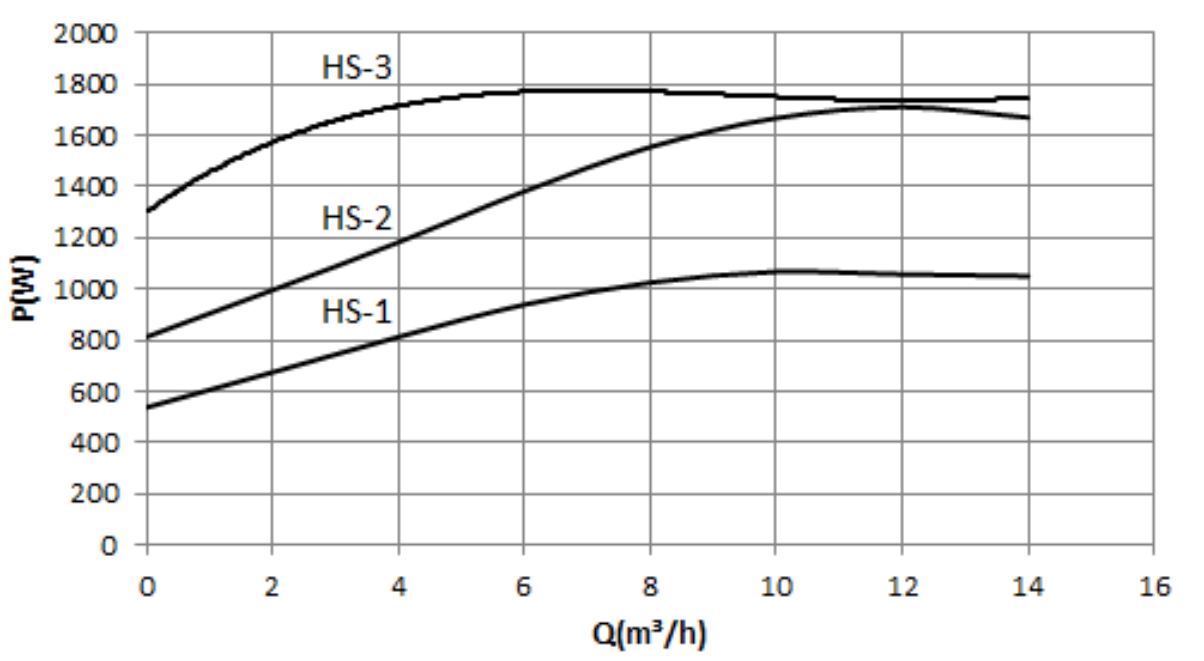

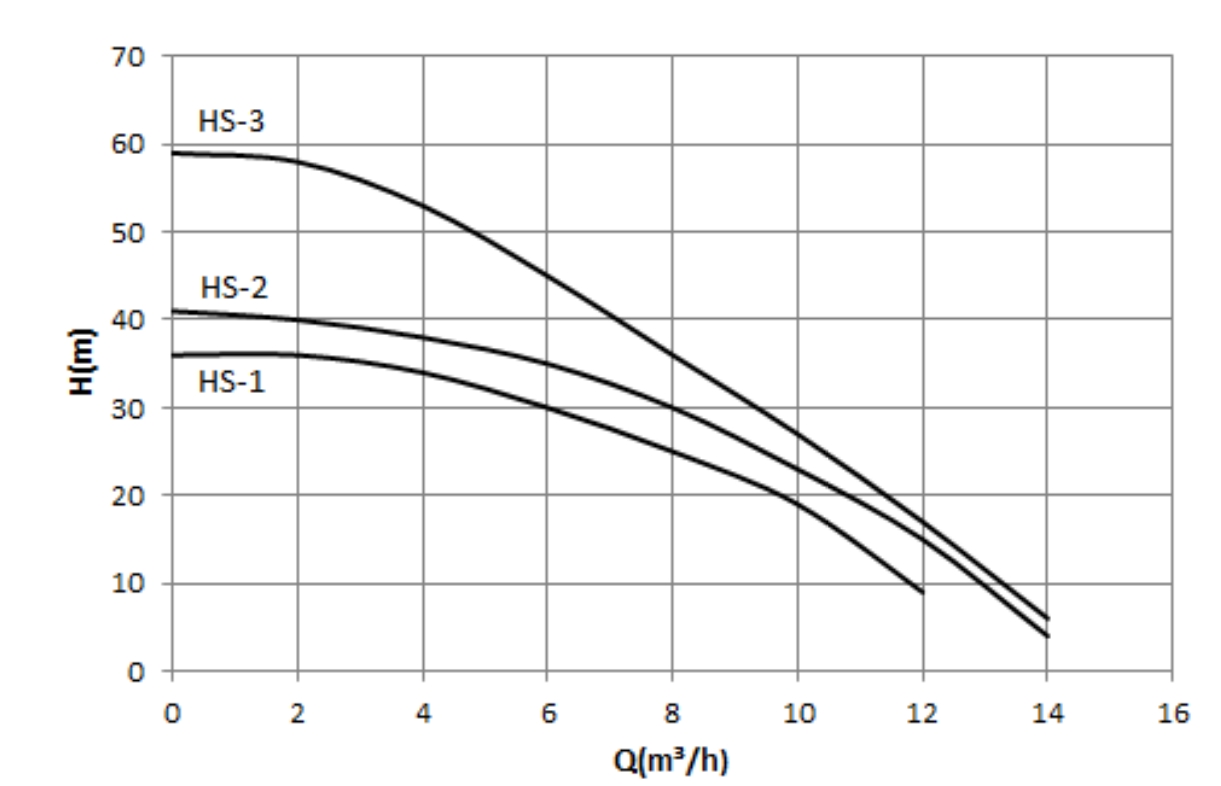

(1) Constant speed mode (HS mode) performance curve:

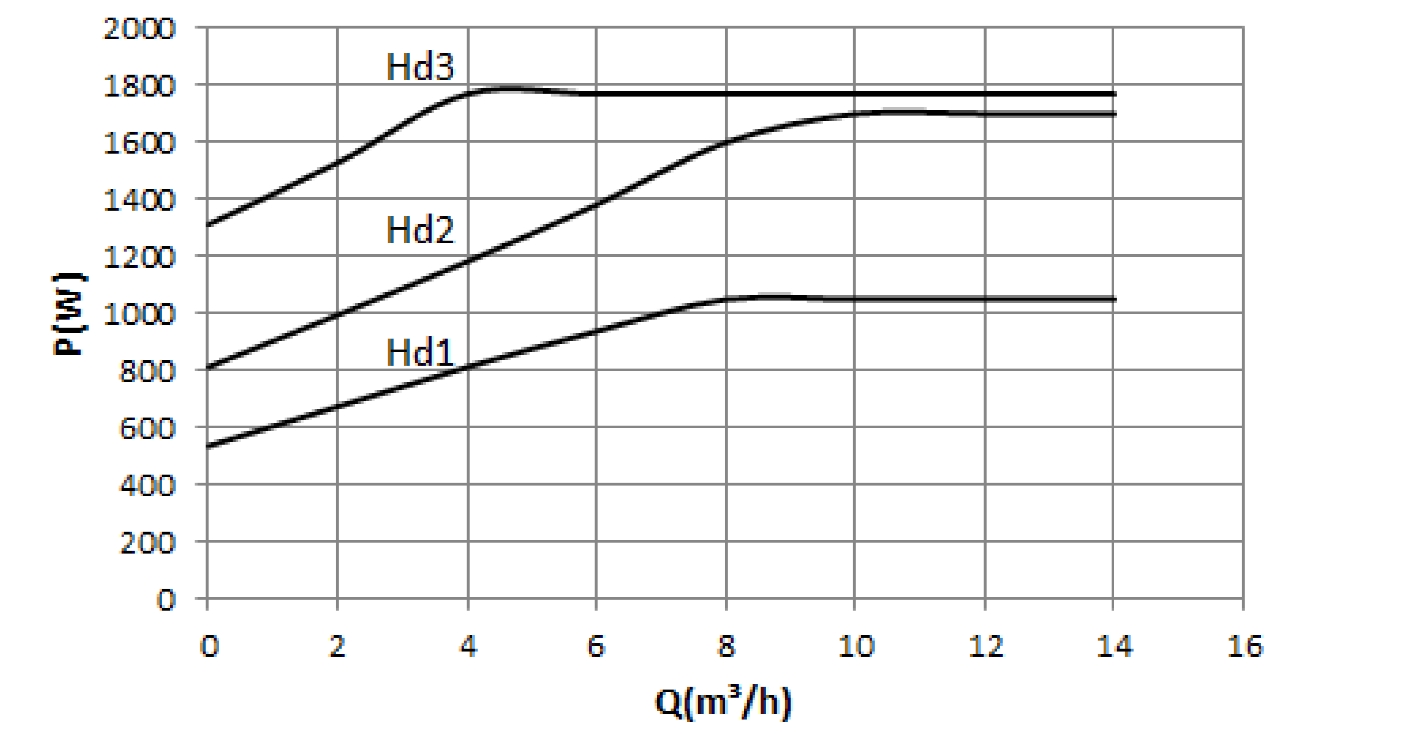

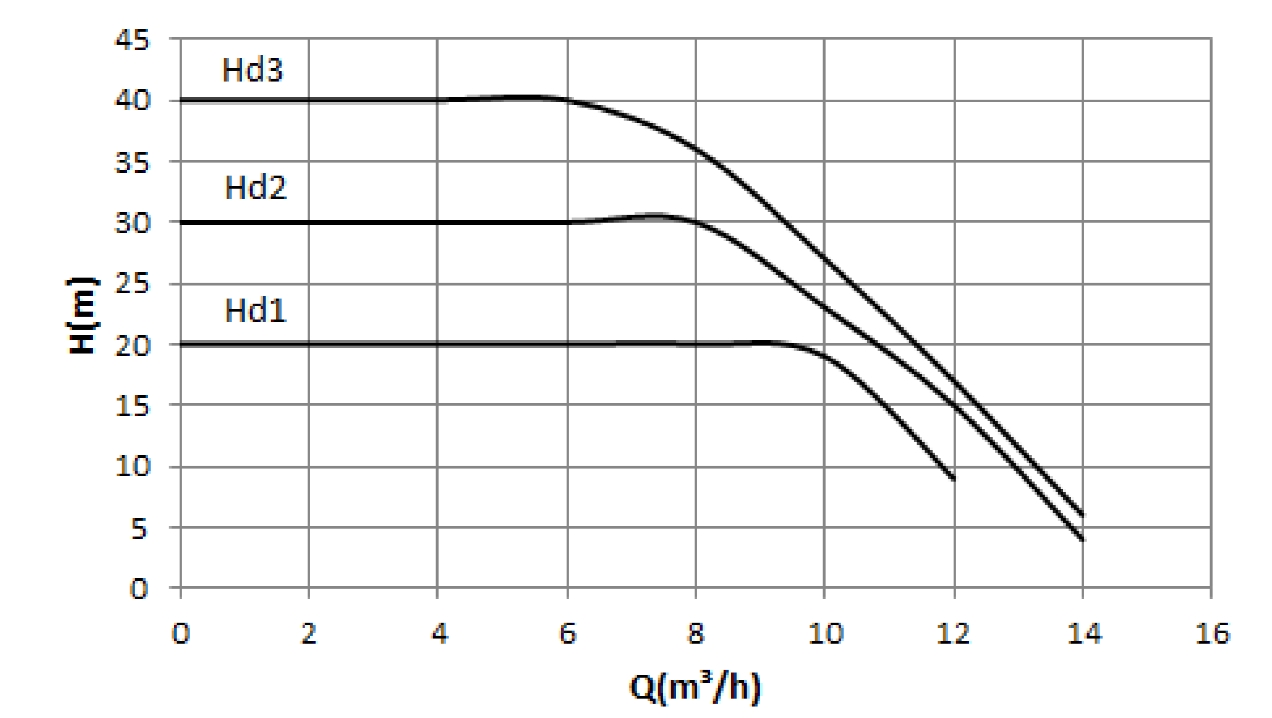

(2) Constant voltage mode (Hd mode) performance curve:
Tags :
Max Flow 8.5m³/h Rated Flow 6m³/h Pressure 1.0MPa Max Input Power 700W Max Head 28m Rated Head 22m Insulation IP55 Weight 6kg±5% Noise index ＜60dB(A)(Max flow) Voltage AC 220~240V/50Hz Max Rotation Speed 5000rpm
Voltage AC 270V Max Flow 4.8m³/h Max Head 20m Communication PWM Power 350W IP Class IP67 Connector Chuck
Voltage AC 220V Max Flow 4.8m³/h Max Head 20m Communication PWM Power 350W IP Class IP56 Connector Chuck
Voltage AC 380V Max Flow 30m³/h Max Head 30m Communication PWM Power 3000W IP Class IP56 Connector Chuck
Voltage AC 380V Max Flow 30m³/h Max Head 30m Communication PWM Power 3000W IP Class IP67 Connector Chuck
Voltage AC 380V Max Flow 7m³/h Max Head 30m Communication PWM Power 1000W IP Class IP67 Connector Chuck
Voltage AC 380V Max Flow 8m³/h Max Head 42m Communication PWM Power 1300W IP Class IP67 Connector Chuck
Power supply voltage 22~240V 50/60Hz, AC Model Master 20-8 Power 70W Motor protection No external protection required IP class IP44 Insulation class H Humidity（RH） Max. 95% System pressure 1.0 MPa Certification CE/ GS/ EMC/RoHS2.0/REACH Environment temperature -30℃～+70℃ Temperature class TF110 Liquid temperature -20℃～+110℃(Glycol up to 50%) Type of connection/unions Molex /TE/ Shinhoo standard
Max Flow 23 l/min Max Head 12 m Max Input Power 45 W Max Efficiency 30% Voltage DC24V Insulation Class H Noise ＜42dB（A Protection Level IPX4
Power supply voltage 220-240V 50/60Hz, PE Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max. 95% System pressure 1.0 MPa Compliance CE/ GS/ EMC/ LVD/RoHS/REACH Environment temperature 0～+40℃ Temperature class TF110 Liquid temperature -30～+110℃ (Glycol up to 50%) Voltage/ Frequency 230V/50HZ Pump housing Cast iron/Stainless steel Energy(EEI) ≤0.23-Part2
Product model Basic S 20-5S; Basic S 20-5SN Ambient temperature 0 ~+40 °C Temperature of pumped liquid +2 ~ +110 °C Storage temperature -30 ~ +55 °C Pumps with unions 1.0 MPa (10 bar) Pump housing cast iron, stainless-steel(N) Port to port length 130mm
Rated voltage 380V Rated head 32m Rated flow 16m³/h Maximum head 48m Maximum flow 23m³/h Insulation class F Design pressure 10bar Vibration ＜2.8mm/s Protection clas IP54 Frequency 50Hz Rated current 4.52A Rated power 2200W Noise ＜63dB(A) Maximum power 3100W
