Power supply |
220V, 50Hz AC |
|
Maximum system pressure |
≤0.3MPa |
|
Insulation class |
B |
|
Protection level |
IPX5 |
|
Ambient temperature during work |
within the range of 0°C to 50°C |
|
The temperature of the conveying liquid |
within the range of 5°C to 50°C |
|
Delivery liquid |
clear water |
Item NO.:

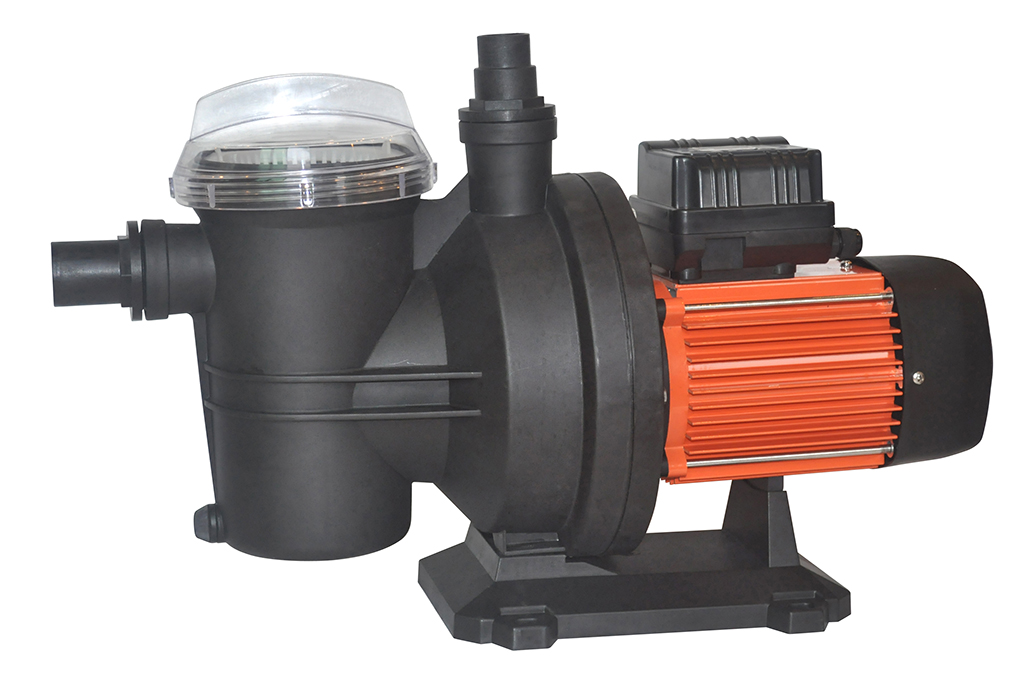

SP-750A1. Used for circulating filtration of water pumps in various small family swimming pools;
2. For freshwater aquaculture water circulation filtration;
3. Used in the production of circulating water flow, fountains and other water features in various recreational attractions in the city;
4. Mariculture circulation filtration;
5. Swimming pool circulation filtration.
1. The flow parts of the pump are made of all engineering plastics;
2. The SUS304+45# shaft material is selected and matched with a special mechanical seal to realize the complete separation of the water shaft, so as to prevent corrosion and seal reliably;
3. The water shaft is separated, safe and reliable.

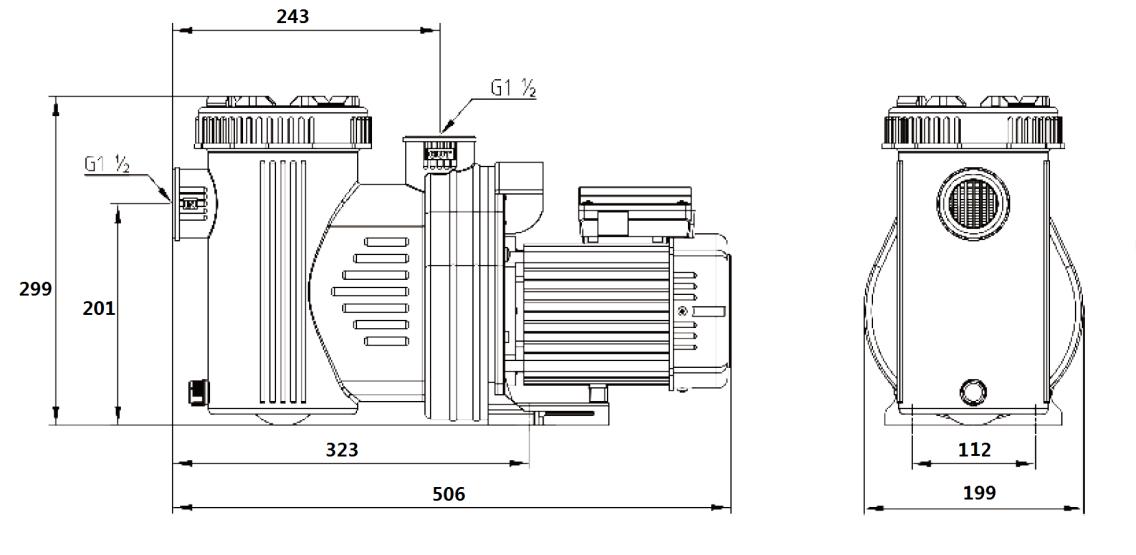

Installation Drawing：
1. Product production process testing items
1.1 Motor detection
1.1.1 Motor turn-to-turn impact detection;
1.1.2 Motor insulation resistance detection;
1.1.3 Motor ground withstand voltage detection;
1.1.4 Motor winding DC resistance detection;
1.1.5 Motor rotation test.
1.2 Assembly workshop
1.2.1 Grounding resistance detection of the whole pump;
1.2.2 Insulation resistance detection of the whole pump;
1.2.3 Pump withstand voltage leakage current detection;
1.2.4 Leakage current detection of the whole pump;
1.2.5 Low-voltage startup detection of the whole pump;
1.2.6 No-load power detection of the whole pump;
1.2.7 Check the no-load current of the whole pump.
2. Type test of the pump in the laboratory
2.1 Hydraulic performance inspection of the whole pump;
2.2 Noise and vibration detection of the whole pump;
2.3 Pump life test;
2.4 High and low temperature performance testing of the whole pump.
3. Working conditions
3.1 Power supply: 220V, 50Hz single-phase alternating current;
3.2 Maximum system pressure: 0.35MPa;
3.3 Insulation class: F;
3.4 Protection level: IP55;
3.5 Working environment temperature: 0℃～50℃;
3.6 The temperature of the conveying liquid: 5℃～50℃;
3.7 Delivery liquid: clean water.
Performance parameter:
|
Max. Flow(m³/h) |
14.5 |
Input power(W) |
850 |
|
Max. Head(m) |
13 |
Port to port length(mm) |
40 |

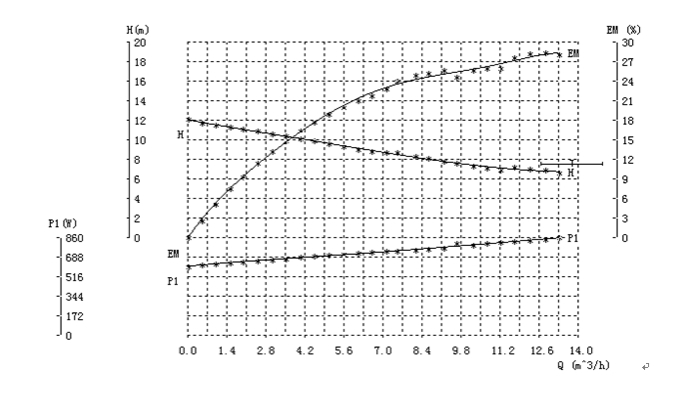

H-----Head
P1----Input power
EM----Efficiency
Q-----Flow
Tags :
Power supply 220V, 50Hz single-phase alternating current Maximum system pressure ≤0.3MPa Insulation class B Protection level IPX5 Ambient temperature during work within the range of 0°C to 50°C The temperature of the conveying liquid within the range of 5°C to 50°C Delivery liquid clear water
Power supply 220V, 50Hz single-phase AC Maximum system pressure ≤0.3MPa Insulation class B Protection level IPX5 Ambient temperature during work within the range of 0°C to 50°C The temperature of the conveying liquid within the range of 5°C to 50°C Delivery liquid clear water
Power supply 220V, 50Hz single-phase AC Maximum system pressure ≤0.3MPa Insulation class B Protection level IPX5 Ambient temperature during work within the range of 0°C to 50°C The temperature of the conveying liquid within the range of 5°C to 50°C Delivery liquid clear water
Power supply 220V, 50Hz single-phase AC Maximum system pressure ≤0.3MPa Insulation class B Protection level IPX5 Ambient temperature during work within the range of 0°C to 50°C The temperature of the conveying liquid within the range of 5°C to 50°C Delivery liquid clear water
Power supply 220V, 50Hz single-phase AC Maximum system pressure ≤0.3MPa Insulation class B Protection level IPX5 Ambient temperature during work within the range of 0°C to 50°C The temperature of the conveying liquid within the range of 5°C to 50°C Delivery liquid clear water
Power supply 220V, 50Hz single-phase AC Maximum system pressure ≤0.3MPa Insulation class B Protection level IPX5 Ambient temperature during work within the range of 0°C to 50°C The temperature of the conveying liquid within the range of 5°C to 50°C Delivery liquid clear water
Model U(V)/f(Hz) Speed Q（m³/h） H（m） P（W） I(A) GPD15-4S Z027 230/50 III 2.0 4.0 65 0.28 II 1.2 3.0 50 0.22 I 0.8 2.0 32 0.15 GPD15-5S Z027 230/50 III 2.2 5.0 85 0.40 II 1.5 4.0 60 0.30 I 1.0 2.5 40 0.22 GPD15-6S Z027 230/50 III 2.5 5.7 100 0.45 II 1.8 4.5 70 0.35 I 1.0 2.5 55 0.25 GPD15-7S Z027 230/50 III 2.8 6.5 130 0.60 II 2.0 5.0 110 0.52 I 1.2 3.5 90 0.42
Model Basic 25-5SB Pump Body Length 130/180mm Power 85/60/40W Max.flow 3.3m³/h Max head 5m Current 0.4/0.3/0.22A Voltage/ Frequency 115/230V 50/60HZ Pump housing copper body(B) Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Power supply voltage 220V~240V,AC,Protective earth Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max 95% System pressure 1.0 Mpa Compliance EMC/RoHS/REACH/TUV/CE/EEI Environment temperature -30℃~55℃ Temperature class TF 95 Liquid temperature 2~+95℃ Connection/Unions Shinhoo Standard/ Molex/TE
Model Master SD 20-5 130 Maximum flow (m³/h) 2.8 Maximum head (m) 5.0 EEI EEI≤0.20-Part2 Rated voltage 220-240V AC Rated current 0.5 A Frequency 50/60Hz Maximum power 33 W Design pressure 1.0MPa Noise ≤42dB(A) IP class IP44 Insulation class H
Model Master SD 20-7.5 130 Maximum flow (m³/h) 3.6 Maximum head (m) 7.5 EEI EEI≤0.20-Part2 Rated voltage 220-240V AC Rated current 0.5 A Frequency 50/60Hz Maximum power 60 W Design pressure 1.0MPa Noise ≤42dB(A) IP class IP44 Insulation class H
Power supply voltage 220-240V 50/60Hz, PE Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max. 95% System pressure 1.0 MPa Compliance CE/ GS/ EMC/ LVD/RoHS/REACH Environment temperature 0～+40℃ Temperature class TF110 Liquid temperature -30～+110℃ (Glycol up to 50%) Voltage/ Frequency 230V/50HZ Pump housing Cast iron Energy(EEI) ≤0.23-Part2
