Power supply |
220V, 50Hz single-phase AC |
|
Maximum system pressure |
≤0.3MPa |
|
Insulation class |
B |
|
Protection level |
IPX5 |
|
Ambient temperature during work |
within the range of 0°C to 50°C |
|
The temperature of the conveying liquid |
within the range of 5°C to 50°C |
|
Delivery liquid |
clear water |

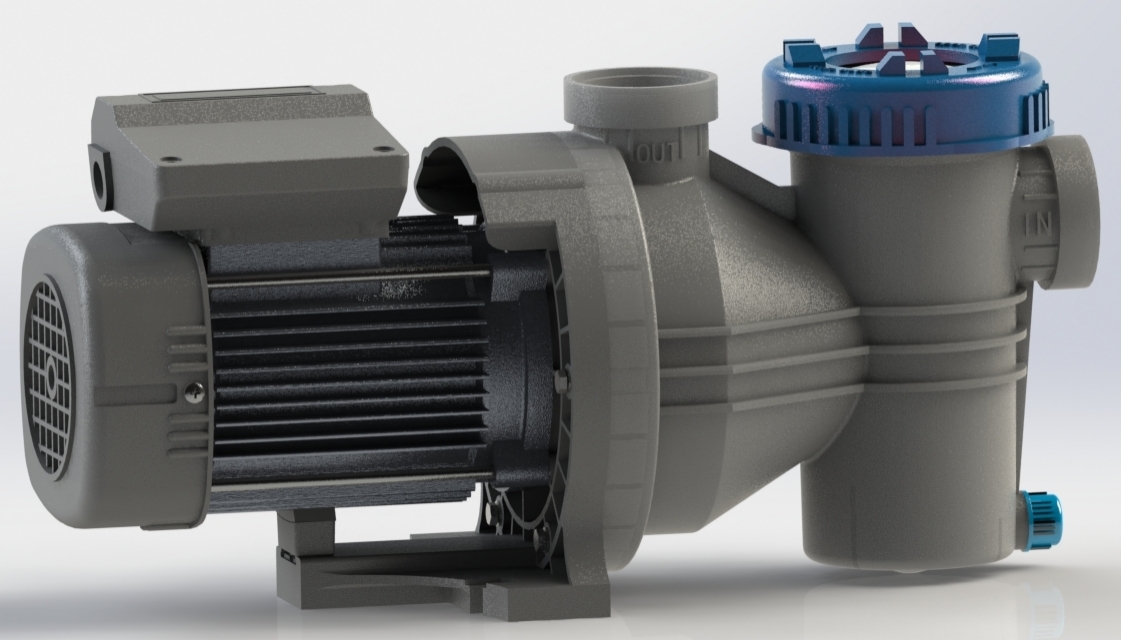

Item NO.:
SP-7000A1. Used for circulating filtration of water pumps in various small family swimming pools;
2. For freshwater aquaculture water circulation filtration;
3. Used in the production of circulating water flow, fountains and other water features in various recreational attractions in the city;
4. Mariculture circulation filtration;
5. Swimming pool circulation filtration.
1. The flow parts of the pump are made of all engineering plastics;
2. The SUS304+45# shaft material is selected and matched with a special mechanical seal to realize the complete separation of the water shaft, so as to prevent corrosion and seal reliably;
3. The water shaft is separated, safe and reliable.
1. Product production process testing items
1.1 Motor detection
1.1.1 Motor turn-to-turn impact detection;
1.1.2 Motor insulation resistance detection;
1.1.3 Motor ground withstand voltage detection;
1.1.4 Motor winding DC resistance detection;
1.1.5 Motor rotation test.
1.2 Assembly workshop
1.2.1 Grounding resistance detection of the whole pump;
1.2.2 Insulation resistance detection of the whole pump;
1.2.3 Pump withstand voltage leakage current detection;
1.2.4 Leakage current detection of the whole pump;
1.2.5 Low-voltage startup detection of the whole pump;
1.2.6 No-load power detection of the whole pump;
1.2.7 Check the no-load current of the whole pump.
2. Working conditions
2.1 Power supply: 220V, 50Hz single-phase alternating current
2.2 Maximum system pressure: ≤0.3MPa
2.3 Insulation class: B
2.4 Protection level: IPX5
2.5 Ambient temperature during work: within the range of 0°C to 50°C
2.6 The temperature of the conveying liquid: within the range of 5°C to 50°C
2.7 Delivery liquid: clear water

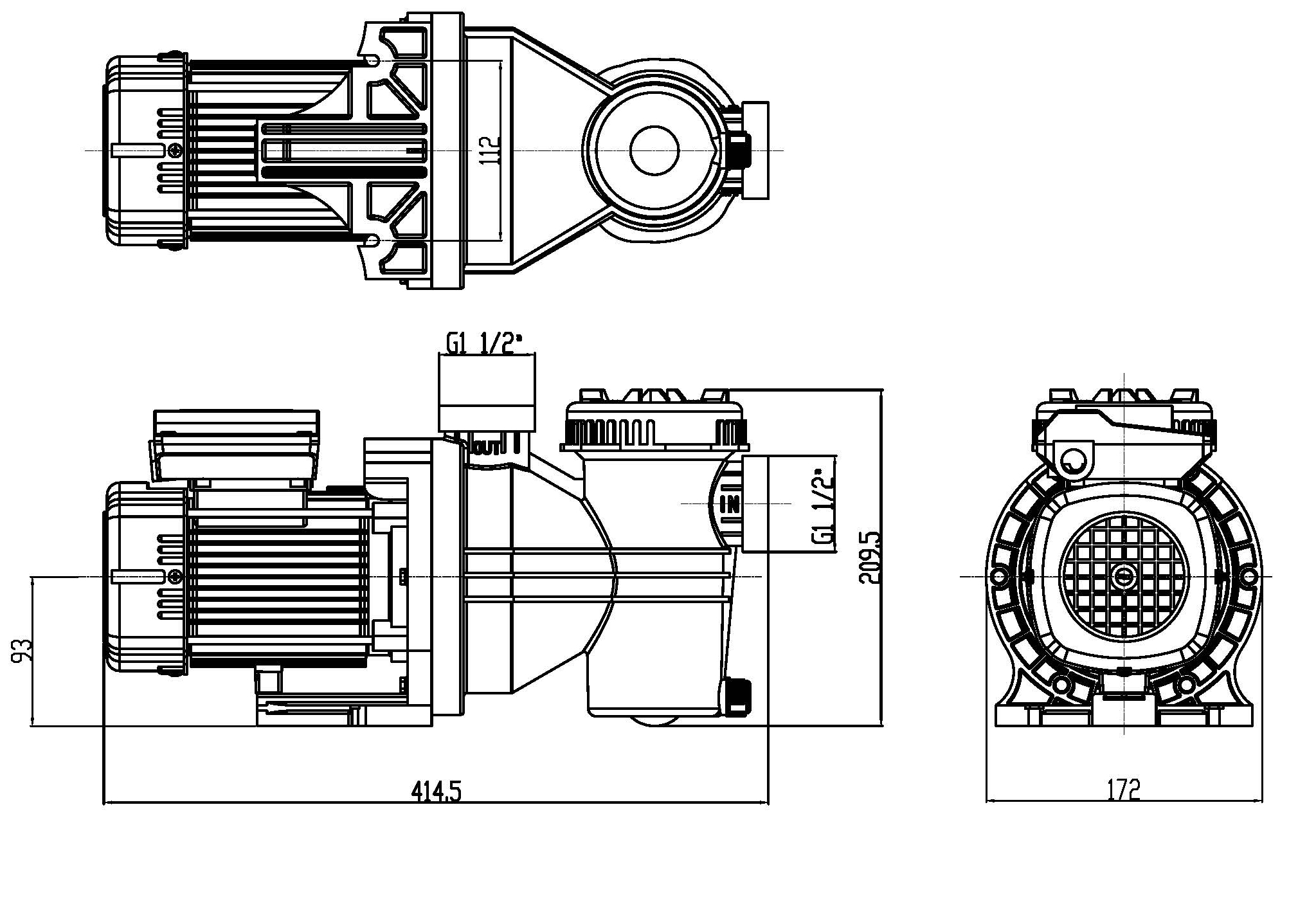

Installation Drawing：

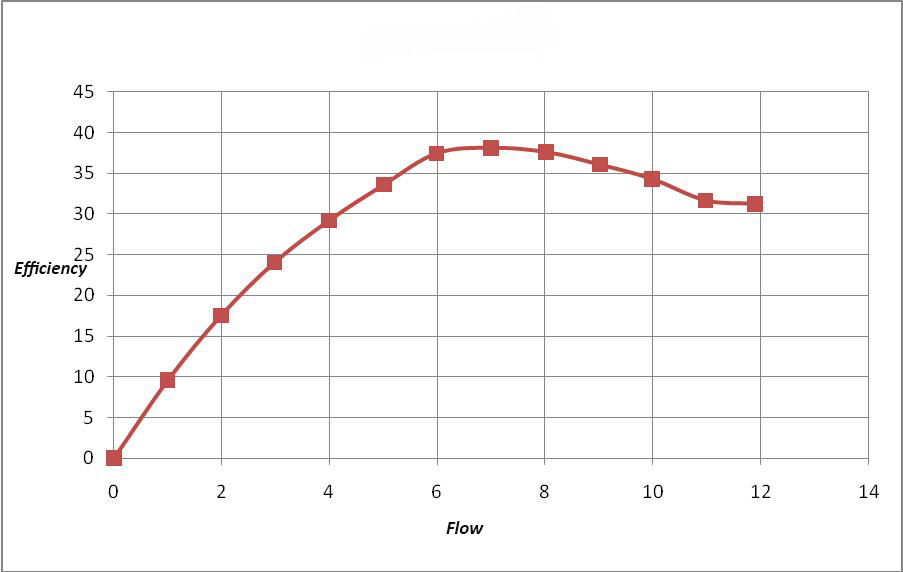

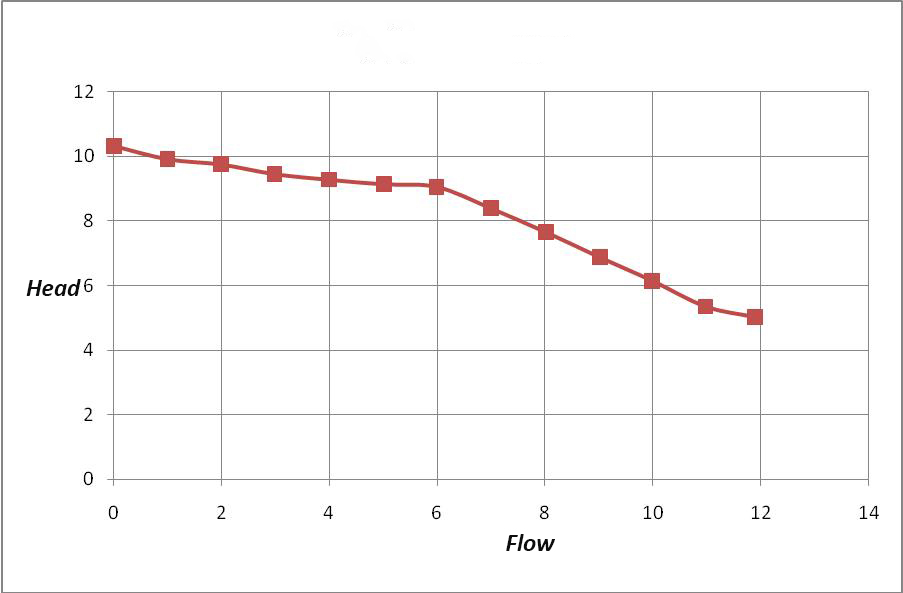

Performance Parameter curves ：
H-----Head
EM----Efficiency
Q-----Flow
Tags :
Power supply 220V, 50Hz single-phase alternating current Maximum system pressure ≤0.3MPa Insulation class B Protection level IPX5 Ambient temperature during work within the range of 0°C to 50°C The temperature of the conveying liquid within the range of 5°C to 50°C Delivery liquid clear water
Power supply 220V, 50Hz single-phase AC Maximum system pressure ≤0.3MPa Insulation class B Protection level IPX5 Ambient temperature during work within the range of 0°C to 50°C The temperature of the conveying liquid within the range of 5°C to 50°C Delivery liquid clear water
Power supply 220V, 50Hz single-phase AC Maximum system pressure ≤0.3MPa Insulation class B Protection level IPX5 Ambient temperature during work within the range of 0°C to 50°C The temperature of the conveying liquid within the range of 5°C to 50°C Delivery liquid clear water
Power supply 220V, 50Hz AC Maximum system pressure ≤0.3MPa Insulation class B Protection level IPX5 Ambient temperature during work within the range of 0°C to 50°C The temperature of the conveying liquid within the range of 5°C to 50°C Delivery liquid clear water
Power supply 220V, 50Hz single-phase AC Maximum system pressure ≤0.3MPa Insulation class B Protection level IPX5 Ambient temperature during work within the range of 0°C to 50°C The temperature of the conveying liquid within the range of 5°C to 50°C Delivery liquid clear water
Power supply 220V, 50Hz single-phase AC Maximum system pressure ≤0.3MPa Insulation class B Protection level IPX5 Ambient temperature during work within the range of 0°C to 50°C The temperature of the conveying liquid within the range of 5°C to 50°C Delivery liquid clear water
Power supply voltage 220-240V 50/60Hz, PE Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max. 95% System pressure 1.0 MPa Compliance CE/ GS/ EMC/ LVD/RoHS/REACH Environment temperature 0～+40℃ Temperature class TF110 Liquid temperature -30～+110℃ (Glycol up to 50%) Voltage/ Frequency 230V/50HZ Pump housing Cast iron Energy(EEI) ≤0.23-Part2
Model Basic 25-5SN Pump Body Length 130/180mm Power 85/60/40W Max.flow 3.3m³/h Max head 5m Current 0.4/0.3/0.22A Voltage/ Frequency 115/230V 50/60HZ Pump housing stainless steel body Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Power supply voltage 220-240V 50/60Hz, PE Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max. 95% System pressure 1.0 MPa Compliance CE/ GS/ EMC/ LVD/RoHS/REACH Environment temperature 0～+40℃ Temperature class TF110 Liquid temperature -30～+110℃ (Glycol up to 50%) Voltage/ Frequency 230V/50HZ Pump housing Cast iron/Stainless steel Energy(EEI) ≤0.23-Part2
Power supply voltage 220-240V 50/60Hz, PE Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max. 95% System pressure 1.0 MPa Compliance CE/ GS/ EMC/ LVD/RoHS/REACH Environment temperature 0～+40℃ Temperature class TF110 Liquid temperature -30～+110℃ (Glycol up to 50%) Voltage/ Frequency 230V/50HZ Pump housing Cast iron Energy(EEI) ≤0.23-Part2
Model Master SD 32-6 180 Maximum flow (m³/h) 3.8 Maximum head(m) 6.0 EEI EEI≤0.20-Part2 Rated voltage 220-240V AC Rated current 0.5 A Frequency 50/60Hz Maximum power 39 W Design pressure 1.0MPa Noise ≤42dB(A) IP class IP44 Insulation class H

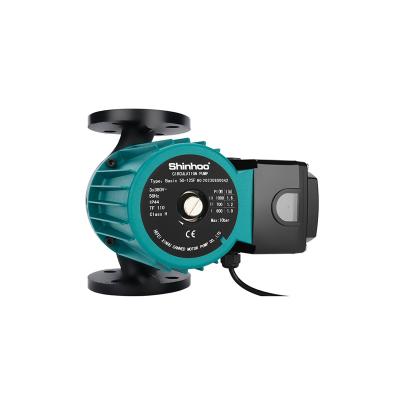

Model Basic 40-12SF Pro Power 700W Max.flow 14m³/h Max head 14m Voltage/ Frequency 230/380V 3pH 50HZ Pump housing Cast iron Pumped liquid Water Insulation class H Degree of Protection IP42 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
