Power supply |
220V, 50Hz single-phase AC |
|
Maximum system pressure |
≤0.3MPa |
|
Insulation class |
B |
|
Protection level |
IPX5 |
|
Ambient temperature during work |
within the range of 0°C to 50°C |
|
The temperature of the conveying liquid |
within the range of 5°C to 50°C |
|
Delivery liquid |
clear water |

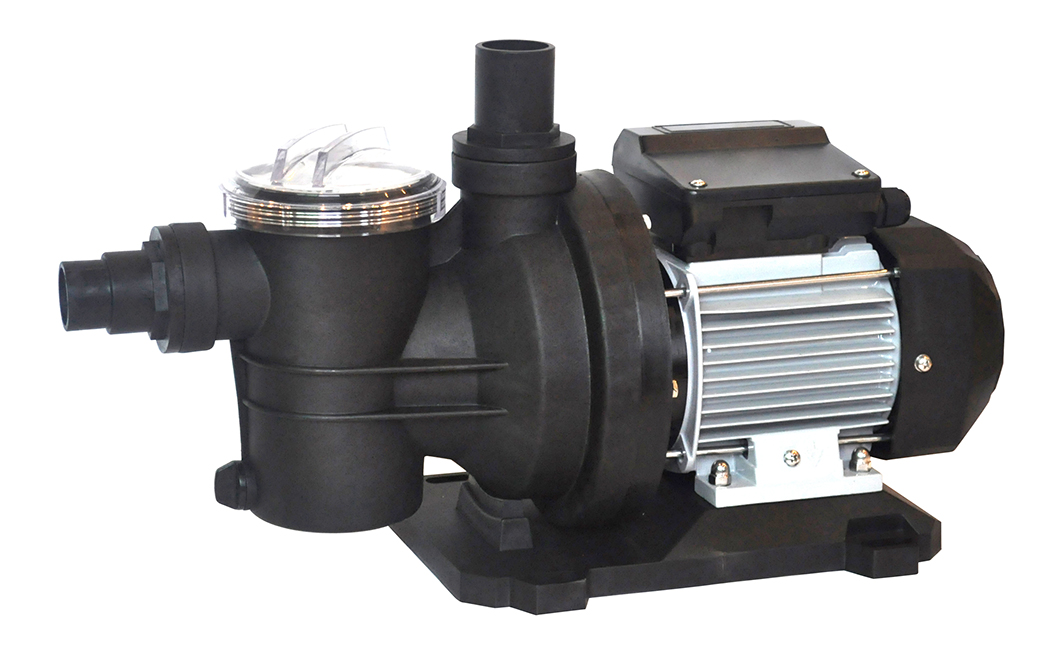

Item NO.:
SP-40011. Used for circulating filtration of water pumps in various small family swimming pools;
2. For freshwater aquaculture water circulation filtration;
3. Used in the production of circulating water flow, fountains and other water features in various recreational attractions in the city;
4. Mariculture circulation filtration;
5. Swimming pool circulation filtration.
1. The flow parts of the pump are made of all engineering plastics;
2. The SUS304+45# shaft material is selected and matched with a special mechanical seal to realize the complete separation of the water shaft, so as to prevent corrosion and seal reliably;
3. The water shaft is separated, safe and reliable.
1. Product production process testing items
1.1 Motor detection
1.1.1 Motor turn-to-turn impact detection;
1.1.2 Motor insulation resistance detection;
1.1.3 Motor ground withstand voltage detection;
1.1.4 Motor winding DC resistance detection;
1.1.5 Motor rotation test.
1.2 Assembly workshop
1.2.1 Grounding resistance detection of the whole pump;
1.2.2 Insulation resistance detection of the whole pump;
1.2.3 Pump withstand voltage leakage current detection;
1.2.4 Leakage current detection of the whole pump;
1.2.5 Low-voltage startup detection of the whole pump;
1.2.6 No-load power detection of the whole pump;
1.2.7 Check the no-load current of the whole pump.
2. Working conditions
2.1 Power supply: 220V, 50Hz single-phase alternating current
2.2 Maximum system pressure: ≤0.3MPa
2.3 Insulation class: B
2.4 Protection level: IPX5
2.5 Ambient temperature during work: within the range of 0°C to 50°C
2.6 The temperature of the conveying liquid: within the range of 5°C to 50°C
2.7 Delivery liquid: clear water

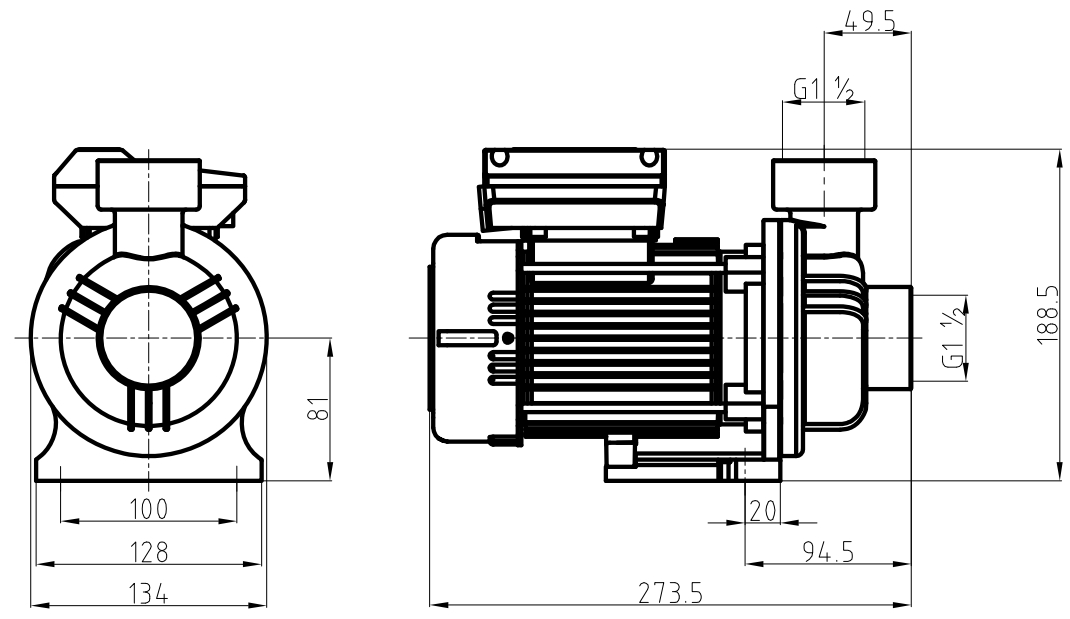

Installation Drawing：
Performance Parameter curves ：

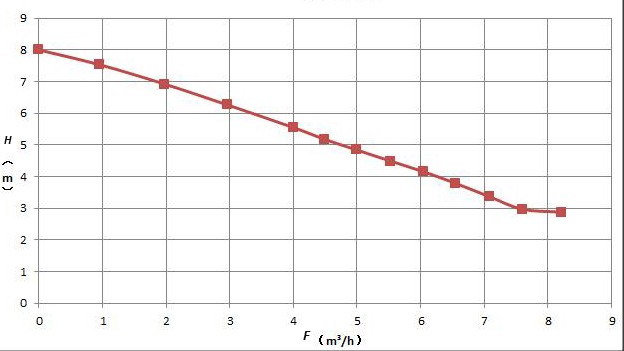

Ø Flow-Head

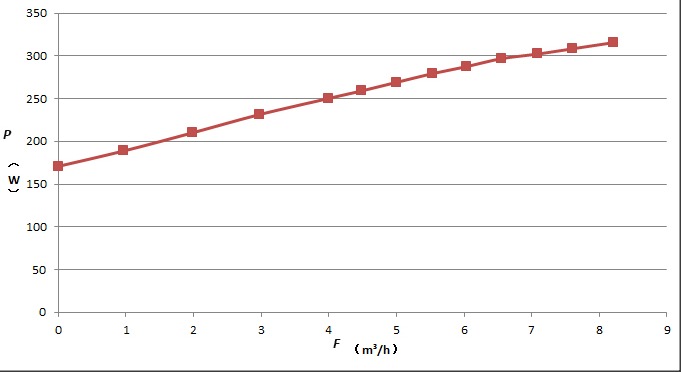

Ø Flow-Power

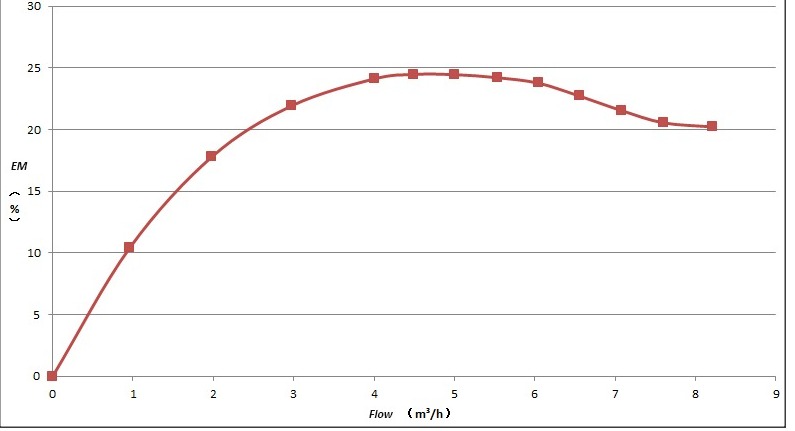

Ø Flow-Efficiency
Tags :
Power supply 220V, 50Hz single-phase alternating current Maximum system pressure ≤0.3MPa Insulation class B Protection level IPX5 Ambient temperature during work within the range of 0°C to 50°C The temperature of the conveying liquid within the range of 5°C to 50°C Delivery liquid clear water
Power supply 220V, 50Hz single-phase AC Maximum system pressure ≤0.3MPa Insulation class B Protection level IPX5 Ambient temperature during work within the range of 0°C to 50°C The temperature of the conveying liquid within the range of 5°C to 50°C Delivery liquid clear water
Power supply 220V, 50Hz single-phase AC Maximum system pressure ≤0.3MPa Insulation class B Protection level IPX5 Ambient temperature during work within the range of 0°C to 50°C The temperature of the conveying liquid within the range of 5°C to 50°C Delivery liquid clear water
Power supply 220V, 50Hz AC Maximum system pressure ≤0.3MPa Insulation class B Protection level IPX5 Ambient temperature during work within the range of 0°C to 50°C The temperature of the conveying liquid within the range of 5°C to 50°C Delivery liquid clear water
Power supply 220V, 50Hz single-phase AC Maximum system pressure ≤0.3MPa Insulation class B Protection level IPX5 Ambient temperature during work within the range of 0°C to 50°C The temperature of the conveying liquid within the range of 5°C to 50°C Delivery liquid clear water
Power supply 220V, 50Hz single-phase AC Maximum system pressure ≤0.3MPa Insulation class B Protection level IPX5 Ambient temperature during work within the range of 0°C to 50°C The temperature of the conveying liquid within the range of 5°C to 50°C Delivery liquid clear water
Model Basic 25-4S/Basic 25-4SB/Basic 25-4SN/Basic 25-4SQ Pump body length 130/180mm Power 65/50/32W Max.flow 3.0m³/h Max head 4m Current 0.28/0.22/0.15A Voltage/ Frequency 115/230V 50/60HZ Pump housing cast iron, stainless steel body(N) ,copper body(B) ,Bronze(Q) and Plastic (P) Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Enclosure class IPX4D (EN 60529) Insulation class H Supply voltage 1 × 230 V ± 10 % 50 Hz, PE Digital input PWM 0–10 V Analog input 4–20 mA. 0–10 W direct current Connection bus input Modbus RTU Leakage current Leakage < 3.5 mА. Leakage current is measured in accordance with EN 60335-1 EMC Standards applied: EN61000-3-2, EN61000-6-3, EN61800-3-3, EN55014-1 and EN55014-2
Power supply voltage 220-240V 50/60Hz, PE Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max. 95% System pressure 1.0 MPa Compliance CE/ GS/ EMC/ LVD/RoHS/REACH Environment temperature 0～+40℃ Temperature class TF110 Liquid temperature -30～+110℃ (Glycol up to 50%) Voltage/ Frequency 230V/50HZ Pump housing Cast iron/Stainless steel Energy(EEI) ≤0.23-Part2
Voltage(V) 230 Power(W) 500/460/440 Max Flow(m³/h) 5 Insulation Class H Protection Class IP44 System Pressure(bar) 10 Noise Index ≤50dB(A)
Max. Flow(L/min) 180 Max. flow(L/min) 310 Max. Head(m) 16 Rated head(m) 10 Inlet diameter 80mm Outlet diameter 80mm Input power 850W Output Power 750W
Rated voltage 220V Rated head 18m Rated flow 8m³/h Maximum head 48m Maximum flow 15m³/h Insulation class F Design pressure 10bar Vibration ＜2.8mm/s Protection class IP54 Frequency 50Hz Maximum Unit Efficiency 49% Rated power 1500W Noise ＜55dB(A) Maximum power 1900W
