Power supply voltage |
220-240V 50/60Hz, PE |
|
Motor protection |
No external protection required |
|
IP class |
IP42 |
|
Insulation class |
F |
|
Humidity(RH) |
Max. 95% |
|
System pressure |
1.0 MPa |
|
Compliance |
CE/ GS/ EMC/ LVD/RoHS/REACH |
|
Environment temperature |
0～+40℃ |
|
Temperature class |
TF95 |
|
Liquid temperature |
2～+110℃ |
Item NO.:
Instant Pro 15-1.51. Domestic hot water recirculation
2. Domestic heating and hot water circulation systems
3. Hot water heater circulation systems
Intelligent Control – Automatically adapts to system conditions
User-Friendly Interface – One-button mode switching
Visual Feedback – Max/Min/AUTO indicators
Timer & Temp Control – Set your schedule and perfect temperature
Domestic-safe Design – Copper body and multi-protection setup

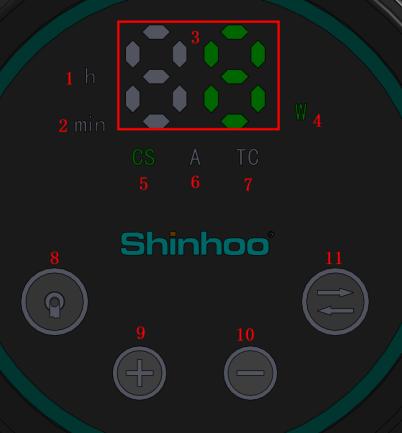

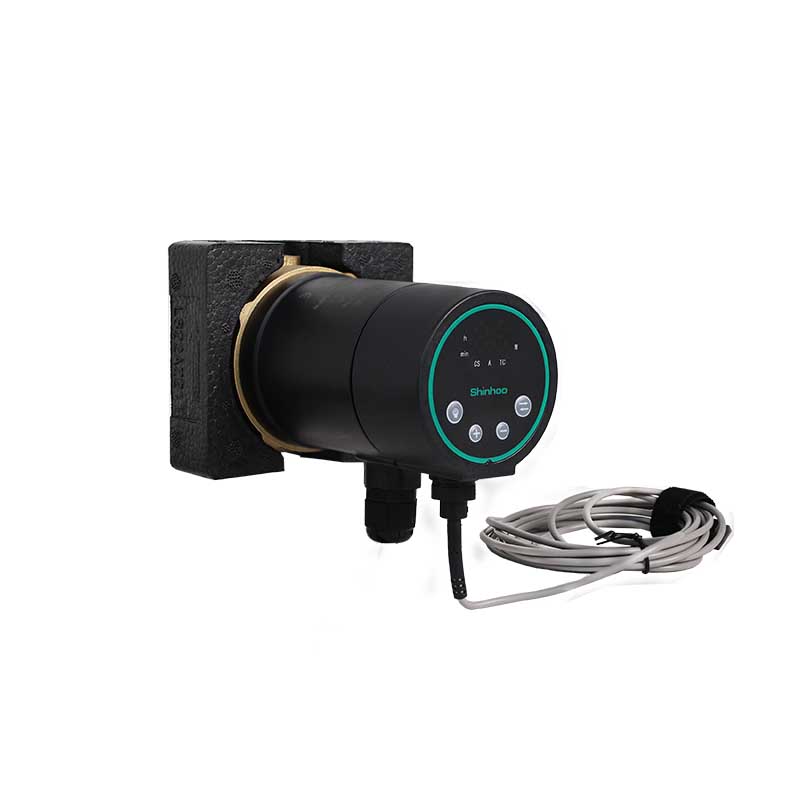

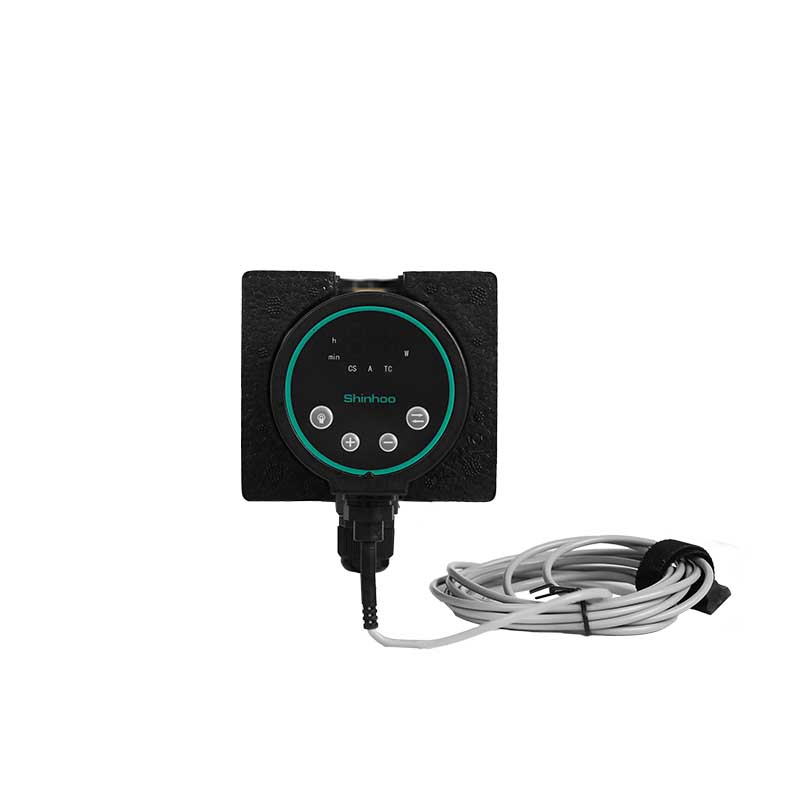

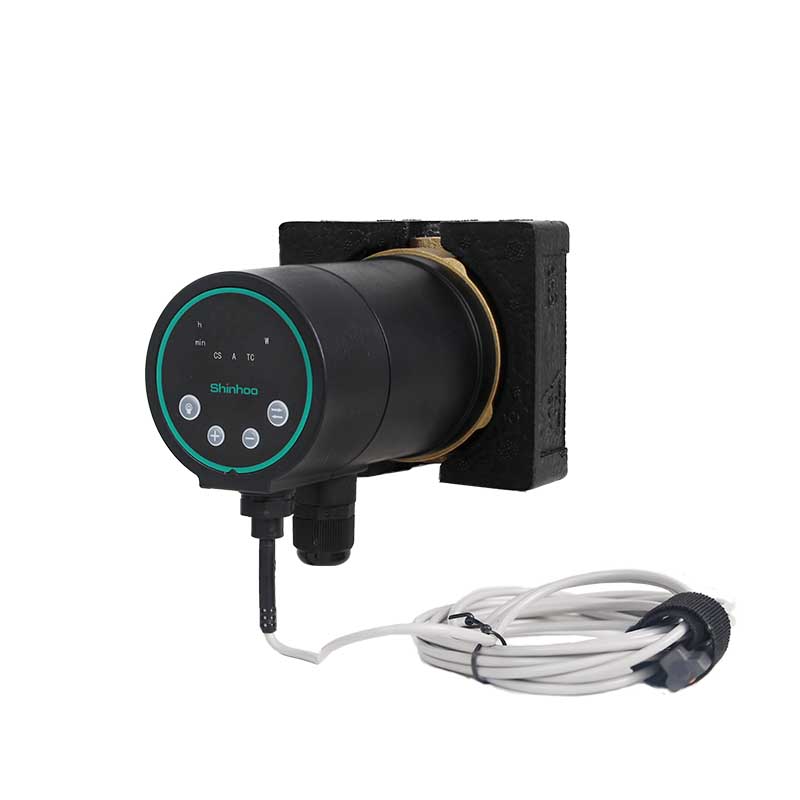

Product photo and control modes
 |
|
Instant Pro 15-1.5 for domestic hot-water recirculation in single- and two-family houses are suitable for drinking water with a corrosion-resistant pump housing.
The pump is equipped with a high-efficiency permanent-magnet motor, with power consumption lowest to 5W.
Instant Pro 15-1.5 is designed for recirculation of domestic hot water in single- and two-family houses securing hot water instantly to all faucets.
The pumps have a corrosion-resistant pump housing suitable for drinking water and are powered by a single-phase, high-efficiency ECM with permanent-magnet rotor.
The Auto function adjusts the pump performance to actual system performance.
The unique Auto feature is saving up to 48 % heat energy and 97 % motor energy compared with a standard pump in continuous operation. Additionally, the pump can be set to temperature control mode and continuous operation 100 % for commissioning of the pump or 24 hours instant hot water.
The pumps are equipped with a flushing function which automatically circulates water to protect against bacterial growth in the pipes.

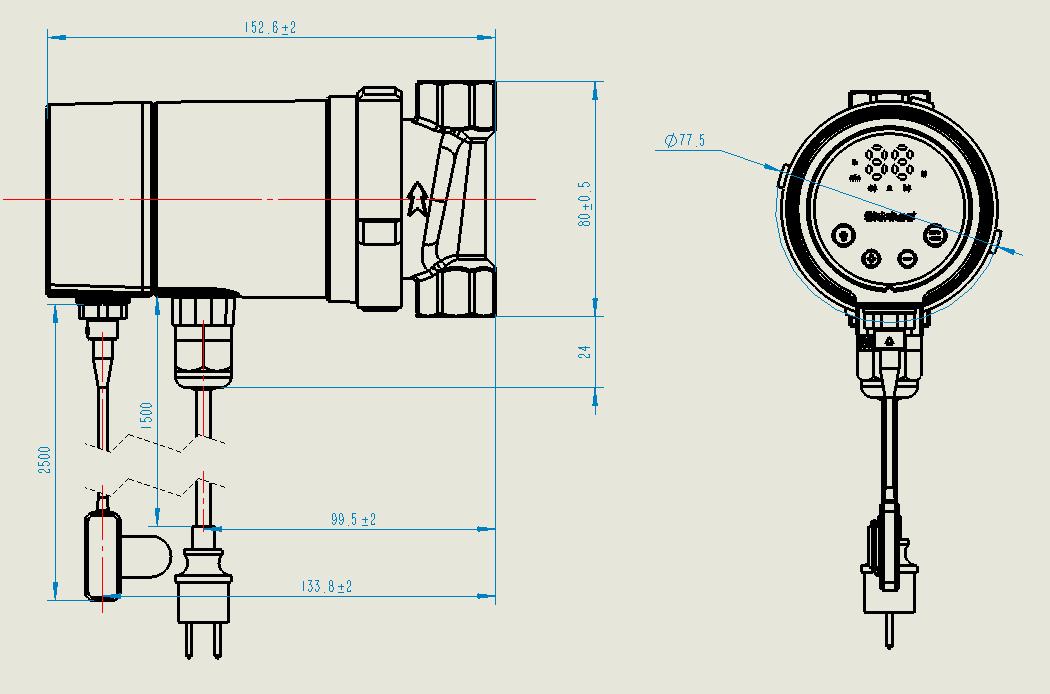

Installation Drawing

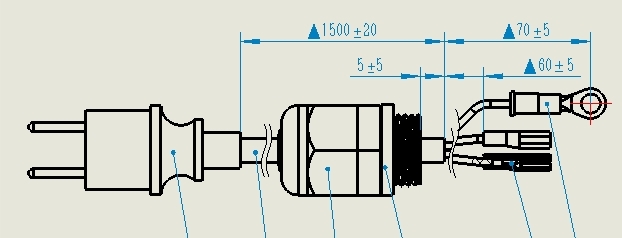

Power cord: European plug: meet VDE, IP44 certification requirements; 3 * 0.75mm ²
