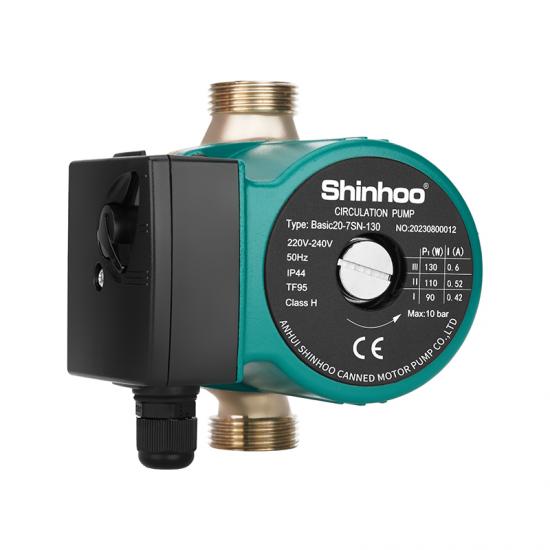

Suitable for:Domestic hot water recirculation;Industrial boiler systems.It is a pump that has three gears which can control its power and liquid flow.Three preselectable speed stages for load adjustment.
Easy and safe installation due to practical wrench attachment point on pump body.
The Circulation Pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid. Speed no: The pump has 3-step speed selector.
The pump is characterized by:
Ceramic shaft and radial bearings.
Carbon axial bearing.
Stainless steel rotor can and bearing plate.
Product features
1.Low noise
2.No leakage
3.Ecological safety in operation
4.Artistic appearance
5.Easy installation
6.Reliable operation
-
-
The centrifugal pump has the outstanding advantages of small volume, simple operation and long service life.A recirculation pump that suitable for domestic water pressure boosting in single- and two-family houses is suitable for drinking water with a corrosion-resistant pump housing. Automatic start and stop facilitate your use.Low energy consumption help save the energy and protect environment.With automatic flow swith the pump works automatically when the tap is opened, to get comfortable water pressure.Simple and compact structure, small volume and light weight gives you an excellent use experience. -
GPD32-12 is a kind of single-phase canned motor pump designed and produced by Shinhoo . Our water circulating pump can be used in single pipe or double pipe heating system, also can be applied to city apartments, suburb villa, cooling, air-conditioning, boilers and solar systems etc. -
Shinhoo GPD series circulator is suitable for:Commercial heating;Domestic hot water recirculation;Domestic heating The Shinhoo GPD and GPS circulator pumps are designed for heating, domestic hot-water, cooling and air-conditioning systems. The pumps are available in various materials, making them suitable for a range of applications. The pumps are reliable and maintenance-free. 1.Pump contains two parts: body and motor (with wet rotor).Body contains impeller, while motor includes stator, rotor, shield cover and deflating screw. 2.Tightness:the pump does not use mechanical seal. Stator and rotor are sealed with shield cover made of stainless and two heat-resistant rubber rings, which makes no leakage. 3.Lubrication of bearings and cooling of motor by inner circulation of pumped liquid. 4.Insulation class H, motor fixed with thermal protector, one speed or three speeds. -
Shinhoo GPS series circulator is suitable for:Commercial heating;Domestic hot water recirculation;Domestic heating The Shinhoo GPD and GPS circulator pumps are designed for heating, domestic hot-water, cooling and air-conditioning systems. The pumps are available in various materials, making them suitable for a range of applications. The pumps are reliable and maintenance-free. 1.Pump contains two parts: body and motor (with wet rotor).Body contains impeller, while motor includes stator, rotor, shield cover and deflating screw. 2.Tightness:the pump does not use mechanical seal. Stator and rotor are sealed with shield cover made of stainless and two heat-resistant rubber rings, which makes no leakage. 3.Lubrication of bearings and cooling of motor by inner circulation of pumped liquid. 4.Insulation class H, motor fixed with thermal protector, one speed or three speeds. -
Residential Circulator Pumps Shinhoo circulation pumps offer ultimate control in domestic hot water recirculation. Adapting to the usage pattern, pump provides maximum comfort and saves energy at the same time.These excellent quality pumps from Shinhoo are economical, easy to install, low-maintenance and they save valuable resources, too! Since 1998 year, We Shinhoo make circulation pumps for 23 years, with annual producing capacity of four million circulation pumps. Now we are the biggest circulation pump factory in China. -
Residential Circulator Pumps This pump has three gear,which can control the speed according to your need.It also can offers ultimate control in domestic hot water recirculation. Adapting to the usage pattern, pump provides maximum comfort and saves energy at the same time.Check values prevent backflow. Recirculation pumps are the answer to waiting (and waiting and waiting) for the hot water to arrive where you need it, and can also provide energy efficient heating for your home. Check valve is in line with the installation habits and system use characteristics of North America,which can prevent water backflow. These excellent quality pumps from Shinhoo are economical, easy to install, low-maintenance and they save valuable resources, too!
