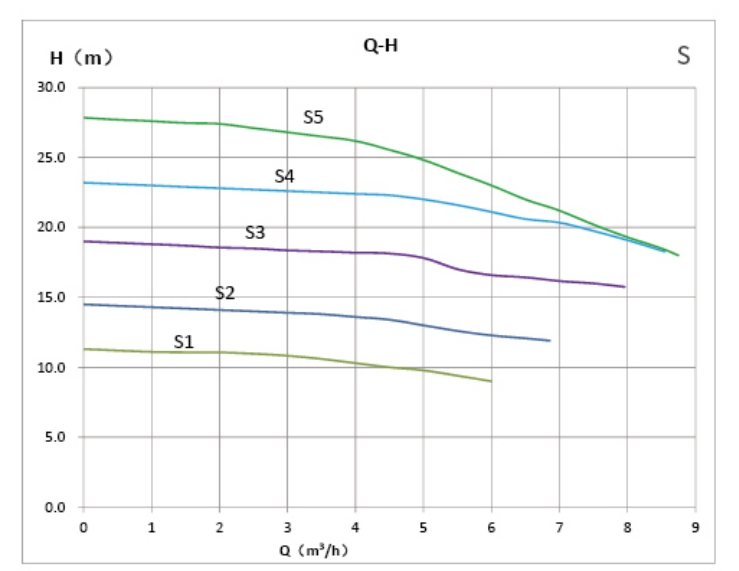

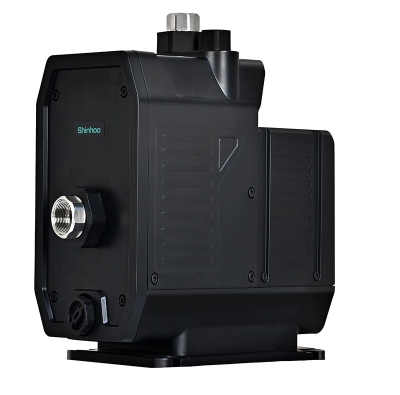

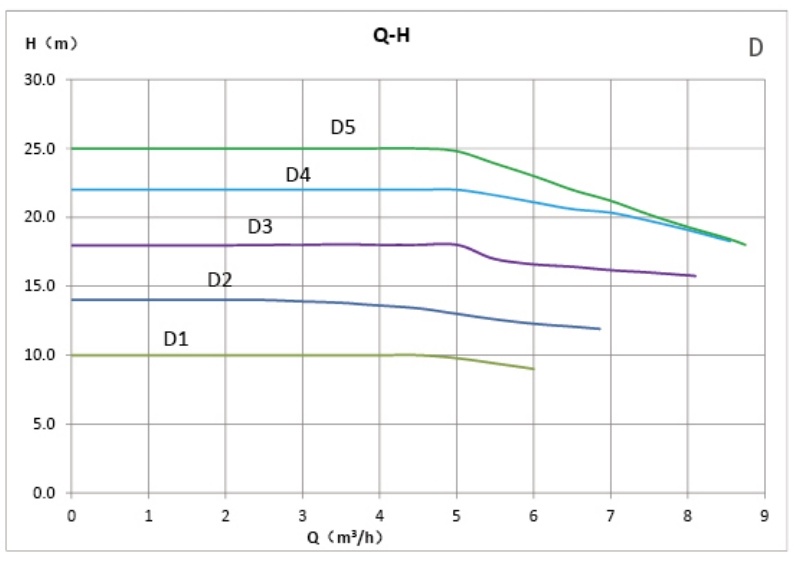

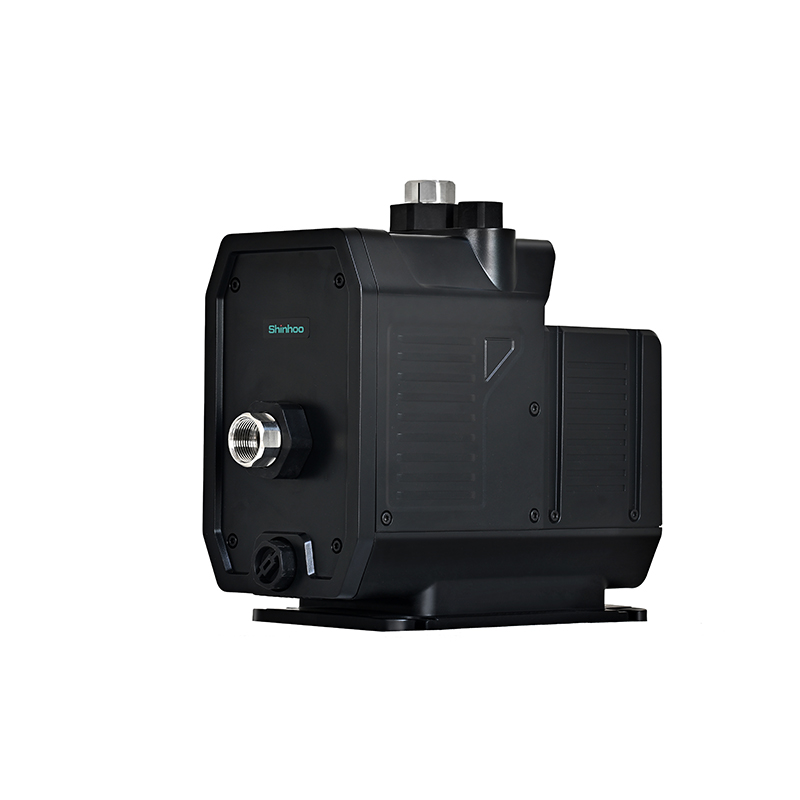

Max Flow |
8.5m³/h |
|
Rated Flow |
6m³/h |
|
Pressure |
1.0MPa |
|
Noise index |
＜58dB(A)(Max flow) |
|
Max Head |
28m |
|
Rated Head |
22m |
|
Insulation |
IP55 |
|
Weight |
5.7kg±5% |
|
Voltage |
AC 220V/50Hz |
|
Max Input Power |
700W |
|
Max Rotation Speed |
5000rpm |
Item NO.:
PFB 06-22 EC1. Air and ground source heat pump systems
2. Solar thermal systems
3. Domestic heating
4. Hot water supply systems
1. The inside of the pump body adopts special coating, which is not easy to rust;
2. Large flow, compact structure design;
3. Environmental protection, beautiful appearance, convenient installation and reliable operation.
Motor Type
|
Motor type: permanent magnet synchronous motor |
Enameled wire material: copper |
Magnet material: NdFeB |
|
Motor DC cold state resistance at 20°C: 3.77±5%Ω |
Insulation class: F |
|
Medium
|
Medium: water or glycol(≤50%) mixed liquid |
Medium Temperature: 0℃～90℃ |
Medium PH Value：6.5～8.5 |
|
Medium Hardness：≤25°dH |
Solid impurity : the diameter and length are ≤0.1mm, the volume ratio is ≤0.1% |
|

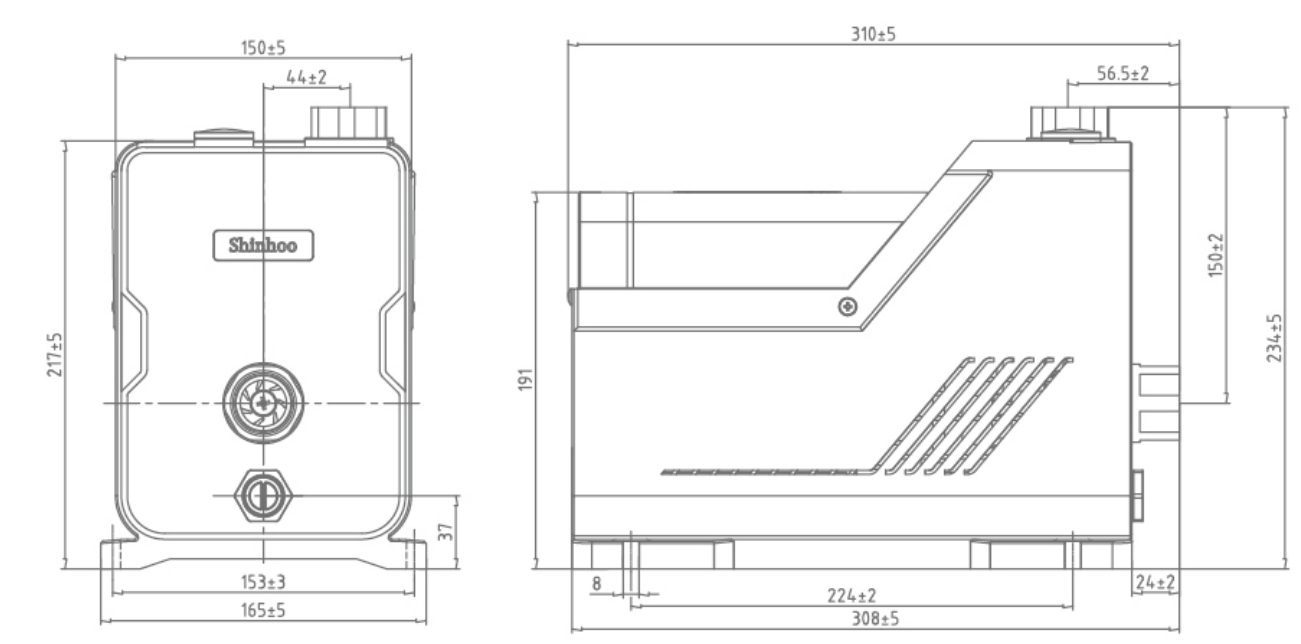

Installation Drawing
Tags :
Max. flow(m³/h) 5.5 Rated flow(m³/h) 3 Design pressure 1.0MPa Max. head(m) 45 Rated head(m) 30 Protection class IP44 Voltage AC 220V/50Hz Max. input power 600W Max. speed 5000rpm Protection class IP44 Voltage AC 220V/50Hz Max. input power 600W Max. speed 5000rpm
Max. flow(m³/h) 5.5 Rated flow(m³/h) 3 Design pressure 1.0MPa Max. head(m) 45 Rated head(m) 30 Protection class IP44 Voltage AC 220V/50Hz Max. input power 600W Max. speed 5000rpm Protection class IP44 Voltage AC 220V/50Hz Max. input power 600W Max. speed 5000rpm
Model Basic 50-20F Power 1300W Max.flow 22m³/h Max head 20m Current 5.8A Voltage/ Frequency 230V 50HZ Pump housing Cast iron Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Power supply voltage 220V~240V,AC,Protective earth Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max 95% System pressure 1.0 Mpa Compliance EMC/RoHS/REACH/TUV/CE/EEI Environment temperature -30℃~55℃ Temperature class TF 95 Liquid temperature 2~+95℃ Connection/Unions Shinhoo Standard/ Molex/TE
Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max. 95% System pressure 1.0 MPa Compliance CE/ GS/ EMC/ LVD/RoHS/REACH Environment temperature 0～+40℃ Temperature class TF110 Liquid temperature -30～+110℃ (Glycol up to 50%) Voltage/ Frequency 110/230V, 60Hz Pump housing Cast iron/Stainless steel Energy(EEI) ≤0.23-Part2
Power supply voltage 220~240V 50/60Hz, AC Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max. 95% System pressure 1.0 MPa Compliance CE/ GS/ EMC/ LVD/RoHS/REACH Environment temperature 0～+40℃ Temperature class TF110 Liquid temperature -30～+110℃(Glycol up to 50%)
Product model Basic S 20-5S; Basic S 20-5SN Ambient temperature 0 ~+40 °C Temperature of pumped liquid +2 ~ +110 °C Storage temperature -30 ~ +55 °C Pumps with unions 1.0 MPa (10 bar) Pump housing cast iron, stainless-steel(N) Port to port length 130mm
Model Basic 20-7S, Basic 20-7SB, Basic 20-7SN,Basic 20-7SQ,Basic 20-7SP Power 130/110/90W Max.flow 3.5m³/h Max head 7m Current 0.6/0.52/0.42A Voltage/ Frequency 115/230V 50/60HZ Pump housing cast iron, stainless steel body(N) ,copper body(B) ,Bronze(Q) and Plastic (P) Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Max. Flow(L/min) 125 Rated flow(L/min) 80 Max. Head(m) 30 Rated head(m) 20 Inlet diameter (mm) 32 Outlet diameter(mm) 32 Input power(W) 1250 Output Power(W) 750
Model Basic 20-5S/Basic 20-5SB/Basic 20-5SN/Basic 20-5SQ/Basic 20-5SP Power 85/60/40W Max.flow 2.8m³/h Max head 5m Current 0.4/0.3/0.22A Voltage/ Frequency 115/230V 50/60HZ Pump housing cast iron, stainless steel body(N) ,copper body(B) ,Bronze(Q) and Plastic (P) Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Model Master SD 25-6 130/ Master SD 25-6 180 Maximum flow (m³/h) 3.2 Maximum head(m) 6.0 EEI EEI≤0.20-Part2 Rated voltage 220-240V AC Rated current 0.5 A Frequency 50/60Hz Maximum power 39 W Design pressure 1.0MPa Noise ≤42dB(A) IP class IP44 Insulation class H
Model Basic 32-6S Pump Body Length 180mm Power 100/70/55W Max.flow 4.0m³/h Max head 6m Voltage/Current 115V/0.9A 230V/0.45A Frequency 50/60HZ Pump housing cast iron Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2~110℃(mixture of glycol and water up to 50%) Max System Pressure 1.0Mpa Certificates CE, GS, UL, LVD, EMC, RoHS, REACH etc.
