Power supply voltage |
220V~240V,AC,Protective earth |
|
Motor protection |
No external protection required |
|
IP class |
IP44 |
|
Insulation class |
H |
|
Humidity(RH) |
Max 95% |
|
System pressure |
1.0 Mpa |
|
Compliance |
EMC/RoHS/REACH/TUV/CE/EEI |
|
Environment temperature |
-30℃~55℃ |
|
Temperature class |
TF 95 |
|
Liquid temperature |
2~+95℃ |
|
Connection/Unions |
Shinhoo Standard/ Molex/TE |
Item NO.:

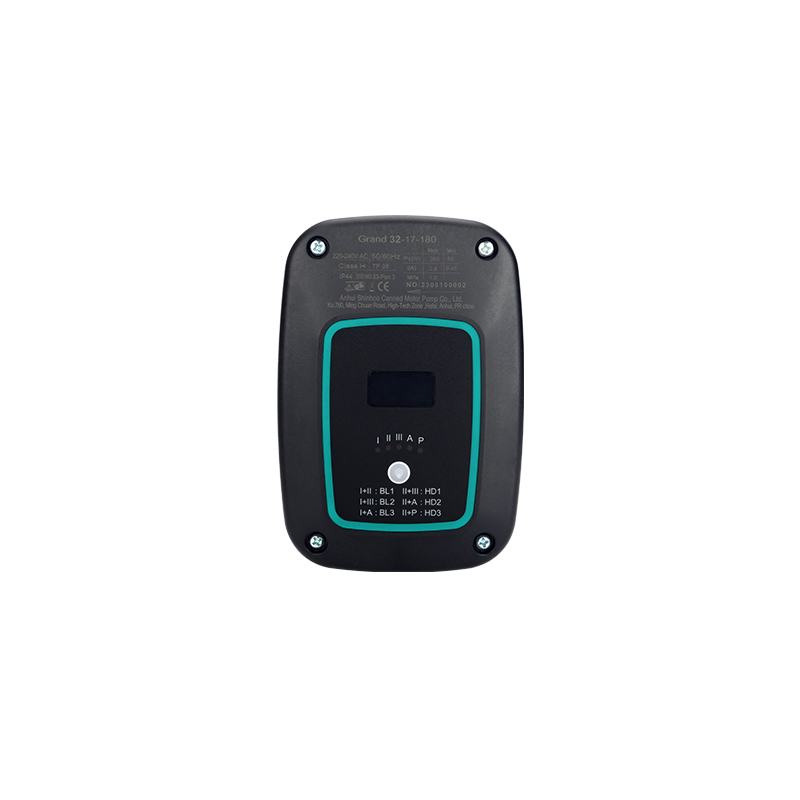

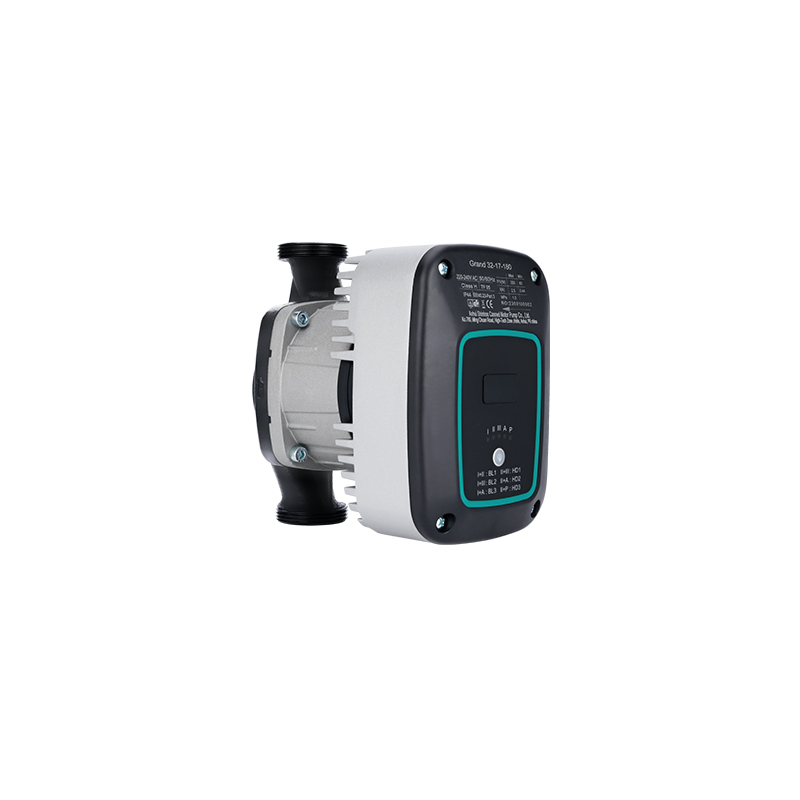

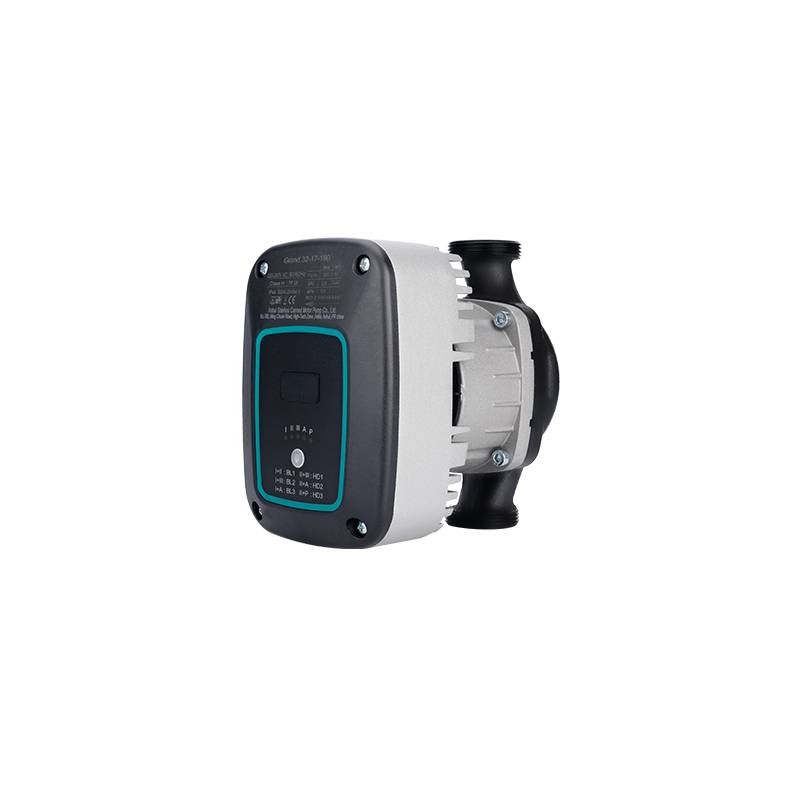

Grand 32-171. Domestic heating and water supply system
2. Air and ground source heat pump system
3.Air-conditioning system
4. Industrial hot water circulation system
5.Solar thermal system
6.Compatibility with R290 All Inverter Heat Pump
Scope of use
Air source heat pump combined supply system
Product certification
The product meets the requirements of TUV、CE、EMC、RoHS、REACH、EEI≤0.23-part3 certification
Advantage
Easy installation and operation
Equipped with Self Adapting mode AUTO (default setting), pump runs once the power is connected and adapts its performance according to actual system needs.
Control is effected by digital pulse-width modulation (PWM) low-voltage signal, enabling the pump to be used to meet different flow requirement in various systems.
Low noise and high comfort
Noise index: ≤42dB(A)
Low energy consumption
Lowest power consumption up to 6W
Multiple protection
With over-voltage and over-current protection
Eco-Design Benchmark
EEI≤0.20-Part 3
Quick release power plug
Start-up and stop the pump quickly.

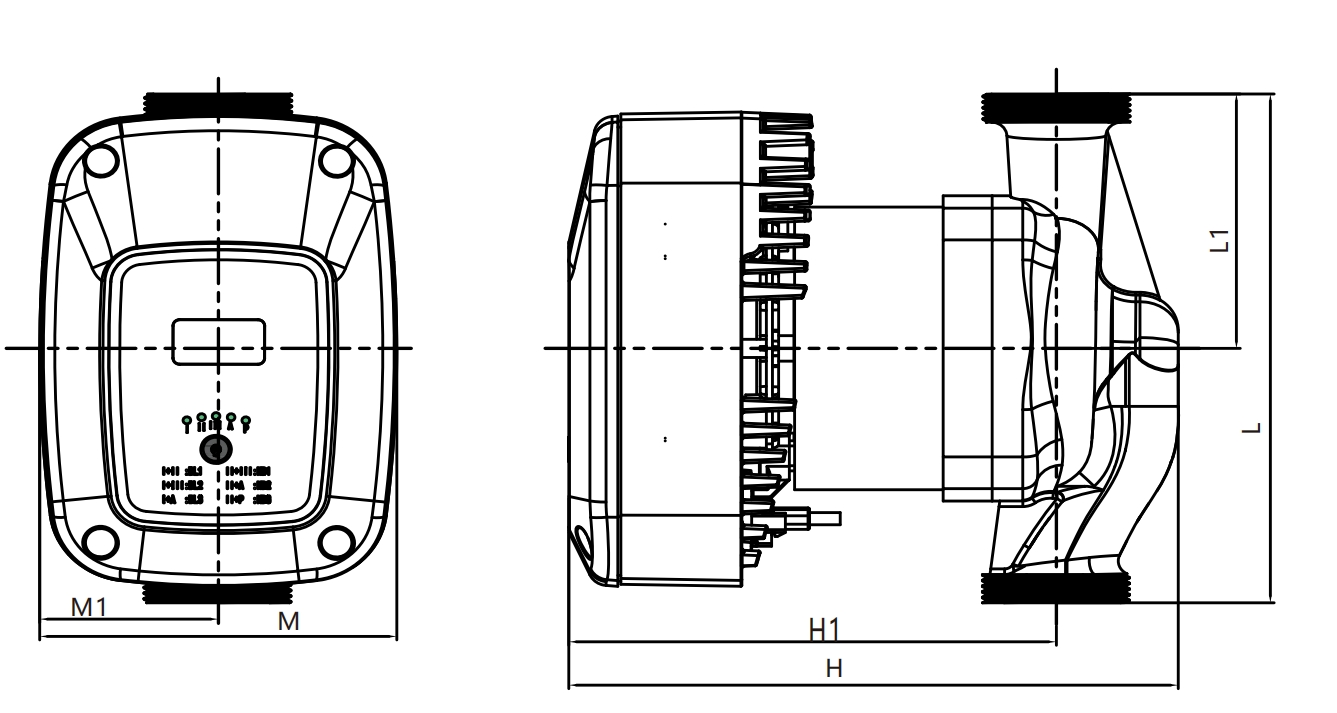

Installation Drawing
Basic parametersBasic parameters
|
Rated Power |
350W |
|
Max.flow |
7.5m³/h |
|
Max head |
17m |
|
Rated Current |
1.09A |
|
Voltage/ Frequency |
230V 50HZ/60HZ |
|
Pump housing |
Cast iron |
|
Pumped liquid |
Water |
|
Insulation class |
H |
|
Degree of Protection |
IP44 |
|
Liquid temperature range |
-30-95℃ |
|
Energy(EEI) |
≤0.21-Part3 |
|
Max System Pressure |
1.0MPa |
Media requirements
|
Medium: water or water + glycol (≤ 50%)mixture |
Medium temperature : 2℃∼95℃ |
|
PH value of medium ：6.5-8.5 |
Medium hardness ：25°dH |
|
Content of solid impurities in medium: diameter and length direction of solid impurities ≤ 0.1mm, and volume ratio ≤ 0.1% |
|
Service environment requirements
The working environment temperature of the pump should be synchronized with the medium temperature of 2~95℃, as shown in the figure on the right (the maximum ethylene glycol concentration is 50%, that is, the medium The minimum temperature is -30℃)
Start and stop of pump
Starting time: the starting time of the water pump is less than 8S, the time from power on to reaching the maximum speed
In PWM mode, when starting from the stop state of the water pump (without power supply), 90% of the maximum speed must be reached in at least 8 seconds
In PWM mode, start from standby mode and reach 90% of the maximum speed in at least 8 seconds
Shutdown time: the shutdown time of the water pump is less than 1 s, that is the time from power failure to shutdown of the water pump

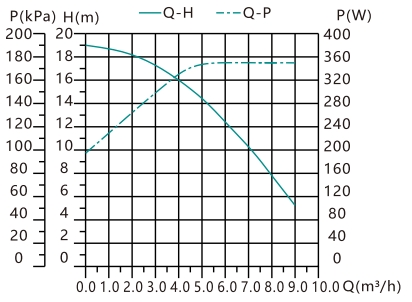

Performance curve
This performance curve is suitable for normal temperature water, such as pump for non-water medium, the hydraulic performance of the pump will be reduced , therefore, in the selection of pump, must consider the characteristics of the liquid medium
Power connection
Voltage：220-240V AC(±10% )
Frequency：50/60Hz
PWM input signal voltage：4-24V
minimum input current：4mA
PWM input signal frequency: 100-2000Hz
PWM output signal: collector open-drain output, must be connected to a pull-up resistor,the voltage is selected according to the signal acquisition range of the host computer
Tags :
Power supply voltage 220V~240V,AC,Protective earth Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max 95% System pressure 1.0 Mpa Compliance EMC/RoHS/REACH/TUV/CE/EEI Environment temperature -30℃~55℃ Temperature class TF 95 Liquid temperature 2~+95℃ Connection/Unions Shinhoo Standard/ Molex/TE
Power supply voltage 220V~240V,AC,Protective earth Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max 95% System pressure 1.0 Mpa Compliance EMC/RoHS/REACH/TUV/CE/EEI Environment temperature -30℃~55℃ Temperature class TF 95 Liquid temperature 2~+95℃ Connection/Unions Shinhoo Standard/ Molex/TE
Model Basic 32-8SF Power 245/190/135W Max.flow 8m³/h Max head 8m Current 1.1/0.85/0.6A Voltage/ Frequency 115/230V 50HZ Pump housing Cast iron Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2~110℃ Max System Pressure 1.0Mpa
Power supply voltage 230V 50/60Hz, PE Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max. 95% System pressure 1.0 MPa Compliance CE/ GS/ EMC/ LVD/RoHS/REACH Environment temperature 0～+40℃ Temperature class TF110 Liquid temperature 2～+110℃
Model Basic 20-7S Pro Maximum flow 3.5m³/h Rated flow rate 2m ³/ h Maximum head 7m Rated head 4.7m Current 0.73/0.52/0.33A Input Power 70/115/140W Ingress protection IP44 Noises Index(Rated flow point) <48dB(A)
Model Basic 25-7S,Basic 25-7SN Pump Body Length 130/180mm Power 130/110/90W Max.flow 4m³/h Max head 7m Current 0.6/0.52/0.42A Voltage/ Frequency 115/230V, 50/60HZ Pump housing cast iron, stainless steel body(N) ,copper body(B) Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Maximum flow (m3/h) 1.9 Maximum head(m) 5 Rated flow rate (m3/h) 1 Rated head (m) 3.5 Voltage 220~240V AC Current 0.45A Frequency 50/60Hz Input power 33W Design pressure 0.3MPa Noise ≤42dB(A) Standy power ≤3W Protection grade IP44 Surge current <3A Temperature class TF95 Bare pump weight 1.3kg±5%
Model Basic 15-12S Power 270/240/160W Max.flow 3.5m³/h Max head 12m Current 1.2/1.1/0.75A Voltage/ Frequency 115/230V 50/60HZ Pump housing Cast iron Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2~110℃ Max System Pressure 1.0Mpa
Model Basic 25-20S Power 700/450/400W Max.flow 14.5/12/9.2m³/h Max head 16/13/11m Voltage/ Frequency 220/380V 3pH 50HZ Pump housing Cast iron Pumped liquid Water Insulation class H Degree of Protection IP42 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Rated voltage 380V Rated head 38m Rated flow 8m³/h Maximum head 48m Maximum flow 15m³/h Insulation class F Design pressure 10bar Vibration ＜2.8mm/s Protection class IP54 Frequency 50Hz Rated current 3.62A Rated power 1500W Noise ＜62dB(A) Maximum power 1900W
Model Basic 80-10F Power 1000W Max.flow 35m³/h Max head 10m Current 4.9A Voltage/ Frequency 230V 50HZ Pump housing Cast iron Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0MPa
Power supply voltage 220~240V 50/60Hz, AC Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max. 95% System pressure 1.0 MPa Compliance CE/ GS/ EMC/ LVD/RoHS/REACH Environment temperature 0～+40℃ Temperature class TF110 Liquid temperature -30～+110℃(Glycol up to 50%)
