Max. flow(m³/h) |
5.5 |
|
Rated flow(m³/h) |
3 |
|
Design pressure |
1.0MPa |
|
Max. head(m) |
45 |
|
Rated head(m) |
30 |
|
Protection class |
IP44 |
|
Voltage |
AC 220V/50Hz |
|
Max. input power |
600W |
|
Max. speed |
5000rpm |
|
Protection class |
IP44 |
|
Voltage |
AC 220V/50Hz |
|
Max. input power |
600W |
|
Max. speed |
5000rpm |

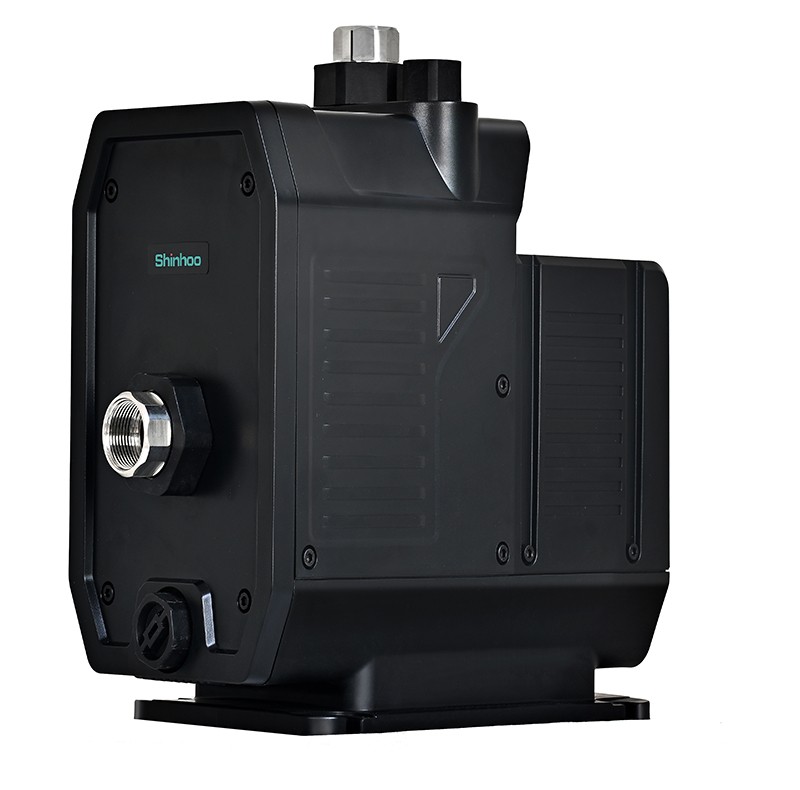

Item NO.:
PFM03-30 EC1. Pressurization of commercial water
2. Groundwater intake for domestic use
3. Pressurization of domestic water supply
Product certification
Products comply with CCC, GS (CE), EMC, RoHS, REACH, WRAS certification requirements.
Benefits
1. The permanent magnet synchronous motor control algorithm without position sensors effectively reduces motor vibration, decreases pump noise, and improves pump efficiency.
2. Intelligent control technology is employed, which detects motor armature current and provides feedback to control motor speed, enabling adaptive adjustment for varying operating conditions. This solution solves the issue of high energy consumption in conventional shielded pumps, resulting in highly efficient and low-noise operation.
1 Product Conditions
1.1 Media requirements
|
Use medium |
water |
|
Medium water temperature |
0℃～50℃ |
|
Medium PH value |
6.5～8.5 |
|
Medium hardness |
≤25°dH |
|
Solid impurity content in the medium |
solid impurity diameter and length direction ≤ 0.1mm, and volume ratio ≤ 0.1%. |
1.2 Use environment requirements
|
How to use |
keep the axis horizontal |
|
Altitude |
<1000m |
|
Operating environment temperature |
0℃～55℃ (no freezing phenomenon in the pipeline and water pump) |
|
Use environment humidity ≤95% |
|
1.3 Storage environment requirements
Storage ambient temperature: -20°C～60°C (no freezing in pipelines and pumps)
Storage environment humidity ≤95%
2. Product installation direction diagram
When the water pump is installed, the pump shaft must be in a horizontal position, and the pump shaft is allowed to be installed at an angle of ±5°.
The installation of the water pump in the system should ensure that the pump cavity is filled with liquid so that the water pump can operate normally.
Pipeline installation must be carried out according to the diagram, and the rubber pads should be well supported.
3. Start and stop of water pump
Start-up time: The start-up time of the water pump is less than 5s, that is, the time from power-on to maximum speed
Downtime: the pump stop time < 3s, that is, the time from when the pump is powered off to when it stops running
4. Motor type
|
Motor type: permanent magnet synchronous motor |
Enameled wire material: copper |
Magnetic steel material: NdFeB |
|
DC cold state resistance of the motor at 20°C: 3.77±5%Ω |
Insulation class: F |
|

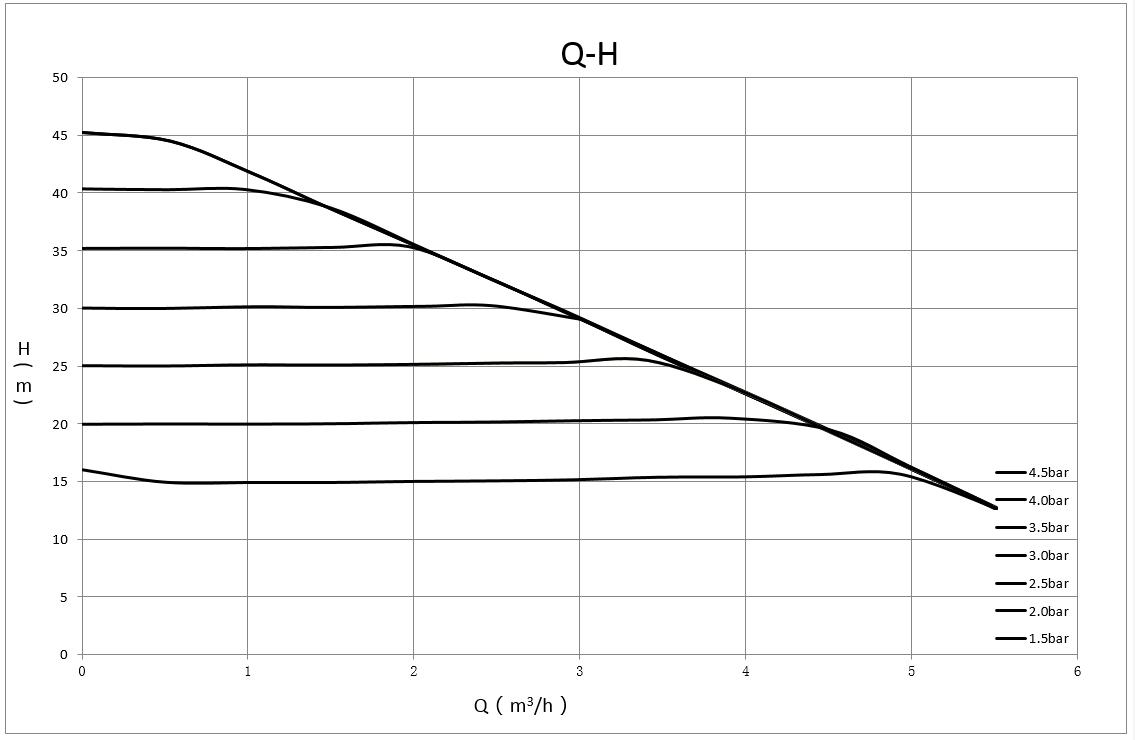

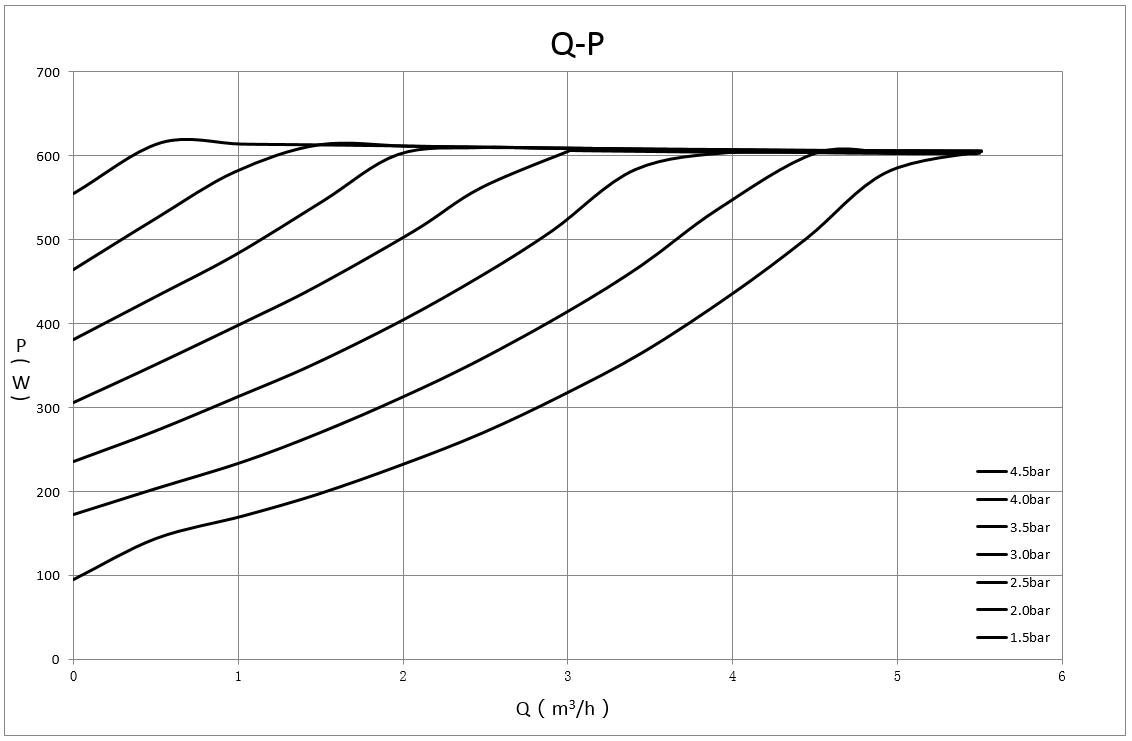

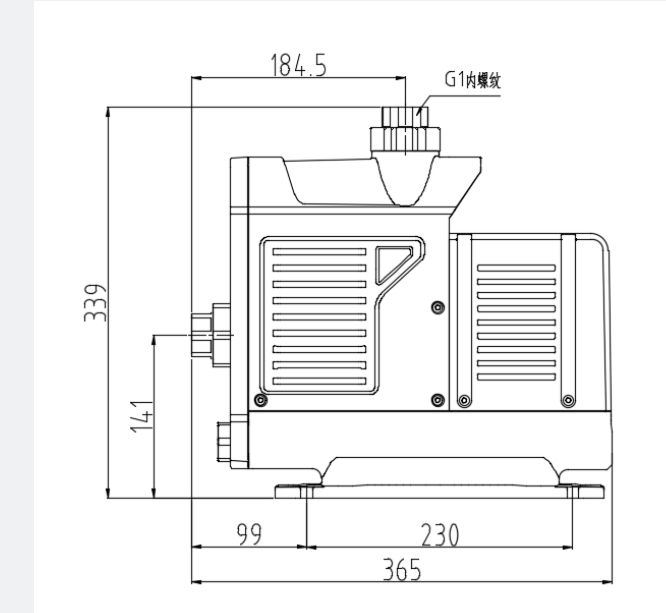

5. Installation drawing
Tags :
Max Flow 8.5m³/h Rated Flow 6m³/h Pressure 1.0MPa Noise index ＜58dB(A)(Max flow) Max Head 28m Rated Head 22m Insulation IP55 Weight 5.7kg±5% Voltage AC 220V/50Hz Max Input Power 700W Max Rotation Speed 5000rpm
Max. flow(m³/h) 5.5 Rated flow(m³/h) 3 Design pressure 1.0MPa Max. head(m) 45 Rated head(m) 30 Protection class IP44 Voltage AC 220V/50Hz Max. input power 600W Max. speed 5000rpm Protection class IP44 Voltage AC 220V/50Hz Max. input power 600W Max. speed 5000rpm
Power supply voltage 220~240V 50/60Hz,AC Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max. 95% System pressure 1.0 MPa Compliance CE/ GS/ EMC/ LVD/RoHS/REACH Environment temperature 0～+40℃ Temperature class TF110 Liquid temperature -30～+110℃(Glycol up to 50%)
Power supply voltage 220V~240V,AC,Protective earth Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max 95% System pressure 1.0 Mpa Compliance EMC/RoHS/REACH/TUV/CE/EEI Environment temperature -30℃~55℃ Temperature class TF 95 Liquid temperature 2~+95℃ Connection/Unions Shinhoo Standard/ Molex/TE
Max. Flow(L/min) 115 Rated flow(L/min) 50 Max. Head(m) 25 Rated head(m) 20 Inlet diameter (mm) 25 Outlet diameter(mm) 25 Input power(W) 880 Output Power(W) 600
Power supply voltage 220~240V 50/60Hz, AC Model Master 25-8 Power 70W Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max. 95% System pressure 1.0 MPa Certification CE/ GS/ EMC/RoHS2.0/REACH Environment temperature -30℃～+70℃ Temperature class TF110 Liquid temperature -20℃～+110℃(Glycol up to 50%) Type of connection/unions Molex /TE/ Shinhoo standard
Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max. 95% System pressure 1.0 MPa Compliance CE/ GS/ EMC/ LVD/RoHS/REACH Environment temperature 0～+40℃ Temperature class TF110 Liquid temperature -30～+110℃ (Glycol up to 50%) Voltage/ Frequency 110/230V, 60HZ Pump housing Cast iron/Stainless steel Energy(EEI) ≤0.23-Part2
Power supply voltage 220-240V 50/60Hz, PE Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max. 95% System pressure 1.0 MPa Compliance CE/ GS/ EMC/ LVD/RoHS/REACH Environment temperature 0～+40℃ Temperature class TF110 Liquid temperature -30～+110℃ (Glycol up to 50%)
Rated voltage 380V Rated head 46m Rated flow 4m³/h Maximum head 57m Maximum flow 9.5m³/h Insulation class F Design pressure 10bar Vibration ＜2.8mm/s Protection class IP54 Rated power 1100W Noise ＜60dB(A) Maximum power 1500W
Pump Body Length 6 1/2 Feet Power 335W Max.flow 36 GPM Max head 36 Feet Current 1.5A Voltage/ Frequency 230V 50HZ Pump housing Cast iron Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0MPA
Product model Basic S 25-5S; Basic S 25-5SQ Ambient temperature 0 ~+40 °C Temperature of pumped liquid +2 ~ +110 °C Storage temperature -30 ~ +55 °C Pumps with unions 1.0 MPa (10 bar) Pump housing cast iron, stainless-steel(N) Port to port length 130/180mm
Model Basic 20-5S/Basic 20-5SB/Basic 20-5SN/Basic 20-5SQ/Basic 20-5SP Power 85/60/40W Max.flow 2.8m³/h Max head 5m Current 0.4/0.3/0.22A Voltage/ Frequency 115/230V 50/60HZ Pump housing cast iron, stainless steel body(N) ,copper body(B) ,Bronze(Q) and Plastic (P) Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
