| Picture | Model | DN(mm) | Rated Flow(m³/h) | Rated Head(m) | Max. Head(m) | Voltage(V) | Frequency(Hz) | Power(W) | Port-to-port length(mm) | Pipe connection/Flange |
|---|---|---|---|---|---|---|---|---|---|---|
 |
EPA 25-20ZAX | 25 | 3 | 16 | 20 | 270 | 50 | 350 | 168 | Chuck |
 |
Mega S 32-12 Pro | 32 | 5.5 | 7.5 | 12 | 220~240 | 50/60 | 220 | 180 | G2 |
 |
Master H 25-9 Pro | 25 | 4.5 | 6.5 | 9 | 220~240 | 50/60 | 95 | 130/180 | G 1 1/2 |
 |
Mega S 50-12F | 50 | 29 | 6.5 | 12 | 220~240 | 50/60 | 600 | 280 | /Flange |
 |

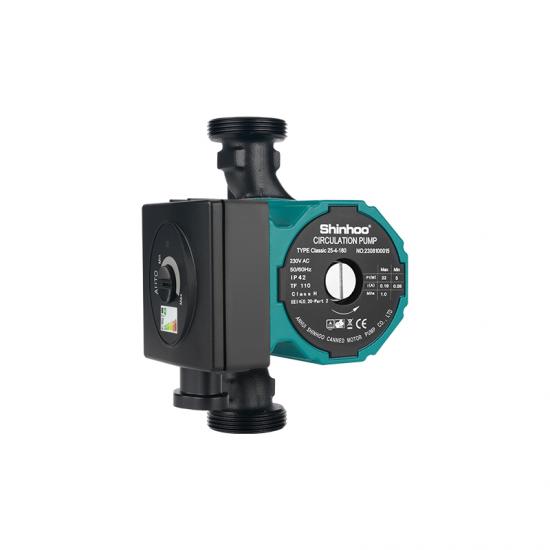

Classic 25-4 | 25 | 1.7 | 2 | 4 | 230 | 50/60 | 22 | 130/180 | G1 1/2 |
 |
Classic 32-6 | 32 | 2 | 3 | 6 | 230 | 50/60 | 45 | 180 | G2 |
 |
Classic S 25-6 | 25 | 2 | 3 | 6 | 230 | 50/60 | 45 | 130/180 | G1 1/2 |
 |
Mega S 80-8F | 80 | 37 | 5 | 8 | 230 | 50/60 | 750 | 360 | DN80/Flange |
