Model |
U(V)/f(Hz) |
Speed |
Q（m³/h） |
H（m） |
P（W） |
I(A) |
|
GPD15-4S Z108 |
230/50 |
III |
2.0 |
4.0 |
65 |
0.28 |
|
II |
1.2 |
3.0 |
50 |
0.22 |
||
|
I |
0.8 |
2.0 |
32 |
0.15 |
||
|
GPD15-5S Z108 |
230/50 |
III |
2.2 |
5.0 |
85 |
0.40 |
|
II |
1.5 |
4.0 |
60 |
0.30 |
||
|
I |
1.0 |
2.5 |
40 |
0.22 |
||
|
GPD15-6S Z108 |
230/50 |
III |
2.5 |
5.7 |
100 |
0.45 |
|
II |
1.8 |
4.5 |
70 |
0.35 |
||
|
I |
1.0 |
2.5 |
55 |
0.25 |
||
|
GPD15-7S Z108 |
230/50 |
III |
2.8 |
6.5 |
130 |
0.60 |
|
II |
2.0 |
5.0 |
110 |
0.52 |
||
|
I |
1.2 |
3.5 |
90 |
0.42 |
Item NO.:
Z1081. Apply to wall hung gas boiler system.
2. Transfer the electrical energy to hydraulic pressure.
3. Transfer the heating water.
4. Exhaust the air from HW system.
5. Suitable for wall hung gas boiler: 18kW, 24kW, 28kW, 31kW, etc..

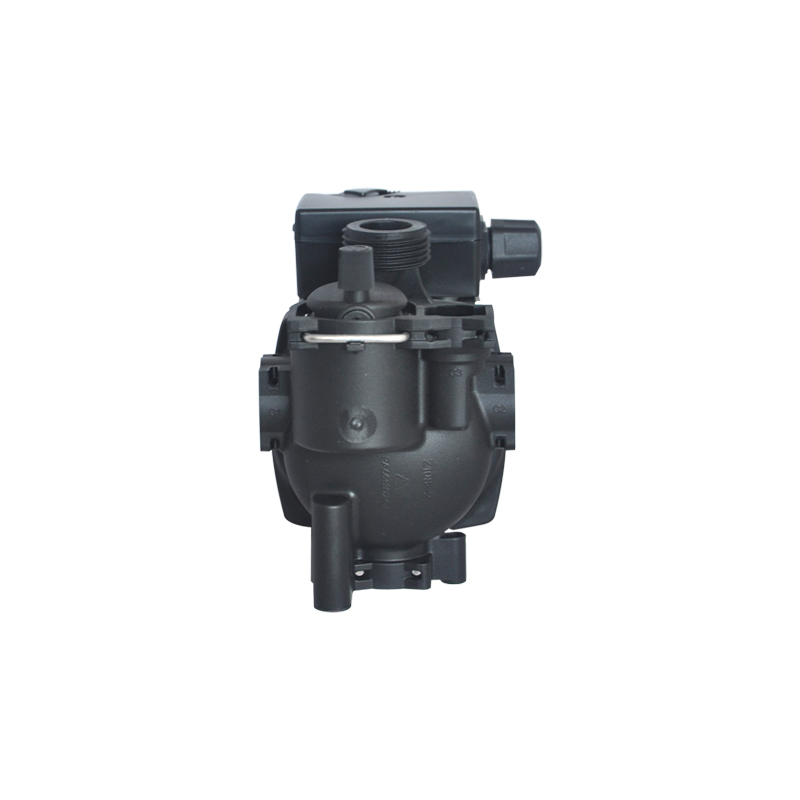

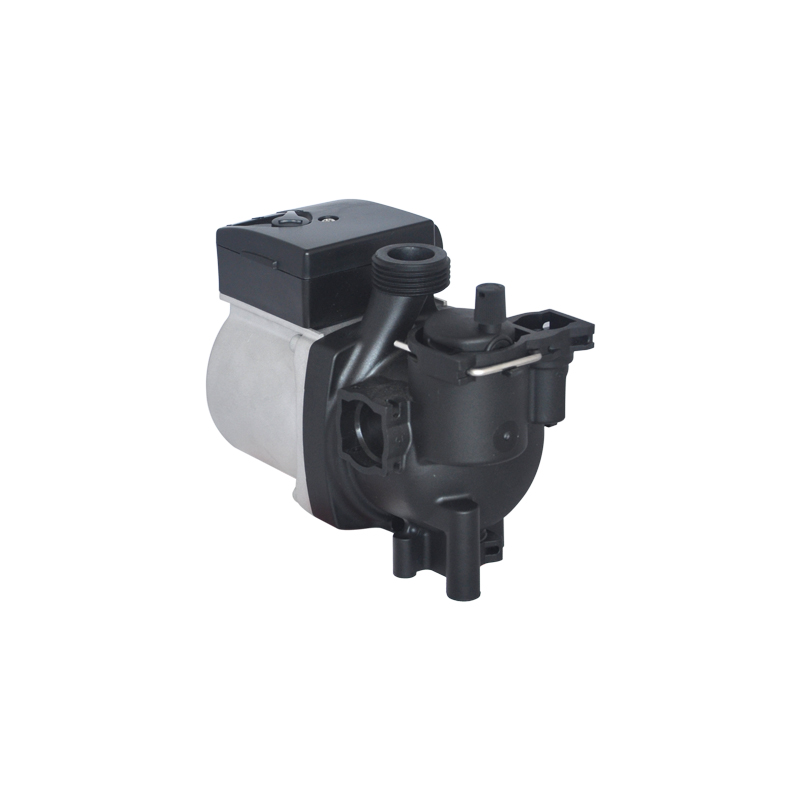

1. Shinhoo wall hung gas boiler pump is composed of stator, rotor, shield cover, vent valve and so on.
2. Sealing: stator and rotor sealed up with stainless steel shield cover, integral structure sealed up with
3. heat-resisting rubber washer, rather than mechanical seal. This ensures no leakage.
4. Lubrication and cooling: use internal circulation, lubricated and cooled by circulated liquid.
5. Motor: Insulation Class is H. Internal thermal protector. Single speed and three speeds are available.
6. Protection Class: IP 42.
7. Venting: based on floating ball principle, an integrated air venting system can exhaust the air out of water
8. Automatically during liquid injecting and running.
9. Noise：The noise of pump that works in a boiler with rated flow is less than 42 dB(A).

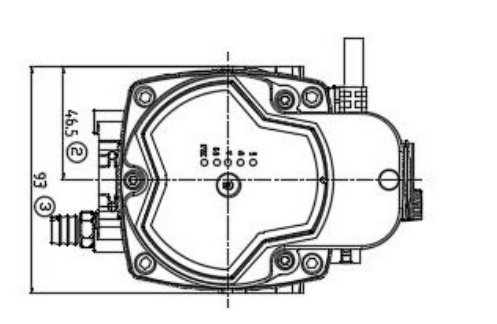

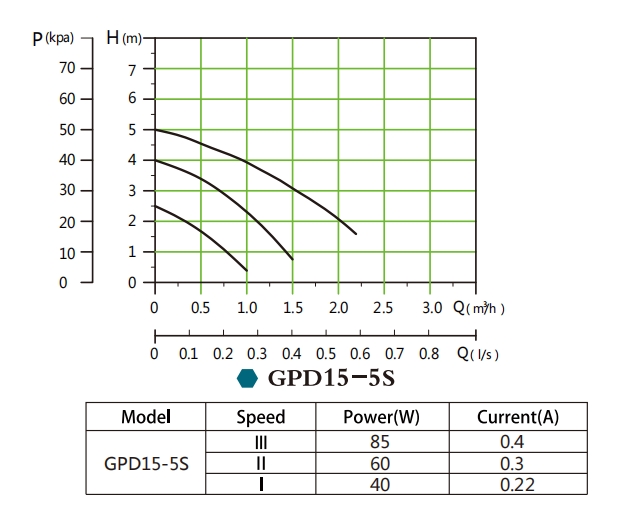

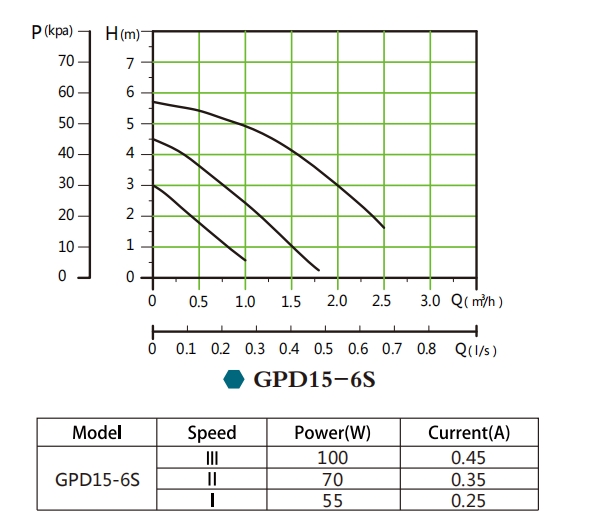

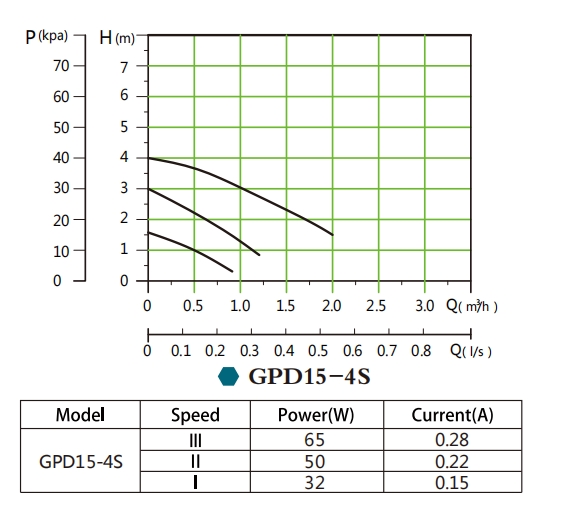

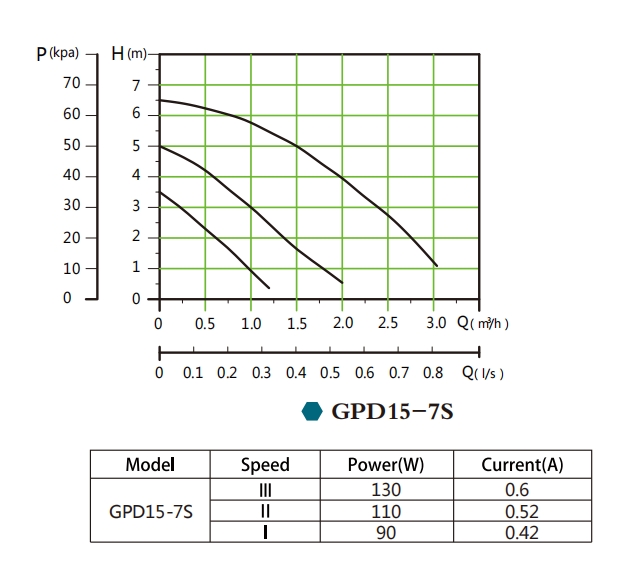

GPD series, standard efficiency gas boiler pump
Model: GPD15-XS Z108
Pump head: 4m, 5m, 6m, 7m
Max. flow: 2.8m³/h
Max. head: 6.5m
Liquid temperature: 20-95℃
Max. Pressure: 3 bar
Operation Condition
Power: AC230V, 50Hz
The minimum start-up and operation voltage: 175V.
Different voltage and frequency is available according to customer’s requirement . All performance curves in this catalogue are based on pumps with power supply of AC 230V, 50Hz.
The max. system pressure: 3 bar.
In order to avoid cavitation damage to the pump bearing, the minimum inlet pressure should be kept as below: 1bar.
Ambient temperature must be lower than liquid temperature, in order to aviod condensate water produced in the interior of stator.
Transmission fluid: Thin, clean, non-corrosive and non-explosive liquids, without any particle, fiber or mineral oil. Pump can not be used for transferring flammable liquids such as diesel, petrol and so on.
Dry running: Pump is lubricated by water, dry running must be no more than 10s.
Installation:
The axial direction of pump must be parallel to ground and the vent valve should be installed vertically.
The user should not tighten the nut of valve.
It should be correctly installed by professional person
Tags :
Model U(V)/f(Hz) Speed Q（m³/h） H（m） P（W） I(A) GPD15-4S Z178 230/50 III 2.0 4.0 65 0.28 II 1.2 3.0 50 0.22 I 0.8 2.0 32 0.15 GPD15-5S Z178 230/50 III 2.2 5.0 85 0.40 II 1.5 4.0 60 0.30 I 1.0 2.5 40 0.22 GPD15-6S Z178 230/50 III 2.5 5.7 100 0.45 II 1.8 4.5 70 0.35 I 1.0 2.5 55 0.25 GPD15-7S Z178 230/50 III 2.8 6.5 130 0.60 II 2.0 5.0 110 0.52 I 1.2 3.5 90 0.42
Model U(V)/f(Hz) Speed Q（m³/h） H（m） P（W） I(A) GPD15-4S Z106 230/50 III 2.0 4.0 65 0.28 II 1.2 3.0 50 0.22 I 0.8 2.0 32 0.15 GPD15-5S Z106 230/50 III 2.2 5.0 85 0.40 II 1.5 4.0 60 0.30 I 1.0 2.5 40 0.22 GPD15-6S Z106 230/50 III 2.5 5.7 100 0.45 II 1.8 4.5 70 0.35 I 1.0 2.5 55 0.25 GPD15-7S Z106 230/50 III 2.8 6.5 130 0.60 II 2.0 5.0 110 0.52 I 1.2 3.5 90 0.42
Model U(V)/f(Hz) Speed Q（m³/h） H（m） P（W） I(A) GPD15-4S Z027 230/50 III 2.0 4.0 65 0.28 II 1.2 3.0 50 0.22 I 0.8 2.0 32 0.15 GPD15-5S Z027 230/50 III 2.2 5.0 85 0.40 II 1.5 4.0 60 0.30 I 1.0 2.5 40 0.22 GPD15-6S Z027 230/50 III 2.5 5.7 100 0.45 II 1.8 4.5 70 0.35 I 1.0 2.5 55 0.25 GPD15-7S Z027 230/50 III 2.8 6.5 130 0.60 II 2.0 5.0 110 0.52 I 1.2 3.5 90 0.42
Model Basic 32-8SN Power 245/190/135W Max.flow 8m³/h Max head 8m Current 1.1/0.85/0.6A Voltage/ Frequency 115/230V 50/60HZ Pump housing Stainless steel(N) Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2~110℃ Max System Pressure 1.0Mpa
Model Basic 20-7S, Basic 20-7SB, Basic 20-7SN,Basic 20-7SQ,Basic 20-7SP Power 130/110/90W Max.flow 3.5m³/h Max head 7m Current 0.6/0.52/0.42A Voltage/ Frequency 115/230V 50/60HZ Pump housing cast iron, stainless steel body(N) ,copper body(B) ,Bronze(Q) and Plastic (P) Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Model Basic 25-8SB Power 245/190/135W Max.flow 6m³/h Max head 8m Current 1.1/0.85/0.6A Voltage/ Frequency 115/230V 50/60HZ Pump housing Brass Pumped liquid Clean Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃(mixture of glycol and water up to 50%) Max System Pressure 1.0Mpa Certificates CE, GS, UL, VD, EMC, RoHS, REACH,UKCA etc.
Power supply voltage 230V 50/60Hz, PE Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max. 95% System pressure 1.0 MPa Compliance CE/ GS/ EMC/ LVD/RoHS/REACH Environment temperature 0～+40℃ Temperature class TF110 Liquid temperature 2～+110℃
Model Master SD 25-7.5 130/ Master SD 25-7.5 180 Maximum flow (m³/h) 3.8 Maximum head (m) 7.5 EEI EEI≤0.20-Part2 Rated voltage 220-240V AC Rated current 0.5 A Frequency 50/60Hz Maximum power 60 W Design pressure 1.0MPa Noise ≤42dB(A) IP class IP44 Insulation class H
Model Master SD 25-8 130/ Master SD 25-8 180 Maximum flow (m³/h) 3.6 Maximum head (m) 8 EEI EEI≤0.21-Part2 Rated voltage 220-240V AC Rated current 0.55 A Frequency 50/60Hz Maximum power 70 W Design pressure 1.0MPa Noise ≤42dB(A) IP class IP44 Insulation class H
Power supply voltage 220-240V 50/60Hz, PE Motor protection No external protection required IP class IP42 Insulation class F Humidity(RH) Max. 95% System pressure 1.0 MPa Compliance CE/ GS/ EMC/ LVD/RoHS/REACH Environment temperature 0～+40℃ Temperature class TF95 Liquid temperature 2～+110℃
Power supply voltage 220~240V,AC,Protective earth Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max 95% System pressure 1.0 Mpa Compliance EMC/RoHS/REACH/TUV/CE/EEI/CCC Environment temperature -30℃~55℃ Temperature class TF 95 Liquid temperature -20℃~+95℃ Connection/Unions Molex/TE
Power supply voltage 220-240V 50/60Hz, PE Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max. 95% System pressure 1.0 MPa Compliance CE/ GS/ EMC/ LVD/RoHS/REACH Environment temperature 0～+40℃ Temperature class TF110 Liquid temperature -30～+110℃ (Glycol up to 50%) Voltage/ Frequency 230V/50HZ Pump housing Cast iron/Stainless steel Energy(EEI) ≤0.23-Part2
