Model |
U(V)/f(Hz) |
Speed |
Q（m³/h） |
H（m） |
P（W） |
I(A) |
|

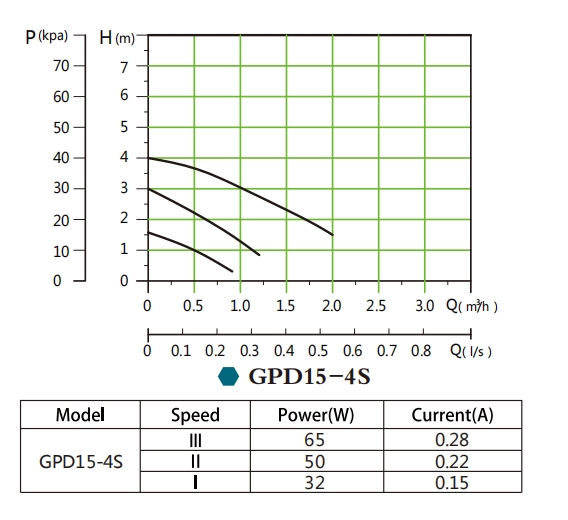

GPD15-4S Z027 |
230/50 |
III |
2.0 |
4.0 |
65 |
0.28 |
|
|
|
II |
1.2 |
3.0 |
50 |
0.22 |
|
|
|
I |
0.8 |
2.0 |
32 |
0.15 |
|
GPD15-5S Z027 |
230/50 |
III |
2.2 |
5.0 |
85 |
0.40 |
|
|
|
II |
1.5 |
4.0 |
60 |
0.30 |
|
|
|
I |
1.0 |
2.5 |
40 |
0.22 |
|
GPD15-6S Z027 |
230/50 |
III |
2.5 |
5.7 |
100 |
0.45 |
|
|
|
II |
1.8 |
4.5 |
70 |
0.35 |
|
|
|
I |
1.0 |
2.5 |
55 |
0.25 |
|
GPD15-7S Z027 |
230/50 |
III |
2.8 |
6.5 |
130 |
0.60 |
|
|
|
II |
2.0 |
5.0 |
110 |
0.52 |
|
|
|
I |
1.2 |
3.5 |
90 |
0.42 |
Item NO.:
Z0271. Apply to wall hung gas boiler system.
2. Transfer the electrical energy to hydraulic pressure.
3. Transfer the heating water.
4. Exhaust the air from HW system.
5. Suitable for wall hung gas boiler: 18kW, 24kW, 28kW, 31kW, etc..

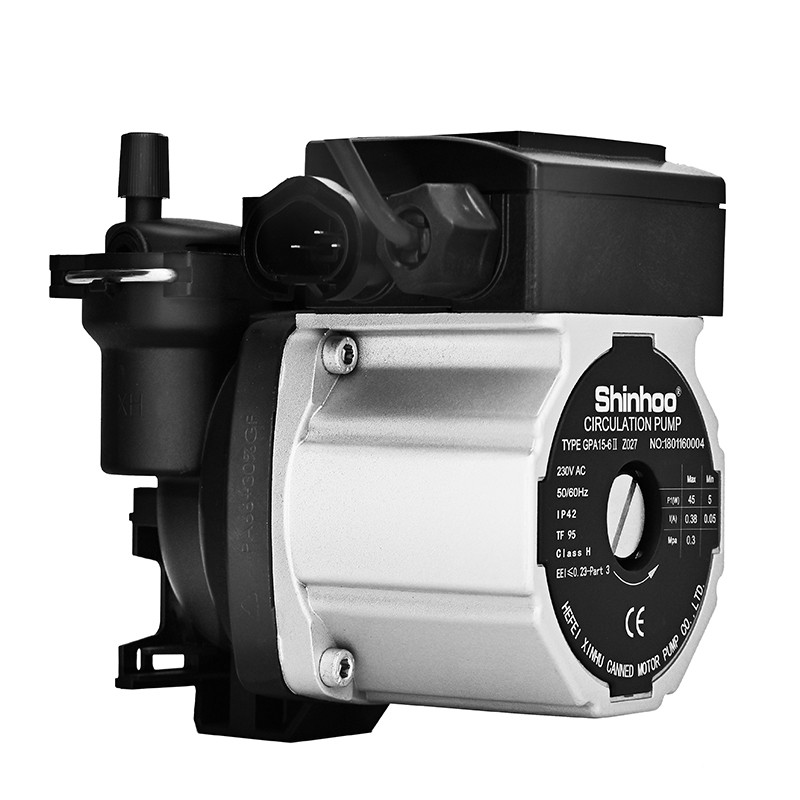

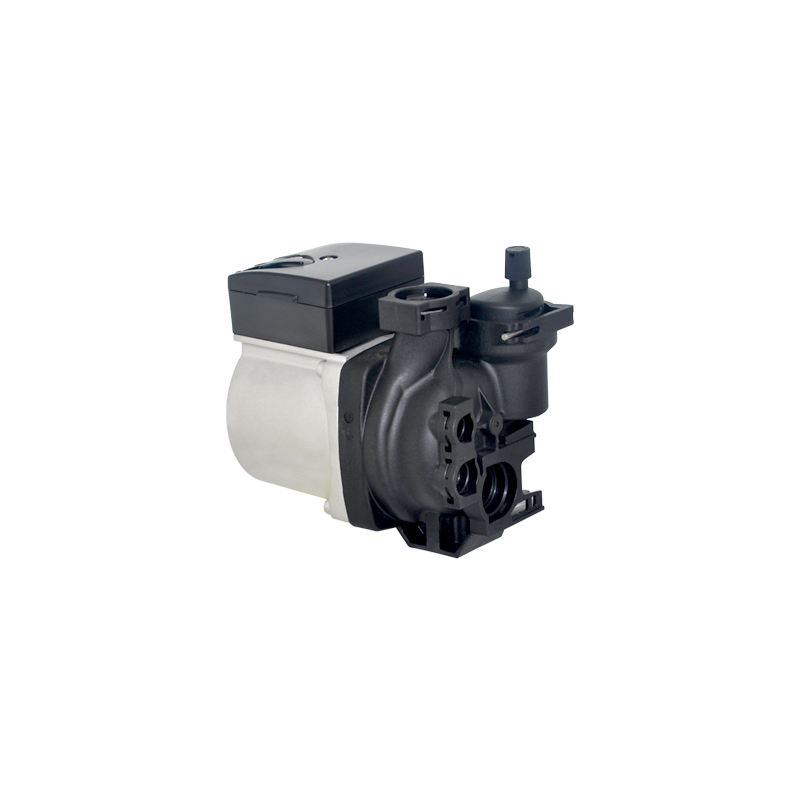

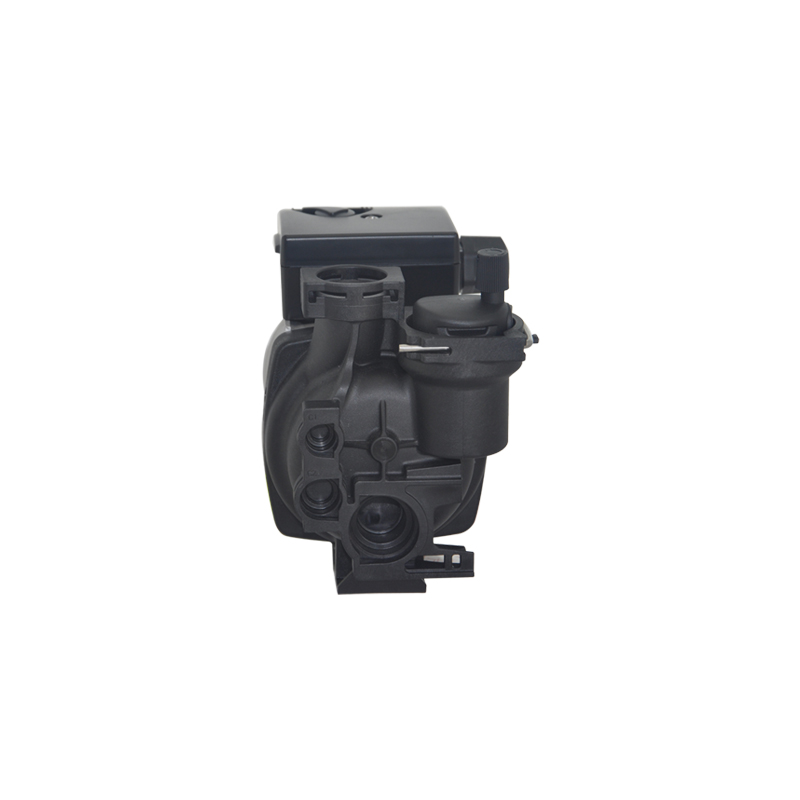

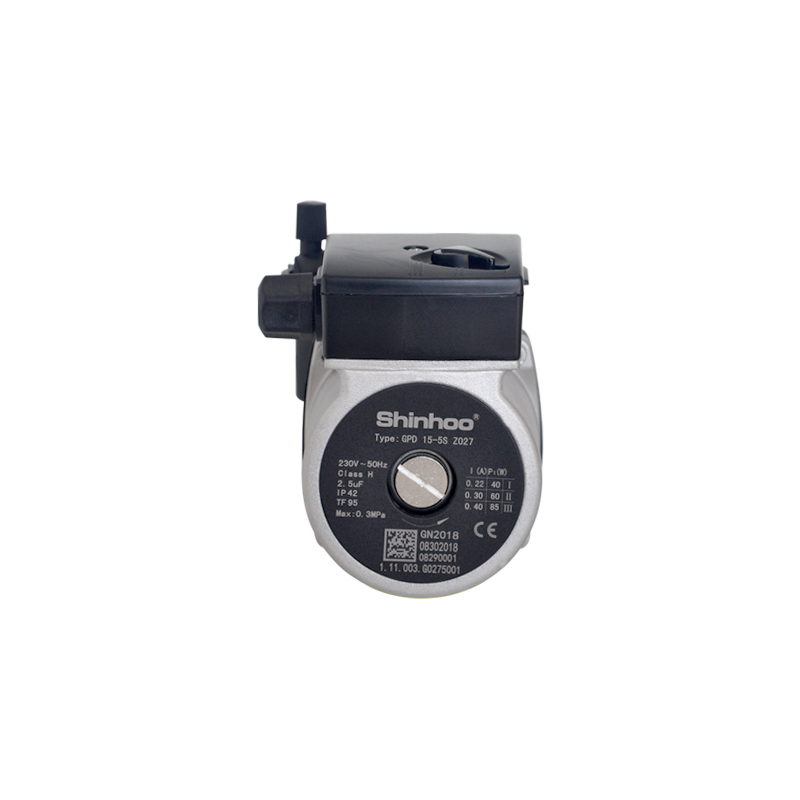

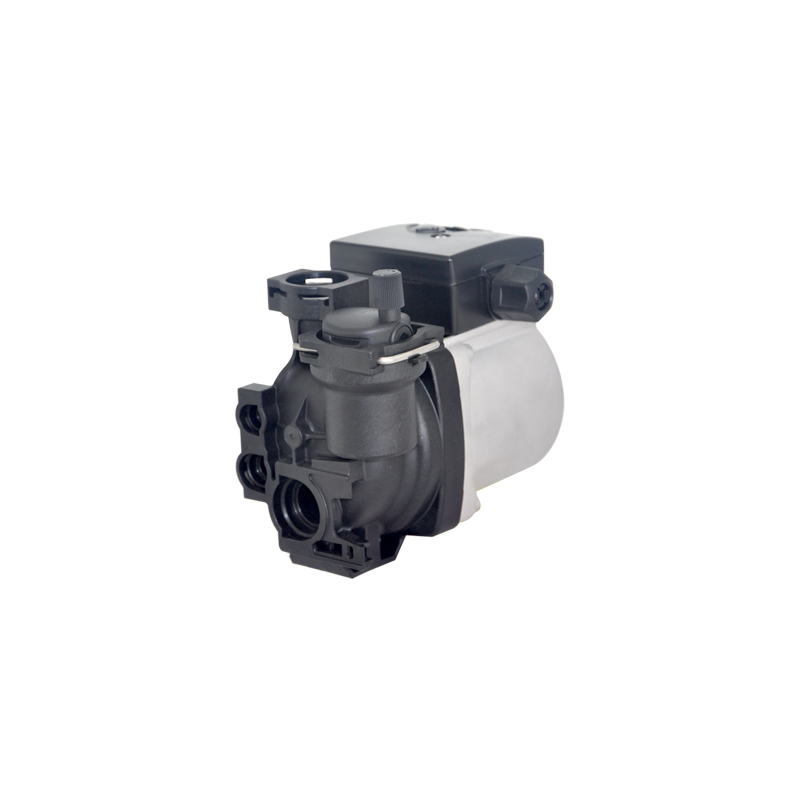

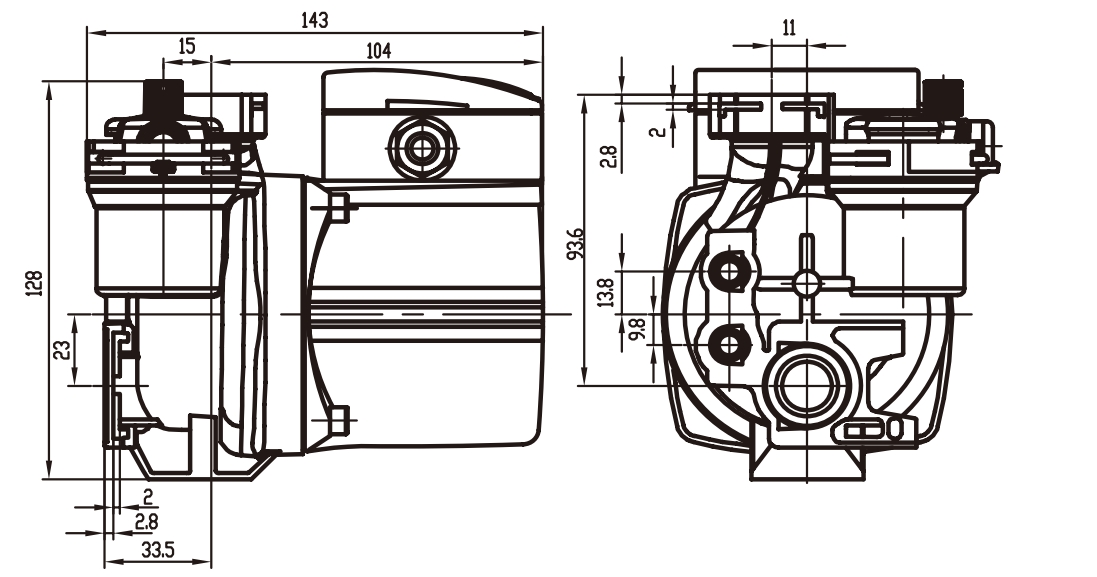

1. Shinhoo wall hung gas boiler pump is composed of stator, rotor, shield cover, vent valve and so on.
2. Sealing: stator and rotor sealed up with stainless steel shield cover, integral structure sealed up with
3. heat-resisting rubber washer, rather than mechanical seal. This ensures no leakage.
4. Lubrication and cooling: use internal circulation, lubricated and cooled by circulated liquid.
5. Motor: Insulation Class is H. Internal thermal protector. Single speed and three speeds are available.
6. Protection Class: IP 42.
7. Venting: based on floating ball principle, an integrated air venting system can exhaust the air out of water
8. Automatically during liquid injecting and running.
9. Noise：The noise of pump that works in a boiler with rated flow is less than 42 dB(A).

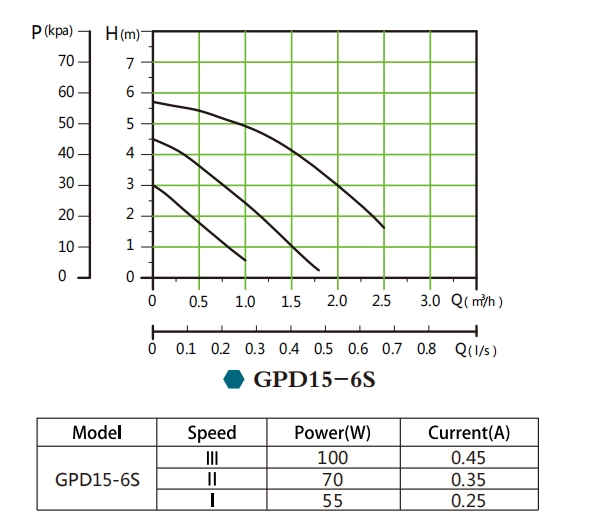

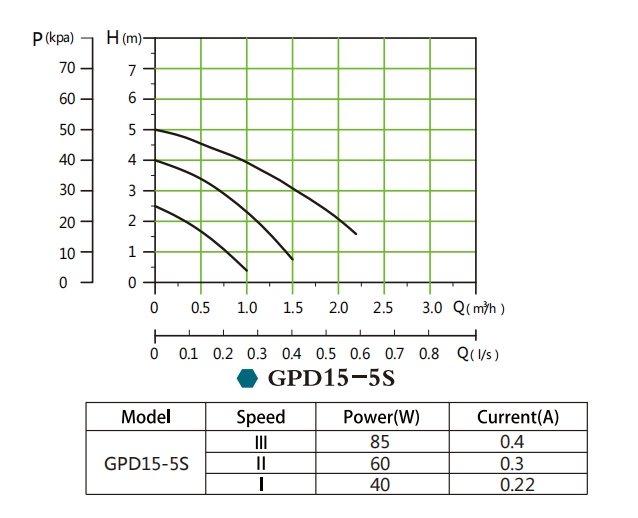

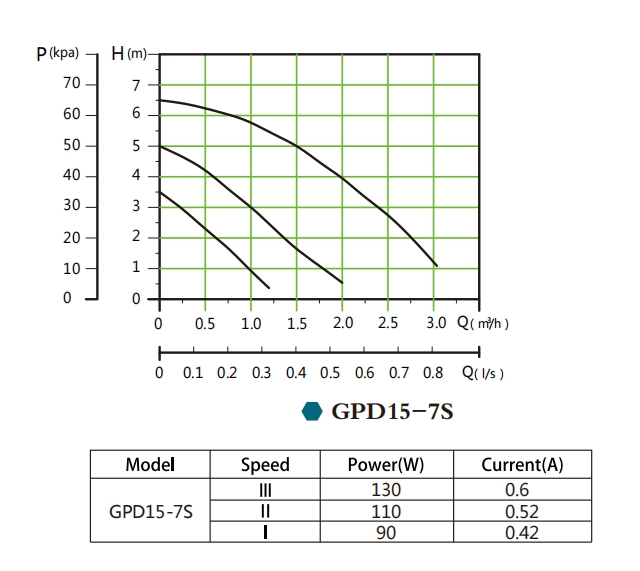

GPD series, standard efficiency gas boiler pump
Model: GPD15-XS Z027
Pump head: 4m, 5m, 6m, 7m
Max. flow: 2.8m³/h
Max. head: 6.5m
Liquid temperature: 20-95℃
Max. Pressure: 3 bar
Operation Condition
Power: AC230V, 50Hz
The minimum start-up and operation voltage: 175V.
Different voltage and frequency is available according to customer’s requirement . All performance curves in this catalogue are based on pumps with power supply of AC 230V, 50Hz.
The max. system pressure: 3 bar.
In order to avoid cavitation damage to the pump bearing, the minimum inlet pressure should be kept as below: 1bar.
Ambient temperature must be lower than liquid temperature, in order to aviod condensate water produced in the interior of stator.
Transmission fluid: Thin, clean, non-corrosive and non-explosive liquids, without any particle, fiber or mineral oil. Pump can not be used for transferring flammable liquids such as diesel, petrol and so on.
Dry running: Pump is lubricated by water, dry running must be no more than 10s.
Installation:
The axial direction of pump must be parallel to ground and the vent valve should be installed vertically.
The user should not tighten the nut of valve.
It should be correctly installed by professional person
Tags :
Model U(V)/f(Hz) Speed Q（m³/h） H（m） P（W） I(A) GPD15-4S Z178 230/50 III 2.0 4.0 65 0.28 II 1.2 3.0 50 0.22 I 0.8 2.0 32 0.15 GPD15-5S Z178 230/50 III 2.2 5.0 85 0.40 II 1.5 4.0 60 0.30 I 1.0 2.5 40 0.22 GPD15-6S Z178 230/50 III 2.5 5.7 100 0.45 II 1.8 4.5 70 0.35 I 1.0 2.5 55 0.25 GPD15-7S Z178 230/50 III 2.8 6.5 130 0.60 II 2.0 5.0 110 0.52 I 1.2 3.5 90 0.42
Model U(V)/f(Hz) Speed Q（m³/h） H（m） P（W） I(A) GPD15-4S Z106 230/50 III 2.0 4.0 65 0.28 II 1.2 3.0 50 0.22 I 0.8 2.0 32 0.15 GPD15-5S Z106 230/50 III 2.2 5.0 85 0.40 II 1.5 4.0 60 0.30 I 1.0 2.5 40 0.22 GPD15-6S Z106 230/50 III 2.5 5.7 100 0.45 II 1.8 4.5 70 0.35 I 1.0 2.5 55 0.25 GPD15-7S Z106 230/50 III 2.8 6.5 130 0.60 II 2.0 5.0 110 0.52 I 1.2 3.5 90 0.42
Model U(V)/f(Hz) Speed Q（m³/h） H（m） P（W） I(A) GPD15-4S Z108 230/50 III 2.0 4.0 65 0.28 II 1.2 3.0 50 0.22 I 0.8 2.0 32 0.15 GPD15-5S Z108 230/50 III 2.2 5.0 85 0.40 II 1.5 4.0 60 0.30 I 1.0 2.5 40 0.22 GPD15-6S Z108 230/50 III 2.5 5.7 100 0.45 II 1.8 4.5 70 0.35 I 1.0 2.5 55 0.25 GPD15-7S Z108 230/50 III 2.8 6.5 130 0.60 II 2.0 5.0 110 0.52 I 1.2 3.5 90 0.42
Model PROMO 15-9A, PROMO 15-9AB, PROMO 15-9AN, PROMO 15-9AQ Power 120w Voltage 230V Frequency 50Hz Max Flow 1.78m3/h Max Head 9m Rated Head 7.5m Diameter 15mm IP Grade IP42 Temperature 2 -60℃ Pump housing cast iron, stainless steel body(N) ,copper body(B) ,Bronze(Q) Pumped liquid Water Insulation class H Degree of Protection IP44 Max System Pressure 1.0Mpa Certificates CE, GS, UL, VD, EMC, RoHS, REACH etc.
Power supply voltage 220-240V 50/60Hz, PE Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max. 95% System pressure 1.0 MPa Compliance CE/ GS/ EMC/ LVD/RoHS/REACH Environment temperature 0～+40℃ Temperature class TF110 Liquid temperature -30～+110℃ (Glycol up to 50%) Voltage/ Frequency 230V/50HZ Pump housing Cast iron Energy(EEI) ≤0.23-Part2
Product model Basic S 20-4S; Basic S 20-4SN Ambient temperature 0 ~+40 °C Temperature of pumped liquid +2 ~ +110 °C Storage temperature -30 ~ +55 °C Pumps with unions 1.0 MPa (10 bar) Pump housing cast iron, stainless-steel(N) Port to port length 130mm
Voltage(V) 230/380 Power(W) 700/550/410 Max Flow(m³/h) 9 Insulation Class H Protection Class IP44 System Pressure(bar) 10 Noise Index ≤50dB(A)
Model Basic 32-9F Power 300W Max.flow 8m³/h Max head 9m Current 1.5A Voltage/ Frequency 115/230V 50HZ Pump housing Cast iron Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Enclosure class IPX4D (EN 60529) Insulation class H Supply voltage 1 × 230 V ± 10 % 50 Hz, PE Digital input PWM 0–10 V Analog input 4–20 mA. 0–10 W direct current Connection bus input Modbus RTU Leakage current Leakage < 3.5 mА. Leakage current is measured in accordance with EN 60335-1 EMC Standards applied: EN61000-3-2, EN61000-6-3, EN61800-3-3, EN55014-1 and EN55014-2
Model Master SD 32-7 180 Maximum flow(m³/h) 4.2 Maximum head(m) 7.0 EEI EEI≤0.20-Part2 Rated voltage 220-240V AC Rated current 0.5 A Frequency 50/60Hz Maximum power 52 W Design pressure 1.0MPa Noise ≤42dB(A) IP class IP44 Insulation class H
Pump Body Length 6 1/2 Feet Power 200/190/135W Max.flow 32 GPM Max head 30 Feet Current 1.8/1.7/1.2A Voltage/ Frequency 115/230V 50/60HZ Pump housing Cast iron Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0MPA
Model Basic 65-15SF Pro Power 1500W Max.flow 38m³/h Max head 15m Voltage/ Frequency 380V /50HZ Pump housing Cast iron Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2~110℃ Max System Pressure 1.0Mpa
