Power supply |
220~240V, 50Hz AC |
|
Maximum system pressure |
≤0.3MPa |
|
Insulation class |
B |
|
Protection level |
IPX5 |
|
Ambient temperature during work |
within the range of 0°C to 50°C |
|
The temperature of the conveying liquid |
within the range of 5°C to 50°C |
|
Delivery liquid |
clear water |

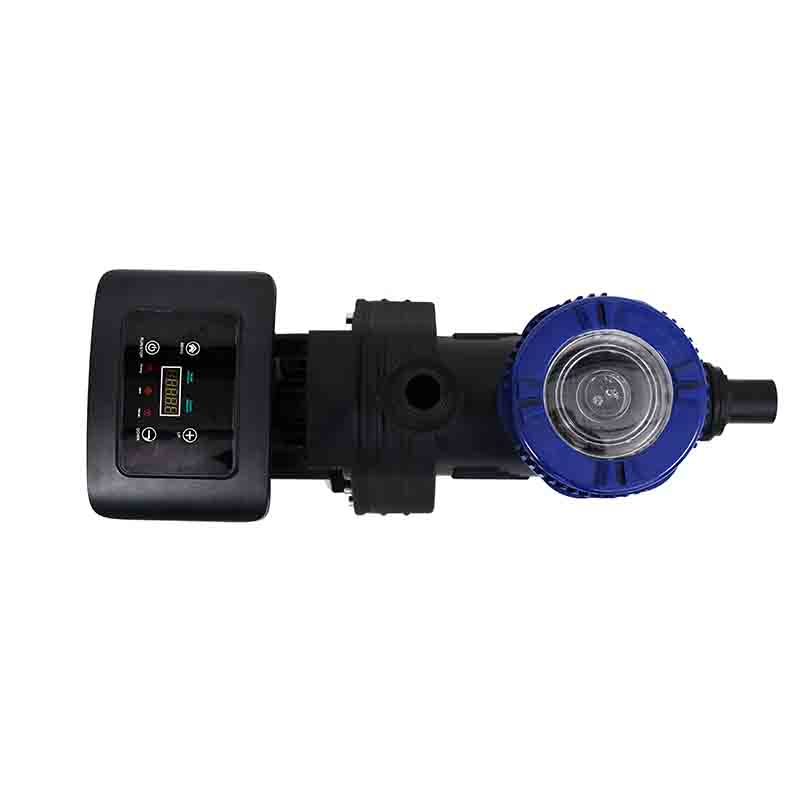

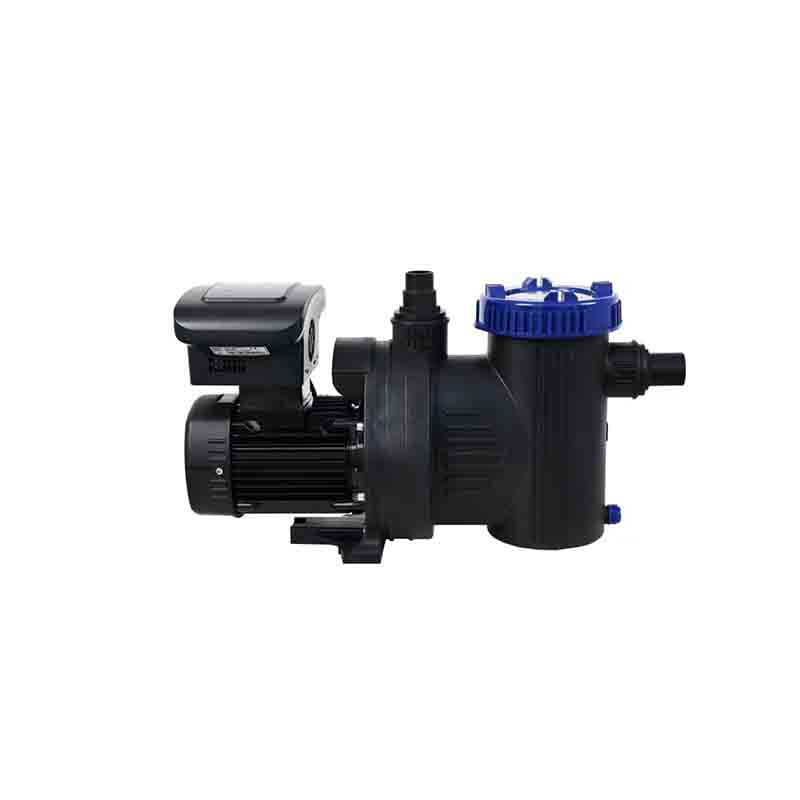

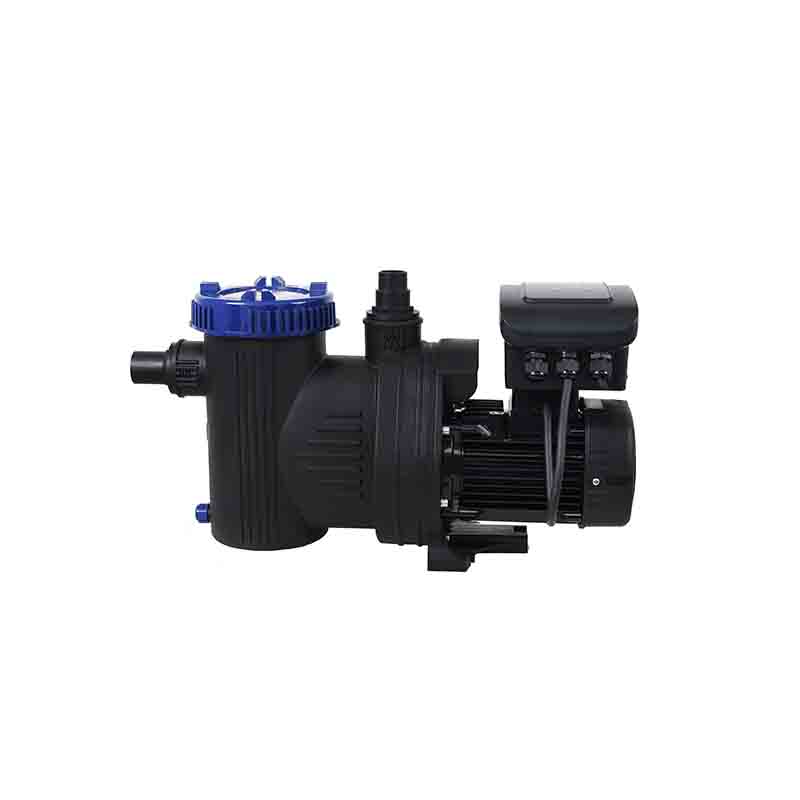

Item NO.:
F-SP 21000 Pro1.It is used for water circulation in all kinds of small domestic swimming pools;
2. Slightly dirty water with solids in suspension can be perfectly filtered.

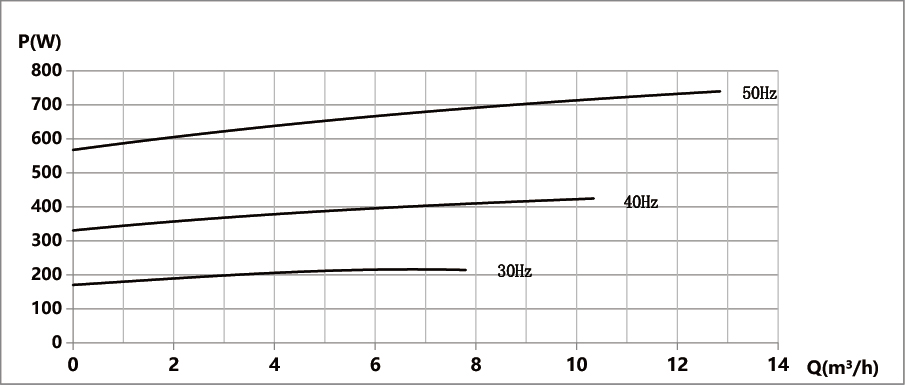

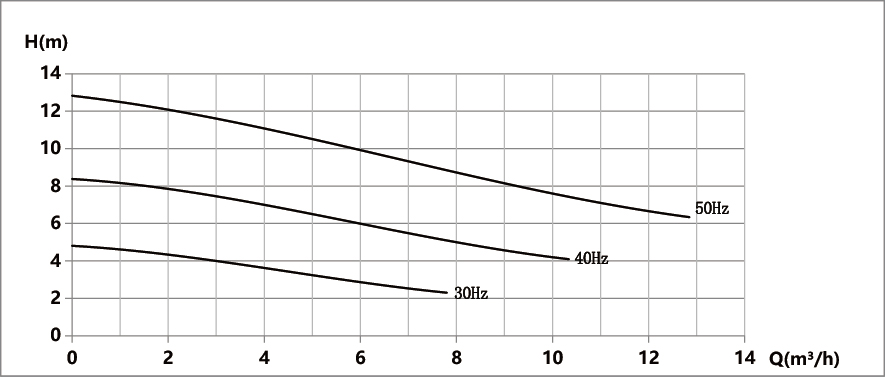

Regulate by Hz:0-50Hz
Regulate by RPM: Three gears

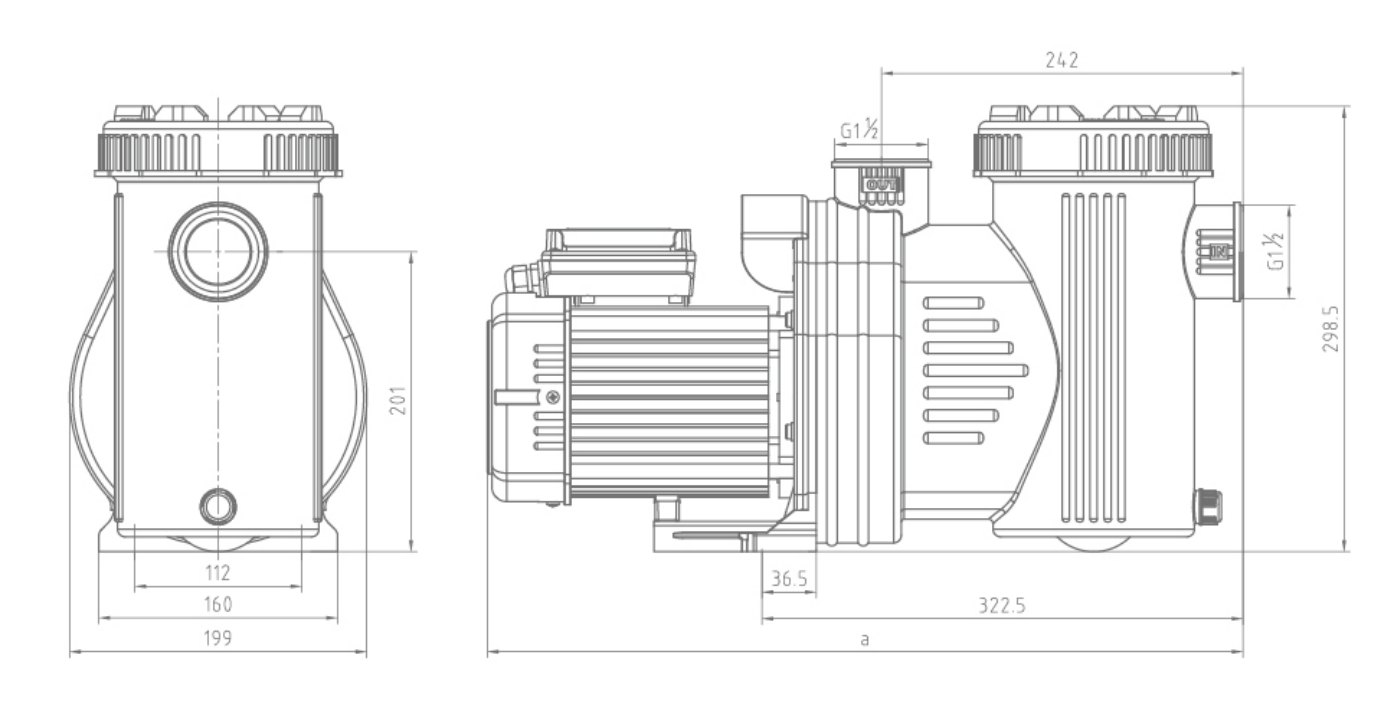

Installation Drawing：
1. Product production process testing items
1.1 Motor detection
1.1.1 Motor turn-to-turn impact detection;
1.1.2 Motor insulation resistance detection;
1.1.3 Motor ground withstand voltage detection;
1.1.4 Motor winding DC resistance detection;
1.1.5 Motor rotation test.
1.2 Assembly workshop
1.2.1 Grounding resistance detection of the whole pump;
1.2.2 Insulation resistance detection of the whole pump;
1.2.3 Pump withstand voltage leakage current detection;
1.2.4 Leakage current detection of the whole pump;
1.2.5 Low-voltage startup detection of the whole pump;
1.2.6 No-load power detection of the whole pump;
1.2.7 Check the no-load current of the whole pump.
2. Type test of the pump in the laboratory
2.1 Hydraulic performance inspection of the whole pump;
2.2 Noise and vibration detection of the whole pump;
2.3 Pump life test;
2.4 High and low temperature performance testing of the whole pump.
3. Working conditions
3.1 Power supply: 220V, 50Hz single-phase alternating current;
3.2 Maximum system pressure: 0.35MPa;
3.3 Insulation class: F;
3.4 Protection level: IP55;
3.5 Working environment temperature: 0℃～50℃;
3.6 The temperature of the conveying liquid: 5℃～50℃;
3.7 Delivery liquid: clean water.
Tags :
Power supply 220~240V, 50Hz AC Maximum system pressure ≤0.3MPa Insulation class B Protection level IPX5 Ambient temperature during work within the range of 0°C to 50°C The temperature of the conveying liquid within the range of 5°C to 50°C Delivery liquid clear water
Power supply 220~240V, 50Hz AC Maximum system pressure ≤0.3MPa Insulation class B Protection level IPX5 Ambient temperature during work within the range of 0°C to 50°C The temperature of the conveying liquid within the range of 5°C to 50°C Delivery liquid clear water
Enclosure class IPX4D (EN 60529) Insulation class H Supply voltage 1 × 230 V ± 10 % 50 Hz, PE Digital input PWM 0–10 V Analog input 4–20 mA. 0–10 W direct current Connection bus input Modbus RTU Leakage current Leakage < 3.5 mА. Leakage current is measured in accordance with EN 60335-1 EMC Standards applied: EN61000-3-2, EN61000-6-3, EN61800-3-3, EN55014-1 and EN55014-2
Model Basic 25-7SB Pump Body Length 130mm Power 130/110/90W Max.flow 4m³/h Max. head 7m Current 0.6/0.52/0.42A Voltage/ Frequency 115/230V, 50/60HZ Pumped liquid Clean Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa Pump Housing Brass body
Model U(V)/f(Hz) Speed Q（m³/h） H（m） P（W） I(A) GPD15-4S Z027 230/50 III 2.0 4.0 65 0.28 II 1.2 3.0 50 0.22 I 0.8 2.0 32 0.15 GPD15-5S Z027 230/50 III 2.2 5.0 85 0.40 II 1.5 4.0 60 0.30 I 1.0 2.5 40 0.22 GPD15-6S Z027 230/50 III 2.5 5.7 100 0.45 II 1.8 4.5 70 0.35 I 1.0 2.5 55 0.25 GPD15-7S Z027 230/50 III 2.8 6.5 130 0.60 II 2.0 5.0 110 0.52 I 1.2 3.5 90 0.42
Model Basic 20-7S, Basic 20-7SB, Basic 20-7SN,Basic 20-7SQ,Basic 20-7SP Power 130/110/90W Max.flow 3.5m³/h Max head 7m Current 0.6/0.52/0.42A Voltage/ Frequency 115/230V 50/60HZ Pump housing cast iron, stainless steel body(N) ,copper body(B) ,Bronze(Q) and Plastic (P) Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Model Basic 20-7S Pro Maximum flow 3.5m³/h Rated flow rate 2m ³/ h Maximum head 7m Rated head 4.7m Current 0.73/0.52/0.33A Input Power 70/115/140W Ingress protection IP44 Noises Index(Rated flow point) <48dB(A)
Power supply voltage 220V~240V,AC,Protective earth Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max 95% System pressure 1.0 Mpa Compliance EMC/RoHS/REACH/TUV/CE/EEI Environment temperature -30℃~55℃ Temperature class TF 95 Liquid temperature 2~+95℃ Connection/Unions Shinhoo Standard/ Molex/TE
Rated Voltage AC22~240V Design Pressure 1.0MPa Temperature Grade TF110 Maximum Current 3.55A Frequency 50Hz Input Power 700W Insulation Class IP44 Motor Speed 2800 rpm~2850 rpm Noise ＜48dB(A)(rated point) Compliance CE/RoHS/ REACH
Voltage(V) 230 Power(W) 300/280/260 Max Flow(m³/h) 5 Insulation Class H Protection Class IP44 System Pressure(bar) 10 Noise Index ≤50dB(A)
Rated Voltage/Frequency 230V/50Hz Insulation class Class H IP class IP44 Noise Index ≤50dB(A) Max System Pressure 10bar(1.0 MPa) Medium liquid Clean water Certification CCC\GS\UL\CE\RoHS\REACH\EEI
Power supply voltage 220-240V 50/60Hz, PE Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max. 95% System pressure 1.0 MPa Compliance CE/ GS/ EMC/ LVD/RoHS/REACH Environment temperature 0～+40℃ Temperature class TF110 Liquid temperature -30～+110℃ (Glycol up to 50%) Voltage/ Frequency 230V/50HZ Pump housing Cast iron Energy(EEI) ≤0.23-Part2
