Max Flow |
23 l/min |
|
Max Head |
12 m |
|
Max Input Power |
45 W |
|
Max Efficiency |
30% |
|
Voltage |
DC24V |
|
Insulation Class |
H |
|
Noise |
＜42dB（A |
|
Protection Level |
IPX4 |

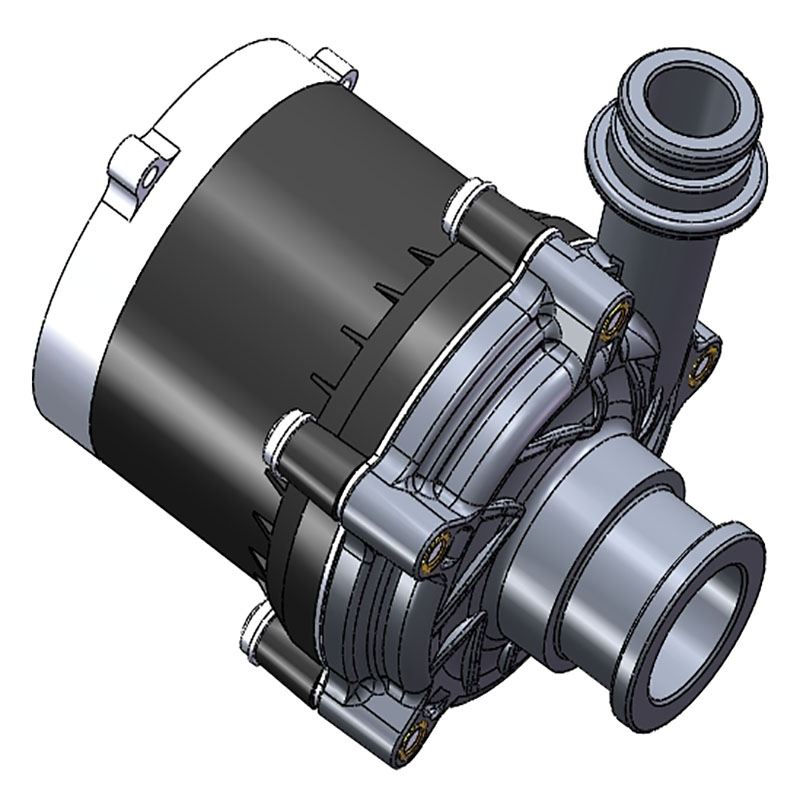

Item NO.:
SPA15-12EGas water heater system
Solar heating system
Domestic hot water system
Features
▷This product has the characteristics of simple structure, small size, easy installation, easy maintenance, and low noise. It is a low-flow and high-head centrifugal pump. The product is driven by an intelligent program and has low-pressure protection, over-voltage protection, over-current protection, and stalling protection, and has a power limiting function to prevent overload.
Installation and safe use instructions
▷ The water pump installation direction is such that the water pump outlet is vertically upward and the pump shaft is placed horizontally.
▷ The water pump needs to be installed in a place to prevent rain, water, exposure, etc.
▷ The water pump cannot directly collide with hard objects, and cannot be impacted by water hammer exceeding 12 kg.
▷ The motor lead does not have a special structural design to prevent it from being pulled off. Please do not apply direct force to avoid breaking the wire.
▷ It is forbidden to run the water pump without water to prevent product wear and tear, or even machine burn-in.
▷ Suitable for easy-flowing, low-viscosity, clean, non-corrosive and non-explosive media, and the media must not contain solid particles or fibers that may cause mechanical or chemical damage to the water pump.
▷ The remaining water in the pump (after shipping inspection) will not cause clogging of the pump shaft or freezing during transportation will not cause the pump body to crack.
▷After the water pump is transported, the quality must be guaranteed between Shinhoo and the customer.
|

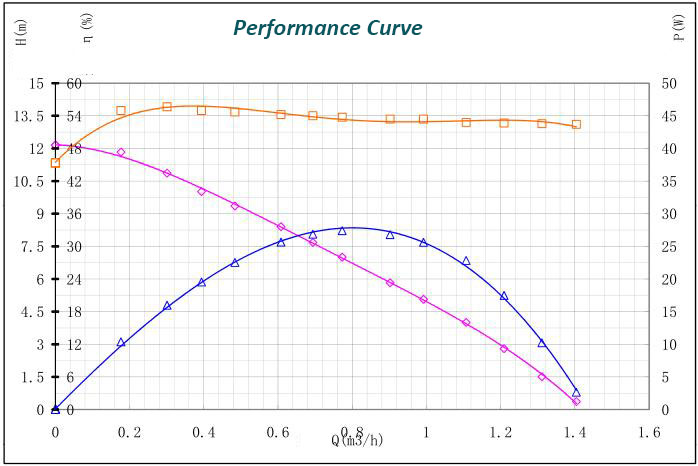

SPA15-12E |
|||||
|
Flow（m3/h） |
Head（m） |
Voltage |
Current |
Inlet Power（W） |
Efficiency |
|
0.000 |
12.152 |
24 |
1.58 |
37.80 |
0.09 |
|
0.177 |
11.833 |
24 |
1.91 |
45.80 |
12.44 |
|
0.301 |
10.962 |
24 |
1.93 |
46.40 |
19.17 |
|
0.394 |
10.021 |
24 |
1.91 |
45.80 |
23.45 |
|
0.484 |
9.361 |
24 |
1.90 |
45.60 |
27.03 |
|
0.608 |
8.41 |
24 |
1.88 |
45.20 |
30.78 |
|
0.694 |
7.684 |
24 |
1.88 |
45.00 |
32.24 |
|
0.773 |
7.007 |
24 |
1.87 |
44.80 |
32.89 |
|
0.902 |
5.831 |
24 |
1.85 |
44.50 |
32.16 |
|
0.992 |
5.071 |
24 |
1.85 |
44.50 |
30.76 |
|
1.107 |
4.006 |
24 |
1.83 |
44.00 |
27.42 |
|
1.209 |
2.799 |
24 |
1.83 |
43.90 |
20.97 |
|
1.311 |
1.508 |
24 |
1.83 |
43.80 |
12.28 |
|
1.404 |
0.365 |
24 |
1.82 |
43.70 |
3.19 |
