Power supply voltage |
220-240V 50/60Hz, PE |
|
Motor protection |
No external protection required |
|
IP class |
IP44 |
|
Insulation class |
H |
|
Humidity(RH) |
Max. 95% |
|
System pressure |
1.0 MPa |
|
Compliance |
CE/ GS/ EMC/ LVD/RoHS/REACH |
|
Environment temperature |
0～+40℃ |
|
Temperature class |
TF110 |
|
Liquid temperature |
2～+110℃ |
Item NO.:

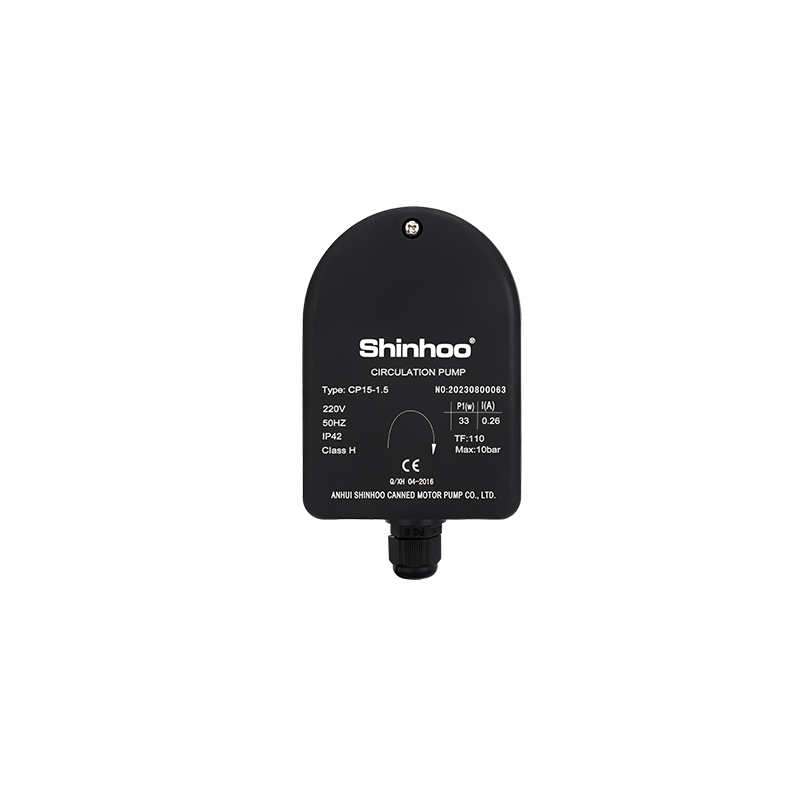

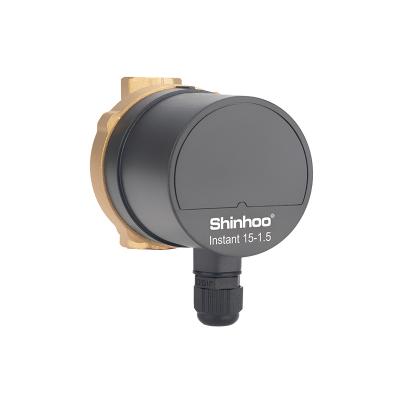

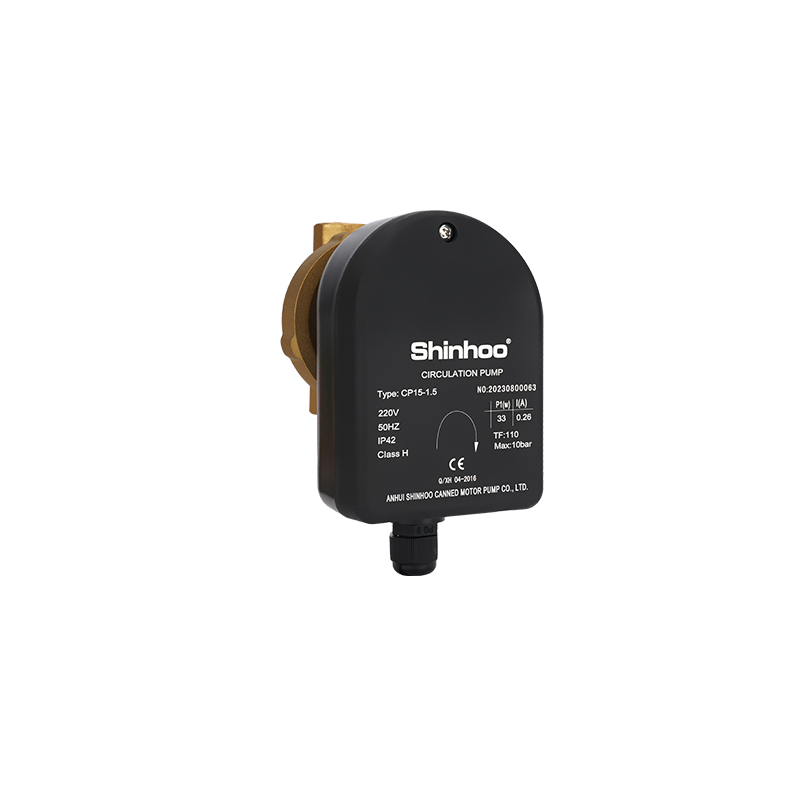

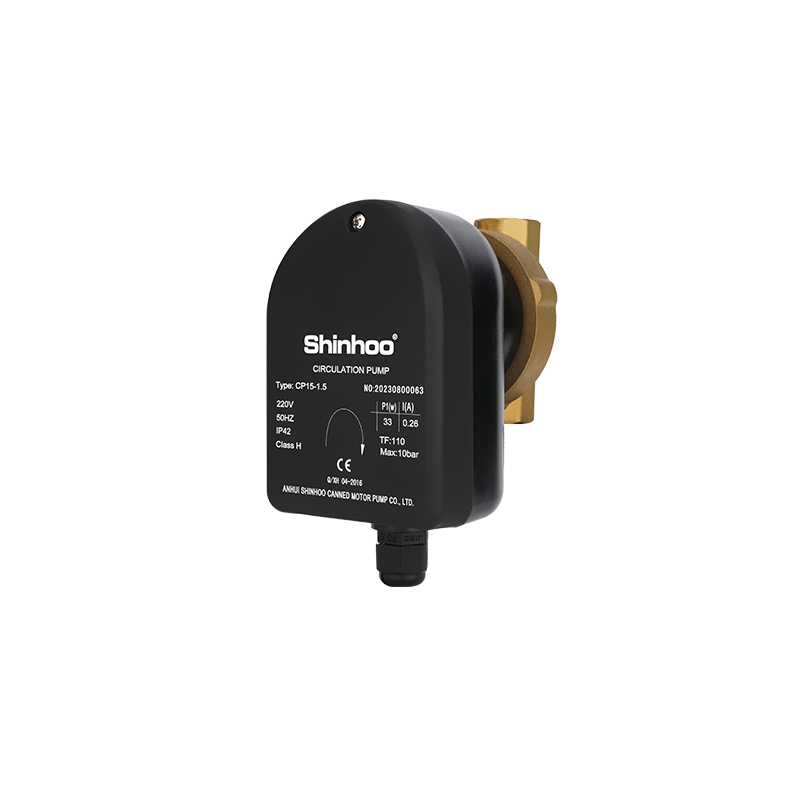

Instant E 15-1.5Product Origin:
CN1. Domestic hot water recirculation
2. Domestic heating and hot water circulation systems
3. Hot water heater circulation systems
4. Hot water circulation in water supply systems of private houses and flats.
Easy installation and operation
Pump runs once the power is connected and works with maximal rotation speed all the time.
Low noise and high comfort
Noise index: ≤42dB(A)
Low energy consumption
Power consumption lowest to 5W
Multiple protection
With over-current protection
Quick release power plug
Start-up and stop the pump quickly.
1. The pumps can be used for open and closed systems. Constructioned for indoor installation.
2. A water-conducting part of these pumps is made of corrosion-resistant brass to protect them from chemical contact with hot pumped water.
3. The pumps are energy-efficient and silent due to their advanced Functional drawing of multi-circuit hot water recirculation.
4. Reduced installation lengths and compact size of these pumps allow integrating them into the recirculation circuit even in the tightest space. If applicable, dismountable design will allow easily purging the flow part of the pump.
Pumped liquids
1. Pure, non-viscous, non-aggressive, and nonexplosive liquids without solids or fibers. • Cooling liquids without mineral oils.
2. Domestic hot water with hardness max. 14 °dH, max. 110 °С.
3. Softened water. Kinematic water viscosity υ = 1 mm2/s (1 cSt) at 20 °C. When a circulator pump is used to pump a more viscous liquid, performance of the hydraulic system decreases.
Liquid temperature
From +2 to +110 °С. It is recommended to maintain a temperature from 50 to 60 °С to minimize lime deposits and prevent Legionella.
Ambient and liquid temperatures
A temperature of pumped liquid should always be higher than ambient temperature. Otherwise, there can appear condensation in the housing.
Maximum system pressure
Pumps with units (PN 10): 1.0 MPa (10 bar).
Inlet pressure
To avoid cavitation noise and pump bearings damage, the following minimal pressure should be set up for an inlet port:
|
Liquid temperature |
75 °C |
90 °C |
110 °C |
|
Inlet pressure |
0.5 m |
5 m |
10.8 m |
|
0.049 bar |
0.5 bar |
1.08 bar |
Construction
INSTANT pumps design allows disconnecting the motor of the pump from the housing for easier maintenance. A rotor bearing is lubricated with pumped liquid. The pumps feature:
1. parts contacting with pumped liquid are isolated from stator placed in a sealed stainless steel case;
2. friction decrease in a bearing and absence of slop provide significant decrease in consumed power and noise.
INSTANT pumps are equipped with single-phase permanent-magnet motors.
The motor has full electric resistance and heat protection.
The motor does not require any additional protection.
Enclosure class: IP 44.
Insulation thermal resistance class: H.

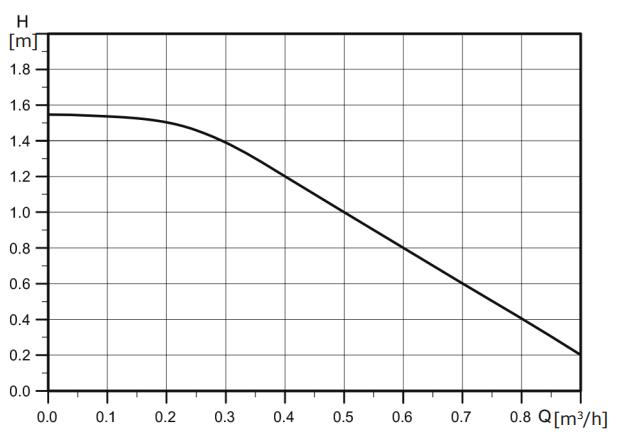

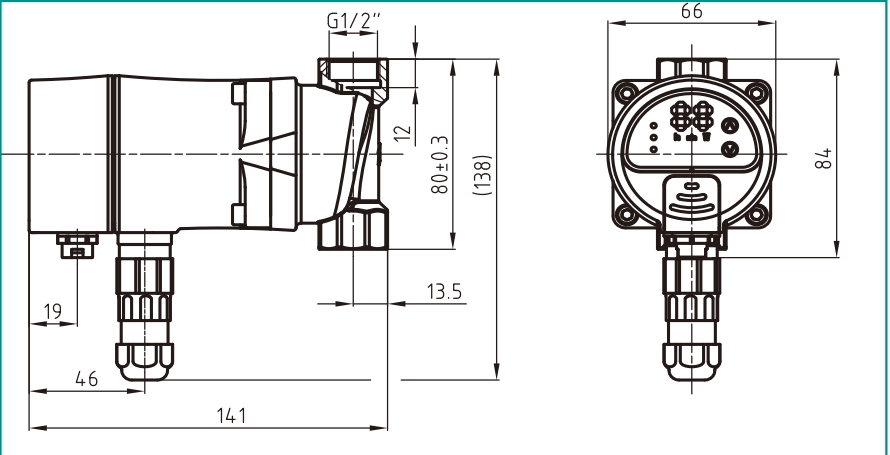

Installation Drawing
Tags :
Power supply voltage 220-240V 50/60Hz, PE Motor protection No external protection required IP class IP42 Insulation class F Humidity(RH) Max. 95% System pressure 1.0 MPa Compliance CE/ GS/ EMC/ LVD/RoHS/REACH Environment temperature 0～+40℃ Temperature class TF95 Liquid temperature 2～+110℃
Max Flow 23 l/min Max Head 12 m Max Input Power 45 W Max Efficiency 30% Voltage DC24V Insulation Class H Noise ＜42dB（A Protection Level IPX4
Power supply voltage 220-240V 50/60Hz, PE Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max. 95% System pressure 1.0 MPa Compliance CE/ GS/ EMC/ LVD/RoHS/REACH Environment temperature 0～+40℃ Temperature class TF110 Liquid temperature 2～+110℃
Max Flow 20 l/min Max Head 12 m Max Input Power 45 W Max Efficiency 23% Voltage AC 220V Insulation Class H Noise ＜42dB(A) Protection Level IP44
Power supply voltage 220-240V 50/60Hz, PE Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max. 95% System pressure 1.0 MPa Compliance CE/ GS/ EMC/ LVD/RoHS/REACH Environment temperature 0～+40℃ Temperature class TF110 Liquid temperature -30～+110℃ (Glycol up to 50%)
Rated voltage 380V Rated head 28m Rated flow 2m³/h Max. head 33m Max. flow 6m³/h Insulation class F Design pressure 10bar Vibration ＜2.8mm/s Protection class IP54 Frequency 50Hz Rated current 1.48A Rated power 550W Noise ＜62dB（A） Max.power 650W
Model Basic 32-7S Power 130/110/90W Max.flow 4.5m³/h Max head 7m Current 0.6/0.52/0.42A Voltage/ Frequency 115/230V 50HZ Pump housing Cast iron Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Model Basic 25-4SB Pump body length 130/180mm Power 65/50/32W Max.flow 3.0m³/h Max head 4m Current 0.28/0.22/0.15A Voltage/ Frequency 115/230V 50/60HZ Pump housing copper body(B) Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Model Basic 25-5SB Pump Body Length 130/180mm Power 85/60/40W Max.flow 3.3m³/h Max head 5m Current 0.4/0.3/0.22A Voltage/ Frequency 115/230V 50/60HZ Pump housing copper body(B) Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Max. flow(m³/h) 5.5 Rated flow(m³/h) 3 Design pressure 1.0MPa Max. head(m) 45 Rated head(m) 30 Protection class IP44 Voltage AC 220V/50Hz Max. input power 600W Max. speed 5000rpm Protection class IP44 Voltage AC 220V/50Hz Max. input power 600W Max. speed 5000rpm
Model Basic 32-9SXL-180 Pro /Basic 32-9SXL-220 Pro Rated Voltage/Frequency 230V/50Hz Insulation class Class H IP class IP44 Noise Index ≤50dB(A) Max System Pressure 10bar(1.0 MPa) Medium liquid Clean water Certification CCC\GS\UL\CE\RoHS\REACH\EEI
Enclosure class IPX4D (EN 60529). Insulation class H. Supply voltage 1 × 230 V ± 10 % 50 Hz, PE Digital input PWM 0–10 V Analog input 4–20 mA. 0–10 W direct current Connection bus input Modbus RTU Leakage current Ileakage < 3.5 mА. Leakage current is measured in accordance with EN 60335-1. EMC Standards applied: EN61000-3-2, EN61000-6-3, EN61800-3-3, EN55014-1 and EN55014-2
