Power supply |
220~240V, 50Hz AC |
|
Maximum system pressure |
≤0.3MPa |
|
Insulation class |
B |
|
Protection level |
IPX5 |
|
Ambient temperature during work |
within the range of 0°C to 50°C |
|
The temperature of the conveying liquid |
within the range of 5°C to 50°C |
|
Delivery liquid |
clear water |
Item NO.:
F-SP 16000 Pro1.It is used for water circulation in all kinds of small domestic swimming pools;
2. Slightly dirty water with solids in suspension can be perfectly filtered.

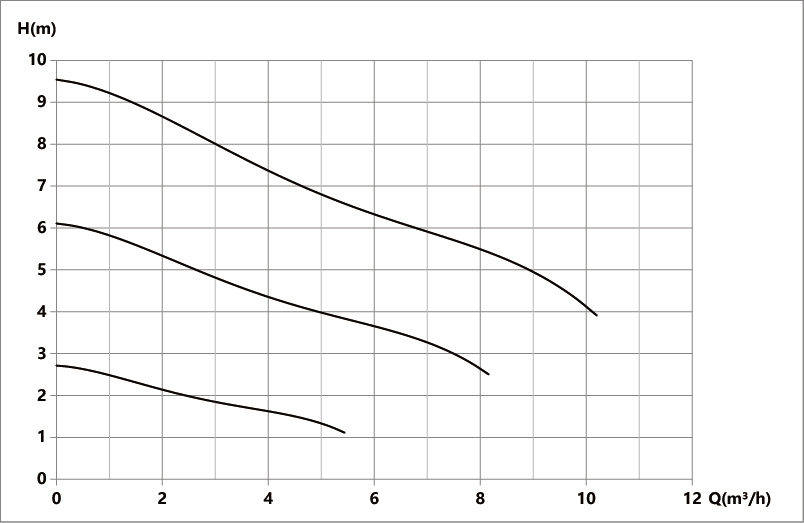

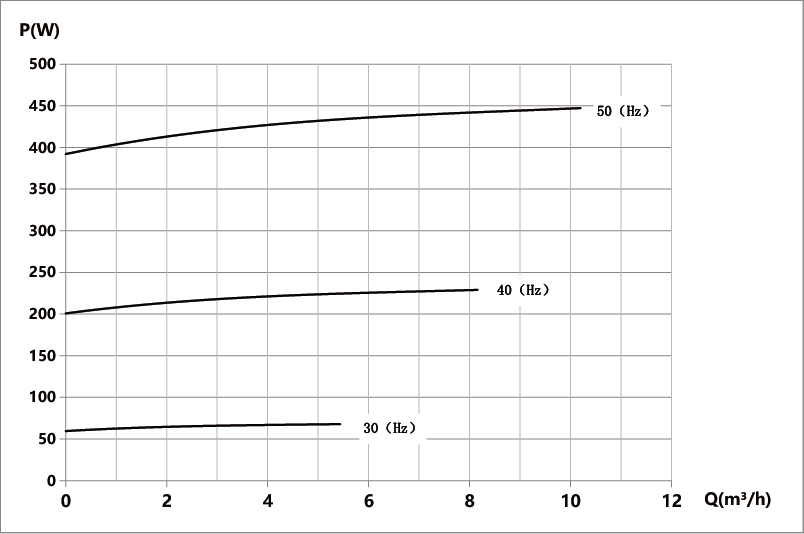

Regulate by Hz:0-50Hz
Regulate by RPM: Three gears
Installation Drawing：
1. Product production process testing items
1.1 Motor detection
1.1.1 Motor turn-to-turn impact detection;
1.1.2 Motor insulation resistance detection;
1.1.3 Motor ground withstand voltage detection;
1.1.4 Motor winding DC resistance detection;
1.1.5 Motor rotation test.
1.2 Assembly workshop
1.2.1 Grounding resistance detection of the whole pump;
1.2.2 Insulation resistance detection of the whole pump;
1.2.3 Pump withstand voltage leakage current detection;
1.2.4 Leakage current detection of the whole pump;
1.2.5 Low-voltage startup detection of the whole pump;
1.2.6 No-load power detection of the whole pump;
1.2.7 Check the no-load current of the whole pump.
2. Type test of the pump in the laboratory
2.1 Hydraulic performance inspection of the whole pump;
2.2 Noise and vibration detection of the whole pump;
2.3 Pump life test;
2.4 High and low temperature performance testing of the whole pump.
3. Working conditions
3.1 Power supply: 220V, 50Hz single-phase alternating current;
3.2 Maximum system pressure: 0.35MPa;
3.3 Insulation class: F;
3.4 Protection level: IP55;
3.5 Working environment temperature: 0℃～50℃;
3.6 The temperature of the conveying liquid: 5℃～50℃;
3.7 Delivery liquid: clean water.
