Voltage(V) |
230/380 |
|
Power(W) |
1000/860/580 |
|
Max Flow(m³/h) |
10 |
|
Insulation Class |
H |
|
Protection Class |
IP44 |
|
System Pressure(bar) |
10 |
|
Noise Index |
≤50dB(A) |
Item NO.:

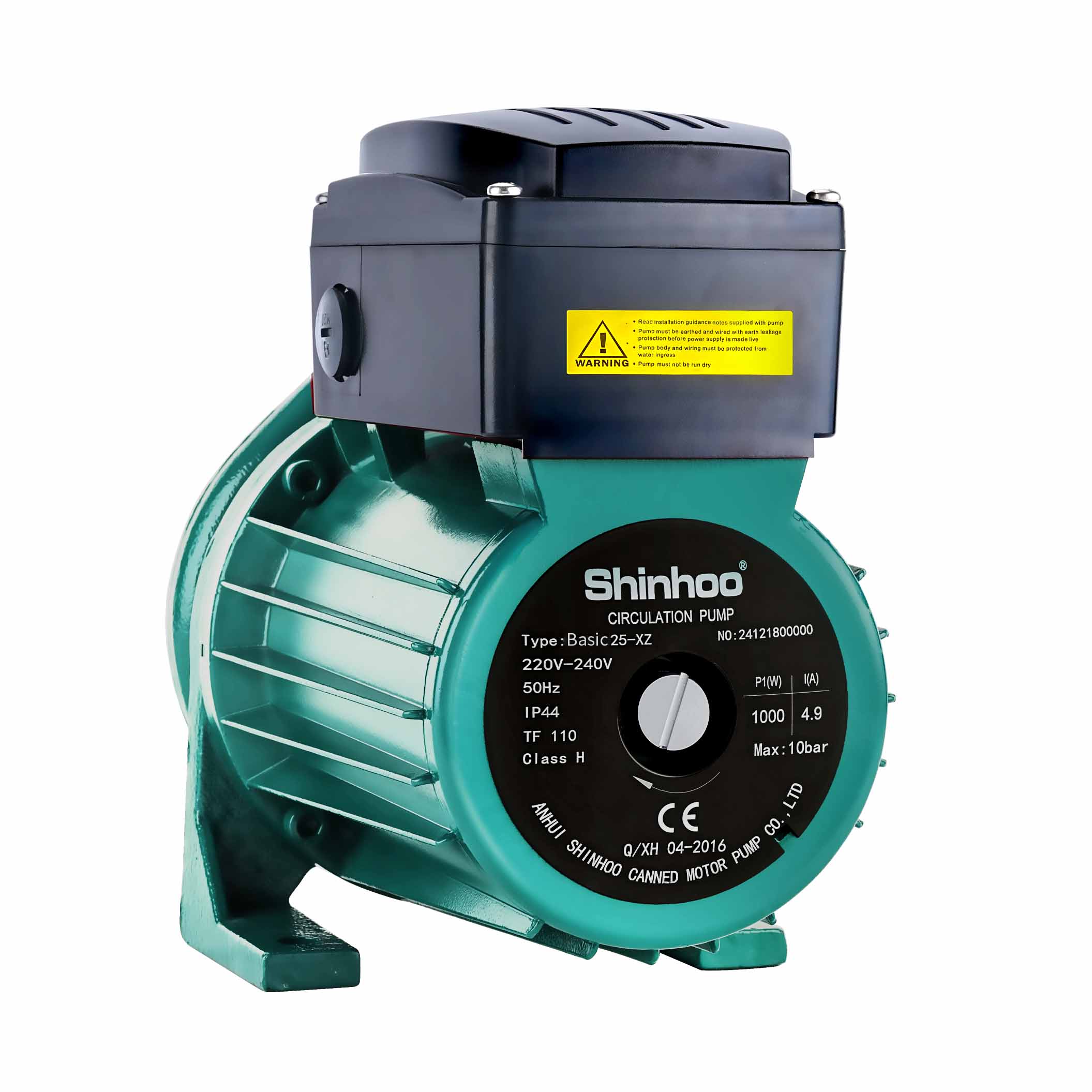

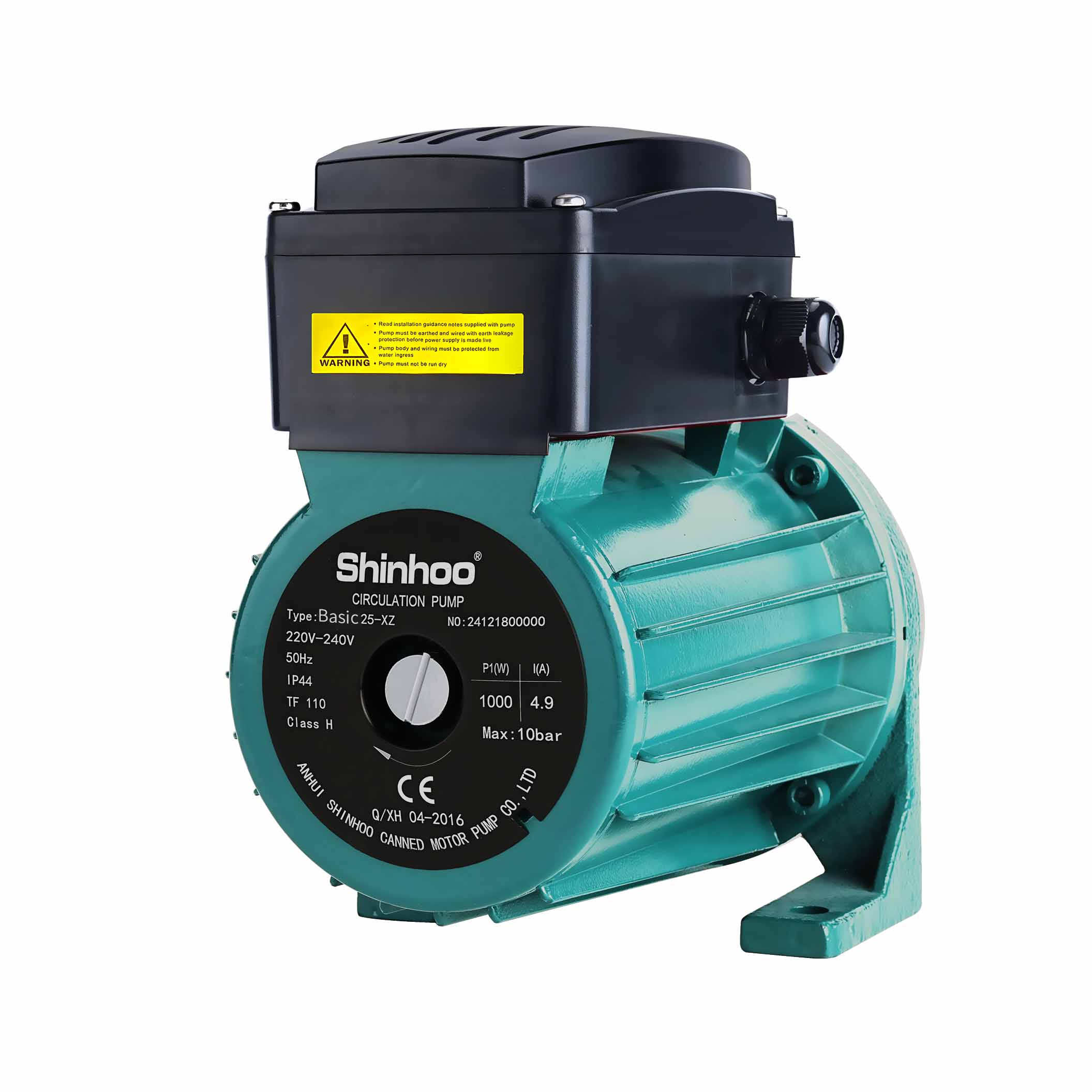

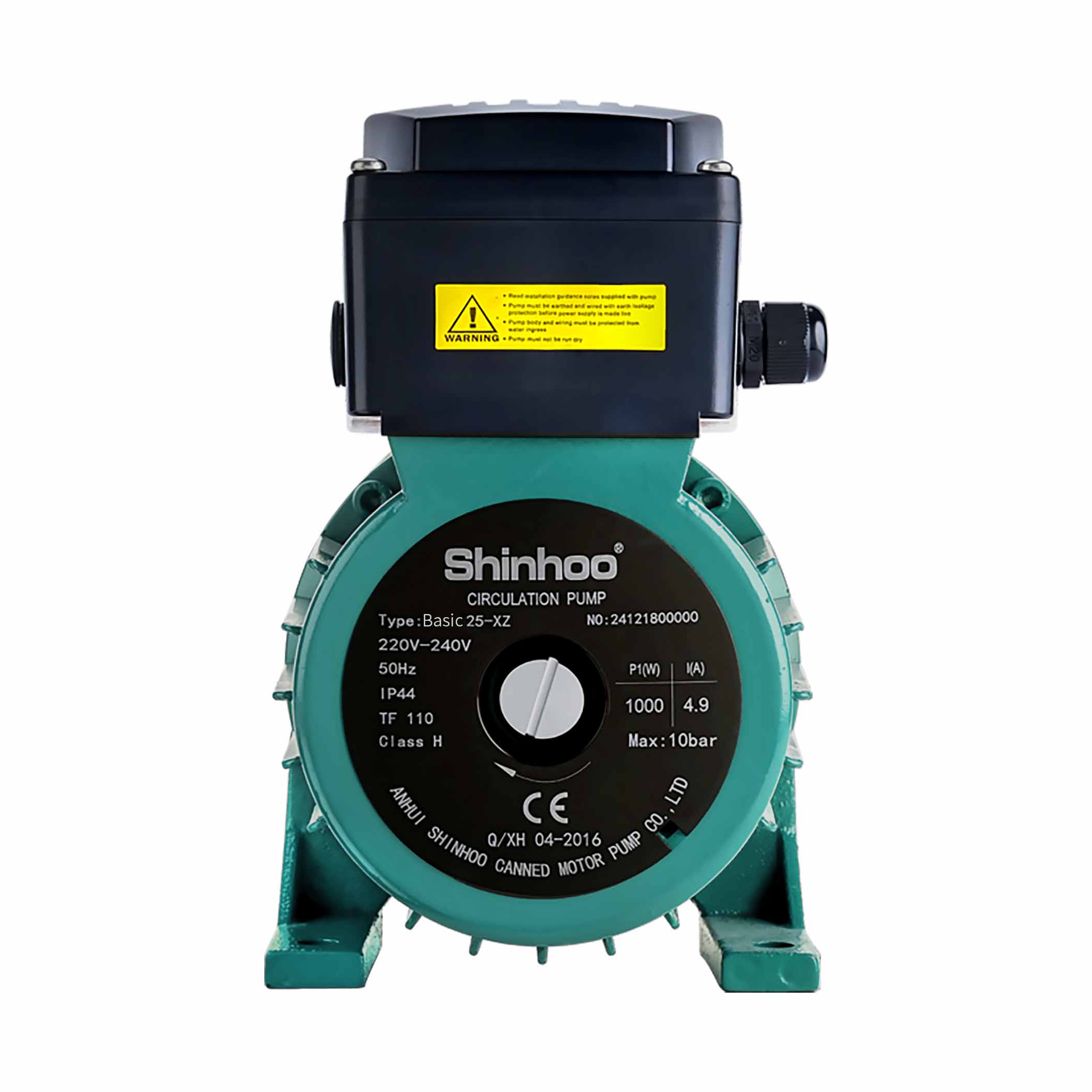

Basic 25-20SZRadiator heating systems
Underfloor heating
Hot water circulation in apartments and houses
Solar water heating systems (low-temperature circulation)
Booster circulation in villa and rural housing

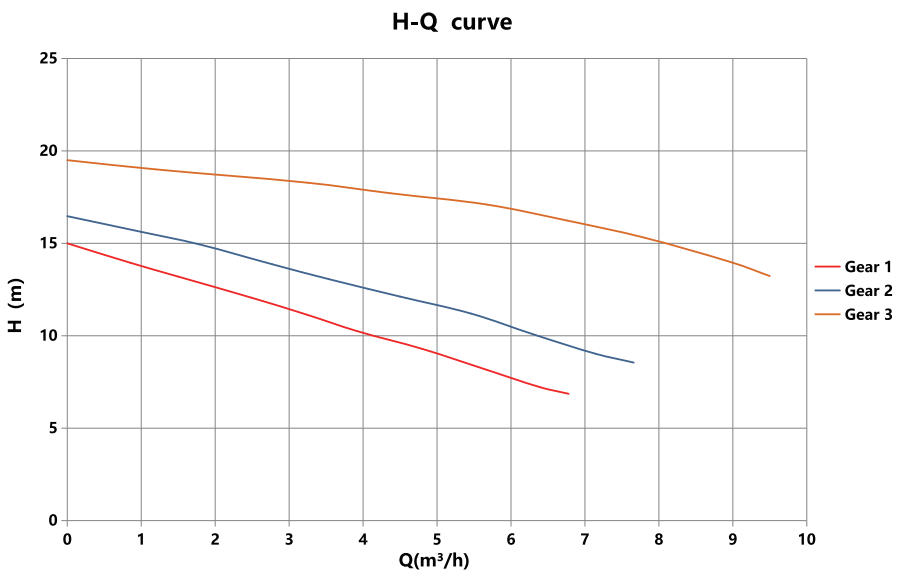

Three-Speed Control
Easily adjustable flow for different heating needs, helping reduce power consumption during mild weather.
Low Noise&No Leakage
Quiet operation and a sealed rotor design ensure comfortable, leak-free use in residential environments.
Wide Temperature Range
Handles liquid temperatures from 2°C to 110°C – ideal for cold winter nights and year-round hot water circulation.
Durable & Corrosion Resistant
Built with robust materials including stainless steel and silicon carbide, ensuring long life even in challenging water quality conditions.
Easy to Install & Maintain
Horizontal design with threaded connections makes installation simple, and the self-lubricating motor requires no regular maintenance.
1.Material Options for Different Applications
Cast Iron Housing: Recommended for clean water circulation in general heating systems.
Brass/Bronze Housing: Ideal for underground pipe heating applications, offering enhanced corrosion resistance.
Stainless Steel or Brass/Bronze Housing: Recommended for domestic hot water circulation to ensure hygiene and durability.
2. Ambient temperature: 0℃~40℃，temperature of medium: 2℃ ~110 ℃. In order to avoid condensed water in stator, make sure the ambient temperature is lower than liquid temperature.
3. Medium: thin, clean, non-corrosive and non-explosive liquid, does not contain any solid particles, fibers or mineral oil. Pump must not be used for delivering flammable liquids, such as diesel and gasoline. Delivering liquid of high viscosity will reduce performance of the pump, so while choosing a pump, the viscosity of the medium must be taken into consideration.
4. Maintain minimum pressure at the pump inlet to avoid cavitation noise and damage to pump bearings.
Installation Drawing
Tags :
Model Basic 15-9S Power 120/80/65W Max.flow 1.8m³/h Max head 9m Current 0.53/0.4/0.25A Voltage/ Frequency 115/230V 50/60HZ Pump housing Cast iron Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Model Basic 15-12S Power 270/240/160W Max.flow 3.5m³/h Max head 12m Current 1.2/1.1/0.75A Voltage/ Frequency 115/230V 50/60HZ Pump housing Cast iron Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2~110℃ Max System Pressure 1.0Mpa
Model Basic 20-5S/Basic 20-5SB/Basic 20-5SN/Basic 20-5SQ/Basic 20-5SP Power 85/60/40W Max.flow 2.8m³/h Max head 5m Current 0.4/0.3/0.22A Voltage/ Frequency 115/230V 50/60HZ Pump housing cast iron, stainless steel body(N) ,copper body(B) ,Bronze(Q) and Plastic (P) Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Model Basic 20-6S,Basic 20-6SN Power 100/70/55W Max.flow 2.8m³/h Max head 6m Current 0.45/0.35/0.25A Voltage/ Frequency 115/230V 50/60HZ Pump housing cast iron, stainless steel body(N) ,copper body(B) ,Bronze(Q),Plastic (P) Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Model Basic 20-7S, Basic 20-7SB, Basic 20-7SN,Basic 20-7SQ,Basic 20-7SP Power 130/110/90W Max.flow 3.5m³/h Max head 7m Current 0.6/0.52/0.42A Voltage/ Frequency 115/230V 50/60HZ Pump housing cast iron, stainless steel body(N) ,copper body(B) ,Bronze(Q) and Plastic (P) Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Model Basic 32-9F Power 300W Max.flow 8m³/h Max head 9m Current 1.5A Voltage/ Frequency 115/230V 50HZ Pump housing Cast iron Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Model Basic 25-4S/Basic 25-4SB/Basic 25-4SN/Basic 25-4SQ Pump body length 130/180mm Power 65/50/32W Max.flow 3.0m³/h Max head 4m Current 0.28/0.22/0.15A Voltage/ Frequency 115/230V 50/60HZ Pump housing cast iron, stainless steel body(N) ,copper body(B) ,Bronze(Q) and Plastic (P) Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Model Basic 25-5S/Basic 25-5SN/Basic 25-5SQ Pump Body Length 130/180mm Power 85/60/40W Max.flow 3.3m³/h Max head 5m Current 0.4/0.3/0.22A Voltage/ Frequency 115/230V 50/60HZ Pump housing cast iron, stainless steel body(N) ,Bronze(Q), Plastic (P) Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Model Basic 25-6S/Basic 25-6SB/Basic 25-6SN/Basic 25-6SQ Pump Body Length 130/180mm Power 100/70/55W Max.flow 3.3m³/h Max head 6m Current 0.45/0.35/0.25A Voltage/ Frequency 115/230V 50/60HZ Pump housing cast iron, stainless steel body(N) ,copper body(B) ,Bronze(Q), Plastic (P) Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃(mixture of glycol and water up to 50%) Max System Pressure 1.0Mpa Certificates CE, GS, UL, LVD, EMC, RoHS, REACH etc.
Model Basic 25-7SB Pump Body Length 130mm Power 130/110/90W Max.flow 4m³/h Max. head 7m Current 0.6/0.52/0.42A Voltage/ Frequency 115/230V, 50/60HZ Pumped liquid Clean Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa Pump Housing Copper body(B)
Model Basic 25-7S,Basic 25-7SN Pump Body Length 130/180mm Power 130/110/90W Max.flow 4m³/h Max head 7m Current 0.6/0.52/0.42A Voltage/ Frequency 115/230V, 50/60HZ Pump housing cast iron, stainless steel body(N) ,copper body(B) Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Model Basic 25-8S,Basic 25-8SN Power 245/190/135W Max.flow 6m³/h Max head 8m Current 1.1/0.85/0.6A Voltage/ Frequency 115/230V 50/60HZ Pump housing cast iron, stainless steel body(N) Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃(mixture of glycol and water up to 50%) Max System Pressure 1.0Mpa Certificates CE, GS, UL, VD, EMC, RoHS, REACH etc.
