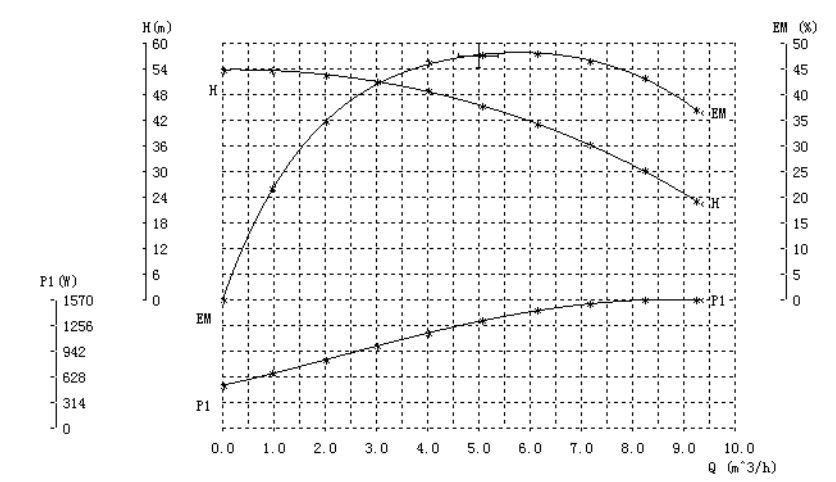

Maximum flow(m³/h) |
8 |
Rating flow(m³/h) |
4 |
|
Maximum head(m) |
57 |
Rating head(m) |
50 |
|
Inlet pipe diameter |
RP1 1/4" |
Outlet pipe diameter |
NPT1" |
|
Input powwer(KW) |
1.35 |
IP class |
IP42 |
Item NO.:
F-MHI405Q1.Water supply and booster;
2. Hot water circulation and heating system;
3. Air conditioning system;
4. Industrial circulation system;
5. All kinds of supporting equipment.
1. It can realize closed-loop constant pressure automatic water supply control, and set it according to the pressure required by the user;
2. Automatic energy-saving operation: the water pump automatically adjusts the speed according to the water consumption of the user to ensure the stability of the system pressure and save water and electricity;
3. Protection functions: stall control, water shortage protection, high pressure alarm and other protection functions;
4. When no one is using water, it can control the pump to stop and automatically enter sleep, and when someone is using water, it can automatically start the pump to restore constant pressure water supply;
5. Incoming power self-starting function: when the pump suddenly cuts off the power during normal operation, and it can automatically restart and restore the constant pressure water supply function before the power failure after the power is received;
6. Easy installation and operation, low noise.
Working conditions:
1. Power supply: 1~220V/50Hz;
2. Maximum system pressure: 7bar;
3. Insulation class: F;
4. IP class: IP42;
5. Ambient temperature during work: -15℃～110℃;
6. The water pump system is suitable for transporting drinking water, hot water, condensed water, etc. The main application fields include water supply system, boiler supply water system, cooling water system, etc.
Product production process testing items:
1. Assembly workshop;
2. Parameter setting inspection testing of the whole pump;
3. The airtight performance test testing of the whole pump.
Model testing of the pump in the laboratory:
1. Hydraulic performance inspection testing of the whole pump;
2. Noise and vibration detection testing of the whole pump;
3. Constant humidity and heat testing of the whole pump;
4. High and low temperature performance testing of the whole pump;
5. Pump life testing .

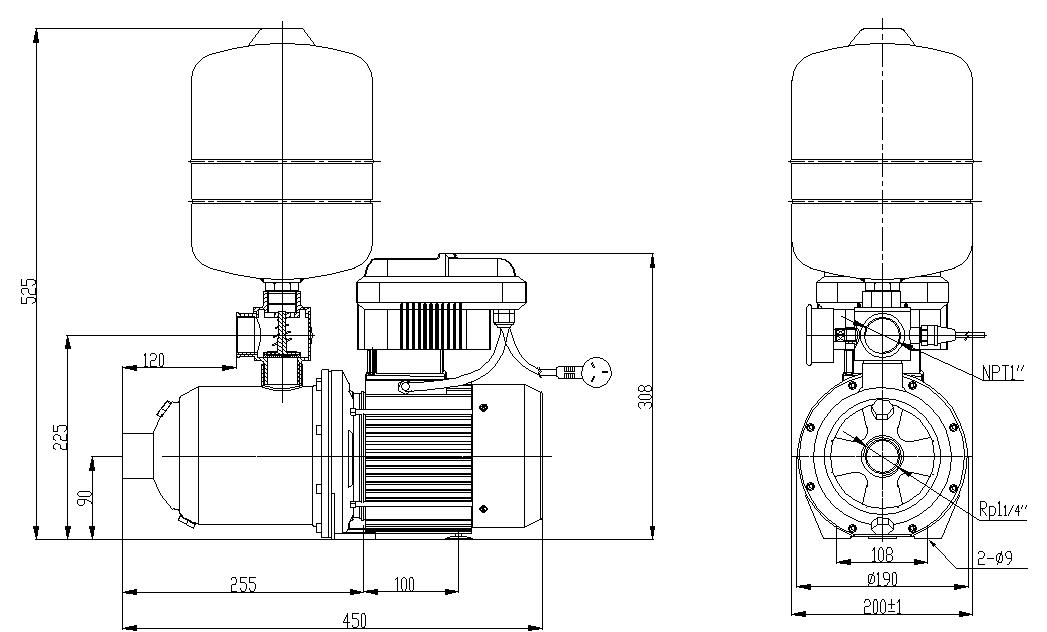

Installation Drawing Parameter:
Tags :
Maximum flow(m³/h) 8 Rating flow(m³/h) 4 Maximum head(m) 33 Rating head(m) 25 Inlet pipe diameter RP1 1/4" Outlet pipe diameter NPT1" Input powwer(KW) 0.8 IP class IP42
Maximum flow(m³/h) 8 Rating flow(m³/h) 4 Maximum head(m) 42 Rating head(m) 38 Inlet pipe diameter RP1 1/4" Outlet pipe diameter NPT1" Input powwer(KW) 0.98 IP class IP42
Maximum flow(m³/h) 12 Rating flow(m³/h) 8 Maximum head(m) 35 Rating head(m) 25 Inlet pipe diameter RP1 1/2" Outlet pipe diameter NPT1 1/4" Input powwer(KW) 0.8 IP class IP42
Maximum flow(m³/h) 12 Rating flow(m³/h) 8 Maximum head(m) 48 Rating head(m) 38 Inlet pipe diameter RP1 1/2" Outlet pipe diameter NPT1 1/4" Input powwer(KW) 1.8 IP class IP42
Maximum flow(m³/h) 12 Rating flow(m³/h) 8 Maximum head(m) 59 Rating head(m) 45 Inlet pipe diameter RP1 1/2" Outlet pipe diameter NPT1 1/4" Input powwer(KW) 2.2 IP class IP42
Maximum flow(m³/h) 26 Rating flow(m³/h) 16 Maximum head(m) 33 Rating head(m) 26 Inlet pipe diameter RP2" Outlet pipe diameter NPT1 1/2" Input powwer(KW) 1.8 IP class IP42
Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max. 95% System pressure 1.0 MPa Compliance CE/ GS/ EMC/ LVD/RoHS/REACH Environment temperature 0～+40℃ Temperature class TF110 Liquid temperature -30～+110℃ (Glycol up to 50%) Voltage/ Frequency 110/230V，60HZ Pump housing Cast iron/Stainless steel Energy(EEI) ≤0.23-Part2
Voltage(V) 230 Power(W) 500/460/440 Max Flow(m³/h) 5 Insulation Class H Protection Class IP44 System Pressure(bar) 10 Noise Index ≤50dB(A)
Product model Basic S 25-5S; Basic S 25-5SQ Ambient temperature 0 ~+40 °C Temperature of pumped liquid +2 ~ +110 °C Storage temperature -30 ~ +55 °C Pumps with unions 1.0 MPa (10 bar) Pump housing cast iron, stainless-steel(N) Port to port length 130/180mm
Maximum flow (m3/h) 2.3 Maximum head(m) 7.5 Rated flow rate (m3/h) 1 Rated head (m) 6.5 Voltage 220~240V AC Current 0.45A Frequency 50/60Hz Input power 60W Design pressure 0.3MPa Noise ≤42dB(A) Standy power ≤3W Protection grade IP44 Surge current <3A Temperature class TF95 Bare pump weight 1.3kg±5%
Enclosure class IPX4D (EN 60529). Insulation class H. Supply voltage 1 × 230 V ± 10 % 50 Hz, PE Digital input PWM 0–10 V Analog input 4–20 mA. 0–10 W direct current Connection bus input Modbus RTU Leakage current Ileakage < 3.5 mА. Leakage current is measured in accordance with EN 60335-1. EMC Standards applied: EN61000-3-2, EN61000-6-3, EN61800-3-3, EN55014-1 and EN55014-2
Power supply voltage 220-240V 50/60Hz, PE Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max. 95% System pressure 1.0 MPa Compliance CE/ GS/ EMC/ LVD/RoHS/REACH Environment temperature 0～+40℃ Temperature class TF110 Liquid temperature -30～+110℃ (Glycol up to 50%) Voltage/ Frequency 230V/50HZ Pump housing Cast iron/Stainless steel Energy(EEI) ≤0.23-Part2
