Maximum flow(m³/h) |
8 |
Rating flow(m³/h) |
4 |
|
Maximum head(m) |
33 |
Rating head(m) |
25 |
|
Inlet pipe diameter |
RP1 1/4" |
Outlet pipe diameter |
NPT1" |
|
Input powwer(KW) |
0.8 |
IP class |
IP42 |
Item NO.:
F-MHI403Q1.Water supply and booster;
2. Hot water circulation and heating system;
3. Air conditioning system;
4. Industrial circulation system;
5. All kinds of supporting equipment.
1. It can realize closed-loop constant pressure automatic water supply control, and set it according to the pressure required by the user;
2. Automatic energy-saving operation: the water pump automatically adjusts the speed according to the water consumption of the user to ensure the stability of the system pressure and save water and electricity;
3. Protection functions: stall control, water shortage protection, high pressure alarm and other protection functions;
4. When no one is using water, it can control the pump to stop and automatically enter sleep, and when someone is using water, it can automatically start the pump to restore constant pressure water supply;
5. Incoming power self-starting function: when the pump suddenly cuts off the power during normal operation, and it can automatically restart and restore the constant pressure water supply function before the power failure after the power is received;
6. Easy installation and operation, low noise.
Working conditions:
1. Power supply: 1~220V/50Hz;
2. Maximum system pressure: 7bar;
3. Insulation class: F;
4. IP class: IP42;
5. Ambient temperature during work: -15℃～110℃;
6. The water pump system is suitable for transporting drinking water, hot water, condensed water, etc. The main application fields include water supply system, boiler supply water system, cooling water system, etc.
Product production process testing items:
1. Assembly workshop;
2. Parameter setting inspection testing of the whole pump;
3. The airtight performance test testing of the whole pump.
Model testing of the pump in the laboratory:
1. Hydraulic performance inspection testing of the whole pump;
2. Noise and vibration detection testing of the whole pump;
3. Constant humidity and heat testing of the whole pump;
4. High and low temperature performance testing of the whole pump;
5. Pump life testing .

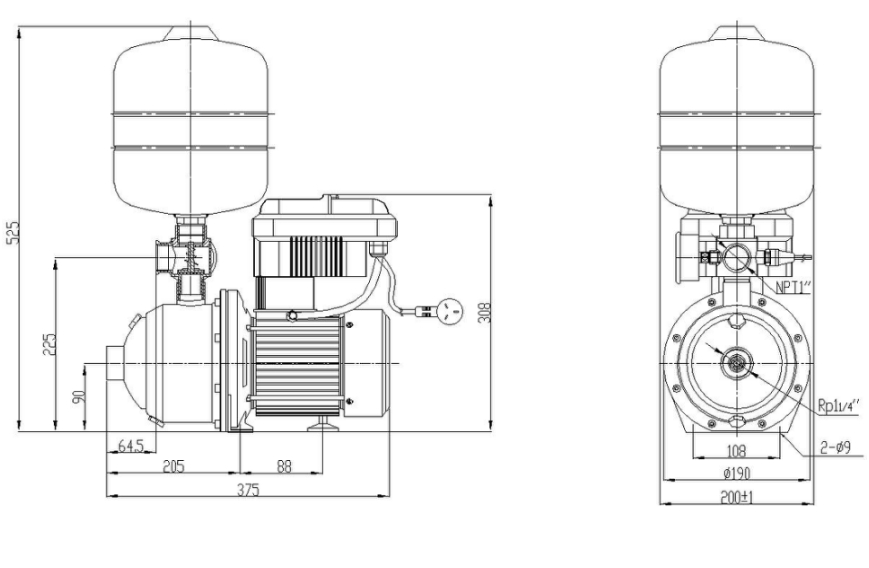

Installation Drawing Parameter:
