Model |
PROMO 15-9A, PROMO 15-9AB, PROMO 15-9AN, PROMO 15-9AQ |
|
Power |
120w |
|
Voltage |
230V |
|
Frequency |
50Hz |
|

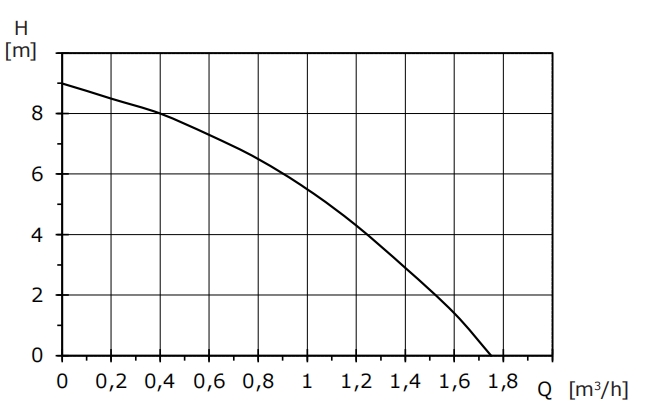

Max Flow |
1.78m3/h |
|
Max Head |
9m |
|
Rated Head |
7.5m |
|
Diameter |
15mm |
|
IP Grade |
IP42 |
|
Temperature |
2 -60℃ |
|
Pump housing |
cast iron, stainless steel body(N) ,copper body(B) ,Bronze(Q) |
|
Pumped liquid |
Water |
|
Insulation class |
H |
|
Degree of Protection |
IP44 |
|
Max System Pressure |
1.0Mpa |
|
Certificates |
CE, GS, UL, VD, EMC, RoHS, REACH etc. |
Item NO.:
Promo 15-9A1. Domestic hot water recirculation
2. Industrial boiler systems
3. The pump for domestic hot-water recirculation in single- and two-family houses is suitable for drinking water with a corrosion-resistant pump housing.

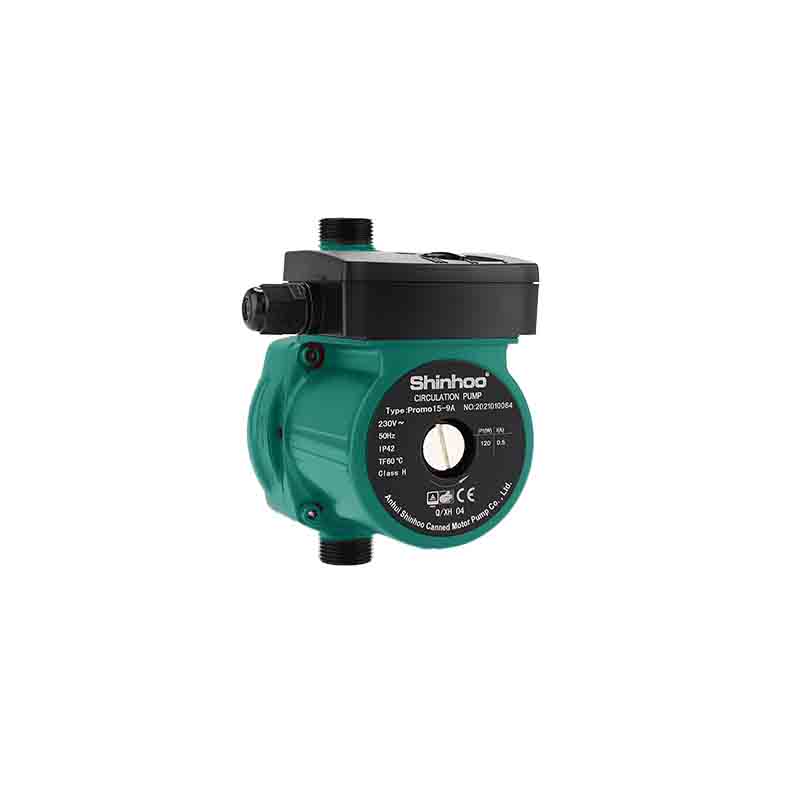

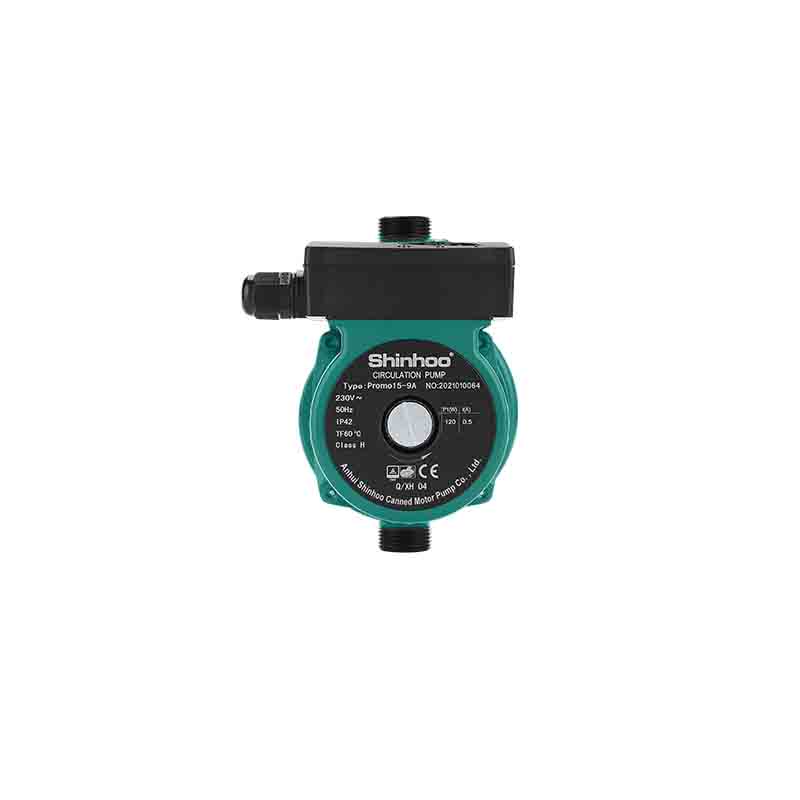

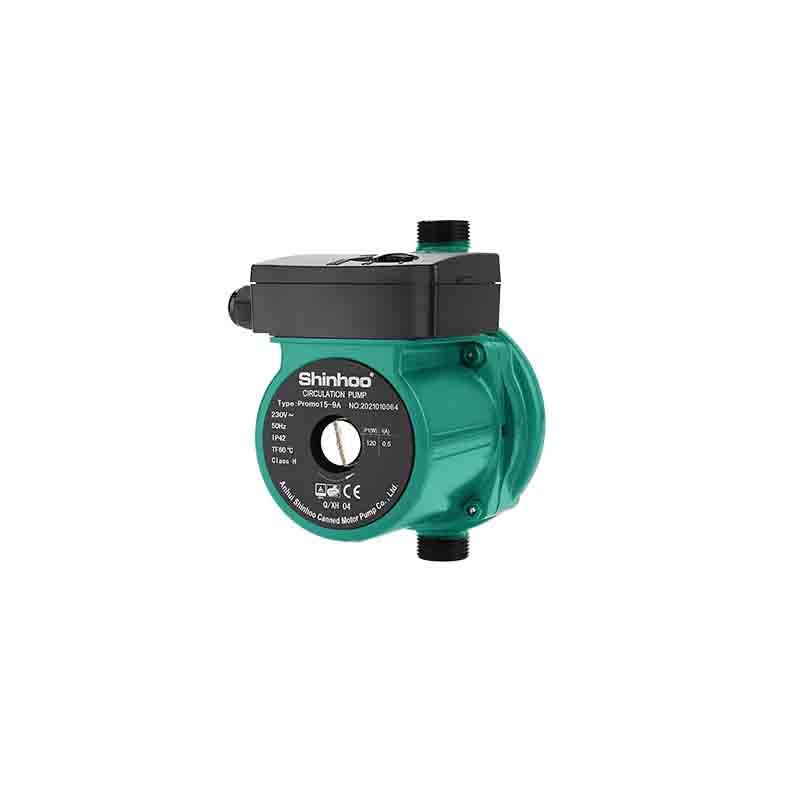

Promo 15-9A is a domestic booster designed for pressure boosting of drinking water supplied from an external source in residential homes. The circulator booster pumps increase the pressure of domestic water to make the required pressure available at showers, taps and other tapping points.
Port-to-port length.: This pump has an inlet and outlet port of 3/4. The pressure rating of the pump corresponds with PN 10 and a port-to-port length of 160 mm.
The Promo 15-9A provides the comfort of constant water pressure with automatic start and stop. This is controlled by the integrated flow switch ensuring optimal start/stop of the booster pump according to demand. The design is robust and built upon corrosion-free materials and catachresis-coated cast iron pump housing to ensure a long lifetime. The pump is a canned rotor pump type where pump and motor form an integral unit without shaft seal. This pump must always be installed with horizontal motor shaft.

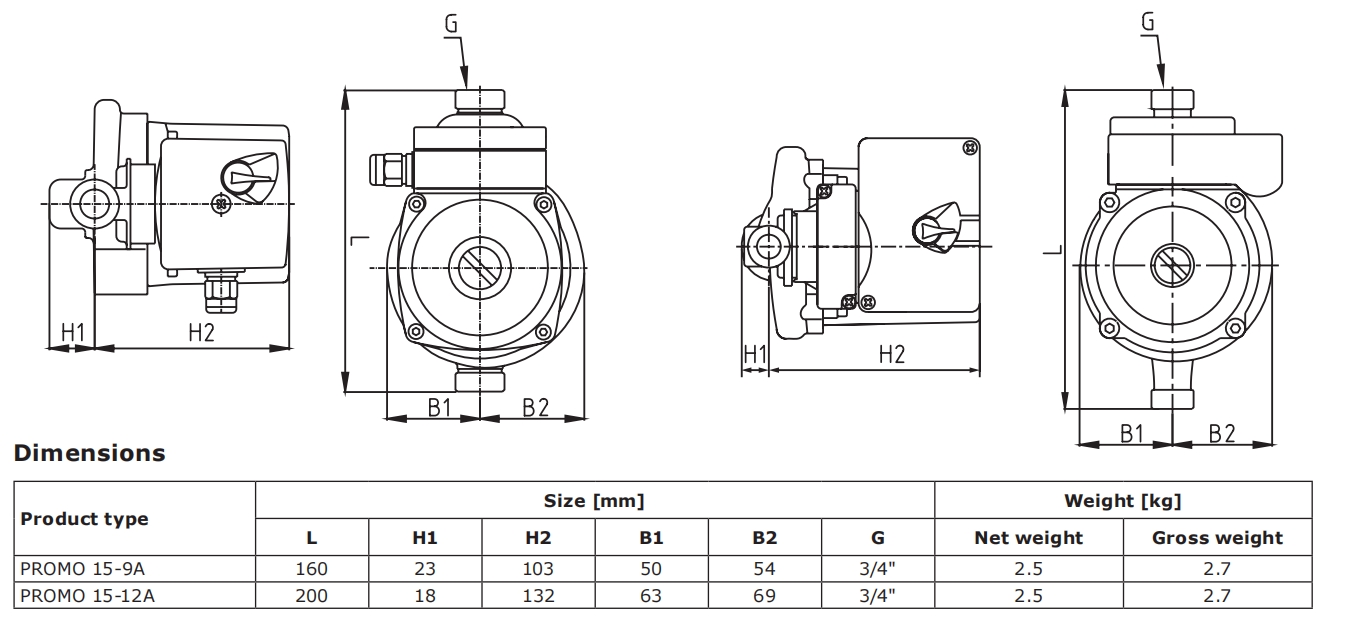

Installation Drawing
