Rated voltage |
220V |
Rated power |
370W |
|
Rated flow |
2m³/h |
Rated current |
2.58A |
|
Max. flow |
5m³/h |
Rated head |
18m |
|
Design pressure |
10bar |
Max. head |
20m |
|
Protection class |
IP54 |
Insulation class |
F |
|
Frequency |
50Hz |
Vibration |
＜2.8mm/s |
|
Noise |
＜55dB(A) |
Max.power |
430W |
Item NO.:
MHI-2021. Water supply and booster
2. Hot water circulation, heating system
3. Industrial circulating system
4. For various machinery
5. Integrated pump for heat pump system
1. Material – Stainless steel
2. Multi-stage impeller, high head
3. Bidirectional mechanical seal, easy maintenance
4. Compact block design
5. All hydraulic parts which come into contact with the fluid, such as stage chambers, impellers and diffusors
Working conditions
1. Power supply: 1～220V/50Hz;
2. Maximum system pressure: ≤1.0MPa;
3. Insulation class: F;
4. Protection level: IP54;
5. The temperature of the conveying liquid:-15℃～90℃ ;
6.Delivery liquid: clean water ;
7. This water pump is suitable for conveying drinking water, hot water, industrial water, condensate water, a mixture of ethanol and water (with a maximum ethanol content of 40%), and other liquids that do not contain mineral oil, long fibers, or corrosive substances.
Design notes
1. Motor protection for three-phase AC motor is optional or to be provided on-site
2. Single-phase AC motor equipped with built-in thermal motor protection and capacitor
Product certification
The product complies with 3C certification requirements
Application Medium Requirements
|
Use medium: clear water/water+ethylene glycol (≤50%) mixed solution |
Medium water temperature: 0～110℃/-15℃～110℃ |
||||||
|
Medium PH value：6.5-8.5 |
Medium hardness：25°dH |
||||||
|
|||||||
Service environment requirements
|
Usage: keep the shaft horizontal |
Altitude: ＜ 1000m |
|
Operating ambient temperature: -30 ℃ ∼ 55 ℃(there is no freezing in the pipeline and water pump) |
Operating ambient humidity: ≤95% |
Storage environment requirements
Storage ambient temperature: -20℃∼60℃(there is no freezing in the pipeline and water pump)
Humidity of storage environment: ≤95%
Factory inspection
|
Machine tightness detection |
Motor insulation detection |
Withstand voltage detection |
|
Leakage current detection |
Ground Resistance Detection |
No-load power, current detection |
|
turn detection |
|
|
Reliability test
|
Hydraulic performance test |
vibration test |
noise test |
|
Water pressure test |
Whole machine electrical safety test |
Protection level test |
|
Salt spray test |
Thermal shock test |
Temperature rise |
|
Condensate Test |
life test |
Start-stop test |
|
High temperature and humidity test |
|
|
Installation and safety instructions
1. The pumped liquid may be high-temperature and high-pressure liquid. Before moving and disassembling the pump, the liquid in the system must be drained or the stop valves on both sides of the pump must be closed to avoid burns.
2. In winter, when the medium is clean water, if the pump system is not running or the ambient temperature is lower than 0°C, the liquid in the pipeline system should be drained to avoid freezing and cracking of the pump body.
3. If the pump is not used for a long time, please close the water pipe valve at the inlet and outlet of the pump and cut off the power supply of the pump. If you find that the motor is hot or abnormal, please immediately close the valve at the inlet end of the pump, cut off the power supply of the pump, and contact your local dealer or service center immediately.
4. This product should be placed out of the reach of children. After installation, isolation measures should be taken to prevent children from touching it.
5. The installation direction of the water pump is that the axial direction of the pump is horizontal.
6. The water pump needs to be installed to prevent rain, water, exposure and other places.
7. The water pump cannot directly collide with hard objects.
8. It is forbidden to run the water pump without water to prevent the wear and tear of the mechanical seal, or even burn the machine.
9. The pumped liquid is thin, clean, non-corrosive and non-explosive liquid, does not contain any fiber or mineral oil, and the diameter and length of solid particles are ≤0.1mm, and the volume ratio is ≤0.1%. The pump must not For conveying flammable liquids such as vegetable oil and gasoline. If the pump is used in a situation with high viscosity, the performance of the pump will be reduced, so when selecting a pump, the viscosity of the liquid medium to be transported should be considered.

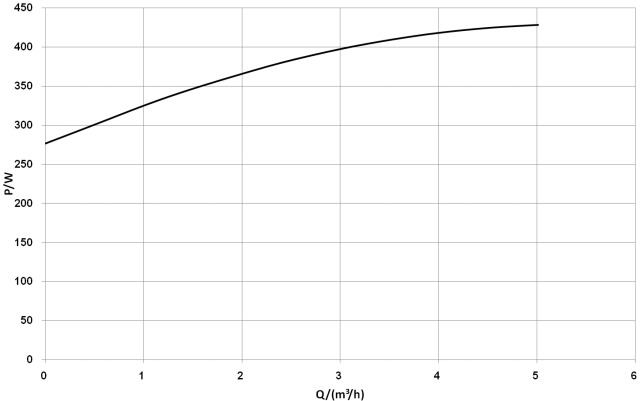

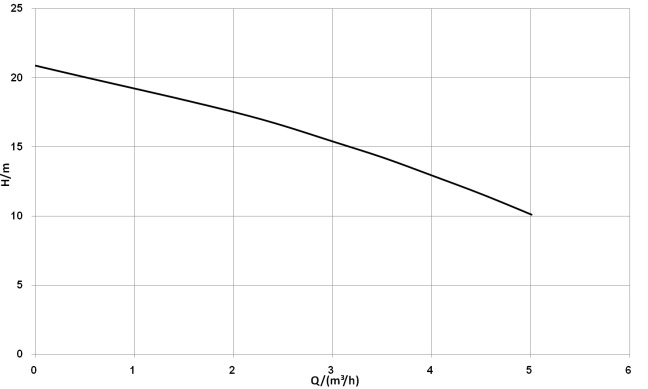

Performance curve
This performance curve is suitable for normal temperature water, such as pump for non-water medium, the hydraulic performance of the pump will be reduced , therefore ,in the selection of pump, must consider the characteristics of the liquid medium.
