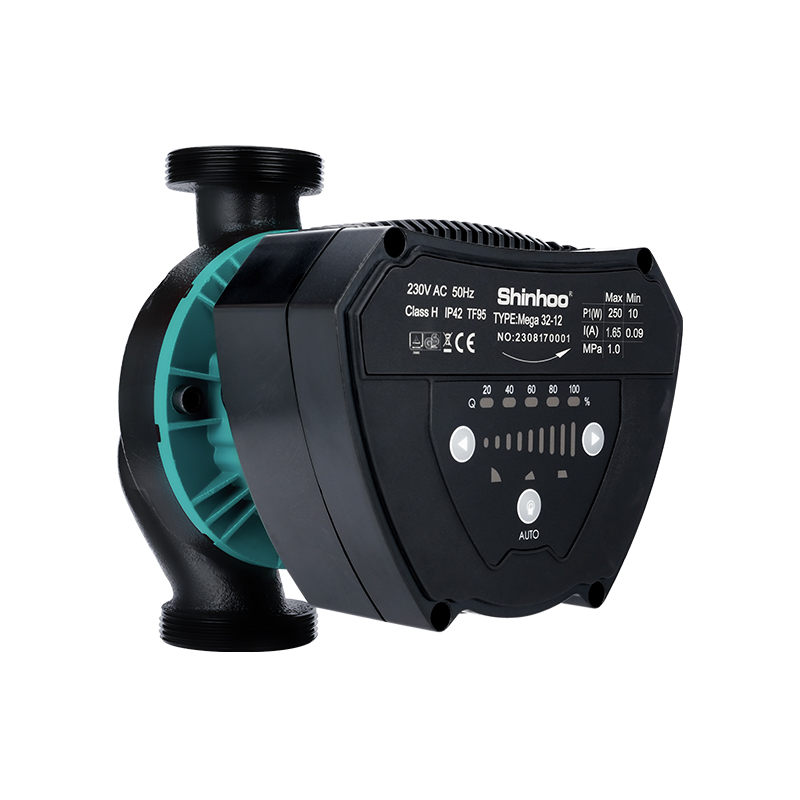

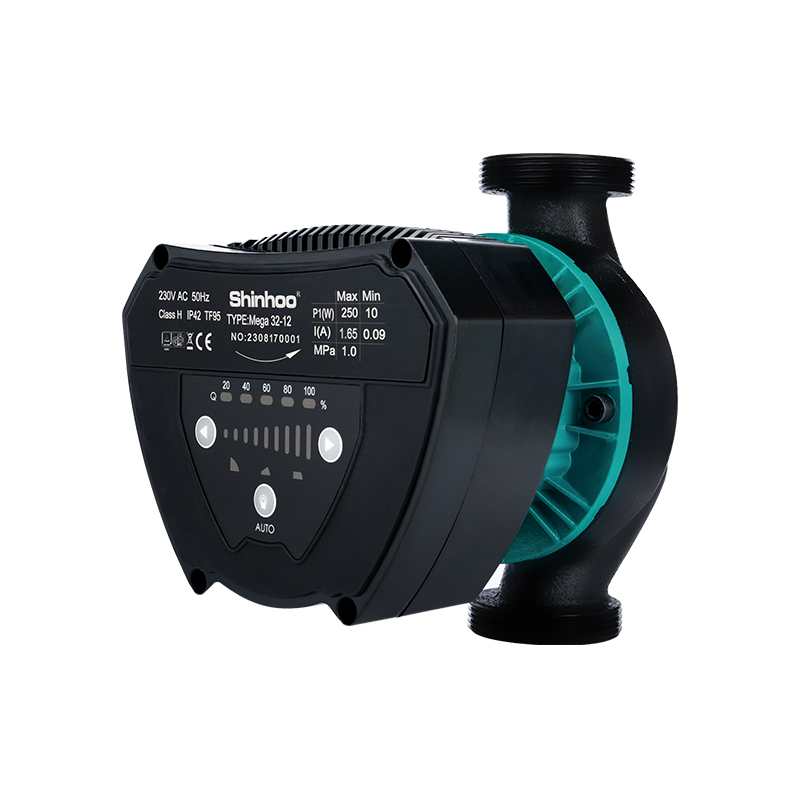

Mega 40-8F1.Heating pump dual supply system
2.Underfloor heating mixed water system
3.Heating pump hot water system
4.PWM signal controlled system
5.HVAC system
6.Boiler system
7.Other heating and cooling occasions, Suitable for refrigerants such as R290
Advantages
1.Efficient & Energy-saving
2.Low noise & No leakage
3.PWM signal & 0-10V control
4.Multi gear operation
5.Multiple protections and standardized interfaces
Construction
Mega pumps are wet rotor pumps, i.e. the pump and the motor are a single-piece unit without shaft end seal. The bearings are lubricated with pumped liquid.
The pumps feature:
• controller built in a control unit;

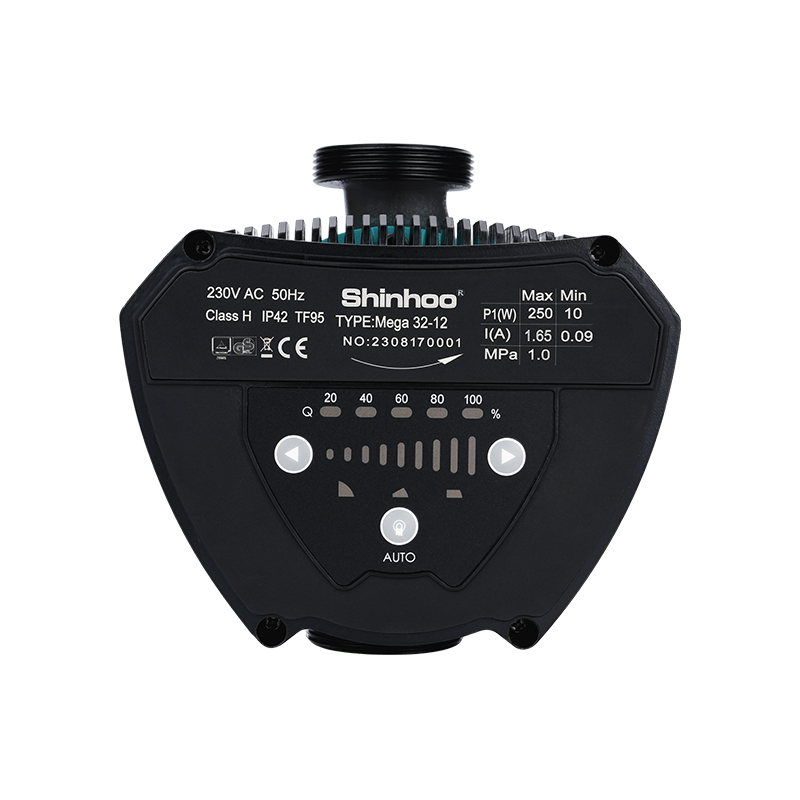

• operating panel at the front of the pump;
• external protection of the motor is not required.
Motor and frequency converter
Mega pumps are equipped with permanent-magnet motor. This motor type is characterized by an increased efficiency in comparison with traditionally used asynchronous squirrel-cage motors. Motor speed is set up by a built-in frequency converter.
Pump connections
Threaded pipe and flange connections.
Surface finish quality
A pump housing and its head part have cataphoretic coating for better corrosion resistance.
Cataphoretic coating application includes the following steps:
• alkali cleaning;
• zinc phosphate pre-treatment;
• cathodic electrodeposition (cataphoresis);
• varnish-and-paint film drying at 200~250 °C.
Easy installation and operation
Equipped with Self Adapting Mode(Auto Mode, Factory Setting), pump runs once the power is connected and adapts its performance according to actual system needs.
Control is effected by digital pulse-width modulation (PWM) low-voltage signal, enabling pump to be used to meet different flow requirement in various systems.
Low noise and high comfort
Noise index: ≤42dB(A)
Low energy consumption
A class energy efficiency, Power consumption lowest to 6W
Multiple protection
With over-voltage and over-current protection
Eco-Design Benchmark
EEI≤0.23-Part 2
Quick release power plug
Start-up and stop the pump quickly.
|

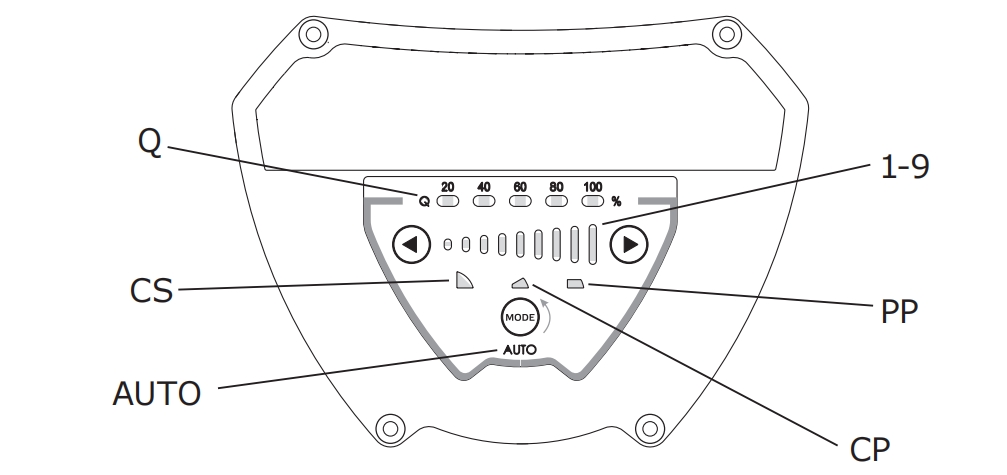

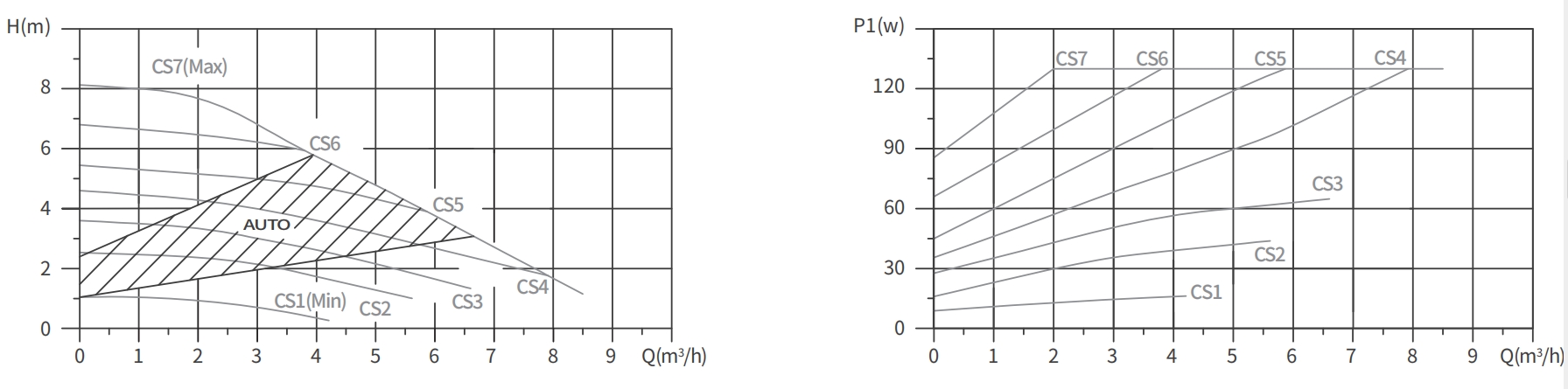

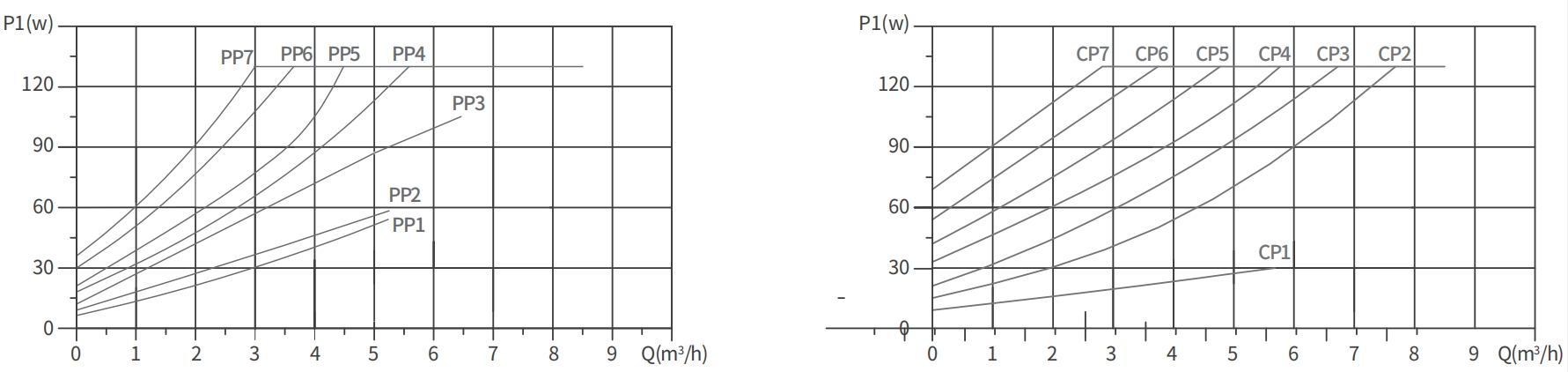

Setting |
Explanation |
|
PP |
Proportional pressure curves |
|
CP |
Constant pressure curves |
|
CS |
Constant curves |
|
AUTO |
Auto performance range |
Operating conditions
General instructions
|
Water in heating systems |
Water quality according to local standards |
|
Water with glycol |
Maximum viscosity:10–50 cSt ~ solution of water 50 % / glycol 50 % at -10 °C |
Operation range
Maximum operating pressure
PN 10: 10 bar / 1.0 MPa.
Minimum inlet pressure
In order to avoid cavitation noise and bearings damage during pump operation, the following minimum relative pressure should be maintained at its inlet port.
|
Inlet pressure |
Liquid temperature |
Inlet pressure of the pump |
|
≤ + 85 °C |
0.005 MPa |
|
|
≤ + 90 °C |
0.028 MPa |
|
|
≤ +110 °C |
0.100 MPa |
Pumped liquids
The pump is designed to pump pure and nonaggressive liquids without solids or fibers that can have a mechanical or chemical impact on the pump.
Water used in heating systems should meet the quality requirements of system water for heating units.
The pumps must not be used for inflammable or explosive liquids such as diesel fuel or petrol.
The pumps must not be used for aggressive liquids such as acids or sea water. If the pump is not operated during a cold season, take the necessary measures to avoid low temperature damages.
Using additives in a heat transfer medium with the density and/or kinetic viscosity higher than the water ones decreases the performance of the pump.
Never use the additives that can negatively affect the pump operation. In order to learn whether the pump can be used with a certain liquid, take into account several factors.
The most important are lime content, pH, temperature, and the content of solvents and oils.
The pump can be used for glycol and water mixtures at the level up to 50 %. See section «General instructions». Pumping of glycol mixtures decreases hydraulic properties of the pump.

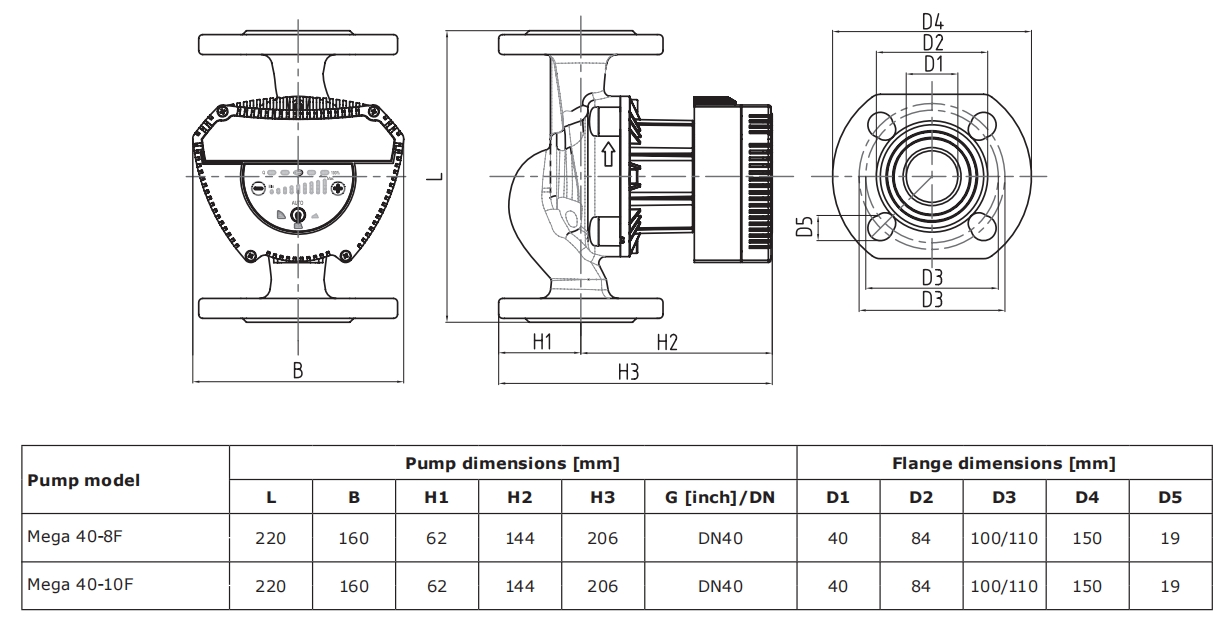

Installation Drawing
Tags :
Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max. 95% System pressure 1.0 MPa Compliance CE/ GS/ EMC/ LVD/RoHS/REACH Environment temperature 0～+40℃ Temperature class TF110 Liquid temperature -30～+110℃ (Glycol up to 50%) Voltage/ Frequency 110/230V, 60HZ Pump housing Cast iron/Stainless steel Energy(EEI) ≤0.23-Part2
Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max. 95% System pressure 1.0 MPa Compliance CE/ GS/ EMC/ LVD/RoHS/REACH Environment temperature 0～+40℃ Temperature class TF110 Liquid temperature -30～+110℃ (Glycol up to 50%) Voltage/ Frequency 110/230V, 60HZ Pump housing Cast iron/Stainless steel Energy(EEI) ≤0.23-Part2
Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max. 95% System pressure 1.0 MPa Compliance CE/ GS/ EMC/ LVD/RoHS/REACH Environment temperature 0～+40℃ Temperature class TF110 Liquid temperature -30～+110℃ (Glycol up to 50%) Voltage/ Frequency 110/230V，60HZ Pump housing Cast iron/Stainless steel Energy(EEI) ≤0.23-Part2
Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max. 95% System pressure 1.0 MPa Compliance CE/ GS/ EMC/ LVD/RoHS/REACH Environment temperature 0～+40℃ Temperature class TF110 Liquid temperature -30～+110℃ (Glycol up to 50%) Voltage/ Frequency 110/230V, 60Hz Pump housing Cast iron/Stainless steel Energy(EEI) ≤0.23-Part2
Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max. 95% System pressure 1.0 MPa Compliance CE/ GS/ EMC/ LVD/RoHS/REACH Environment temperature 0～+40℃ Temperature class TF110 Liquid temperature -30～+110℃ (Glycol up to 50%) Voltage/ Frequency 110/230V，60HZ Pump housing Cast iron/Stainless steel Energy(EEI) ≤0.23-Part2
Model Basic 32-7S Pro Power 140/115/70W Max.flow 3.5m³/h Max head 7m Current 0.73/0.52/0.33A Voltage/ Frequency 220~240V/50HZ Pump housing Cast iron Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2~110℃ Max System Pressure 1.0Mpa
Rated voltage 380V Rated head 28m Rated flow 4m³/h Maximum head 33m Maximum flow 9.5m³/h Insulation class F Design pressure 10bar Vibration ＜2.8mm/s Protection class IP54 Frequency 50Hz Rated current 1.48A Rated power 550W Rated head 28m Maximum power 850W Maximum head 33m Maximum Unit Efficiency 47% Insulation class F Noise ＜55dB(A)
Power supply voltage 230V 50/60Hz, PE Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max. 95% System pressure 1.0 MPa Compliance CE/ GS/ EMC/ LVD/RoHS/REACH Environment temperature 0～+40℃ Temperature class TF110 Liquid temperature 2～+110℃
Power supply voltage 230V 50/60Hz, PE Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max. 95% System pressure 1.0 MPa Compliance CE/ GS/ EMC/ LVD/RoHS/REACH Environment temperature 0～+40℃ Temperature class TF110 Liquid temperature 2～+110℃
Model Basic 80-10SF Power 1000/700/600W Max.flow 35/30/27m³/h Max head 10/8/7m Voltage/ Frequency 220/380V 3pH 50HZ Pump housing Cast iron Pumped liquid Water Insulation class H Degree of Protection IP42 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Max Flow 8.5m³/h Rated Flow 6m³/h Pressure 1.0MPa Max Input Power 700W Max Head 28m Rated Head 22m Insulation IP55 Weight 6kg±5% Noise index ＜60dB(A)(Max flow) Voltage AC 220~240V/50Hz Max Rotation Speed 5000rpm
Model Basic 50-12SF Pro Power 1000/700/600W Max.flow 24/18.5/13m³/h Max head 13.2/11/10m Voltage/ Frequency 230/380V/ 50HZ Pump housing Cast iron Pumped liquid Water Insulation class H Degree of Protection IP42 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
