Maximum flow (m3/h) |
2.2 |
|
Maximum head(m) |
7 |
|
Rated flow rate (m3/h) |
1 |
|
Rated head (m) |
5.5 |
|
Voltage |
220~240V AC |
|
Current |
0.45A |
|
Frequency |
50/60Hz |
|
Input power |
52W |
|
Design pressure |
0.3MPa |
|
Noise |
≤42dB(A) |
|
Standy power |
≤3W |
|
Protection grade |
IP44 |
|
Surge current |
<3A |
|
Temperature class |
TF95 |
|
Bare pump weight |
1.3kg±5% |
Item NO.:

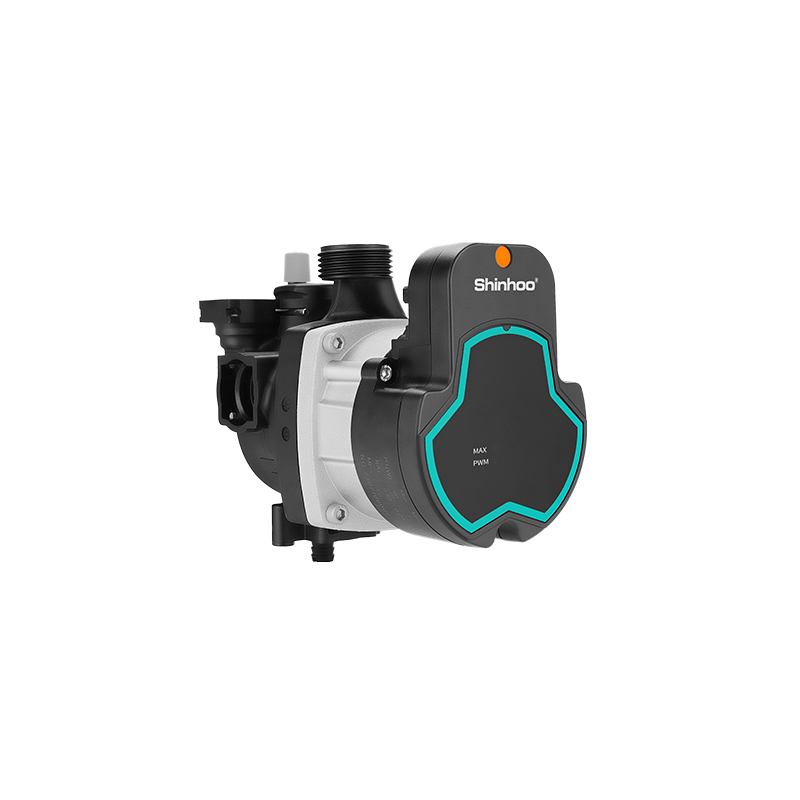

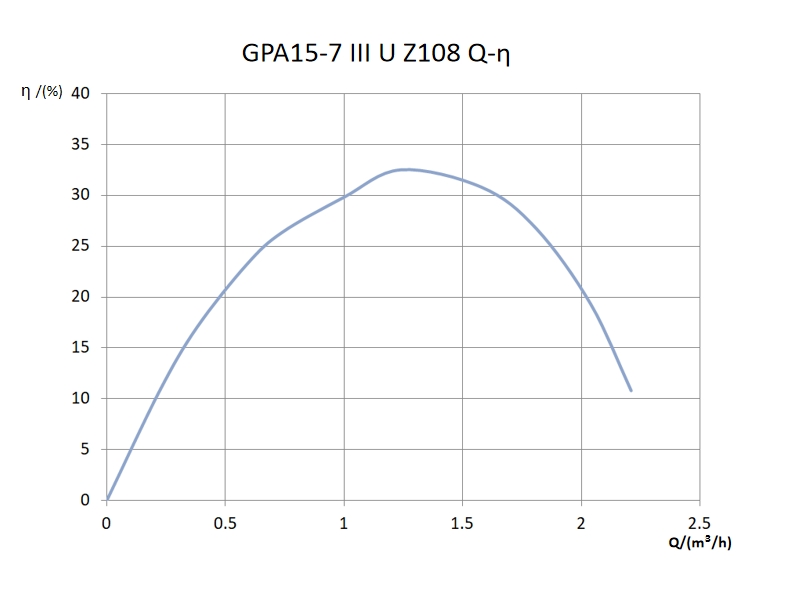

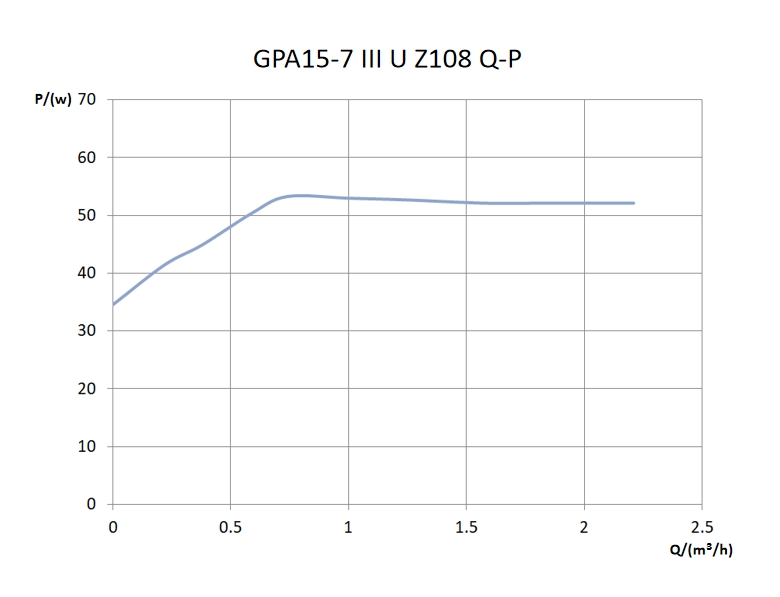

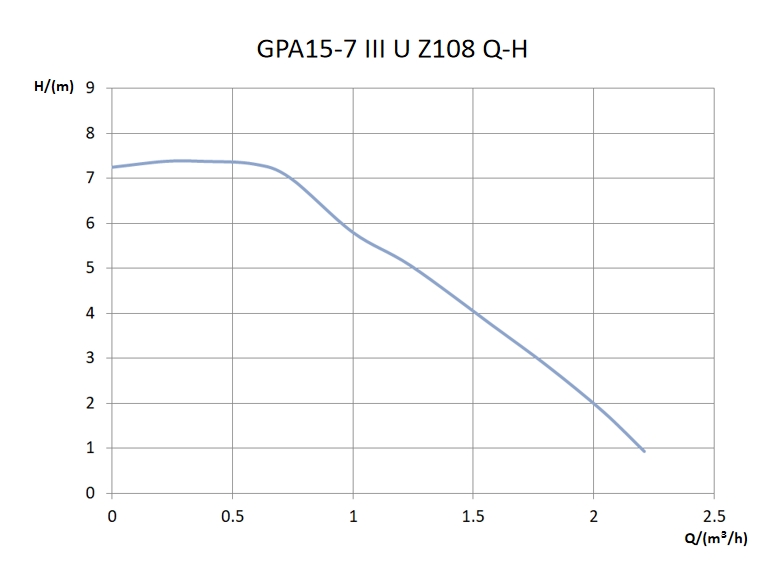

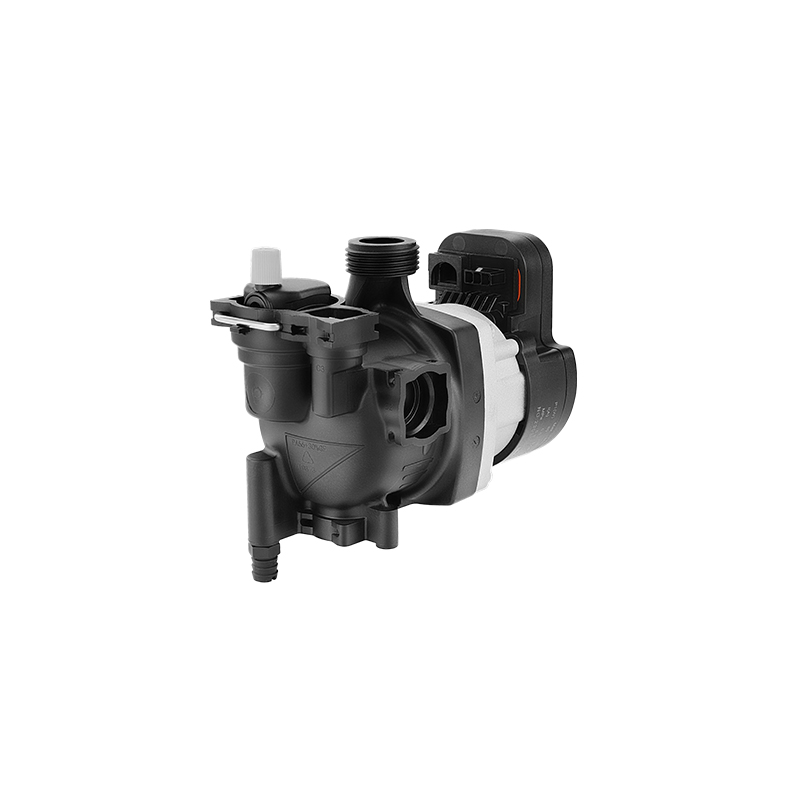

GPA15-7 III U Z108Wall hung gas boiler
Gas water heater
Flow Feedback
LIN Communication
170V low voltage performance without degradation
EMC Anti-Jamming ability
Media requirements
| Medium: water or water + glycol (≤ 50%) mixture | Medium temperature : 2℃~95℃ |
| PH value of medium ：6.5-8.5 | Medium hardness ：25°dH |
| Content of solid impurities in medium: diameter and length direction of solid impurities ≤ 0.1mm, and volume ratio ≤ 0.1%. | |
Service environment requirements
|
Usage: keep the shaft horizontal |
Altitude: ＜ 1000m |
|
Operating ambient temperature: 0 ℃ ∼ 70 ℃ (there is no freezing in the pipeline and water pump) |
Operating ambient humidity≤95% |
Storage environment requirements
|
Storage ambient temperature: - 30 ℃ ∼ 70 ℃(there is no freezing in the pipeline and water pump) |
Start and stop of pump
Starting time: the starting time of the water pump is less than 3s, that is the time from power on to reaching the maximum speed 90%.
Shutdown time: the shutdown time of the water pump is less than ls, that is, the time from power failure to shutdown of the water pump.
Panel display diagram explanation
|
The comparison table between the working status of the circulating pump and the light on is as follows. |
 |

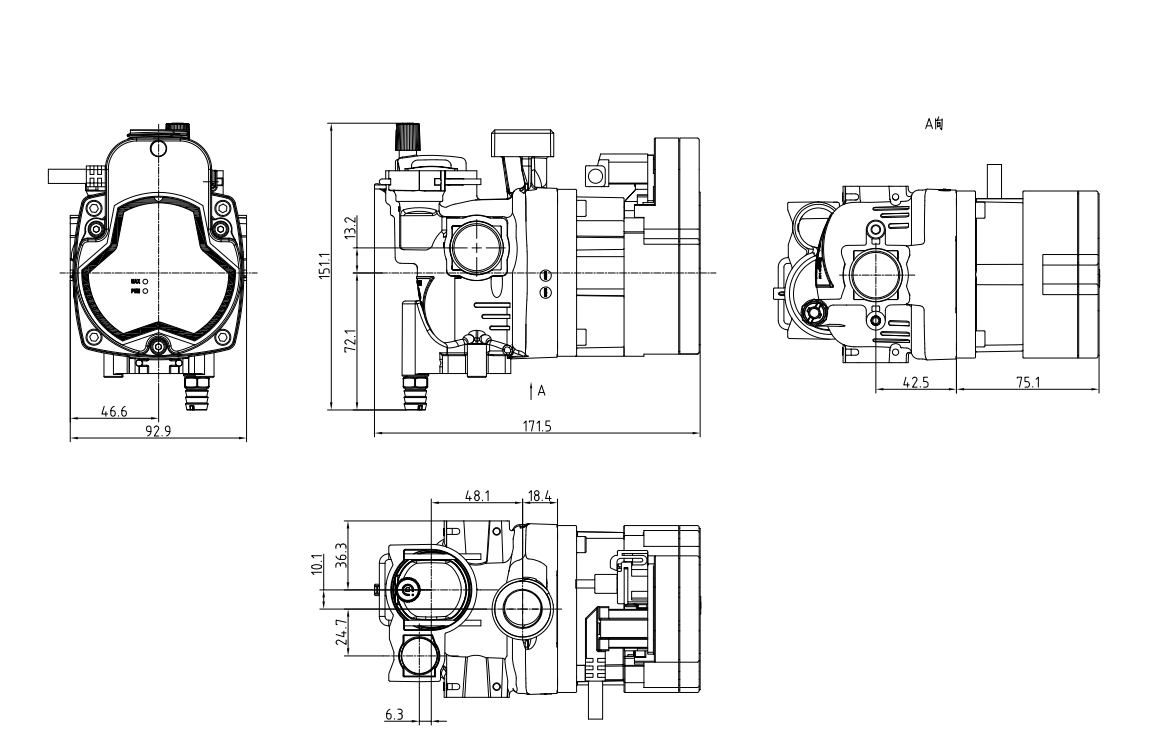

Installation Drawing
Tags :
Maximum flow (m3/h) 2.2 Maximum head(m) 7 Rated flow rate (m3/h) 1 Rated head (m) 5.5 Voltage 220~240V AC Current 0.45A Frequency 50/60Hz Input power 52W Design pressure 0.3MPa Noise ≤42dB(A) Standy power ≤3W Protection grade IP44 Surge current <3A Temperature class TF95 Bare pump weight 1.3kg±5%
Maximum flow (m3/h) 1.9 Maximum head(m) 5 Rated flow rate (m3/h) 1 Rated head (m) 3.5 Voltage 220~240V AC Current 0.45A Frequency 50/60Hz Input power 33W Design pressure 0.3MPa Noise ≤42dB(A) Standy power ≤3W Protection grade IP44 Surge current <3A Temperature class TF95 Bare pump weight 1.3kg±5%
Maximum flow (m3/h) 2.3 Maximum head(m) 7.5 Rated flow rate (m3/h) 1 Rated head (m) 6 Voltage 220~240V AC Current 0.45A Frequency 50/60Hz Input power 60W Design pressure 0.3MPa Noise ≤42dB(A) Standy power ≤3W Protection grade IP44 Surge current <3A Temperature class TF95 Bare pump weight 1.3kg±5%
Maximum flow (m3/h) 1.9 Maximum head(m) 5 Rated flow rate (m3/h) 1 Rated head (m) 3.5 Voltage 220~240V AC Current 0.45A Frequency 50/60Hz Input power 33W Design pressure 0.3MPa Noise ≤42dB(A) Standy power ≤3W Protection grade IP44 Surge current <3A Temperature class TF95 Bare pump weight 1.3kg±5%
Maximum flow (m3/h) 2 Maximum head(m) 6 Rated flow rate (m3/h) 1 Rated head (m) 4 Voltage 220~240V AC Current 0.45A Frequency 50/60Hz Input power 39W Design pressure 0.3MPa Noise ≤42dB(A) Standy power ≤3W Protection grade IP44 Surge current <3A Temperature class TF95 Bare pump weight 1.3kg±5%
Maximum flow (m3/h) 2.3 Maximum head(m) 7.5 Rated flow rate (m3/h) 1 Rated head (m) 6.5 Voltage 220~240V AC Current 0.45A Frequency 50/60Hz Input power 60W Design pressure 0.3MPa Noise ≤42dB(A) Standy power ≤3W Protection grade IP44 Surge current <3A Temperature class TF95 Bare pump weight 1.3kg±5%
Maximum flow (m3/h) 2 Maximum head(m) 6 Rated flow rate (m3/h) 1 Rated head (m) 4 Voltage 220~240V AC Current 0.45A Frequency 50/60Hz Input power 39W Design pressure 0.3MPa Noise ≤42dB(A) Standy power ≤3W Protection grade IP44 Surge current <3A Temperature class TF95 Bare pump weight 1.3kg±5%
Maximum flow (m3/h) 1.9 Maximum head(m) 5 Rated flow rate (m3/h) 1 Rated head (m) 3.5 Voltage 220~240V AC Current 0.45A Frequency 50/60Hz Input power 39W Design pressure 0.3MPa Noise ≤42dB(A) Standy power ≤3W Protection grade IP44 Surge current <3A Temperature class TF95 Bare pump weight 1.3kg±5%
Enclosure class IPX4D (EN 60529) Insulation class H Supply voltage 1 × 230 V ± 10 % 50 Hz, PE Digital input PWM 0–10 V Analog input 4–20 mA. 0–10 W direct current Connection bus input Modbus RTU Leakage current Leakage < 3.5 mА. Leakage current is measured in accordance with EN 60335-1 EMC Standards applied: EN61000-3-2, EN61000-6-3, EN61800-3-3, EN55014-1 and EN55014-2
Rated voltage AC 220-240V Maximum flow 10m³/h Rated flow 5.5m³/h Frequency 50/60Hz Rated current 1.1A Maximum head 12 m Rated head 7.5m Input power 220 W
Model Basic 40-16F Power 1000W Max.flow 16m³/h Max head 16m Current 4.9A Voltage/ Frequency 230V 50HZ Pump housing Cast iron Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Model U(V)/f(Hz) Speed Q（m³/h） H（m） P（W） I(A) GPD15-4S Z108 230/50 III 2.0 4.0 65 0.28 II 1.2 3.0 50 0.22 I 0.8 2.0 32 0.15 GPD15-5S Z108 230/50 III 2.2 5.0 85 0.40 II 1.5 4.0 60 0.30 I 1.0 2.5 40 0.22 GPD15-6S Z108 230/50 III 2.5 5.7 100 0.45 II 1.8 4.5 70 0.35 I 1.0 2.5 55 0.25 GPD15-7S Z108 230/50 III 2.8 6.5 130 0.60 II 2.0 5.0 110 0.52 I 1.2 3.5 90 0.42
