Voltage |
AC220～240V |
|
Max flow(m³/h) |
3.1 |
|
Rated flow(m³/h) |
2 |
|

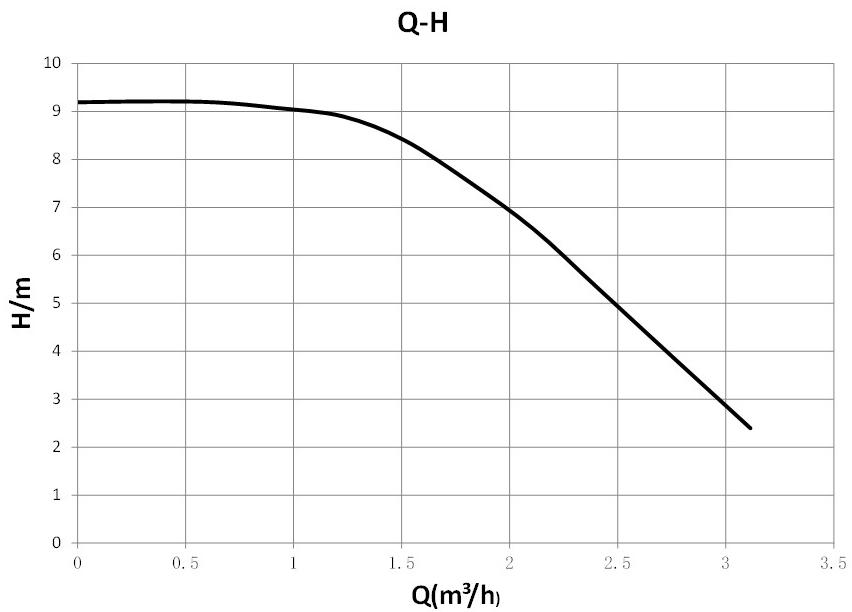

Max head(m) |
9 |
|
Rated head(m) |
6.0 |
|

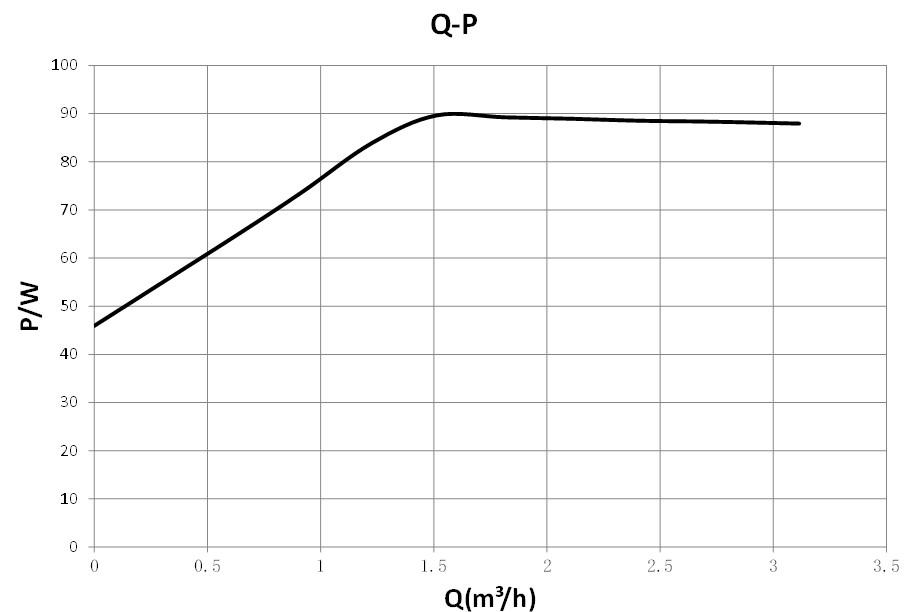

Max Power |
≤90W |
|
Frequency |
50/60Hz |
|
EEI≤0.20-Part3 |
|

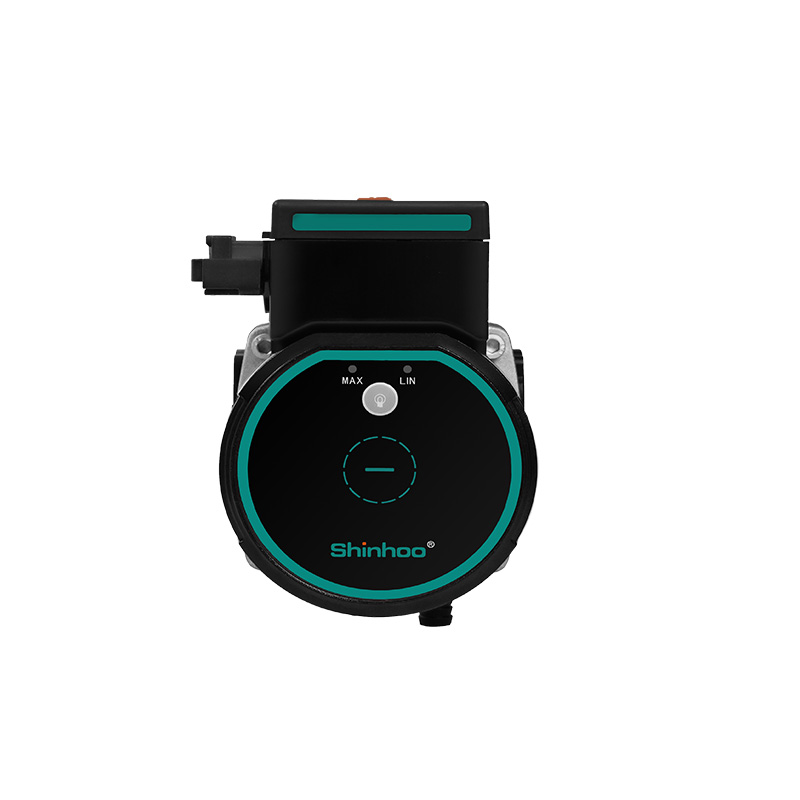

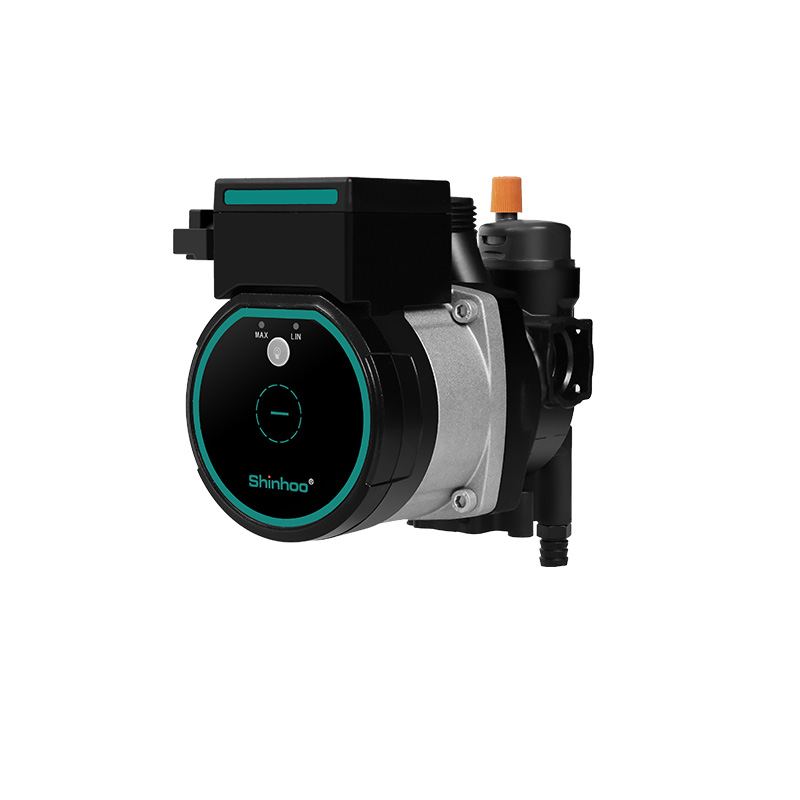

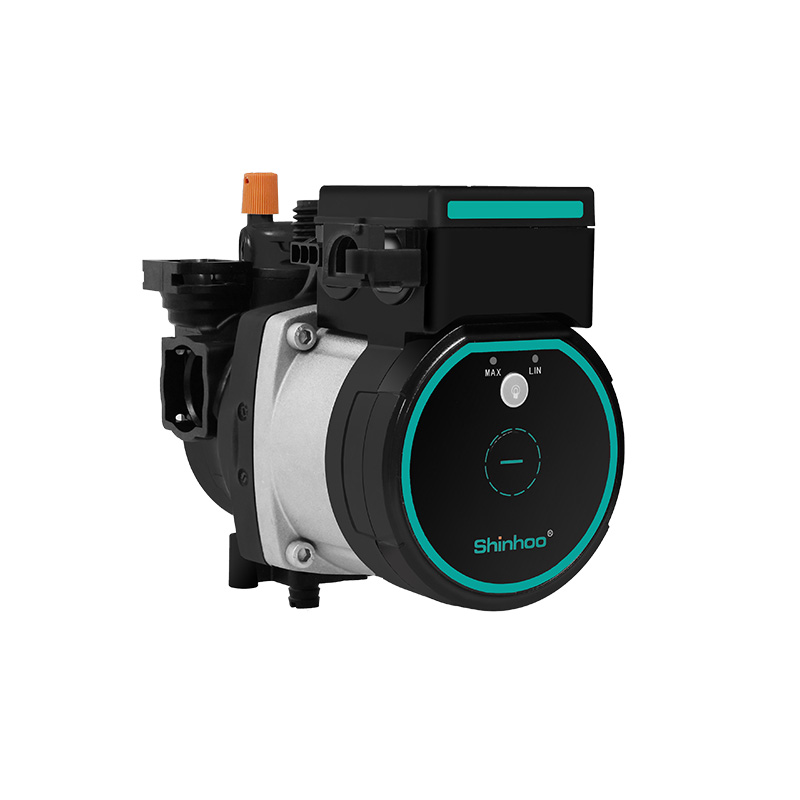

Item NO.:
BPA15-9 Z5821. Apply to wall hung gas boiler system.
2. Transfer the electrical energy to hydraulic pressure.
3. Transfer the heating water.
4. Exhaust the air from HW system.
5. Suitable for wall hung gas boiler: 18kW, 24kW, 28kW, 31kW, etc..
• LIN communication
• 5, 6, 7, 8, 9+Auto multi-speed integration
• Full feedback of flow, head, power, speed
• Maximum head up to 9 m
• Maximum power up to 90 W
• Silent, as low as 26 dB(A)
• High pressure resistance 0.6 MPa
• Mechanical anti-clogging
• High efficiency & energy saving, EEI ≤ 0.20 – Part 3
• Flow feedback accuracy ±0.2 m³/h
|
Pressure：0.6MPa |
Temperature Class：TF95 |
IP class：IP44 |
|
Surge current：＜3A |
Insulation class ：H |
Weight (bare pump)：1.45kg±5% |
|
Current: 0.7A |
Vibration：≤1.8mm/s |
Rotation: clockwise when viewed from the impeller inlet |
|
Max. efficiency (%)：＞33% |
Flame retardant class：UL 94V-0 |
Noise：＜32dB(A) |
|
Low voltage requirement: Full performance maintained at ≥170V |
Power consumption (standby)：≤1W |
|
|
Motor type: Permanent magnet synchronous motor (PMSM) |
Enameled wire: Copper |
Magnet material: NdFeB |
|
Motor DC cold resistance at 20°C: 24.1 ±5% Ω |
||
Media requirements
|
Medium: water or water + glycol (≤ 50%)mixture |
Medium temperature : 2℃∼95℃ |
|
PH value of medium ：6.5-8.5 |
Medium hardness ：25°dH |
|
Content of solid impurities in medium: diameter and length direction of solid impurities ≤ 0.1mm, and volume ratio ≤ 0.1% |
|

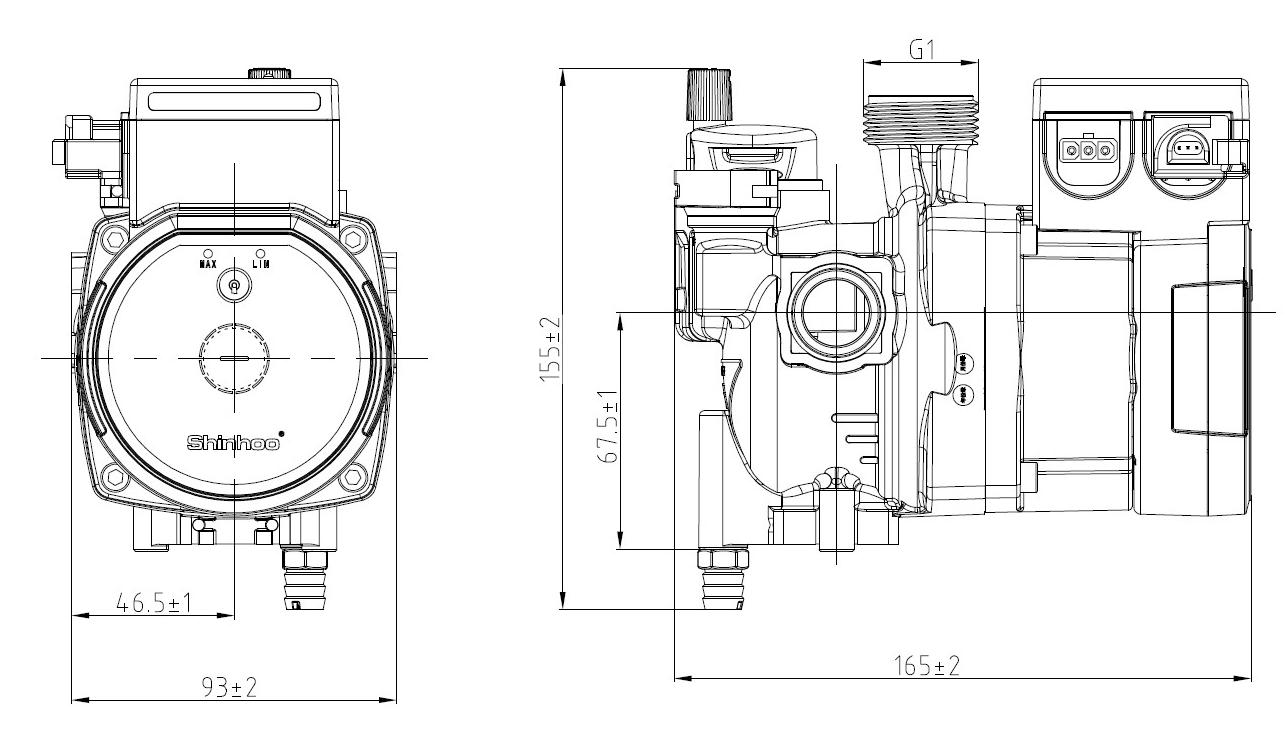

Installation Drawing
Tags :
Model U(V)/f(Hz) Head Q（m³/h） P（W） I(A) GPA15-7.5 III Z108 pro 230/50 7.5 2.6 60 0.50 7 2.4 52 0.45 6 2.2 39 0.35 5 2.1 33 0.30
Model U(V)/f(Hz) Head Q（m³/h） P（W） I(A) GPA15-7.5 III Z027 pro 230/50 7.5 2.6 60 0.50 7 2.4 52 0.45 6 2.2 39 0.35 5 2.1 33 0.30
Model U(V)/f(Hz) Head Q（m³/h） P（W） I(A) GPA15-7.5 III Z106 pro 230/50 7.5 2.6 60 0.50 7 2.4 52 0.45 6 2.2 39 0.35 5 2.1 33 0.30
Model U(V)/f(Hz) Head Q（m³/h） P（W） I(A) GPA15-7.5 III Z178 pro 230/50 7.5 2.6 60 0.50 7 2.4 52 0.45 6 2.2 39 0.35 5 2.1 33 0.30
Max Flow 23 l/min Max Head 12 m Max Input Power 45 W Max Efficiency 30% Voltage DC24V Insulation Class H Noise ＜42dB（A Protection Level IPX4
Model U(V)/f(Hz) Head Q（m³/h） P（W） I(A) GPA15-7.5 III Z107 pro 230/50 7.5 2.6 60 0.50 7 2.4 52 0.45 6 2.2 39 0.35 5 2.1 33 0.30
Model U(V)/f(Hz) Head Q（m³/h） P（W） I(A) GPA15-7.5 III Z197 pro 230/50 7.5 2.6 60 0.50 7 2.4 52 0.45 6 2.2 39 0.35 5 2.1 33 0.30
Model U(V)/f(Hz) Head Q（m³/h） P（W） I(A) GPA15-7.5 III Z107 pro 230/50 7.5 2.6 60 0.50 7 2.4 52 0.45 6 2.2 39 0.35 5 2.1 33 0.30
Power supply voltage 220V~240V,AC,Protective earth Motor protection No external protection required IP class IP67 Insulation class H Humidity(RH) Max 95% System pressure 1.0 Mpa Compliance EMC/RoHS/REACH/TUV/CE/EEI/CCC Environment temperature -30℃~55℃ Temperature class TF 95 Liquid temperature -20~+95℃ Connection/Unions Molex/TE
Power supply voltage 230V 50/60Hz, PE Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max. 95% System pressure 1.0 MPa Compliance CE/ GS/ EMC/ LVD/RoHS/REACH Environment temperature 0～+40℃ Temperature class TF110 Liquid temperature 2～+110℃
Enclosure class IPX4D (EN 60529). Insulation class H. Supply voltage 1 × 230 V ± 10 % 50 Hz, PE Digital input PWM 0–10 V Analog input 4–20 mA. 0–10 W direct current Connection bus input Modbus RTU Leakage current Ileakage < 3.5 mА. Leakage current is measured in accordance with EN 60335-1. EMC Standards applied: EN61000-3-2, EN61000-6-3, EN61800-3-3, EN55014-1 and EN55014-2
Model Basic 32-5S Power 85/60/40W Max.flow 4m³/h Max head 5m Current 0.4/0.3/0.22A Voltage/ Frequency 115/230V 50HZ Pump housing Cast iron Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
