Rated Voltage |
AC22~240V |
|
Design Pressure |
1.0MPa |
|
Temperature Grade |
TF110 |
|
Maximum Current |
3.55A |
|
Frequency |
50Hz |
|
Input Power |
700W |
|
Insulation Class |
IP44 |
|
Motor Speed |
2800 rpm~2850 rpm |
|
Noise |
＜48dB(A)(rated point) |
|
Compliance |
CE/RoHS/ REACH |
Item NO.:

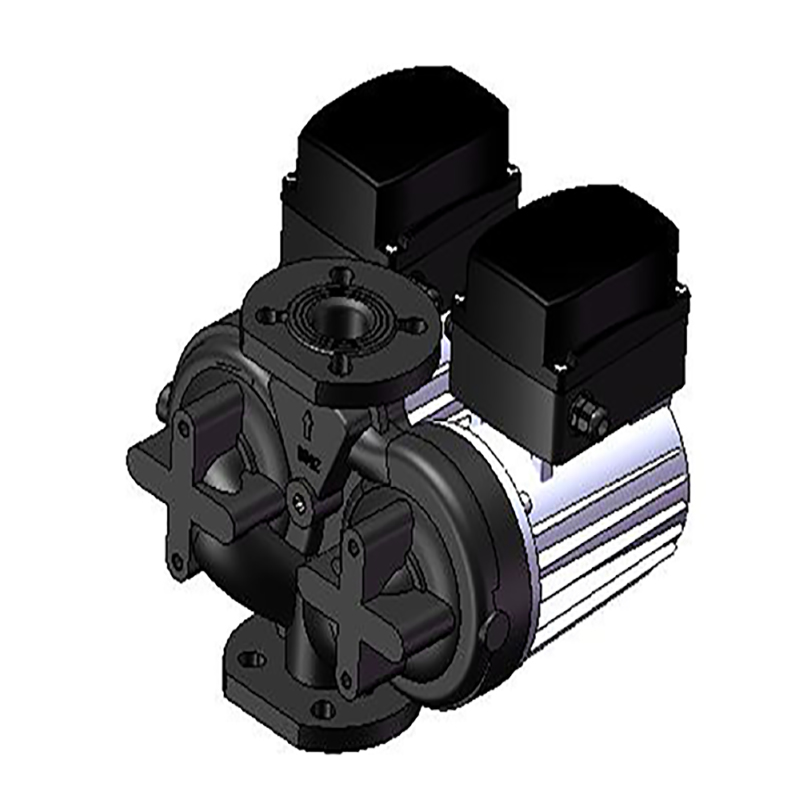

Basic T40-12FWater pumps can be used in mixed circuits in single and double pipe heating systems and large-scale systems, as well as in different fields such as urban apartments, suburban villas, residential water supply pressurization, geothermal systems and hot water circulation, liquid circulation in cooling and air conditioning systems, boiler solar water supply, etc.

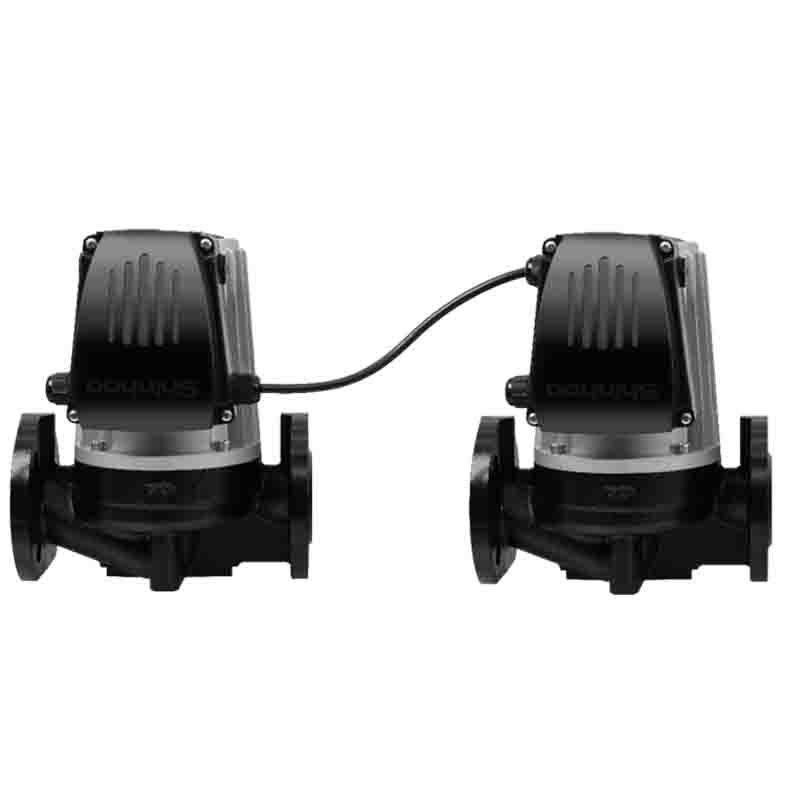

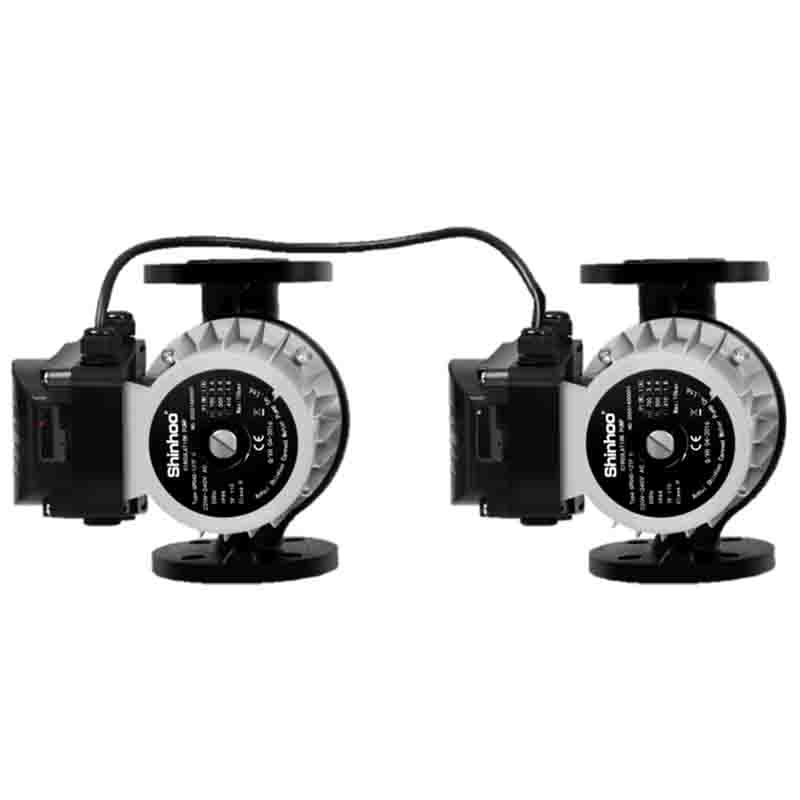

There are relay modules in the two junction boxes of two-headed pump and they are interconnected by cable. There are three operating modes and can be switched by selecting a switch:
1) Alternate running (factory default Settings)
The two pumps are operated alternately in the form of working pumps and standby pumps which each pump operate alternately every 24 hours. If the working pump stops running due to a fault or is manually shut down, the standby pump automatically starts running. The order of the working pump and the standby pump can be selected by selecting the switch.
2) Standby operation mode
Two pump heads, one as a working pump and the other as a backup pump. In this mode, the working pump will run continuously and will not perform periodic automatic alternating actions. If the working pump is out of operation for some reason, or is manually shut down, the standby pump will automatically start. The order of the working pump and the standby pump can be selected by selecting the switch.
3) Single pump operation mode
One pump operates independently and does not communicate with the other pumps. In this mode, if the working pump stops running due to a fault or is manually shut down, it will not automatically switch to another pump.
Basic product parameters
|
Maximum flow （m³/h）:11 |
Maximum head （m）:14 |
||
|
Rated flow rate (m ³/ h) : 8 |
Rated head (m): 10 |
||
|
Rated voltage ：AC220-240V |
Maximum Current : 3.55A |
Frequency ：50Hz |
Input power: 700W |
|
Design pressure ：1.0MPa |
Noise ：＜48dB（A）（ rating point ） |
Motor speed: 2800 rpm~2850 rpm |
Insulation class ：IP44 |
|
Temperature grade ：TF110 |
|
Turning: counterclockwise rotation (viewed from the inlet direction of the impeller) |
|
Media requirements for use
|
Medium used: water or a mixture of water and ethylene glycol (≤ 50%) |
Medium water temperature :2℃～110℃ |
|
Medium pH value: 6.5~8.5 |
Medium hardness ：≤25°dH |
|
Solid impurity content in the medium: The diameter and length direction of solid impurities are ≤ 0.1mm, and the volume ratio is ≤ 0.1%. |
|
Environmental requirements for use
|
Usage: Keep the axis horizontal |
Altitude: ＜ 1000m |
|
Operating environment temperature: 0 ℃~40 ℃ (There is no freezing phenomenon in the pipeline and circulating pump) Note: The ambient temperature must always be lower than the temperature of the transported liquid otherwise condensed liquid will appear in the stator cavity. |
Operating environment humidity ≤ 95% |
Storage environment requirements
|
Storage environment Temperature:-30℃~70℃(There is no freezing phenomenon in the pipeline and circulating pump) |
Storage environment humidity ≤ 95% |
Comparison Table of Water Temperature and Inlet Pressure
|
liquid temperature |
＜70℃ |
90℃ |
110℃ |
|
Inlet pressure |
0.4bar |
0.8bar |
1.5bar |
|
|
4 meter lift |
8meter lift |
15meter lift |
Motor type
|
Motor type: single-phase asynchronous motor |
Enamelled wire material: copper |
Insulation level ：H |
|
Motor DC cold resistance at 20 ℃: Main phase resistance: 9.9 ± 5% Ω Secondary phase resistance: 15.2 ± 5% Ω |
||

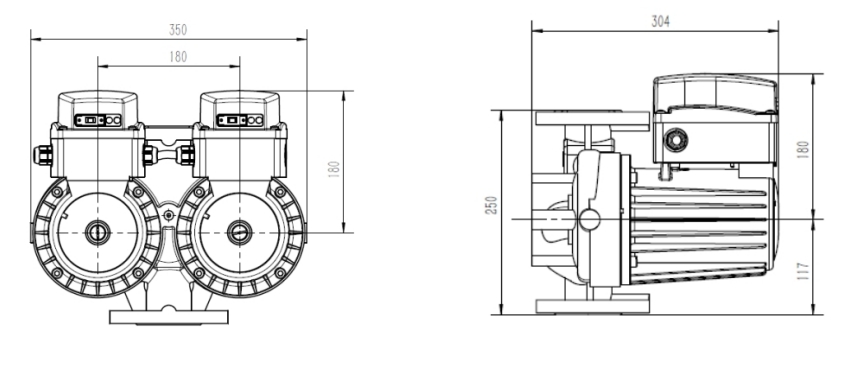

Outline Installation Drawing
When the circulation pump is installed early, the circulation pump shaft must be in a horizontal position, and the allowable installation angle of the circulation pump shaft is ± 5 °. The allowable junction box position and flow rate are shown in the following picture. In the use of normal condition, the pump is maintenance-free. For specific installation and maintenance methods, please read the instructions carefully.

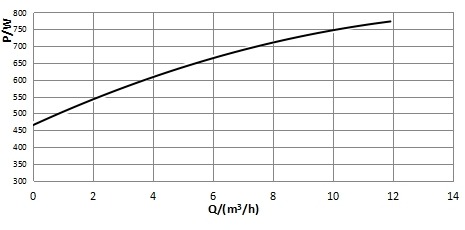

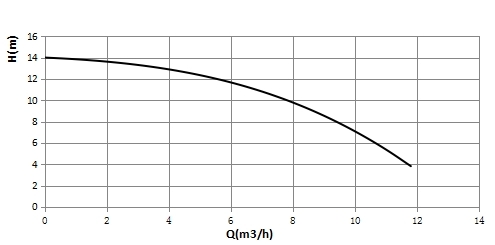

This performance curve is applicable to clean water at room temperature. If a circulating pump is used for no clean water media, the hydraulic performance of the pump will decrease. Therefore, when selecting a pump, the characteristics of the liquid medium being transported should be considered.
Tags :
Model Max. flow Power Rated flow Rated head Rated current Material of Pump body (m³/h) (W) (m³/h) (m) (A) Basic Pro 25-12SL-200 5 300 3.5 9 1.5 cast iron Basic Pro 25-12SXL-180 6.5 500 5 9 2.5 cast iron Basic Pro 25-12SXL-220 6.5 500 5 9 2.5 cast iron
Model Basic 15-9S Power 120/80/65W Max.flow 1.8m³/h Max head 9m Current 0.53/0.4/0.25A Voltage/ Frequency 115/230V 50/60HZ Pump housing Cast iron Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Model Basic 15-12S Power 270/240/160W Max.flow 3.5m³/h Max head 12m Current 1.2/1.1/0.75A Voltage/ Frequency 115/230V 50/60HZ Pump housing Cast iron Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2~110℃ Max System Pressure 1.0Mpa
Model Basic 20-5S/Basic 20-5SB/Basic 20-5SN/Basic 20-5SQ/Basic 20-5SP Power 85/60/40W Max.flow 2.8m³/h Max head 5m Current 0.4/0.3/0.22A Voltage/ Frequency 115/230V 50/60HZ Pump housing cast iron, stainless steel body(N) ,copper body(B) ,Bronze(Q) and Plastic (P) Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Model Basic 20-6S,Basic 20-6SN Power 100/70/55W Max.flow 2.8m³/h Max head 6m Current 0.45/0.35/0.25A Voltage/ Frequency 115/230V 50/60HZ Pump housing cast iron, stainless steel body(N) ,copper body(B) ,Bronze(Q),Plastic (P) Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Model Basic 20-7S, Basic 20-7SB, Basic 20-7SN,Basic 20-7SQ,Basic 20-7SP Power 130/110/90W Max.flow 3.5m³/h Max head 7m Current 0.6/0.52/0.42A Voltage/ Frequency 115/230V 50/60HZ Pump housing cast iron, stainless steel body(N) ,copper body(B) ,Bronze(Q) and Plastic (P) Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Rated Voltage/Frequency 230V/50Hz Insulation class Class H IP class IP44 Noise Index ≤50dB(A) Max System Pressure 10bar(1.0 MPa) Medium liquid Clean water Certification CCC\GS\UL\CE\RoHS\REACH\EEI
Rated Voltage/Frequency 230V/50Hz Insulation class Class H IP class IP44 Noise Index ≤50dB(A) Max System Pressure 10bar(1.0 MPa) Medium liquid Clean water Certification CCC\GS\UL\CE\RoHS\REACH\EEI
Model Basic 32-9F Power 300W Max.flow 8m³/h Max head 9m Current 1.5A Voltage/ Frequency 115/230V 50HZ Pump housing Cast iron Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Model Basic 80-12SF Pro Power 1500W Max.flow 40m³/h Max head 12m Voltage/ Frequency 380V /50HZ Pump housing Cast iron Pumped liquid Water Insulation class H Degree of Protection IP42 Liquid temperature range 2~110℃ Max System Pressure 1.0Mpa
Model Basic 50-12F Pro Power 1000W Max.flow 28m³/h Max head 12m Current 4.7A Voltage/ Frequency 220~240V 50HZ Pump housing Cast iron Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Operation range Feed up to 2.8 m³/h Head up to 12 m Supply voltage 1 x 230 V Liquid temperature from 2 to +60 °C Ambient temperature from 2 to +40 °C Max. operating pressure 6 bar Connection of PROMO 15-12A G 3/4"
