Model |
Basic 25-5SB |
|
Pump Body Length |
130/180mm |
|
Power |
85/60/40W |
|
Max.flow |
3.3m³/h |
|
Max head |
5m |
|
Current |
0.4/0.3/0.22A |
|
Voltage/ Frequency |
115/230V 50/60HZ |
|
Pump housing |
copper body(B) |
|
Pumped liquid |
Water |
|
Insulation class |
H |
|
Degree of Protection |
IP44 |
|
Liquid temperature range |
2-110℃ |
|
Max System Pressure |
1.0Mpa |
Item NO.:

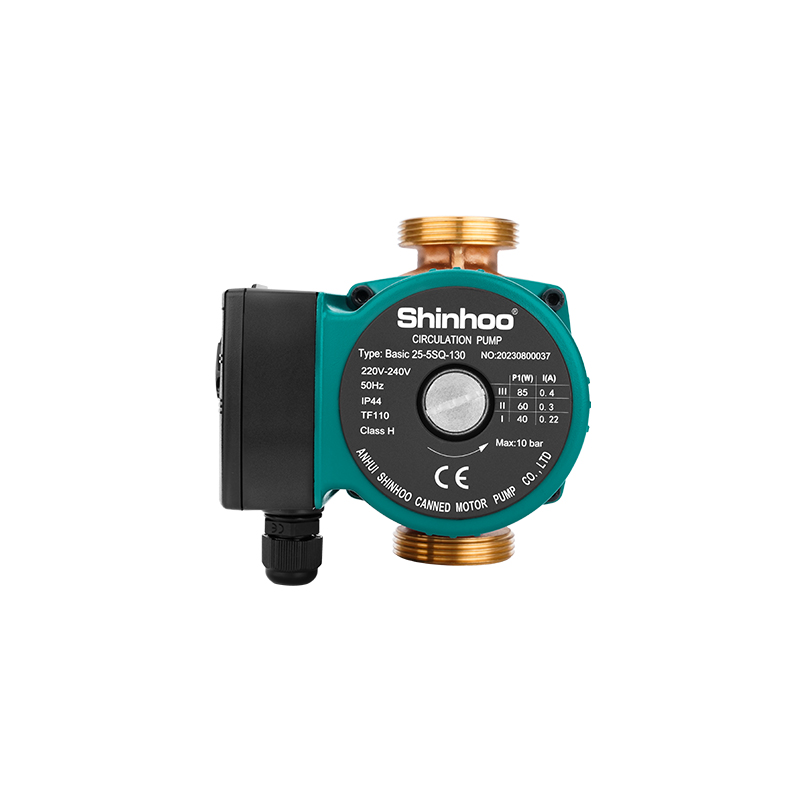

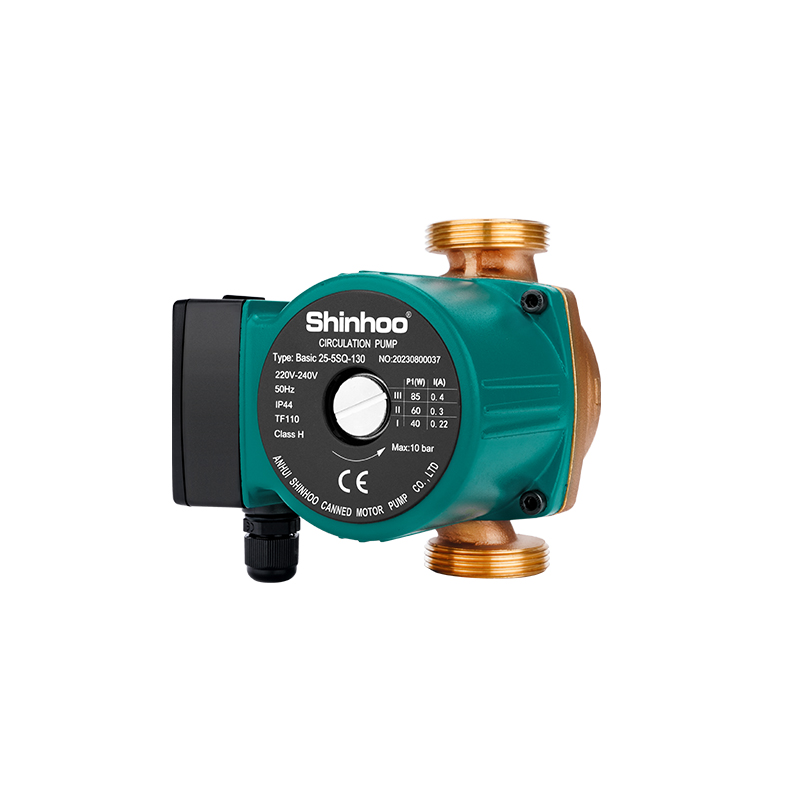

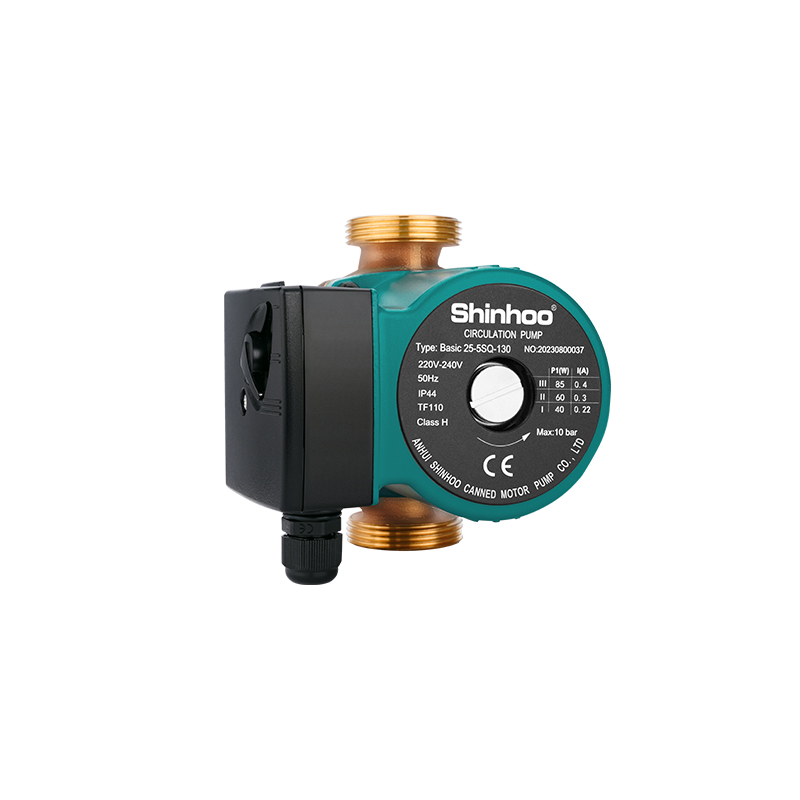

Basic 25-5SB1. Commercial heating pump system
2. Domestic hot water recirculation
3. Domestic heating pump system
4. Hot-water heating systems of all kinds
5. Industrial circulation systems
6. Cold water systems and air-conditioning systems
Basic circulation pumps designed and produced by our specialists have these features: low noise, no leakage, ecological satety in operation, artistic appearance, easy installation and reliable operation.
Construction
Basic pumps are of the canned rotor type, i.e. the pump and motor form a single unit without shaft seal. This unit requires only two sealing rings and the bearings are lubricated with pumped liquid.
Advantages of Basic pumps design:
1. Single or three-speed motor.
2. Ceramic radial bearings.
3. Carbon thrust bearing.
4. A protective rotor can, external rotor cover, and bearing plate are made of stainless steel.
5. Cast iron pump housing.
6. Thermal switch integrated in the stator coil, for motors from 300 W.
Working Conditions
1. System pressure: max. 10 bar.
2. Liquid temperature: from +2 to +110 °С.
3. Users can select a model from the type spectra according to the requirment of head, flow and frequency.
4. Power supply: voltage 230V, frequency 50Hz, single-phase AC power. The models listed in the table can also be manufactured according to user's requirement as 230V/60Hz or 115V/60Hz. Curve and performance parameters in this table represent only products with power supply of 230V/50Hz.
5. Maximum system pressure: 1.0MPa.
6. Ambient temperature: 0℃ ～40℃, temperature of medium: 2 ℃ ～110 ℃. In order to avoid condensed water in stator, make sure the ambient temperature is lower than liquid temperature.
7. Medium: thin, clean, non-corrosive and non-explosive liquid, does not contain any solid particles, fibers or mineral oil. Pump must not be used for delivering flammable liquids, such as diesel and gasoline.
8. Delivering liquid of high viscosity will reduce performance of the pump, so while choosing a pump, the viscosity of the medium must be taken into consideration.
9. Maintain minimum pressure at the pump inlet to avoid cavitation noise and damage to pump bearings.
Basic series have two kinds of pipe connections：threaded and flange. Models with power above 300W mainly have flange connection. We can make customized design according to your needs.
Pump housing is generally made of cast iron. Bronze and stainless steel pump housing is also available.
Pump with cast iron housing is widely used for delivering water for room heating. Pump with bronze housing is largely used in the floor heating system. For delivering domestic hot water we recommend using pump copper housing(B).
Allowable temperature limits
1. The pump involves three rotational frequencies that allow selecting the best performance for a certain hydraulic system.
2. Ambient temperature :from 0 to 40 °С
3. Liquid temperature :from +2 to +110 °С
4. Storage temperature :from -30 to +55 °С
Sound pressure
Sound pressure depends on the power consumed:
≤ 50 dB(A) for models with P1<1,000 W
≤ 54 dB(A) for models with P1>1,000 W
Installation
During installation, the shaft of pump should be parallel to ground. Before start-up, open the venting screw on the top of the motor so that air in the pump can be released well, and then re-fasten the venting screw. This will help preventing pump from dry running.
Tags :
Model Basic 25-7SB Pump Body Length 130mm Power 130/110/90W Max.flow 4m³/h Max. head 7m Current 0.6/0.52/0.42A Voltage/ Frequency 115/230V, 50/60HZ Pumped liquid Clean Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa Pump Housing Brass body
Model Basic 25-4SB Pump body length 130/180mm Power 65/50/32W Max.flow 3.0m³/h Max head 4m Current 0.28/0.22/0.15A Voltage/ Frequency 115/230V 50/60HZ Pump housing copper body(B) Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Model Basic 25-8SB Power 245/190/135W Max.flow 6m³/h Max head 8m Current 1.1/0.85/0.6A Voltage/ Frequency 115/230V 50/60HZ Pump housing Brass Pumped liquid Clean Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃(mixture of glycol and water up to 50%) Max System Pressure 1.0Mpa Certificates CE, GS, UL, VD, EMC, RoHS, REACH,UKCA etc.
Power supply voltage 220-240V 50/60Hz, PE Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max. 95% System pressure 1.0 MPa Compliance CE/ GS/ EMC/ LVD/RoHS/REACH Environment temperature 0～+40℃ Temperature class TF110 Liquid temperature -30～+110℃ (Glycol up to 50%) Voltage/ Frequency 230V/50HZ Pump housing Cast iron/Stainless steel Energy(EEI) ≤0.23-Part2
Model Basic 32-4S Power 65/50/32W Max.flow 3.5m³/h Max head 4m Current 0.28/0.22/0.15A Voltage/ Frequency 115/230V 50HZ Pump housing Cast iron Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Model Basic 25-5S/Basic 25-5SN/Basic 25-5SQ Pump Body Length 130/180mm Power 85/60/40W Max.flow 3.3m³/h Max head 5m Current 0.4/0.3/0.22A Voltage/ Frequency 115/230V 50/60HZ Pump housing cast iron, stainless steel body(N) ,Bronze(Q), Plastic (P) Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Power supply voltage 220-240V 50/60Hz, PE Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max. 95% System pressure 1.0 MPa Compliance CE/ GS/ EMC/ LVD/RoHS/REACH Environment temperature 0～+40℃ Temperature class TF110 Liquid temperature -30～+110℃ (Glycol up to 50%) Voltage/ Frequency 230V/50HZ Pump housing Cast iron Energy(EEI) ≤0.23-Part2
Max. Flow(L/min) 115 Rated flow(L/min) 50 Max. Head(m) 25 Rated head(m) 20 Inlet diameter (mm) 25 Outlet diameter(mm) 25 Input power(W) 880 Output Power(W) 600
Power supply voltage 220~240V 50/60Hz, AC Model Master 32-7.5 Power 60W Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max. 95% System pressure 1.0 MPa Certification CE/ GS/ EMC/RoHS2.0/REACH Environment temperature -30℃～+70℃ Temperature class TF110 Liquid temperature -20℃～+110℃(Glycol up to 50%) Type of connection/unions Molex /TE/ Shinhoo standard
Power supply voltage 220-240V 50/60Hz, PE Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max. 95% System pressure 1.0 MPa Compliance CE/ GS/ EMC/ LVD/RoHS/REACH Environment temperature 0～+40℃ Temperature class TF110 Liquid temperature -30～+110℃ (Glycol up to 50%)
Power supply voltage 220V~240V,AC,Protective earth Motor protection No external protection required IP class IP67 Insulation class H Humidity(RH) Max 95% System pressure 1.0 Mpa Compliance EMC/RoHS/REACH/TUV/CE/EEI/CCC Environment temperature -30℃~55℃ Temperature class TF 95 Liquid temperature -20~+95℃ Connection/Unions Molex/TE
Model Basic 40-16F Pro Power 1000W Max.flow 13m³/h Max head 18m Current 4.9A Voltage/ Frequency 230V 50HZ Pump housing Cast iron Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
