Power |
680/400w |
Max Head |
21m |
|
Voltage |
1-220/3-380w |
Rated Head |
15m |
|
Frequency |
50hz |
Diameter |
32mm |
|
Max Flow |
100l/min |
IP Grade |
IP44 |
|
Rated Flow |
50l/min |
Temperature |
90℃ |
Item NO.:
PUN-4001. For low pressure water supply;
2. Home HVAC circulation system;
3.Industrial water circulation system, cooling water circulation system;
1. The inside of the pump body adopts special coating, which is not easy to rust;
2. Large flow, compact structure design;
3. Environmental protection, beautiful appearance, convenient installation and reliable operation.
Working conditions
1. Power supply: 220V, 50Hz single-phase alternating current;
2. Maximum system pressure: 0.5MPa;
3. Insulation class: F;
4. Protection level: IP44;
5. Ambient temperature during work: 0℃～40℃;
6. The temperature of the conveying liquid: 0℃～90℃;
7. Delivery liquid: clean water.
Product production process testing items
1. Pump grounding resistance detection
2. Pump insulation resistance detection
3. Pump withstand voltage leakage current detection
4. Pump leakage current detection
5. Low voltage start-up detection of the whole pump
6. Pump no-load power detection
7. Pump no-load current detection
Type test of the pump in the laboratory
1. Hydraulic performance test of the whole pump
2. Pump noise and vibration detection
3. Pump life test
4. High and low temperature performance testing of the whole pump

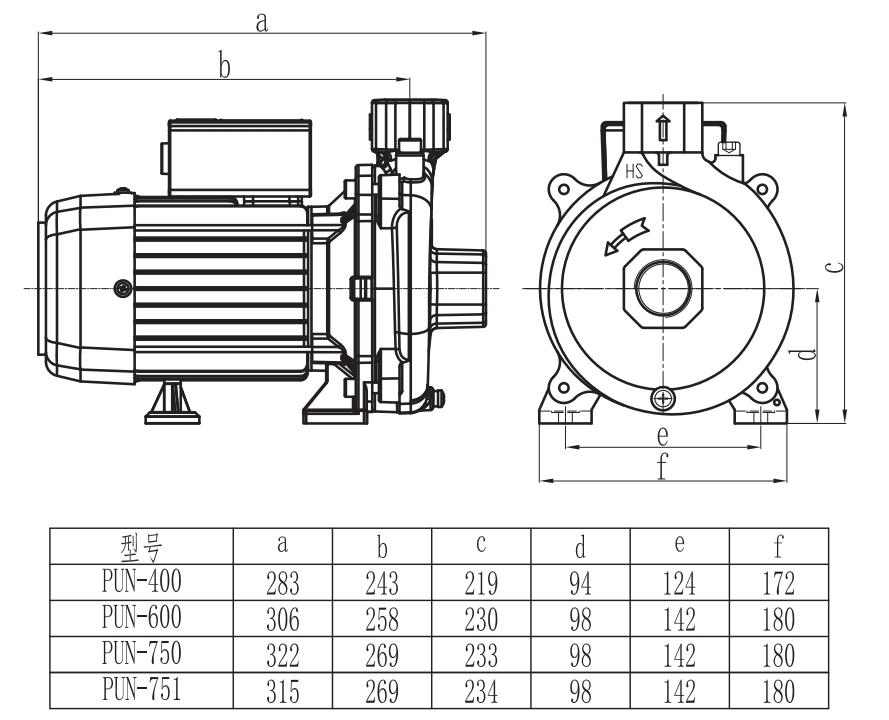

Installation Drawing

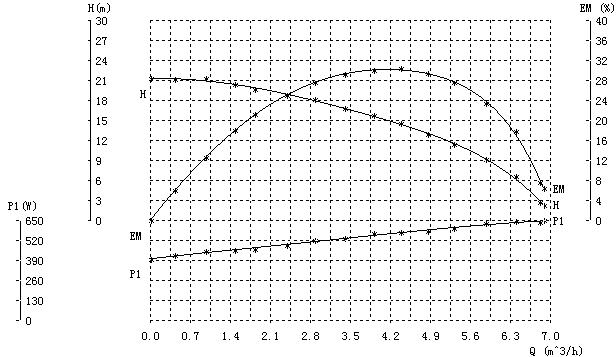

H-----Head
P1----Input power
EM----Efficiency
Q-----Flow
Tags :
Power 320/200w Max Head 15m Voltage 1-220/3-380w Rated Head 10m Frequency 50hz Diameter 25mm Max Flow 80l/min IP class IP22 Rated Flow 38l/min Temperature 90℃
Max. Flow(L/min) 360 Rated flow(L/min) 220 Max. Head(m) 23 Rated head(m) 15 Inlet diameter (mm) 50 Outlet diameter(mm) 50 Input power(W) 1500 Output Power(W) 1100
Max. Flow(L/min) 125 Rated flow(L/min) 80 Max. Head(m) 30 Rated head(m) 20 Inlet diameter (mm) 32 Outlet diameter(mm) 32 Input power(W) 1250 Output Power(W) 750
Maximum flow(m³/h) 90 Rated flow(m³/h) 50 Maximum head(m) 21 Rated head(m) 15 Inlet pipe diameter(mm) 25 Outlet pipe diameter(mm) 25 Input power(kW) 660 Output power(kW) 400
Max. Flow(L/min) 115 Rated flow(L/min) 50 Max. Head(m) 25 Rated head(m) 20 Inlet diameter (mm) 25 Outlet diameter(mm) 25 Input power(W) 880 Output Power(W) 600
Max. Flow(L/min) 200 Rated flow(L/min) 110 Max. Head(m) 25 Rated head(m) 17.5 Inlet diameter (mm) 32 Outlet diameter(mm) 32 Input power(W) 1100 Output Power(W) 750
Max. Flow(L/min) 115 Rated flow(L/min) 50 Max. Head(m) 25 Rated head(m) 20 Inlet diameter (mm) 25 Outlet diameter(mm) 25 Input power(W) 880 Output Power(W) 600
Max. Flow(L/min) 200 Rated flow(L/min) 110 Max. Head(m) 25 Rated head(m) 17.5 Inlet diameter (mm) 32 Outlet diameter(mm) 32 Input power(W) 1100 Output Power(W) 750
Power supply voltage 220V~240V,AC,Protective earth Motor protection No external protection required IP class IP67 Insulation class H Humidity(RH) Max 95% System pressure 1.0 Mpa Compliance EMC/RoHS/REACH/TUV/CE/EEI/CCC Environment temperature -30℃~55℃ Temperature class TF 95 Liquid temperature -20~+95℃ Connection/Unions Molex/TE
Enclosure class IPX4D (EN 60529). Insulation class H. Supply voltage 1 × 230 V ± 10 % 50 Hz, PE Digital input PWM 0–10 V Analog input 4–20 mA. 0–10 W direct current Connection bus input Modbus RTU Leakage current Ileakage < 3.5 mА. Leakage current is measured in accordance with EN 60335-1. EMC Standards applied: EN61000-3-2, EN61000-6-3, EN61800-3-3, EN55014-1 and EN55014-2
Power supply voltage 230V 50/60Hz, PE Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max. 95% System pressure 1.0 MPa Compliance CE/ GS/ EMC/ LVD/RoHS/REACH Environment temperature 0～+40℃ Temperature class TF110 Liquid temperature 2～+110℃
Model Master SD 25-6 130/ Master SD 25-6 180 Maximum flow (m³/h) 3.2 Maximum head(m) 6.0 EEI EEI≤0.20-Part2 Rated voltage 220-240V AC Rated current 0.5 A Frequency 50/60Hz Maximum power 39 W Design pressure 1.0MPa Noise ≤42dB(A) IP class IP44 Insulation class H
