Max. Flow(L/min) |
180 |
Max. flow(L/min) |
310 |
Max. Head(m) |
16 |
Rated head(m) |
10 |
Inlet diameter |
80mm |
Outlet diameter |
80mm |
Input power |
850W |
Output Power |
750W |
Item NO.:
PH-402Q1. For low pressure water supply;
2. Home HVAC circulation system;
3.Industrial water circulation system, cooling water circulation system;
1. The inside of the pump body adopts special coating, which is not easy to rust;
2. Large flow, compact structure design;
3. Environmental protection, beautiful appearance, convenient installation and reliable operation.
4. Pipeline installation, easy connection
5. Compact structure, space-saving
6. Low noise, long life
Working conditions
1. Power supply: 380V, 50Hz single-phase alternating current;
2. Maximum system pressure: 0.5MPa;
3. Insulation class: F;
4. Protection level: IP44;
5. Ambient temperature during work: 0℃~40℃;
6. The temperature of the conveying liquid: 0℃~90℃;
7. Delivery liquid: clean water.
Product production process testing items
1. Motor detection
1.1 Motor turn-to-turn impact detection;
1.2 Motor insulation resistance detection;
1.3 Motor ground withstand voltage detection;
1.4 Motor winding DC resistance detection;
1.5 Motor steering test.
2. Assembly workshop
2.1 Grounding resistance detection of the whole pump;
2.2 Insulation resistance detection of the whole pump;
2.3 Pump withstand voltage leakage current detection;
2.4 Pump leakage current detection;
2.5 Low-voltage start-up detection of the whole pump;
2.6 No-load power detection of the whole pump;
2.7 No-load current detection of the whole pump.
Type test of the pump in the laboratory
1. Hydraulic performance inspection of the whole pump;
2. Noise and vibration detection of the whole pump;
3. Temperature rise test of the whole pump;
4. Blockage test of the whole pump;
5. Low voltage start;
6. IP rating test.
Installation Drawing

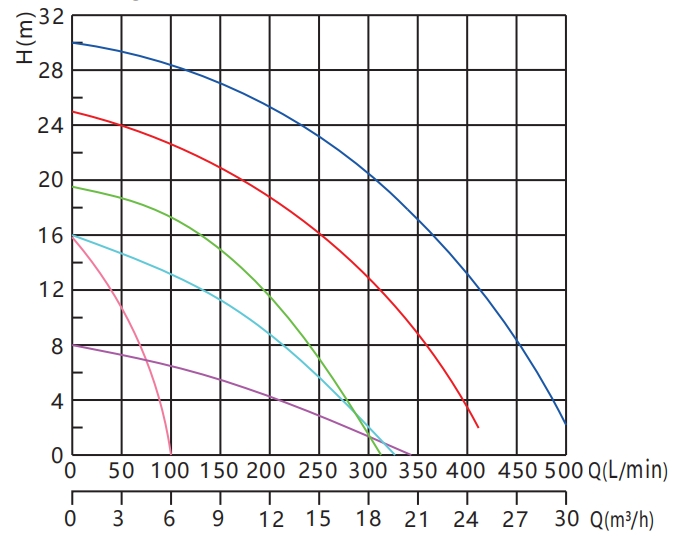

H-----Head
Q-----Flow
