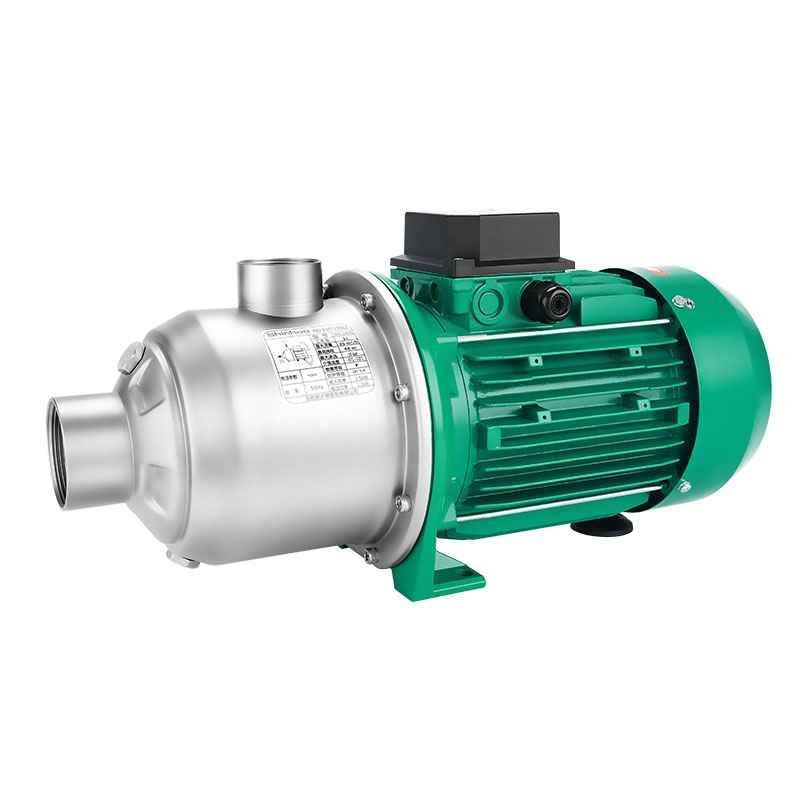

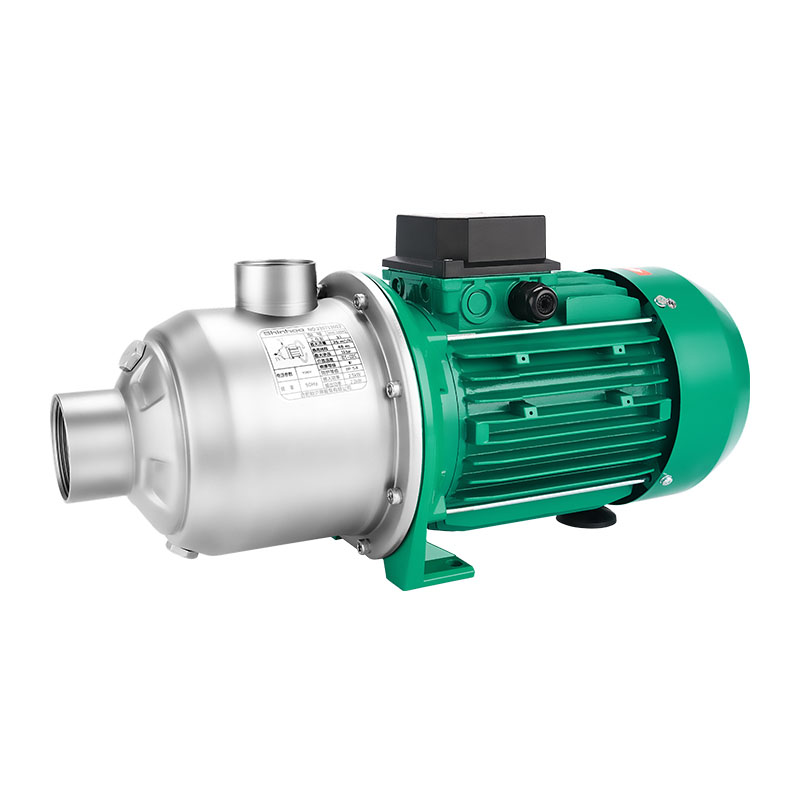

MHI-1604Q 3 Phase Horizontal Multistage centrifugal pump

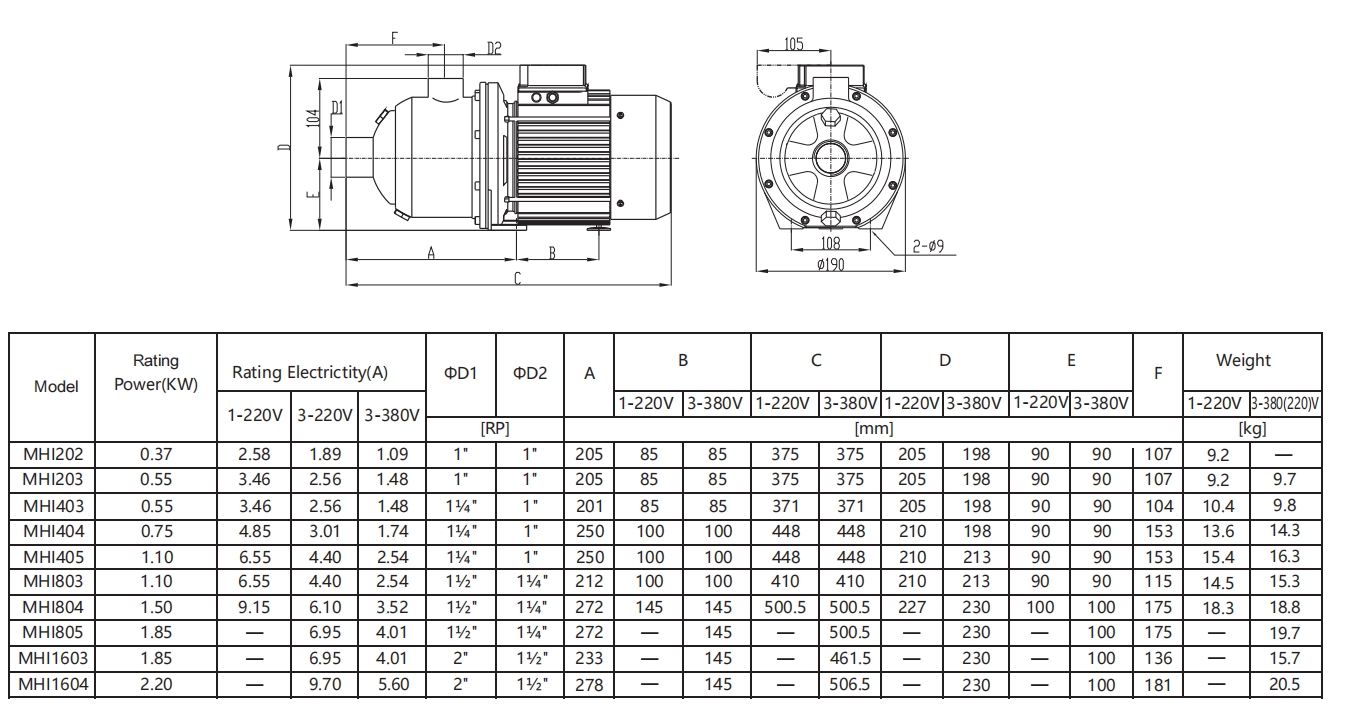

Technical data

Rated voltage

380V

Rated head

32m

Rated flow

16m³/h

Maximum head

48m

Maximum flow

23m³/h

Insulation class

F

Design pressure

 10bar

Vibration

2.8mm/s

Protection clas

IP54

Frequency

50Hz

Rated current

4.52A

Rated power

2200W

Noise

63dB(A)

Maximum power

3100W

  • Item NO.:

    MHI-1604Q

1. Water supply and booster

2. Hot water circulation, heating system

3. Industrial circulating system

4. For various machinery

5. Integrated pump for heat pump system



1. Material – Stainless steel

2. Multi-stage impeller, high head

3. Bidirectional mechanical seal, easy maintenance

4. Compact block design

5. All hydraulic parts which come into contact with the fluid, such as stage chambers, impellers and diffusors

Working conditions

1. Power supply: 1~220V/50Hz;

2. Maximum system pressure: ≤1.0MPa;

3. Insulation class: F;

4. Protection level: IP54;

5. The temperature of the conveying liquid:-15℃~90℃ ;

6.Delivery liquid: clean water ;

7. This water pump is suitable for conveying drinking water, hot water, industrial water, condensate water, a mixture of ethanol and water (with a maximum ethanol content of 40%), and other liquids that do not contain mineral oil, long fibers, or corrosive substances.



Design notes

1. Motor protection for three-phase AC motor is optional or to be provided on-site

2. Single-phase AC motor equipped with built-in thermal motor protection and capacitor



Product certification

The product complies with 3C certification requirements



Application Medium Requirements

Use medium: clear water/water+ethylene glycol (≤50%) mixed solution

Medium water temperature: 0110℃/-15℃110℃

Medium PH value6.5-8.5

Medium hardness25°dH

Solid impurity content in the medium: solid impurity diameter and length direction ≤ 0.1mm, and volume ratio ≤ 0.1%



Service environment requirements

Usage: keep the shaft horizontal

Altitude:  1000m

Operating ambient temperature: -30 ℃ ∼ 55 ℃(there is no freezing in the pipeline and water pump)

Operating ambient humidity: ≤95%

Storage environment requirements

Storage ambient temperature: -20℃∼60℃(there is no freezing in the pipeline and water pump)

Humidity of storage environment: ≤95%



Factory inspection

Machine tightness detection

Motor insulation detection

Withstand voltage detection

Leakage current detection

Ground Resistance Detection

No-load power, current detection

turn detection







Reliability test

Hydraulic performance test

Vibration test

Noise test

Water pressure test

Whole machine electrical safety test

Protection level test

Salt spray test

Thermal shock test

Temperature rise

Condensate Test

Life test

Start-stop test

High temperature and humidity test





Installation and safety instructions

1. The pumped liquid may be high-temperature and high-pressure liquid. Before moving and disassembling the pump, the liquid in the system must be drained or the stop valves on both sides of the pump must be closed to avoid burns.

2. In winter, when the medium is clean water, if the pump system is not running or the ambient temperature is lower than 0°C, the liquid in the pipeline system should be drained to avoid freezing and cracking of the pump body.

3. If the pump is not used for a long time, please close the water pipe valve at the inlet and outlet of the pump and cut off the power supply of the pump. If you find that the motor is hot or abnormal, please immediately close the valve at the inlet end of the pump, cut off the power supply of the pump, and contact your local dealer or service center immediately.

4. This product should be placed out of the reach of children. After installation, isolation measures should be taken to prevent children from touching it.

5. The installation direction of the water pump is that the axial direction of the pump is horizontal.

6. The water pump needs to be installed to prevent rain, water, exposure and other places.

7. The water pump cannot directly collide with hard objects.

8. It is forbidden to run the water pump without water to prevent the wear and tear of the mechanical seal, or even burn the machine.

9. The pumped liquid is thin, clean, non-corrosive and non-explosive liquid, does not contain any fiber or mineral oil, and the diameter and length of solid particles are ≤0.1mm, and the volume ratio is ≤0.1%. The pump must not For conveying flammable liquids such as vegetable oil and gasoline. If the pump is used in a situation with high viscosity, the performance of the pump will be reduced, so when selecting a pump, the viscosity of the liquid medium to be transported should be considered.

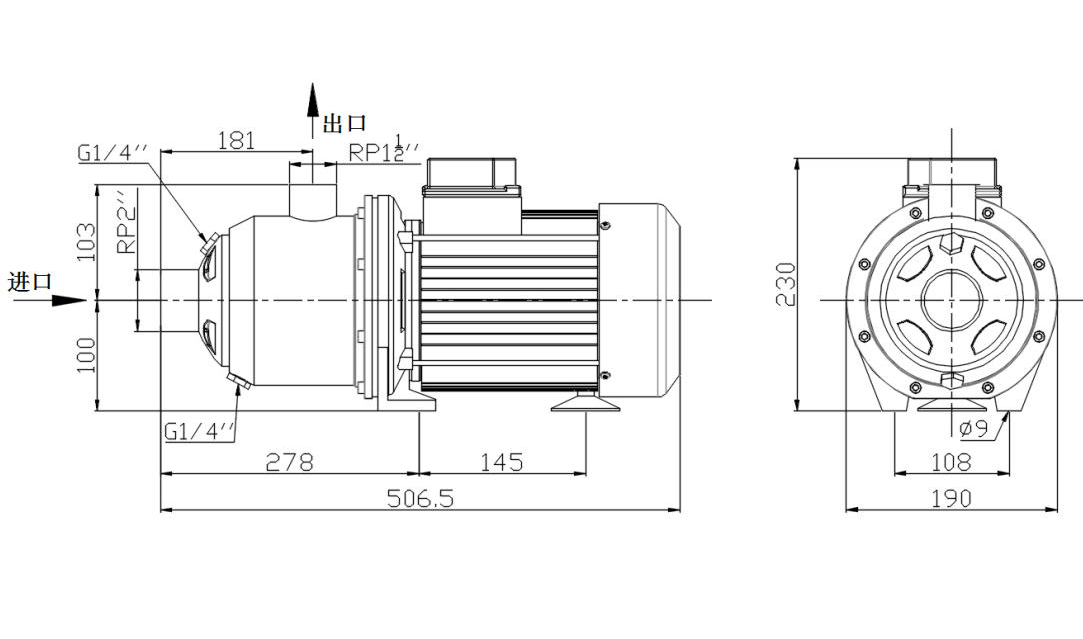

Domestic Hot Water Pump

Performance curve

This performance curve is suitable for normal temperature water, such as pump for non-water medium, the hydraulic performance of the pump will be reduced , therefore ,in the selection of pump, must consider the characteristics of the liquid medium

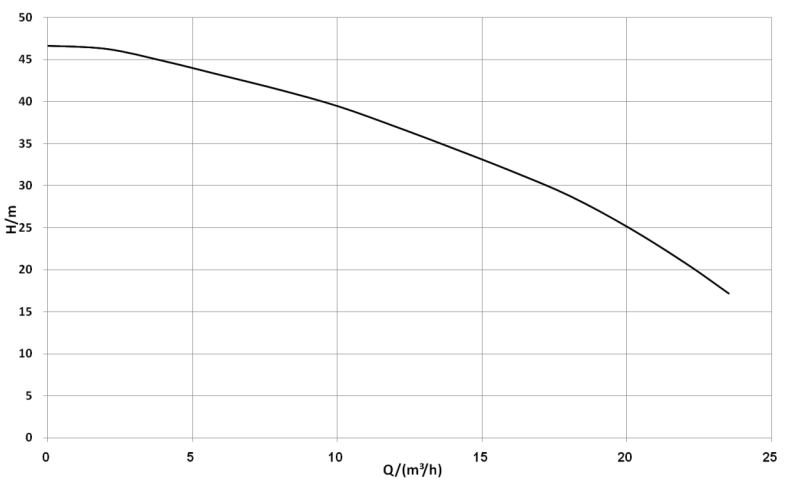

Flow-Head

hot water circulation pump

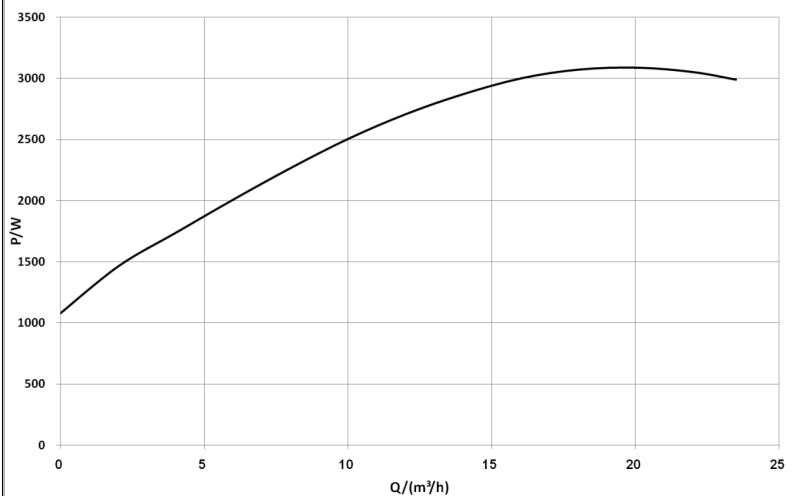

Flow-Power

high head circulator pump

Leave A Message
If you are interested in our products and want to know more details, please leave a message here, we will reply you as soon as we can.
Submit

Related Products

Household automatic hot water booster pump
PH-254 Hot Water Circulating Pump

Max. Flow(L/min) 100 Rated flow(L/min) 50 Max. Head(m) 15 Rated head(m) 10 Inlet diameter (mm) 40 Outlet diameter(mm) 40 Input power(W) 300 Output Power(W) 250  ​

automatic hot water booster pump
PH-041 Hot Water Circulating Pump

Power   90/40w Max Head  3.5m Voltage  220v Rated Head  2.5m Frequency  50hz Diameter  25mm Max Flow  60l/min IP Class  IP22 Rated Flow  28l/min Temperature  100℃ ​

high flow centrifugal pump
PH-251 Hot Water Circulating Pump

Max. Flow(L/min) 190 Rated flow(L/min) 135 Max. Head(m) 5 Rated head(m) 3 Inlet diameter (mm) 50 Outlet diameter(mm) 50 Input power(W) 220 Output Power(W) 125    ​

Household domestic water pressure booster pumps
PH-123 Hot Water Circulating Pump

Max. Flow(L/min) 190 Rated flow(L/min) 135 Max. Head(m) 5 Rated head(m) 3 Inlet diameter (mm) 50 Outlet diameter(mm) 50 Input power(W) 220 Output Power(W) 125 ​

high performance circulator pump
PH-101 Hot Water Circulating Pump

Max. Flow(L/min) 130 Rated flow(L/min) 85 Max. Head(m) 5 Rated head(m) 3 Inlet diameter (mm) 40 Outlet diameter(mm) 40 Input power(W) 200 Output Power(W) 100 ​

high flow centrifugal pump
PH-402 Hot Water Circulating Pump

Max. Flow (m³/h) 18 Max. Flow (m³/h) 7.8 Max. Head (m) 20 Rated head(m) 16 Inlet diameter (mm) 50 Outlet diameter(mm) 50 Input power(KW) 1 Output Power(KW) 0.75 ​

high flow centrifugal pump
PH-1501Q 3 Phase Hot Water Circulating Pump

Max. Flow(m³/h) 25.02 Max. Flow(m³/h) 15.96 Max. Head(m) 25 Rated head(m) 15 Inlet diameter (mm) 50 Outlet diameter(mm) 50 Input power(kw) 1.75 Output Power(kw) 1.5 ​

domestic water pressure booster Household Pump
PUN-200L Pressure Centrifugal Pump

Power  320/200w Max Head  15m Voltage  1-220/3-380w Rated Head  10m Frequency  50hz Diameter  25mm Max Flow  80l/min IP class  IP22 Rated Flow  38l/min Temperature  90℃ ​

Automatic Hot Water Pressure Booster Household Pump
PUN-400 Pressure Centrifugal Pump

Power  680/400w Max Head  21m Voltage  1-220/3-380w Rated Head  15m Frequency  50hz Diameter  32mm Max Flow  100l/min IP Grade  IP44 Rated Flow  50l/min Temperature  90℃ ​

high flow centrifugal pump
PUN-1100 Pressure Centrifugal Pump

Max. Flow(L/min) 360 Rated flow(L/min) 220 Max. Head(m) 23 Rated head(m) 15 Inlet diameter (mm) 50 Outlet diameter(mm) 50 Input power(W) 1500 Output Power(W) 1100 ​

Mechanical Pump
PUN-751 Pressure Centrifugal Pump

Max. Flow(L/min) 125 Rated flow(L/min) 80 Max. Head(m) 30 Rated head(m) 20 Inlet diameter (mm) 32 Outlet diameter(mm) 32 Input power(W) 1250 Output Power(W) 750 ​

PFB 06-22 domestic water pressure booster pumps
PFB 06-22 Permanent magnet centrifugal booster pump

Max Flow 8.5m³/h Rated Flow 6m³/h Pressure 1.0MPa Noise index <58dB(A)(Max flow) Max Head 28m Rated Head 22m Insulation IP55 Weight 5.7kg±5% Voltage AC 220V/50Hz Max Input Power 700W Max Rotation Speed 5000rpm ​
