| Picture | Model | DN(mm) | Rated Flow(m³/h) | Rated Head(m) | Max. Head(m) | Voltage(V) | Frequency(Hz) | Power(W) | Port-to-port length(mm) | Pipe connection/Flange |
|---|---|---|---|---|---|---|---|---|---|---|
 |
Instant Pro 15-1.5 | 15 | / | / | 1.5 | 230 | 50/60 | 8 | 80 | G1/2 |
 |

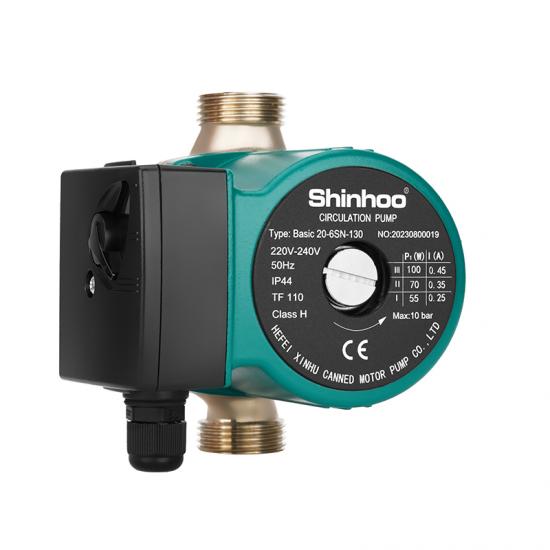

Basic 20-6SN | 20 | 1.8 | 3.6 | 6 | 115/230 | 50/60 | 100/70/55 | 130/150 | G1 |
 |
Mega S 40-12F | 40 | 14 | 7 | 12 | 220~240 | 50/60 | 460 | 291 | DN40/Flange |
 |
Master SD 20-4 | 20 | 1.6 | 2 | 4 | 220~240 | 50/60 | 25 | 130 | G1 |
|
Mega S 40-15F | 40 | 16 | 9 | 15 | 220~240 | 50/60 | 680 | 291 | DN40/Flange |
 |
Master SD 20-5 | 20 | 1.7 | 3.2 | 5 | 220~240 | 50/60 | 33 | 130 | G1 |
 |
Mega S 40-20F | 40 | 15.8 | 10.8 | 20 | 230 | 50/60 | 750 | 377 | DN40/Flange |
 |
Master SD 20-6 | 20 | 2 | 3.2 | 6 | 220~240 | 50/60 | 39 | 130 | G1 |
