| Picture | Model | DN(mm) | Rated Flow(m³/h) | Rated Head(m) | Max. Head(m) | Voltage(V) | Frequency(Hz) | Power(W) | Port-to-port length(mm) | Pipe connection/Flange |
|---|---|---|---|---|---|---|---|---|---|---|
 |
Master 32-4 | 32 | 1.8 | 2 | 4 | 220~240 | 50/60 | 25 | 180 | G2 |
 |

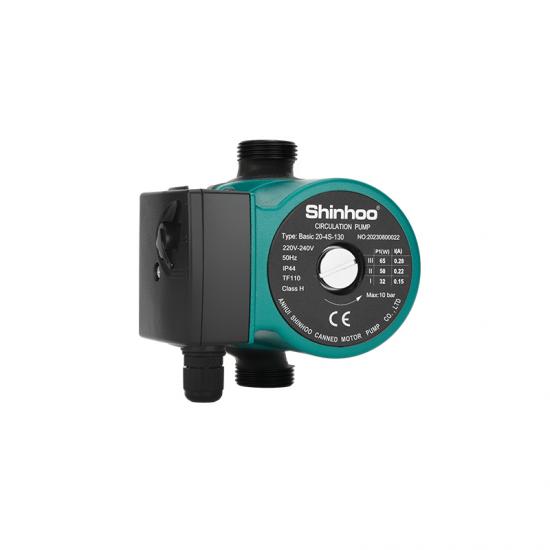

Basic 20-4S | 20 | 2 | 9.5 | 12 | 115/230 | 50/60 | 270/240/160 | 130/150 | G1 |
 |
Basic 40-12F Pro | 40 | 8 | 10 | 14 | 220~240 | 50 | 700 | 250 | DN40 |
 |
Basic 40-12F | 40 | 8 | 10 | 12 | 230 | 50/60 | 700 | 250 | DN40 |
 |
Basic 65-10F | 65 | 20 | 6.5 | 10 | 230 | 50/60 | 1000 | 300/340 | DN65 |
 |
Basic 65-12F | 65 | 25 | 7.5 | 12 | 230 | 50/60 | 1300 | 300/340 | DN65 |
 |
Basic 40-16SF | 40 | 8 | 15 | 18 | 380 | 50 | 1000 | 250 | DN40 |
 |
Basic 50-12SF | 50 | 15 | 9 | 12 | 380 | 50 | 1000 | 280 | DN50 |
