| Picture | Model | DN(mm) | Rated Flow(m³/h) | Rated Head(m) | Max. Head(m) | Voltage(V) | Frequency(Hz) | Power(W) | Port-to-port length(mm) | Pipe connection/Flange |
|---|---|---|---|---|---|---|---|---|---|---|
 |
Classic 25-7.5 | 25 | 2.5 | 4.5 | 7.5 | 230 | 50/60 | 70 | 130/180 | G1 1/2 |
 |

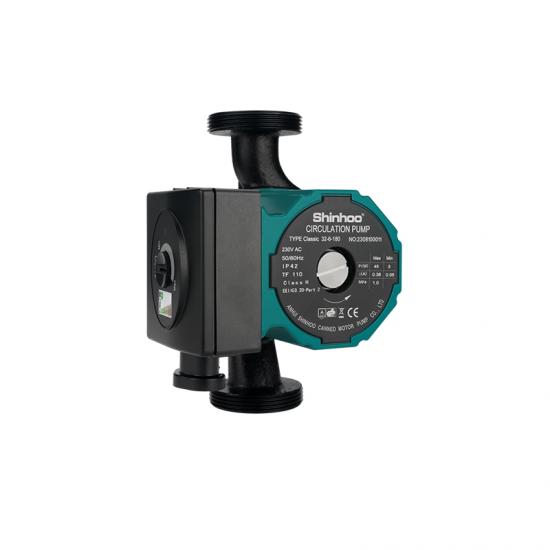

Classic 32-6 | 32 | 2 | 3 | 6 | 230 | 50/60 | 45 | 180 | G2 |
 |

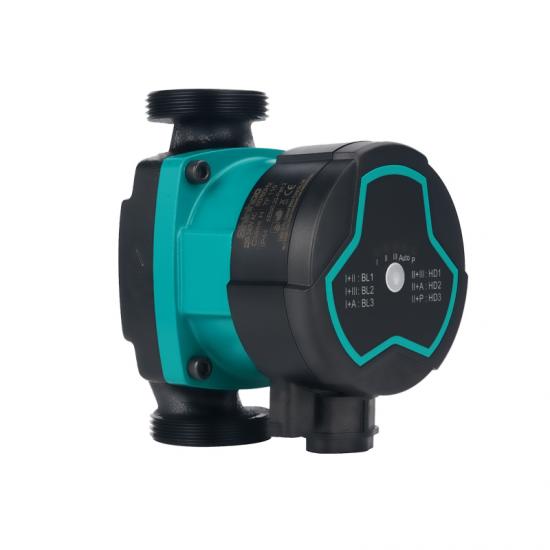

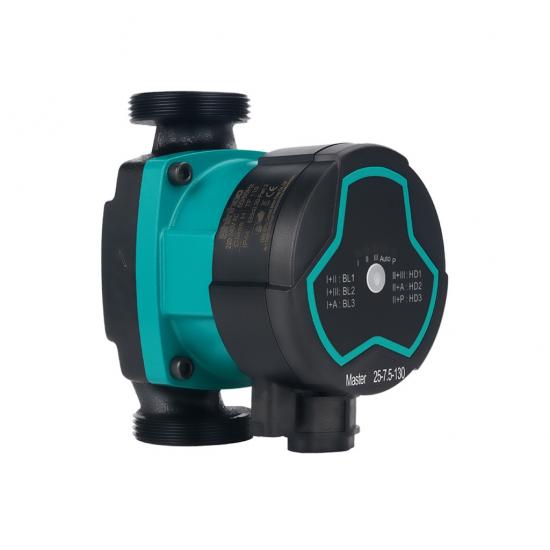

Master 25-8 | 25 | 2.2 | 5.5 | 8 | 220~240 | 50/60 | 70 | 130/180 | G1 1/2 |
 |
Master S 25-4 | 25 | 1.8 | 2 | 4 | 220~240 | 50/60 | 25 | 130/180 | G1 1/2 |
 |
Classic 25-6 | 25 | 2 | 3 | 6 | 230 | 50/60 | 45 | 130/180 | G1 1/2 |
 |
Classic E 25-6 | 25 | 2 | 3 | 6 | 230 | 50/60 | 45 | 130/180 | G1 1/2 |
 |
Master S 25-8 | 25 | 2.5 | 6.5 | 8 | 220~240 | 50/60 | 70 | 130/180 | G1 1/2 |
 |
Master 20-8 | 20 | 2.2 | 5.5 | 8 | 220~240 | 50/60 | 70 | 130 | G1 |
