| Picture | Model | DN(mm) | Rated Flow(m³/h) | Rated Head(m) | Max. Head(m) | Voltage(V) | Frequency(Hz) | Power(W) | Port-to-port length(mm) | Pipe connection/Flange |
|---|---|---|---|---|---|---|---|---|---|---|
 |
Master 20-4 | 20 | 1.6 | 2 | 4 | 220~240 | 50/60 | 25 | 130 | G1 |
 |

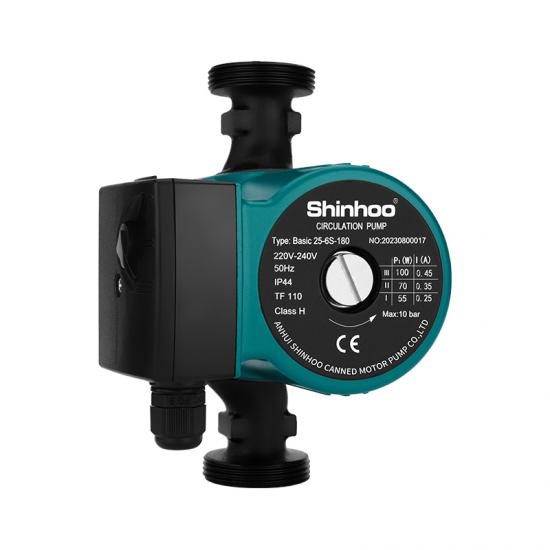

Basic 25-6S | 25 | 2 | 3.5 | 6 | 115/230 | 50/60 | 100/70/55 | 130/180 | G1 1/2 |
 |
Basic 80-8SF Pro | 80 | 25 | 5 | 8 | 380 | 50 | 1000 | 360 | Flange |
 |
Basic 50-16F | 50 | 12.5 | 12.5 | 17 | 230 | 50/60 | 1300 | 280 | DN50 |
 |
Basic 40-12SF | 40 | 8 | 10 | 12 | 380 | 50 | 700 | 250 | DN40 |
 |
Basic 25-20S | 25 | 9 | 14 | 20 | 380 | 50 | 1000 | 230 | G1 1/2 |
 |
Basic 40-16SF | 40 | 8 | 15 | 18 | 380 | 50 | 1000 | 250 | DN40 |
 |
Basic 50-12SF | 50 | 15 | 9 | 12 | 380 | 50 | 1000 | 280 | DN50 |
